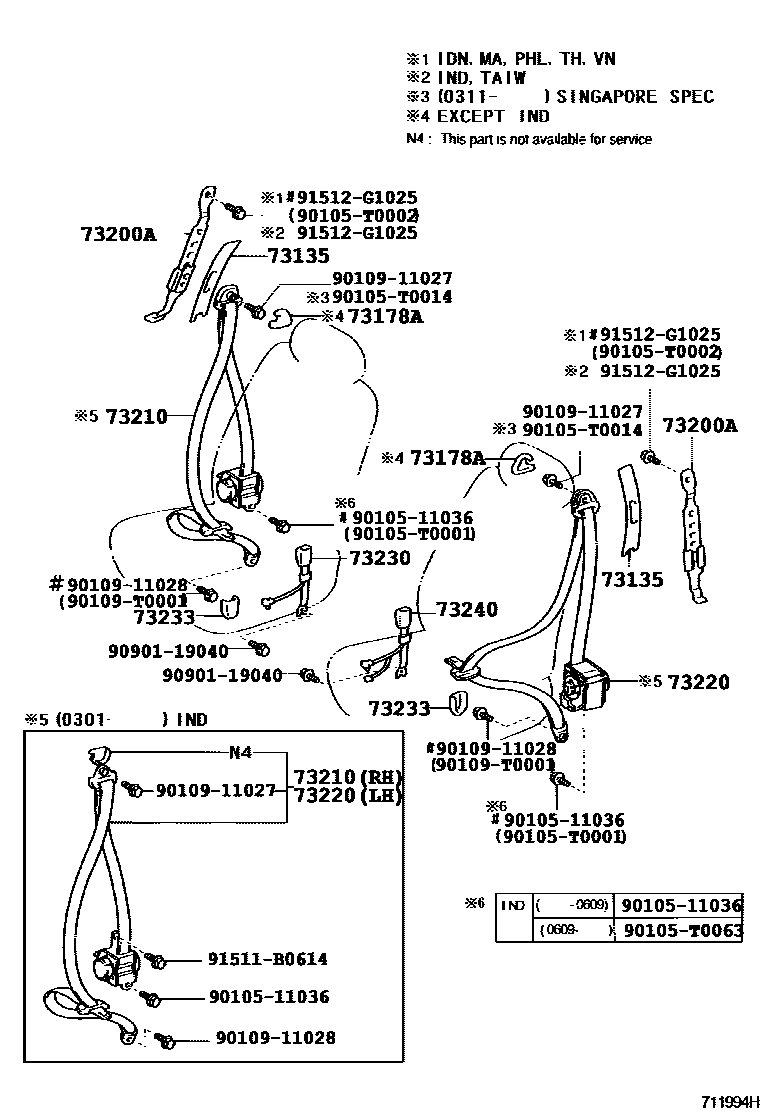

Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104
Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 73210 | Front right seat outer seat belt assembly | 73210-02050 |
| 73220 | Front left seat outer seat belt assembly | 73220-02100 |
| 73360B | Rear seat outer seat belt assembly | 73360-02250 |
| 73370B | Rear seat outer seat belt assembly | 73360-02250 |
| 73439 | Rear seat belt retractor cushion | 73439-02040 · 73439-12040 |
| 73470B | Rear right seat center inner seat belt assembly | 73470-02090 |
| 73480 | Rear left seat center inner seat belt assembly | 73480-02100 |
