Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

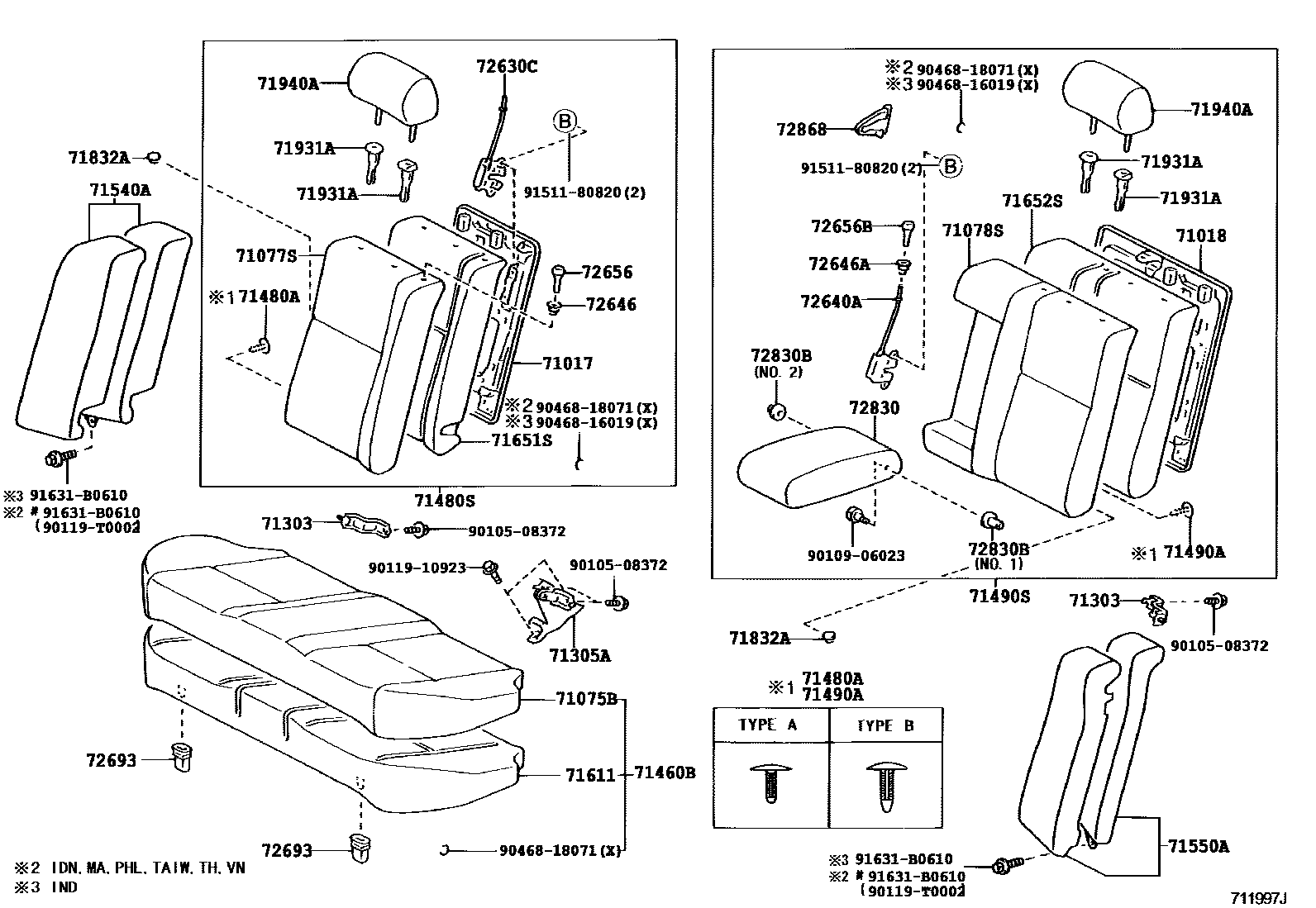

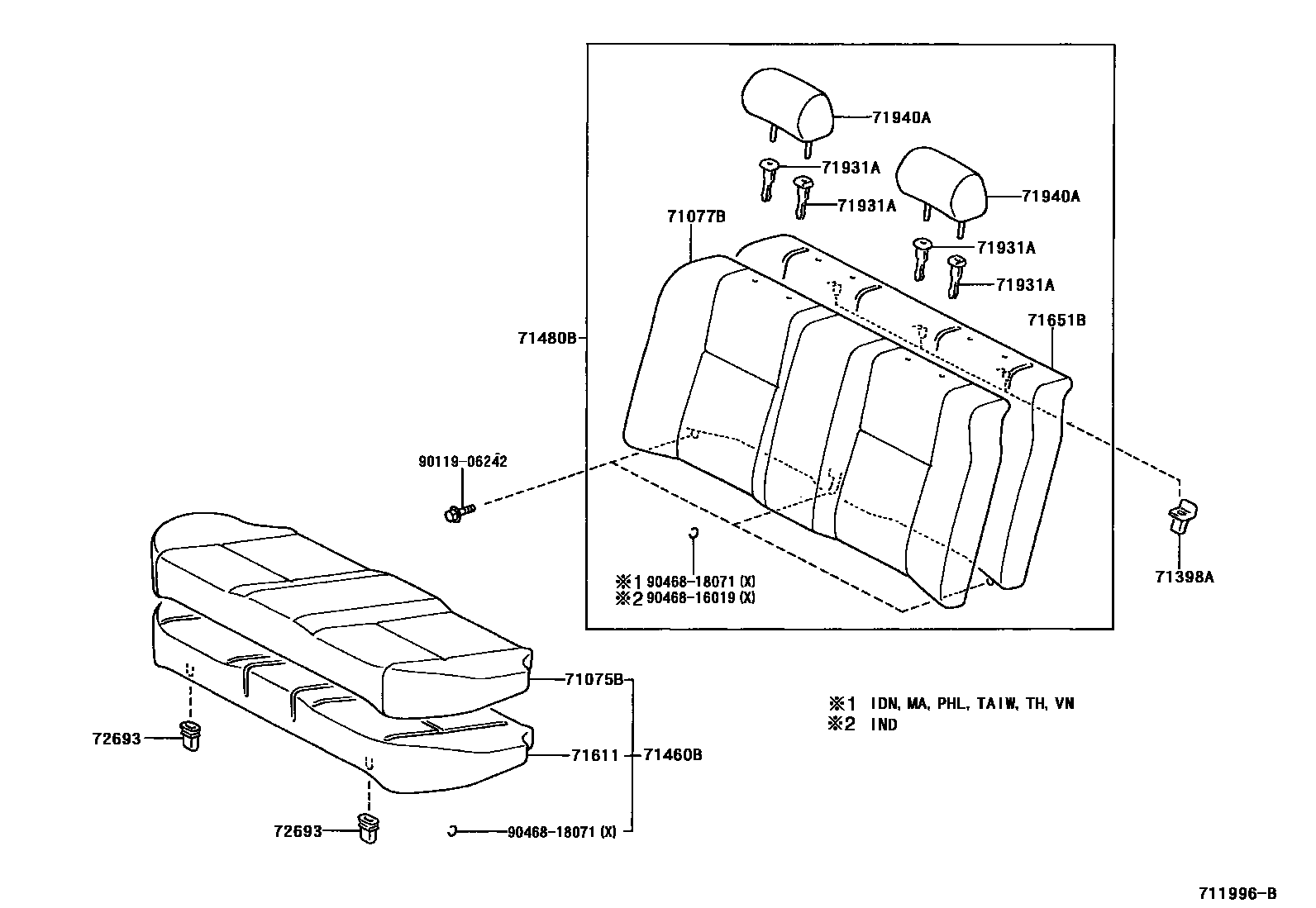

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-02090 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02050 |
| 71077S | Right rear seat back cover (for split seats) | 71077-02861 |
| 71078S | Rear left seat back cover (for split seats) | 71078-02281 |
| 71303 | Rear seat back hinge sub-assembly | 71303-02040 · 71303-33010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02040 · 71305-12170 |
| 71398A | Rear seat back retainer | 71398-02040 · 71398-33010 |
| 71611 | Rear seat cushion cushion | 71503-02060 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-02060 · 71507-02110 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02060 · 71651-02070 · 71651-02170 · 71651-02220 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02060 · 71652-02070 · 71652-02170 · 71652-02210 |
| 71940A | Rear seat headrest assembly | 71940-02581 |
| 72630C | Rear right seat back lock assembly | 72630-47010 |
| 72640A | Rear left seat back lock assembly | 72640-47010 |
| 72693 | Rear seat cushion hook | 72693-02020 · 72693-12080 |
| 72830B | Bushing (for rear seat center armrest) | 90386-06011 · 90386-08077 |
