Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

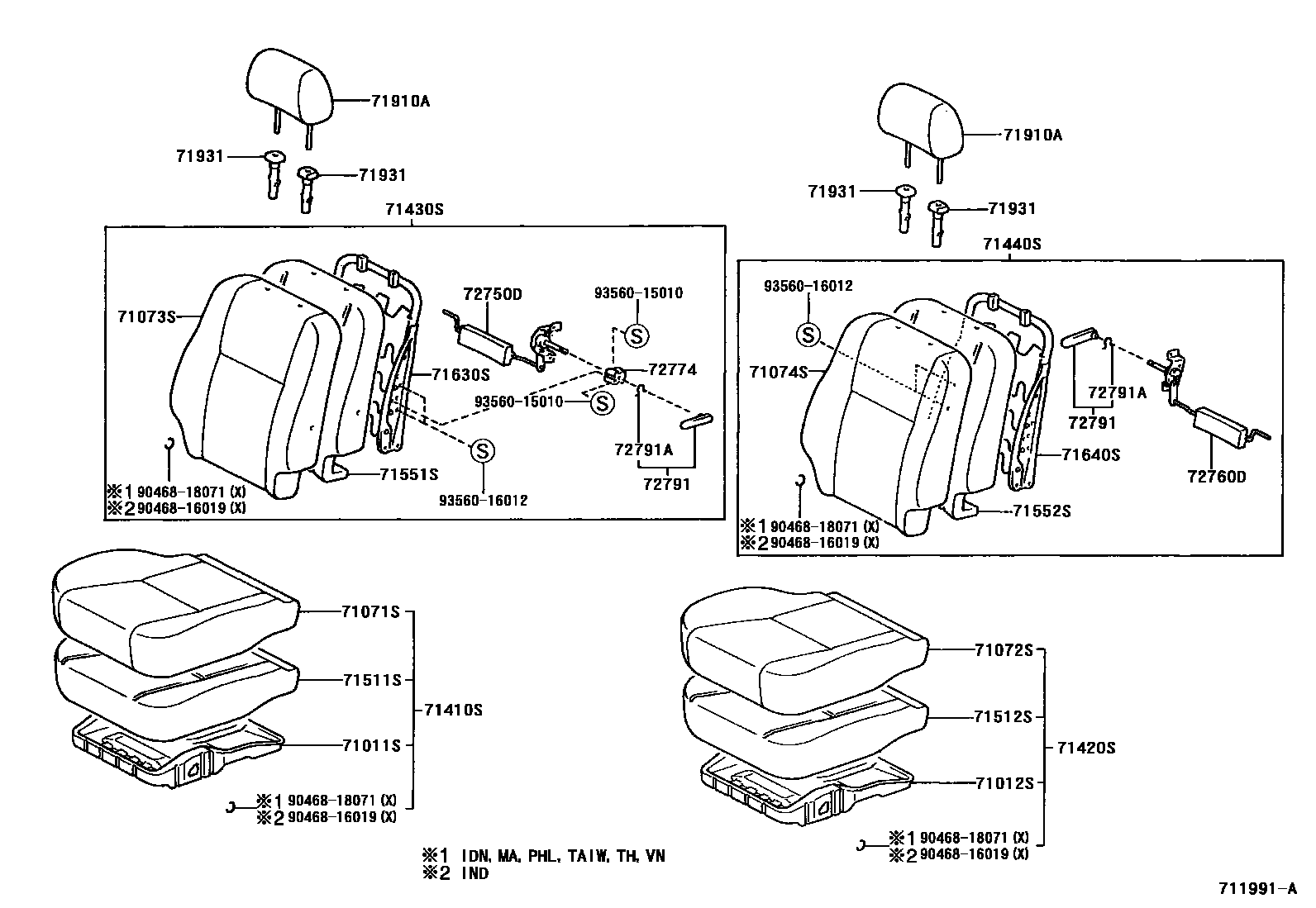

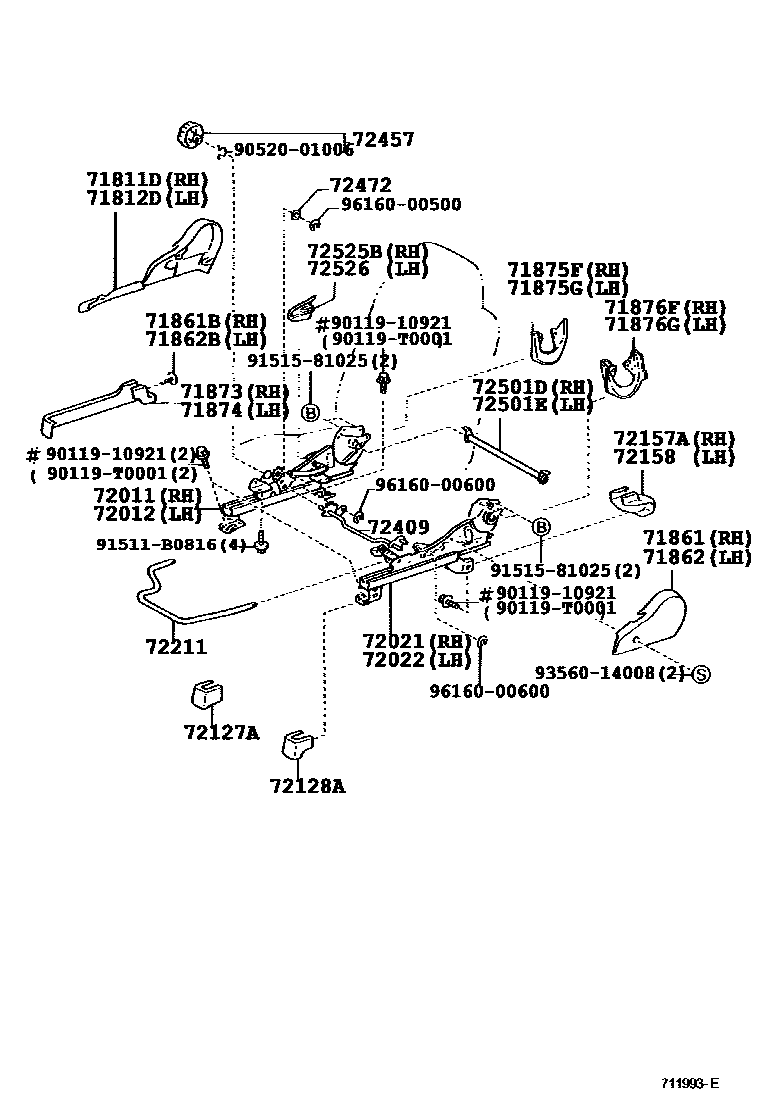

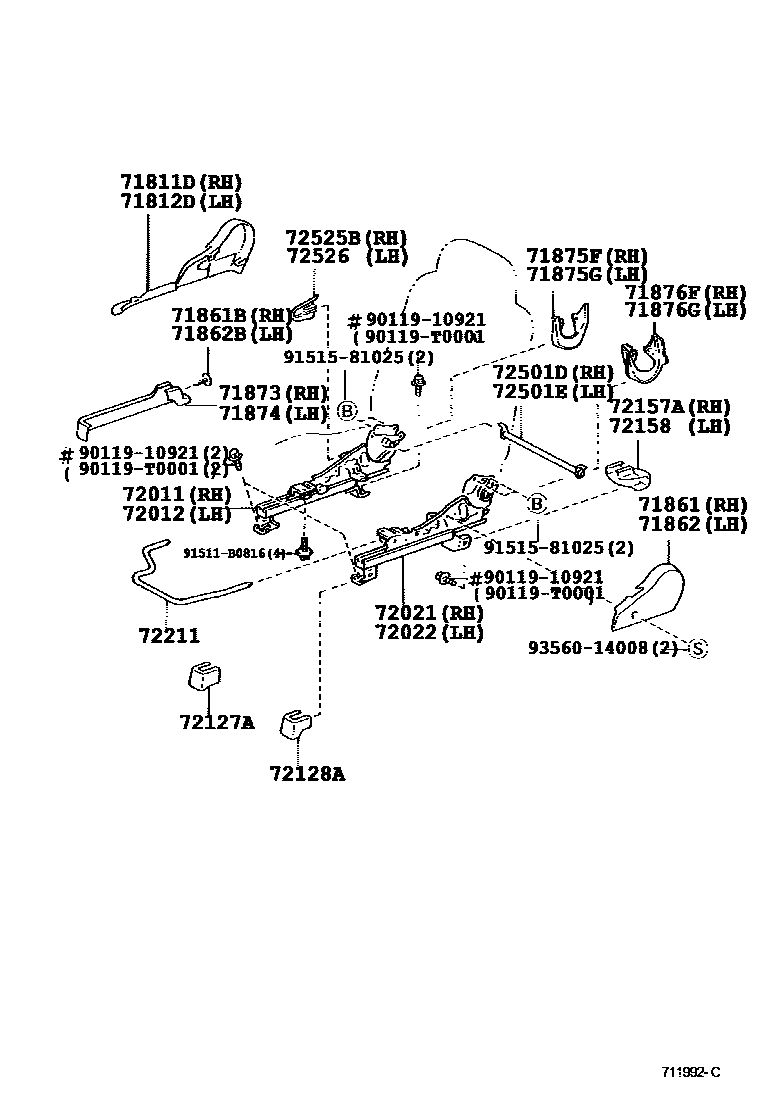

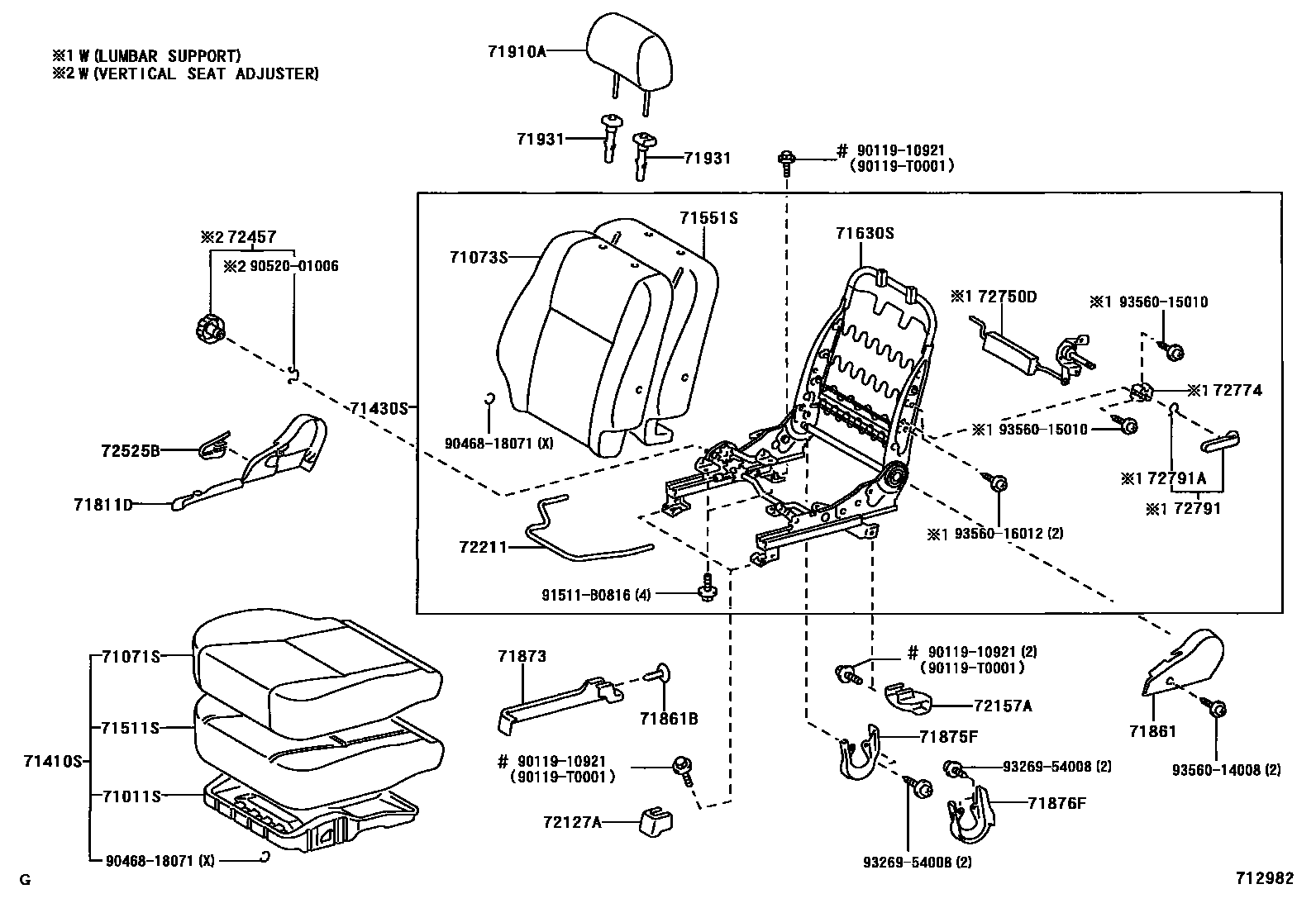

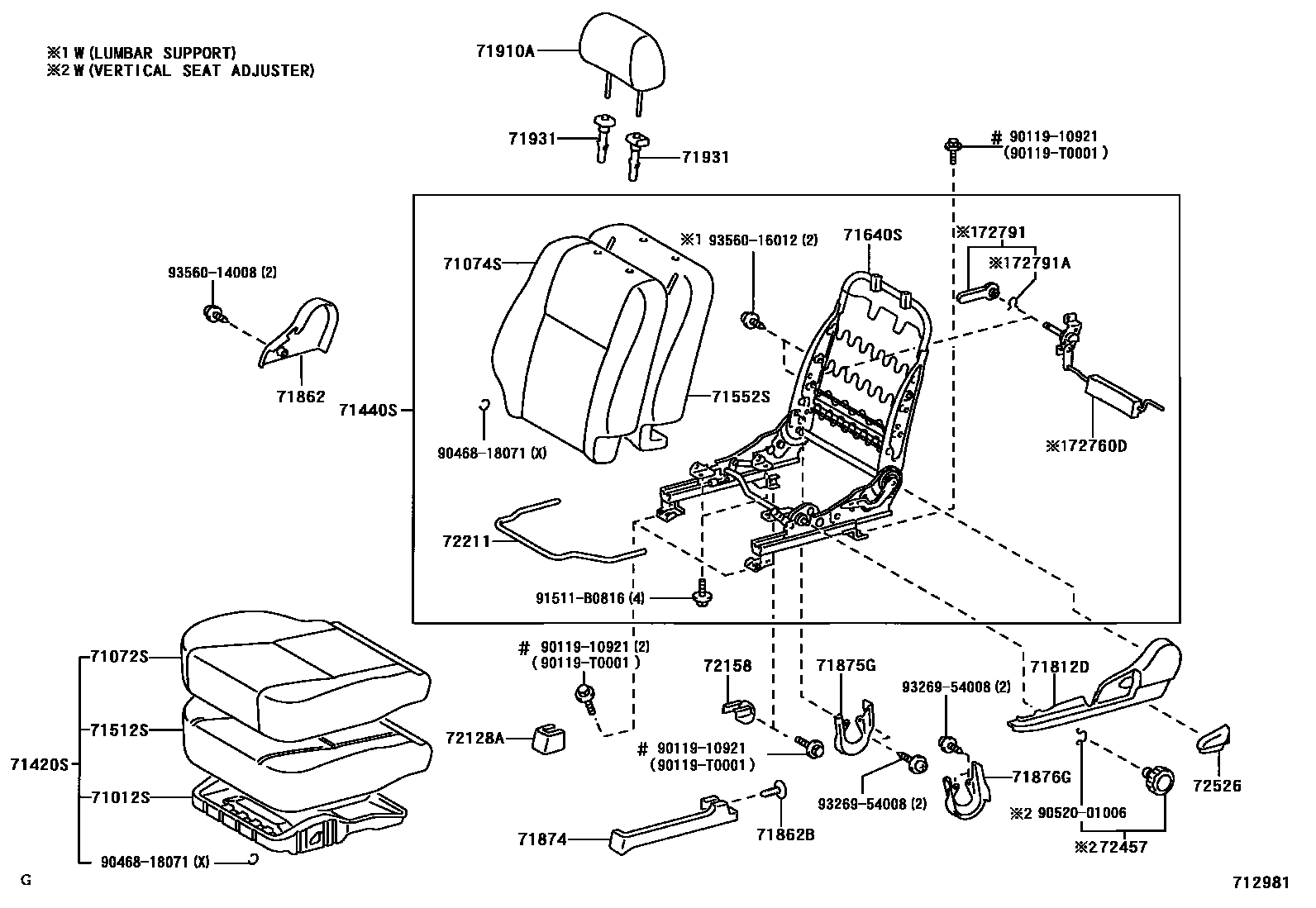

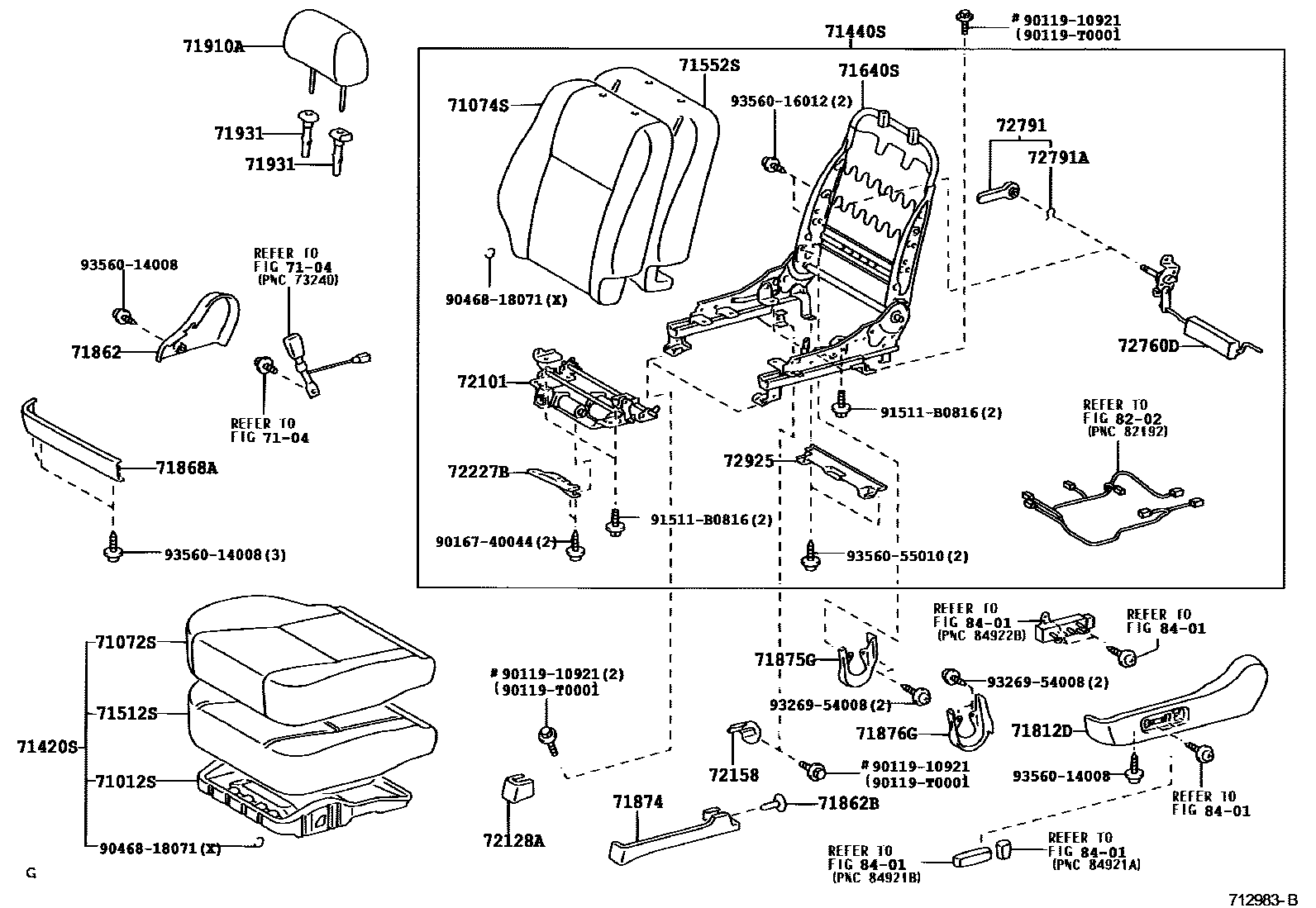

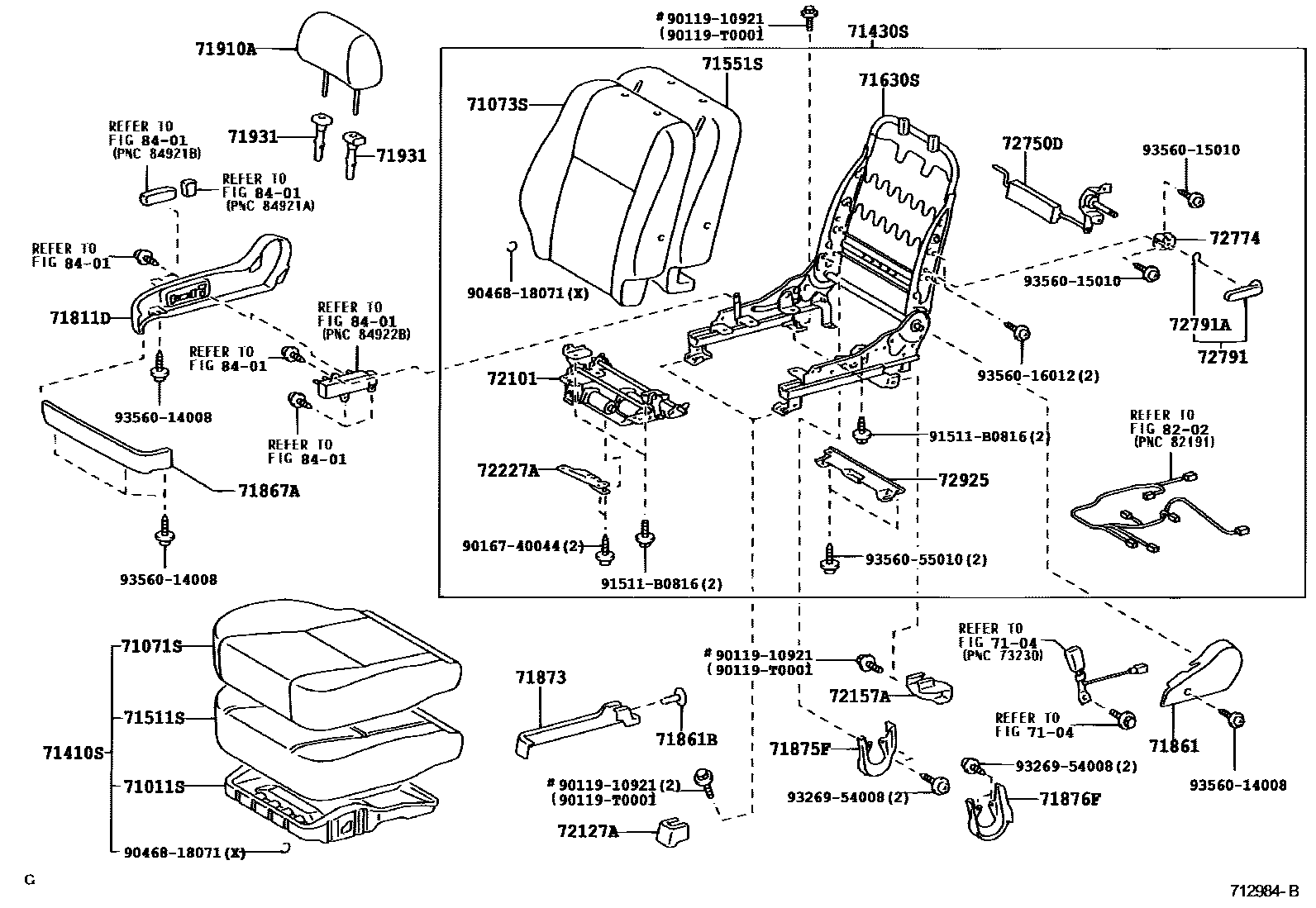

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 7 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71011S | Front right seat cushion frame sub-assembly | 71011-02040 · 71011-02050 · 71011-06060 |
| 71012S | Front left seat cushion frame sub-assembly | 71011-02040 · 71011-02050 · 71011-06050 |
| 71071S | Front right seat cushion cover (for split seats) | 71071-02A21 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-02721 · 71072-02P20 · 71072-02P30 · 71072-02P40 |
| 71073S | Front right seat back cover (for split seats) | 71073-02A11 · 71073-02A51 |
| 71074S | Front left seat back cover (for split seats) | 71074-02A81 · 71074-02A92 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-02090 · 71511-02100 · 71511-02180 · 71511-02190 · 71511-02210 · 71511-02220 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-02090 · 71511-02100 · 71511-02180 · 71511-02210 · 71511-02220 |
| 71551S | Front right seat back cushion (for split seats) | 71551-02080 · 71551-02100 · 71551-02120 · 71551-02130 · 71551-02140 · 71551-02310 · 71551-02320 |
| 71552S | Front left seat back cushion (for split seats) | 71551-02100 · 71551-02120 · 71552-02060 · 71552-02070 · 71552-02080 · 71552-02150 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-02050 · 71630-02060 · 71630-02150 · 71630-02160 · 71630-02170 · 71630-02171 · 71630-02180 · 71630-02181 · 71630-02200 · 71630-02210 · 71630-02211 · 71630-02230 · 71630-02231 · 71630-02390 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-02050 · 71630-02060 · 71640-02080 · 71640-02100 · 71640-02101 · 71640-02110 · 71640-02111 · 71640-02120 · 71640-02121 · 71640-02130 · 71640-02131 · 71640-02140 · 71640-02141 · 71640-02190 · 71640-02191 |
| 71811D | Front right seat cushion guard | 71811-02060 · 71811-06050 · 71811-0A010 |
| 71812D | Front left seat cushion guard | 71812-02060 · 71812-0A010 |
| 71861 | Front seat cushion right inner guard panel | 71861-02040 · 71861-0A010 |
| 71862 | Front seat cushion left inner guard panel | 71862-02030 · 71862-0A010 |
| 71867A | Front right seat No. 1 seat cushion inner protection panel | 71867-06020 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-06060 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-06060 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-06060 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-06060 |
| 71910A | Front seat headrest assembly | 71910-02451 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-02070 · 72011-02081 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-02070 · 72012-02081 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-02070 · 72021-02080 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-02070 · 72022-02080 |
| 72101 | Front seat outer slide rail lower bracket sub-assembly | 72101-06011 |
| 72211 | Seat slide adjustment handle | 72211-02020 |
| 72227A | Right No. 2 seat slide rail bracket | 72227-02020 |
| 72227B | Left No. 2 seat slide rail bracket | 72227-02010 |
| 72409 | Height adjustment shaft sub-assembly | 72409-02020 · 72409-02030 |
| 72457 | seat height adjuster knob | 72457-12030 · 72457-18010 |
| 72472 | No. 1 Height Adjuster Lever Pin | 72472-02010 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-02030 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-02030 |
| 72525B | Right seat back recliner release handle | 72525-0A010 · 72525-16010 |
| 72526 | Left seat back recliner release handle | 72526-0A010 · 72526-16010 |
| 72750D | Right lumbar support adjuster assembly | 72750-02010 |
| 72760D | Left lumbar support adjuster assembly | 72760-12110 |
| 72774 | Lumbar support spring guard | 72774-02010 |
| 72791A | Shaft snap ring (for lumbar support rod) | 90520-01274 |
| 72925 | Front seat cushion cover | 72925-02010 |
