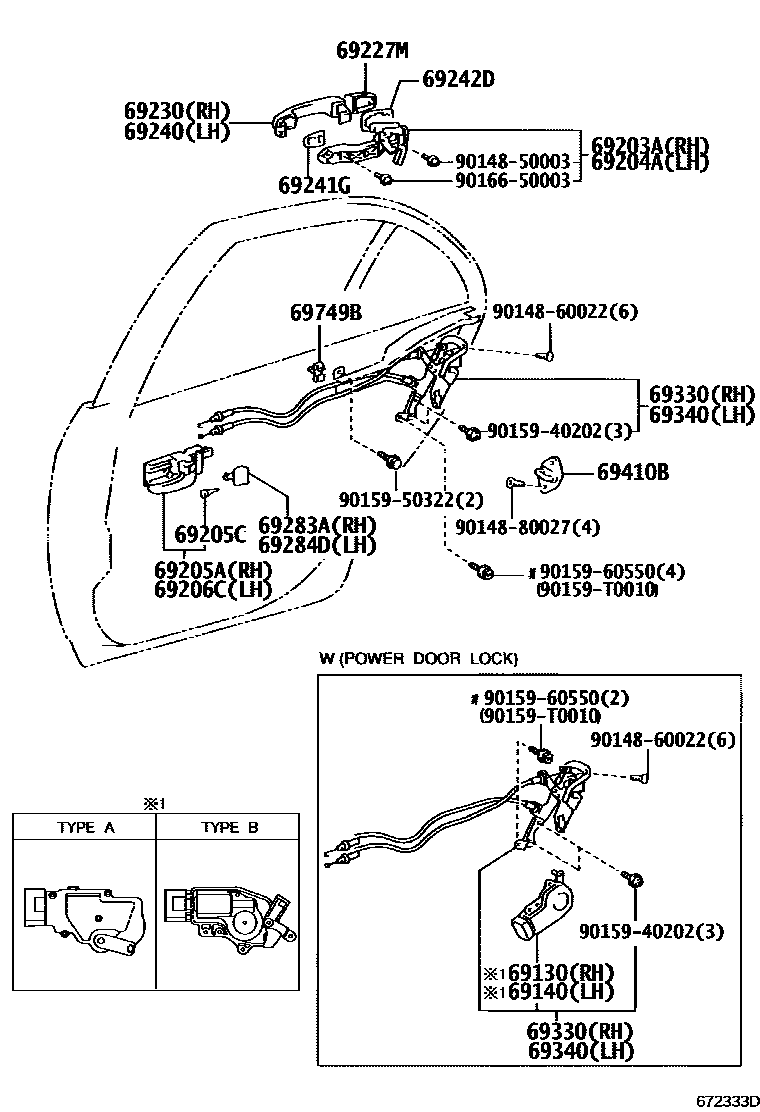

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69130 | Right rear door lock actuator assembly | 69130-02020 · 69130-02040 · 69130-02041 · 69130-12040 |
| 69140 | Left rear door lock actuator assembly | 69140-02020 · 69140-02040 · 69140-02041 · 69140-12040 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02050 · 69203-02070 · 69203-12010 · 69203-12050 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02050 · 69204-02070 · 69204-12010 · 69204-12050 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04027 |
| 69227M | Rear door outer handle cover | 69227-02070 · 69227-02140 · 69227-02150 · 69227-02903 · 69227-06030 · 69227-06900 · 69227-12070 · 69227-12080 · 69227-42060 · 69227-42070 · 69227-42901 |
| 69230 | Right rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06060 · 69210-06905 · 69210-12260 · 69211-02130 · 69211-12220 · 69211-12230 · 69211-12902 · 69211-42010 |
| 69240 | Left rear door outer handle assembly | 69210-02070 · 69210-06040 · 69210-06060 · 69210-06905 · 69210-12260 · 69211-02130 · 69211-12220 · 69211-12230 · 69211-12902 · 69211-42010 |
| 69241G | Rear door front exterior handle pad | 69241-06030 · 69241-42020 |
| 69242D | Left rear door outer handle pad | 69242-06020 · 69242-42010 · 69242-52020 |
| 69330 | Right rear door door lock assembly | 69050-02070 · 69050-02120 · 69050-02121 · 69050-12350 · 69330-02090 · 69330-12380 |
| 69340 | Left rear door lock assembly | 69060-02070 · 69060-02120 · 69060-02121 · 69060-12350 · 69340-02090 · 69340-12380 |
| 69410B | Rear door lock plate assembly | 69410-02040 · 69410-20110 · 69410-47010 |
| 69749B | Rear door lock link clamp | 69749-32040 |
