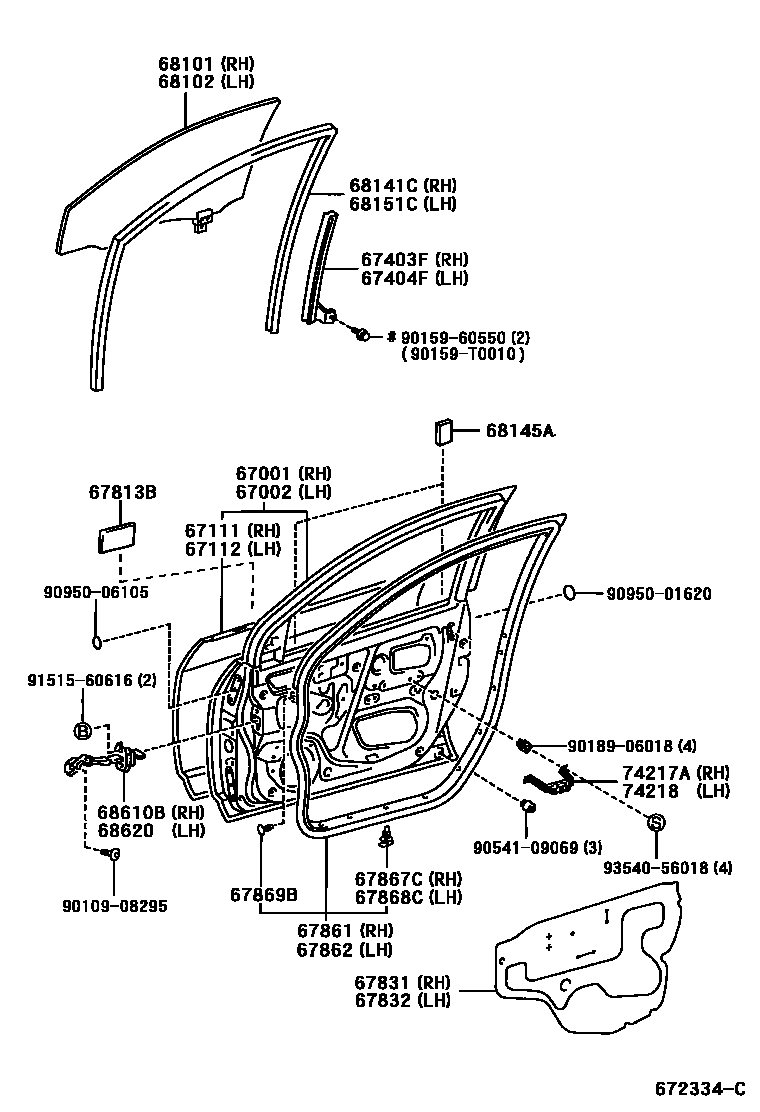

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-1A630 · 67001-1A670 |
| 67002 | Left front door panel sub-assembly | 67002-1A590 · 67002-1A630 |
| 67111 | Outer right front door panel | 67111-12670 |
| 67112 | Outer left front door panel | 67112-12660 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12220 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12200 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12460 · 67491-12470 · 67491-12480 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12460 · 67492-12470 · 67492-12480 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-12060 |
| 67601A | Fixings (for front door trim) | 67771-12050 |
| 67602A | Left door trim panel fixing | 67771-12050 |
| 67813B | door guard seals | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-02090 · 67831-02190 |
| 67832 | Left front door access hole cover | 67832-02090 · 67832-02190 |
| 67861 | Right front door seal | 67861-02100 · 67861-02160 |
| 67862 | Left front door seal | 67862-02100 · 67862-02160 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 67869-20030 |
| 68101 | Right front door glass sub-assembly | 68101-02070 · 68101-02080 · 68101-02180 · 68101-02190 · 68101-1A530 |
| 68102 | Left front door glass sub-assembly | 68102-02070 · 68102-02080 · 68102-02180 · 68102-02190 · 68102-1A530 |
| 68141C | Right front door glass lift channel | 68141-02060 |
| 68145A | Front door window cushion | 69759-0K030 · 69759-12110 |
| 68151C | Left front door glass lift channel | 68151-02050 |
| 68170 | Front door glass inner sealing strip assembly | 68171-02090 · 68171-12290 · 68171-12320 · 68172-02060 · 68172-12210 · 68172-12240 |
| 68610B | Right front door opening limiter assembly | 68610-02050 · 68610-02080 · 68610-02100 · 68610-12160 · 68610-12161 |
| 68620 | Left front door opening limiter assembly | 68620-02050 · 68620-02080 · 68620-02100 · 68620-12090 · 68620-12091 |
| 74217A | Right front door armrest reinforcement | 74217-02010 |
| 74218 | Left front door armrest reinforcement | 74218-02010 |
