Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

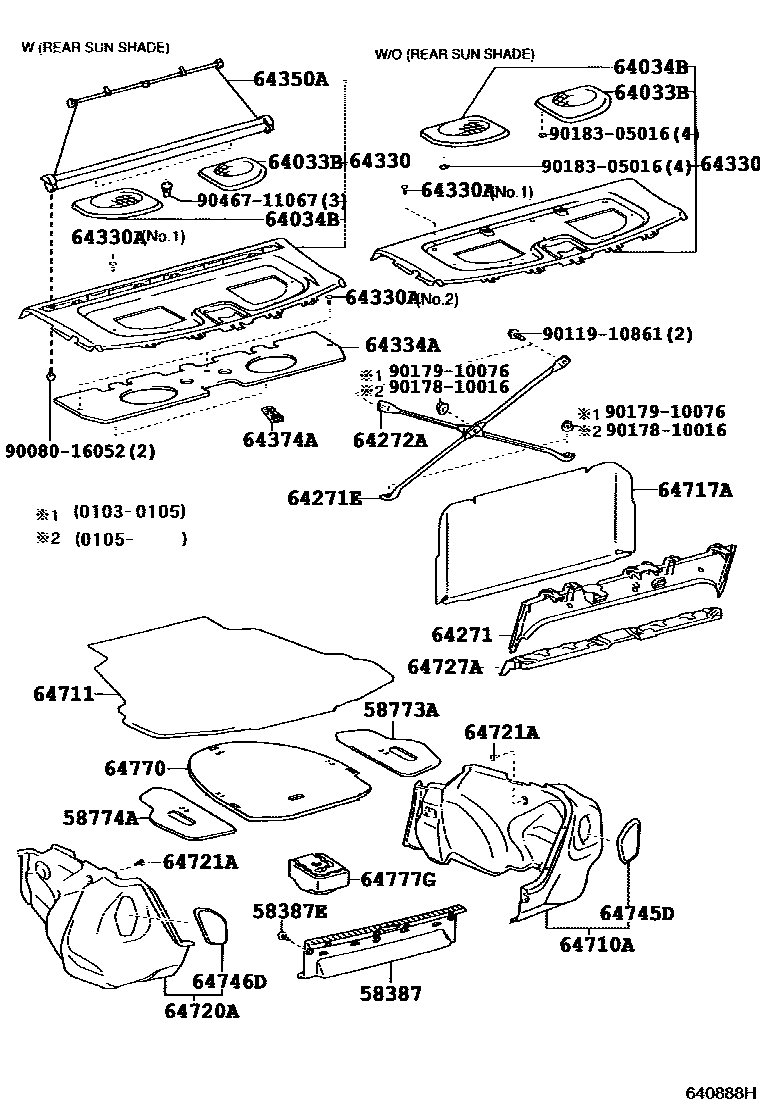

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58773A | Decorative cover on right side of luggage compartment door | 58703-02030 · 58703-02040 |
| 58774A | Luggage door left decorative cover | 58704-02010 · 58704-02030 |
| 64271E | compartment partition | 64241-12030 |
| 64272A | Left compartment partition | 64242-12020 · 64242-12021 |
| 64334A | Glove box decorative mat | 64334-02010 · 64334-02030 · 64334-02040 · 64334-02050 · 64334-02080 |
| 64350A | Rear window sun visor assembly | 64350-02010 |
| 64374A | Glove box decorative panel bracket | 64374-12020 |
| 64727A | Luggage interior decorative mat | 64727-02010 |
| 64770 | Spare tire cover assembly | 64770-02050 · 64770-02060 |
| 64777G | Spare tire cushion | 64777-02040 |
