Toyota COROLLA 车顶内衬和消声垫 — Figure 6402

Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 3 images and 10 PNC and OE references.

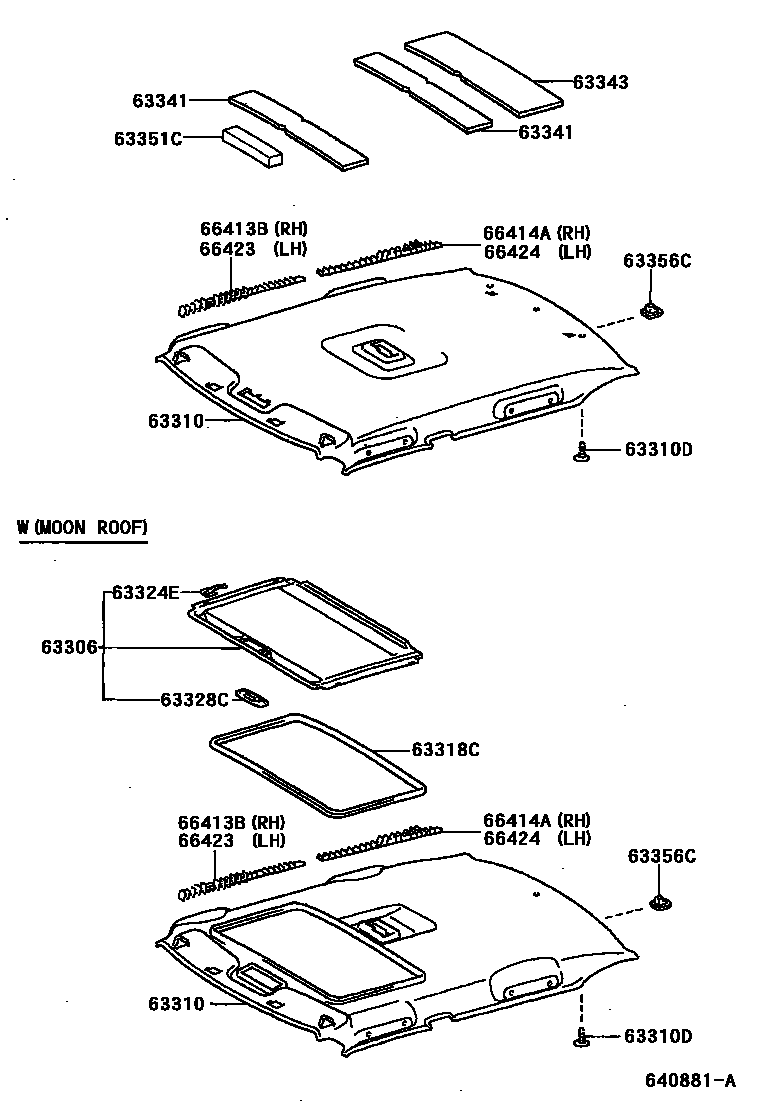

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 640881A
车顶内衬和消声垫 — 640881A (200103 – 200401)

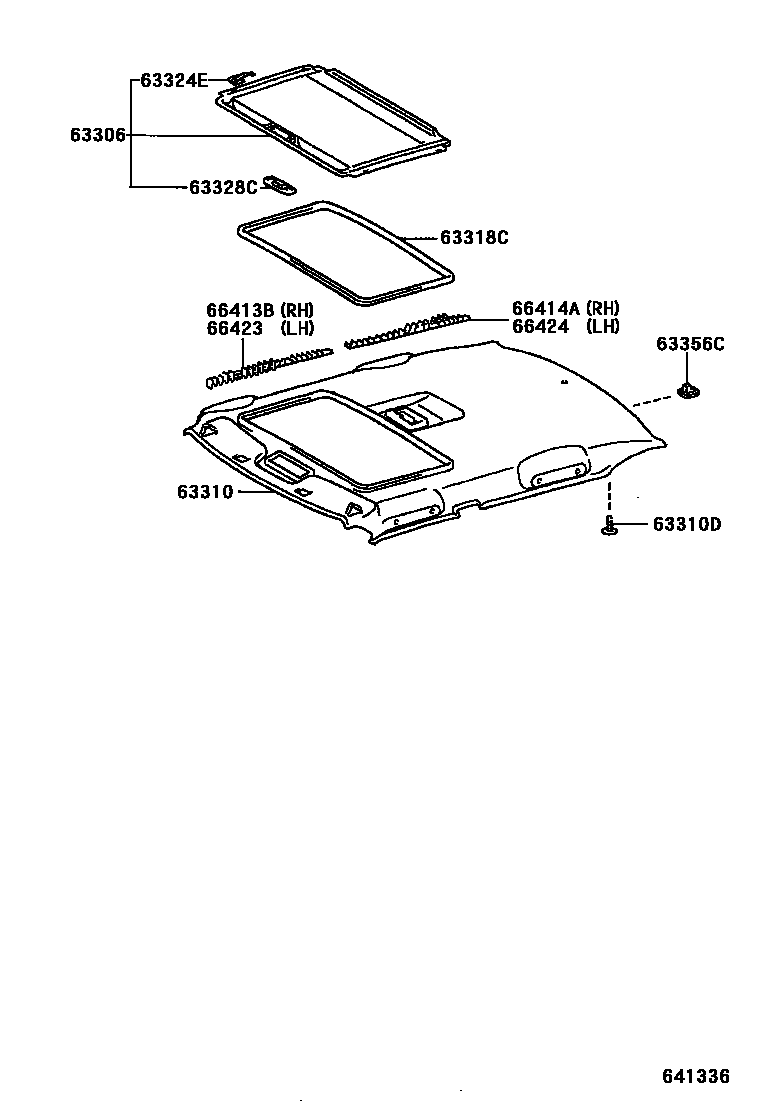

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 641336
车顶内衬和消声垫 — 641336 (200401 – 999999)

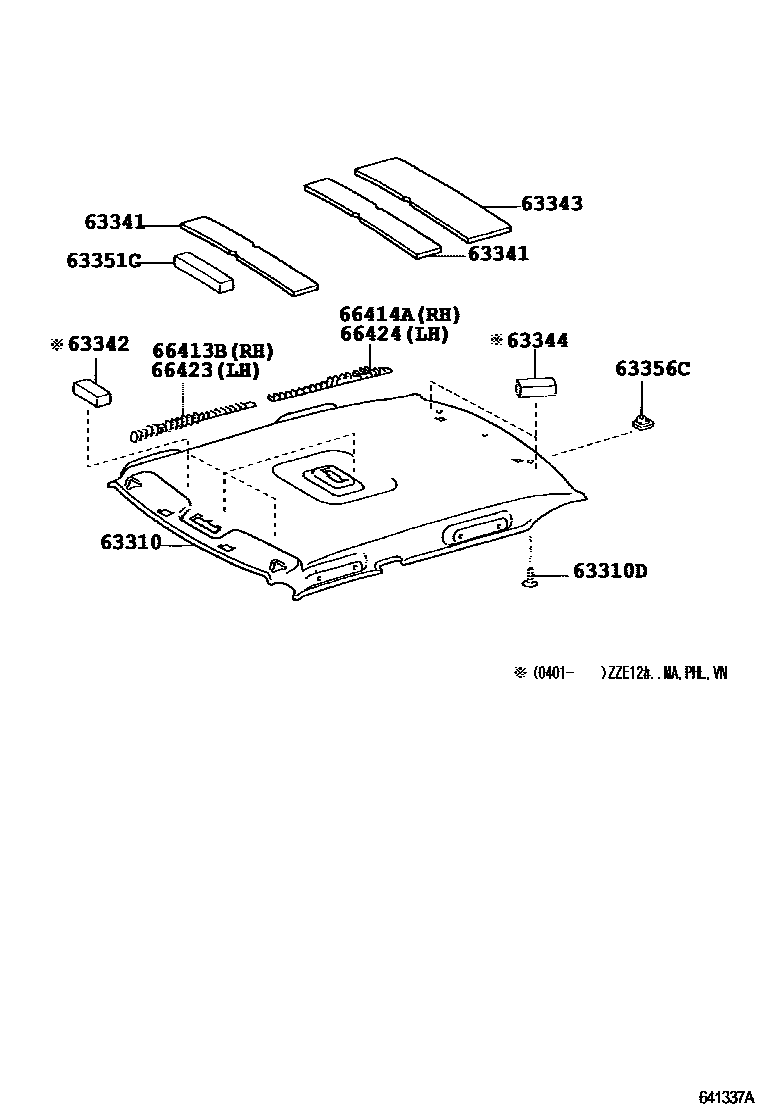

Toyota COROLLA 车顶内衬和消声垫 EPC diagram — 641337A
车顶内衬和消声垫 — 641337A (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
63324ESunshade locking spring63324-02010
63341No. 1 roof silencer mat63341-02030 · 63341-02070 · 63341-02090
63342No. 2 roof muffler pad63342-02120
63343No. 3 roof muffler pad63343-02020 · 63343-02050 · 63343-02070
63344No. 4 roof silencer mat63344-02060
63351Croof lining pads63351-02020 · 63351-02050 · 63351-02051 · 63351-02110
66413BRight front longitudinal member spacer66413-12010
66414ARight rear longitudinal member spacer66414-12030
66423Left front longitudinal member spacer66423-12010
66424Left rear longitudinal member spacer66424-12030
