Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

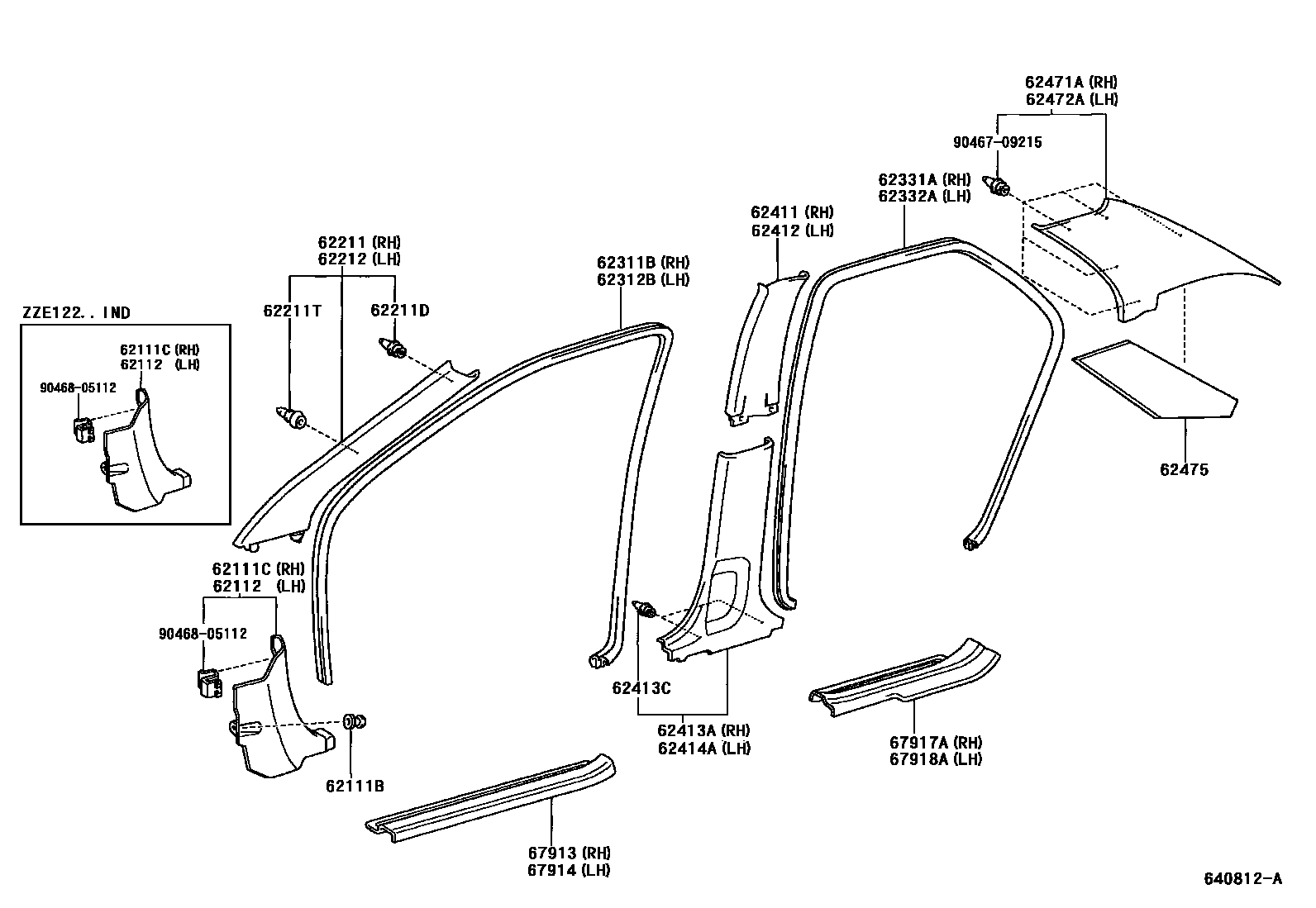

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06120 |
| 62211D | Clip (for body front pillar decorative panel) | 90467-10188 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10192 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-09215 |
| 62475 | Roof side interior trim panel lining | 62475-02010 · 62475-02100 |
| 67913 | Right front door wear plate | 67913-02051 |
| 67914 | Left front door wear plate | 67914-02051 |
| 67917A | Right rear door wear plate | 67917-02041 |
| 67918A | Left rear door wear plate | 67918-02041 |
