Toyota COROLLA 行李箱门和行李箱锁 — Figure 6105

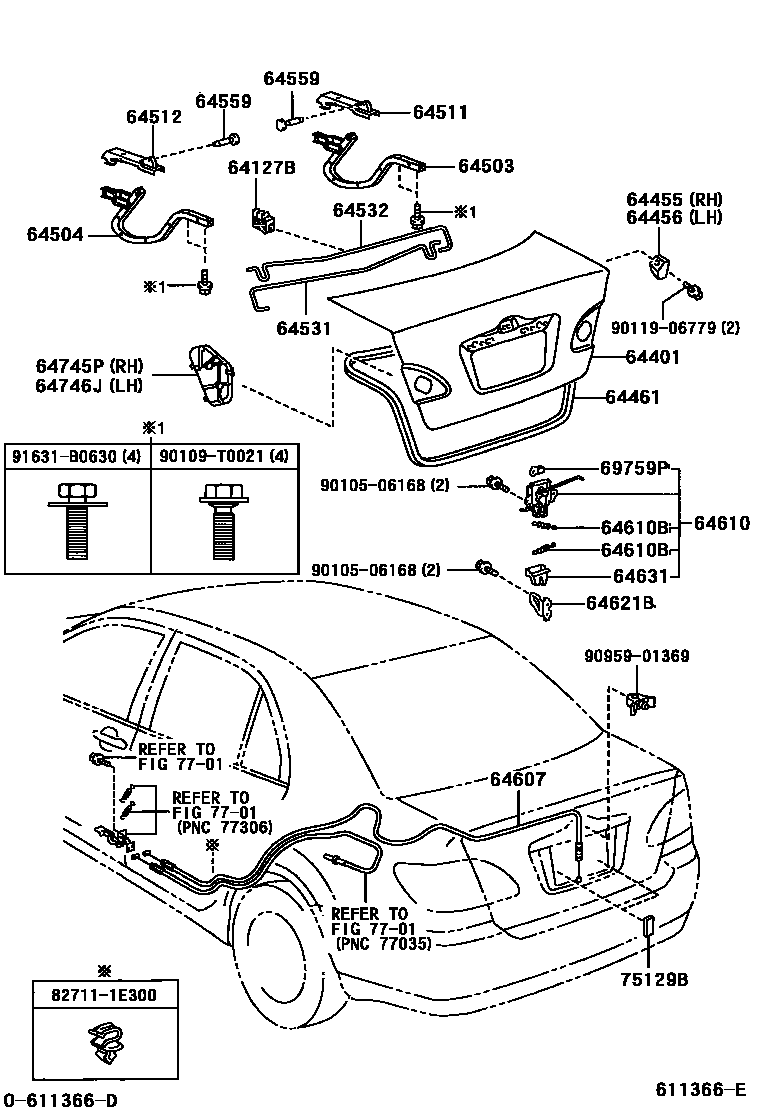

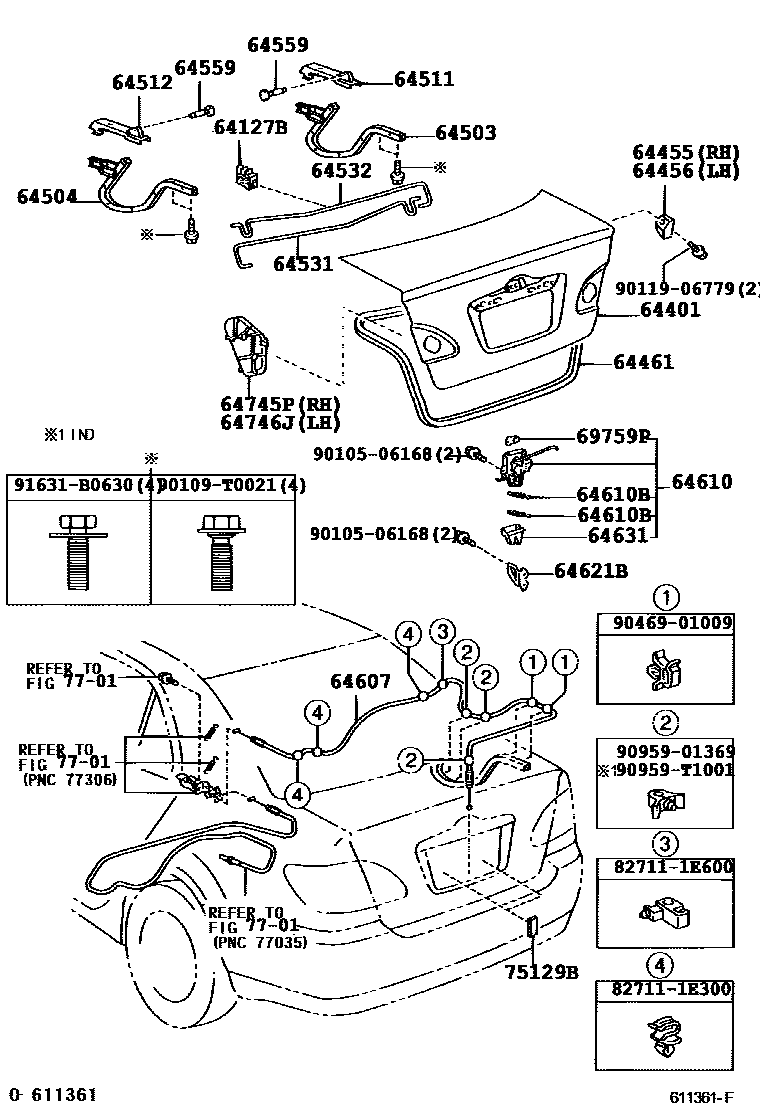

Toyota COROLLA EPC diagram 6105, 行李箱门和行李箱锁, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-33041 |
| 64401 | Trunk door panel sub-assembly | 64401-02180 · 64401-02190 · 64401-02200 · 64401-02210 · 64401-02220 · 64401-1A820 · 64401-1A830 · 64401-1E070 |
| 64455 | Luggage door right cushion | 64455-02010 · 64455-02020 · 64455-02030 |
| 64456 | Luggage door left cushion | 64456-02010 · 64456-02020 · 64456-02030 |
| 64461 | Trunk door seal | 64461-02060 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-02060 · 64503-02070 · 64503-12150 · 64503-12160 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-02060 · 64503-02070 · 64503-12150 · 64503-12160 |
| 64511 | Trunk door right hinge bracket | 64511-12270 |
| 64512 | Trunk door left hinge bracket | 64511-12270 |
| 64531 | Trunk door right hinge torsion bar | 64531-02040 · 64531-02080 · 64531-02090 · 64531-02110 |
| 64532 | Trunk door left hinge torsion bar | 64532-02040 · 64532-02080 · 64532-02090 · 64532-02110 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-02060 · 64607-02070 · 64607-02120 |
| 64610 | Trunk door lock assembly | 64610-02050 |
| 64610B | Tension spring (for trunk door lock) | 90506-05002 · 90506-06010 |
| 64621B | Trunk door latch | 64620-02030 · 64621-12070 |
| 64631 | Trunk door lock protector | 64631-12050 |
| 64745P | Right rear combination light access hole cover | 64745-02050 |
| 64746J | Left rear combination light access hole cover | 64746-02050 |
| 69759P | Door lock control link buckle | 69759-20040 |
| 75129B | rear license plate cushion | 75129-13020 · 75129-21010 |
