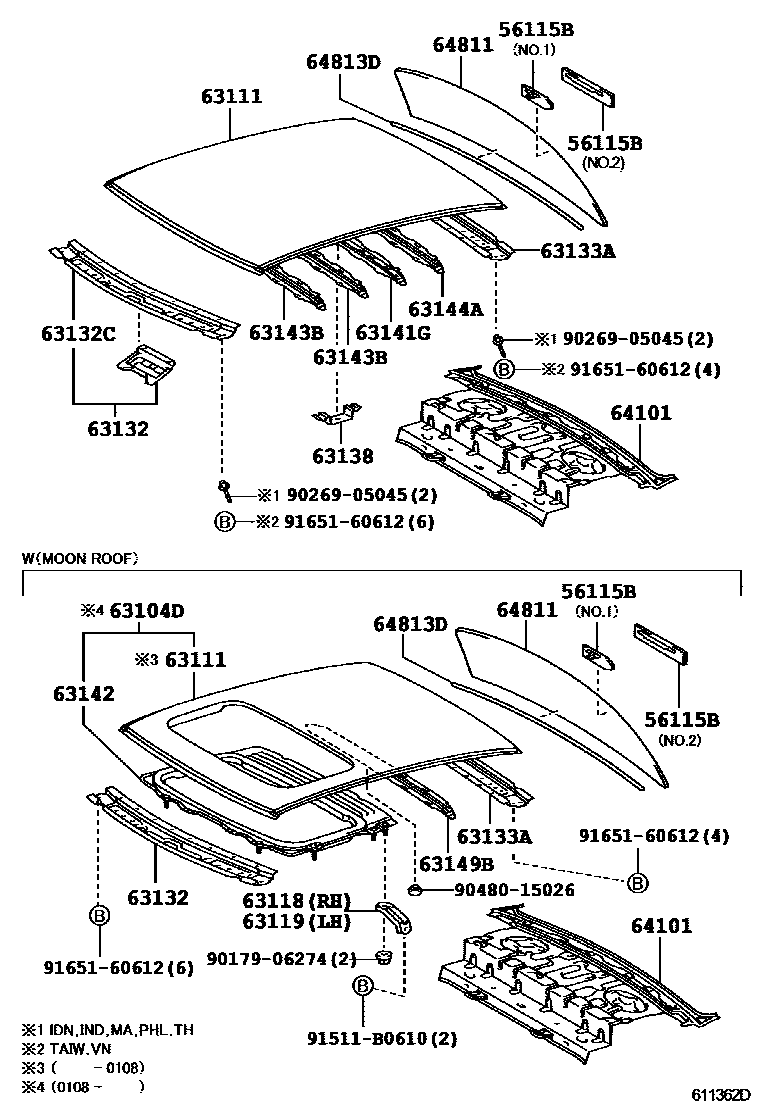

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 56115B | Back window glass stop No. 1 | 56115-02020 · 56115-30100 · 56116-02020 · 56116-22050 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-12050 |
| 63111 | roof panel | 63111-02240 · 63111-12760 · 63111-12770 |
| 63118 | Right roof panel bracket | 63118-12100 |
| 63119 | Left roof panel bracket | 63118-12100 |
| 63132 | Windshield inner roof panel | 63102-12150 · 63102-12180 · 63102-12190 |
| 63132C | Windshield inner roof panel | 63132-12240 · 63132-12290 · 63132-12291 · 63132-12300 |
| 63133A | upper frame of back window | 63133-12260 · 63133-12300 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-12260 |
| 63142 | No. 2 roof panel reinforcement | 63142-12100 |
| 63143B | No. 3 roof panel reinforcement | 63143-12100 |
| 63144A | No. 4 roof panel reinforcement | 63144-12080 |
| 63149B | No. 1 rear roof panel reinforcement | 63149-12020 |

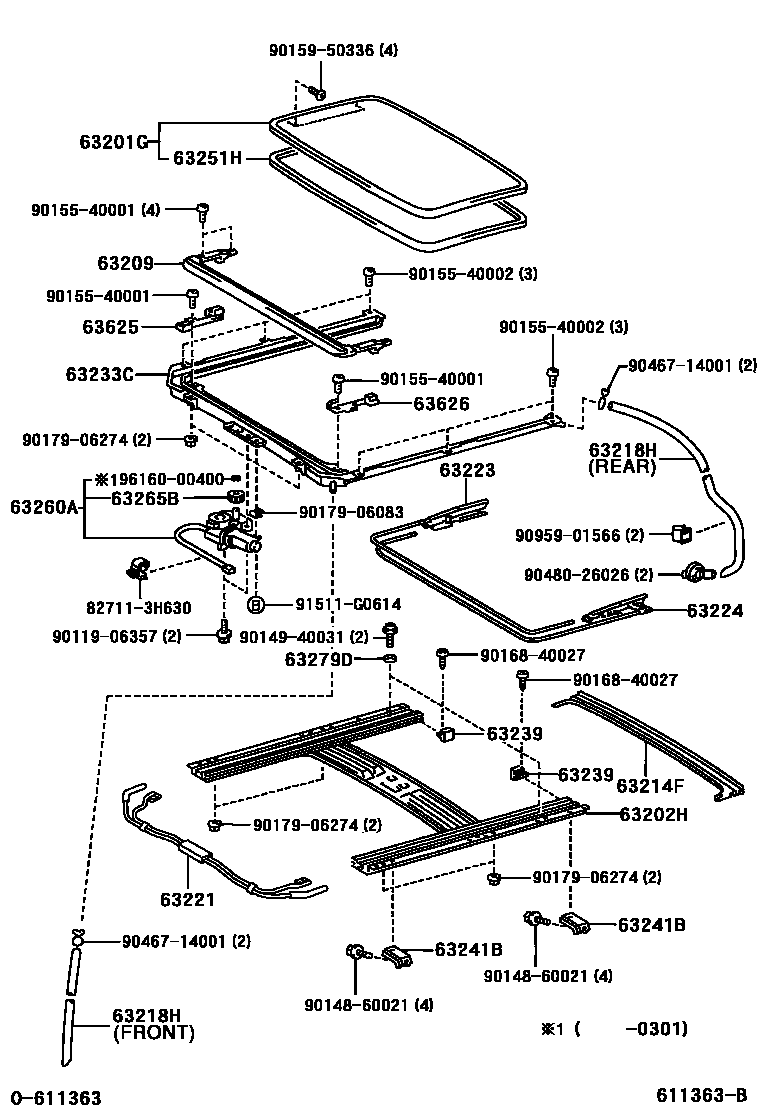

| 63201G | Sliding sunroof glass sub-assembly | 63201-12260 · 63201-12261 · 63201-12262 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-02030 |
| 63209 | Roof deflector sub-assembly | 63209-12170 |
| 63214F | Roof rear drain channel | 63214-02030 |
| 63218H | Sliding skylight drain hose | 63249-12320 · 63249-12330 · 63249-12331 |
| 63221 | Sliding sunroof cable duct | 63221-12100 |
| 63223 | Right sliding sunroof transmission cable | 63223-02030 · 63223-02031 |
| 63224 | Left sliding sunroof transmission cable | 63224-02030 · 63224-02031 |
| 63233C | Sliding skylight shelf | 63233-02030 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241B | Sliding sunroof frame bracket No. 1 | 63241-12110 |
| 63251H | Sliding skylight seal | 63251-12160 · 63251-12161 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12110 |
| 63265B | Sliding sunroof driving gear | 63265-12040 |
| 63279D | Sliding sunroof guide rail stop | 63279-12030 |
| 63625 | Right sliding sunroof guide block | 63625-12050 |
| 63626 | Left sliding sunroof guide block | 63626-12050 |
| 64101 | Upper back panel sub-assembly | 64101-12730 · 64101-12731 · 64101-12740 · 64101-12741 · 64101-12750 · 64101-12751 · 64101-12760 · 64101-12770 · 64101-12780 |
| 64811 | back window glass | 64811-02140 · 64811-02150 · 64811-02160 · 64811-02170 · 64811-02230 |
| 64813D | Back window glass adhesive seal | 56117-02040 · 56117-12240 · 56117-47010 |
