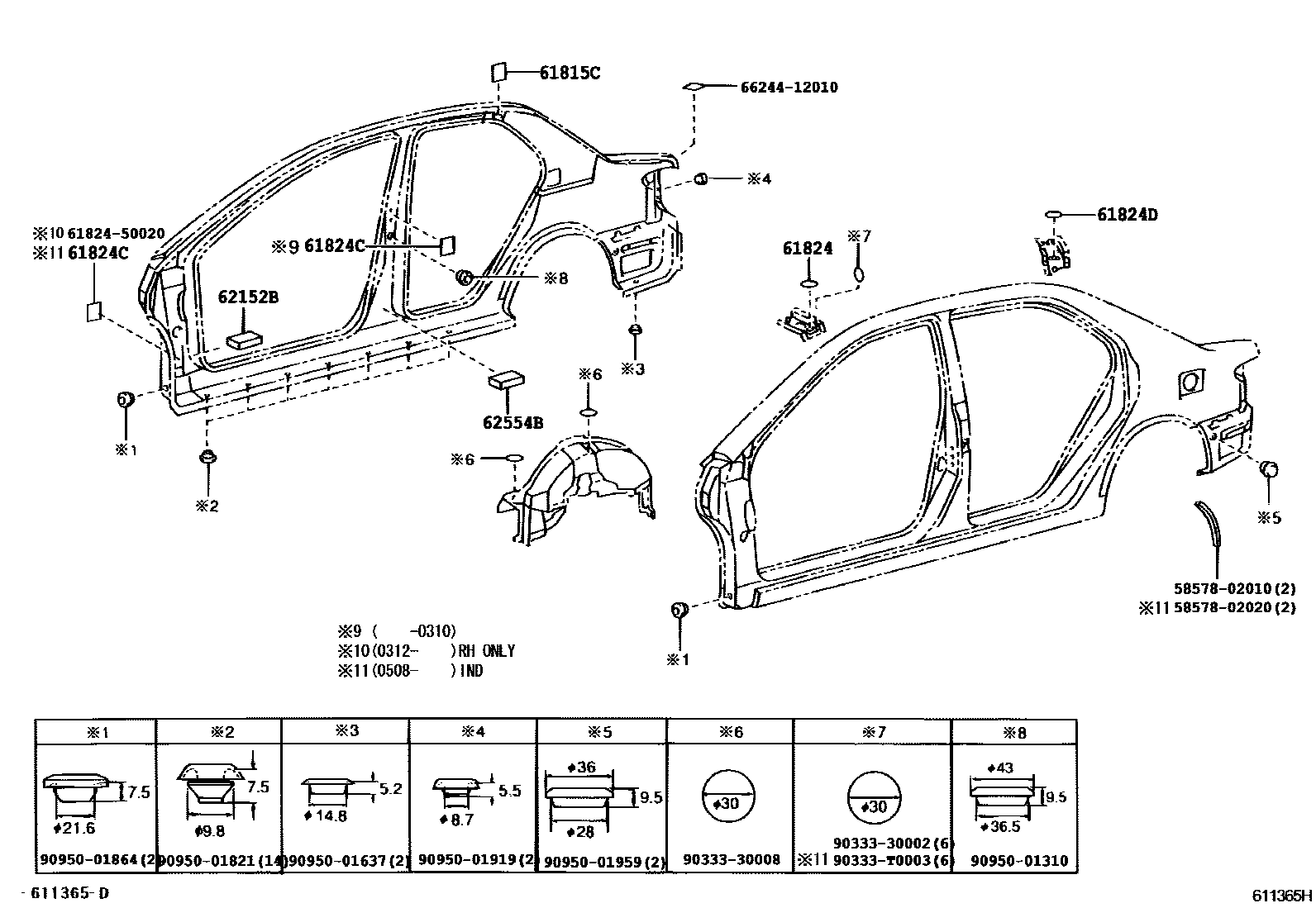

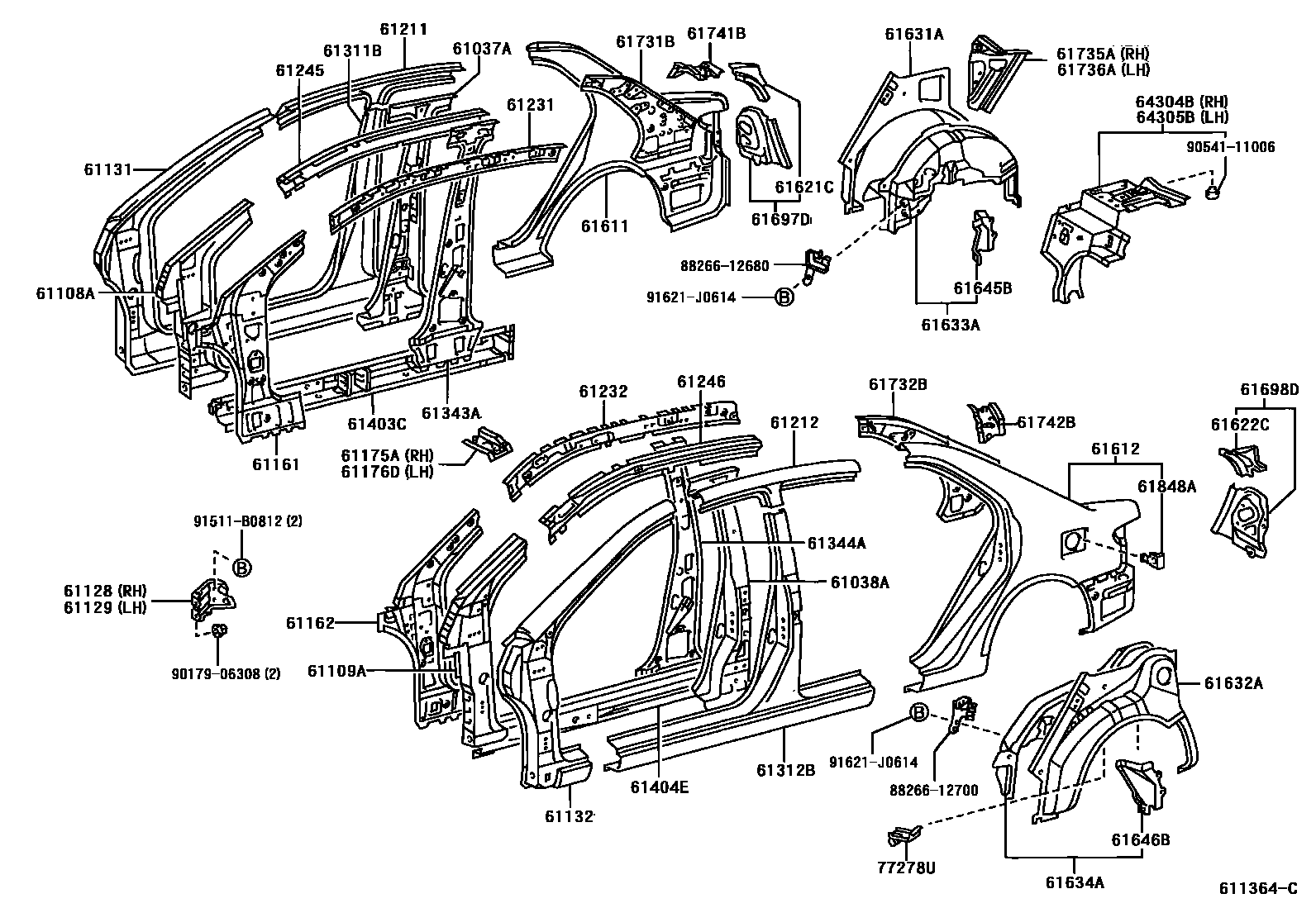

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12904 · 61037-12907 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12904 · 61038-12907 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12230 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12220 |
| 61128 | Right front wall side panel reinforcement | 61103-12190 |
| 61129 | Left front wall side panel reinforcement | 61104-12220 |
| 61131 | Right body outer front upper pillar | 61131-12620 · 61131-12630 · 61131-12640 |
| 61132 | Left body outer front upper pillar | 61132-12630 · 61132-12640 · 61132-12650 |
| 61161 | Right upper body inner front pillar | 61023-02901 · 61023-12300 · 61023-12320 |
| 61162 | Left side inner front upper pillar | 61024-02901 · 61024-12300 · 61024-12320 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-12140 · 61175-12170 · 61175-12190 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-12150 · 61176-12170 · 61176-12180 |
| 61211 | Roof right outer longitudinal beam | 61211-12420 |
| 61212 | Roof left outer longitudinal beam | 61212-12420 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-1A100 · 61231-1A140 |
| 61232 | Roof left inner longitudinal beam | 61232-12870 · 61232-1A020 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-12040 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-12040 |
| 61311B | Right body outer center pillar | 61311-12340 · 61311-12350 |
| 61312B | Left body outer center pillar | 61312-12380 · 61312-12390 |
| 61343A | Right body inner center pillar | 61343-12190 · 61343-12240 · 61343-12250 |
| 61344A | Left body inner center pillar | 61344-12190 · 61344-12240 · 61344-12250 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-12030 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-12030 |
| 61611 | Right side hoarding | 61601-12A00 · 61601-1H140 · 61601-1H150 |
| 61612 | left side panel | 61602-12A00 · 61602-1E870 · 61602-1E880 |
| 61621C | Luggage right opening slot | 61621-12470 |
| 61622C | Luggage trunk left opening slot | 61622-12470 |
| 61631A | Right wheel cover outer panel | 61631-12410 |
| 61632A | Left side wheel cover outer panel | 61632-12430 |
| 61633A | Right wheel housing lining panel | 61607-02914 · 61607-02915 · 61607-02916 · 61607-02917 · 61607-12923 · 61607-12924 · 61607-12927 · 61607-12928 · 61607-12947 |
| 61634A | Left side wheel housing lining panel | 61608-02912 · 61608-02913 · 61608-02914 · 61608-02915 · 61608-12925 · 61608-12926 |
| 61645B | Right rear side wheel housing corner panel | 61645-12150 |
| 61646B | Left rear side wheel housing corner panel | 61646-12140 |
| 61697D | Right side enclosure end cover | 61697-02901 · 61697-02904 |
| 61698D | Left side enclosure end cover | 61698-02901 · 61698-02904 |
| 61731B | Roof right inner panel | 61731-12680 · 61731-12760 |
| 61732B | Roof left inner panel | 61732-12640 · 61732-12710 |
| 61735A | Right rear roof inner panel | 61735-12380 |
| 61736A | Left rear roof inner panel | 61736-12380 |
| 61741B | Rear window opening right reinforcement | 61741-12130 · 61741-12150 |
| 61742B | Rear window opening left reinforcement | 61742-12100 · 61742-12110 |
| 61815C | Inner roof cover | 61815-28010 · 61815-32020 · 61824-02140 |
| 61824 | Noise Control Panel No. 1 | 61824-02130 · 61824-12040 · 61824-12060 |
| 61824C | No. 1 silencer panel gasket | 61824-02150 · 61824-50020 |
| 61824D | Noise Control Panel No. 1 | 61824-02130 · 61824-12040 · 61824-12060 |
| 61848A | Left side panel fixing | 61848-52010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-02070 · 62554-12180 |
| 64304B | Glove box bracket right reinforcement sub-assembly | 64304-02050 · 64304-12040 |
| 64305B | Glove box bracket left reinforcement sub-assembly | 64305-02050 · 64305-12040 |
| 77278U | Fuel tank filler pipe protection device bracket | 77278-32050 |
