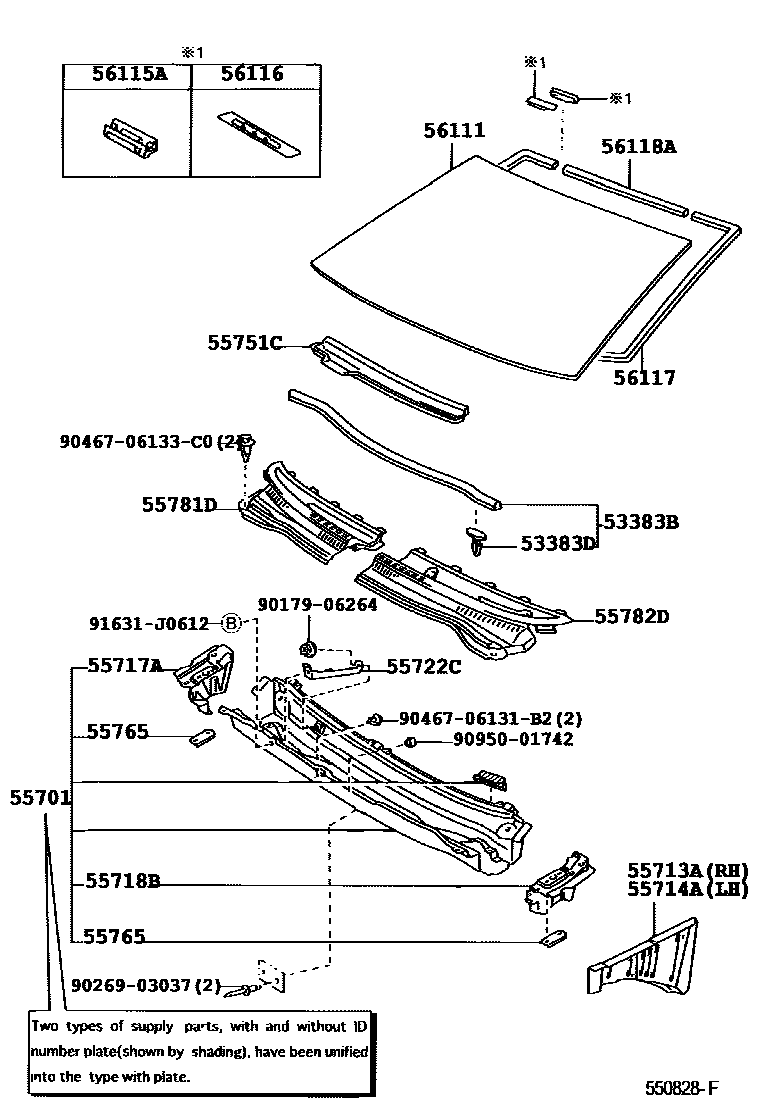

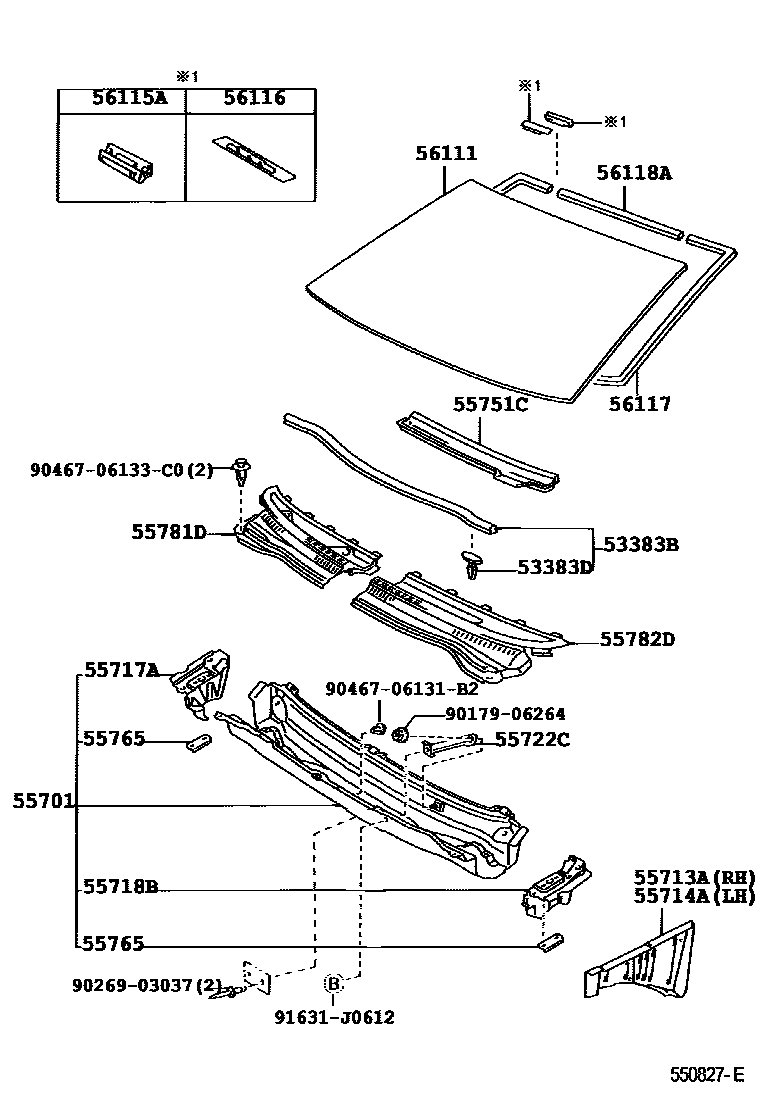

Toyota COROLLA 前围板和挡风玻璃 — Figure 5503
Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-02080 · 53383-12140 |
| 53383D | Clamp (for engine cover to cowl upper cover seal) | 90467-08108 |
| 55701 | Front apron sub-assembly | 55700-02280 · 55700-02300 · 55700-12A00 · 55700-1A391 · 55700-1A400 · 55700-1A401 · 55700-1A460 |
| 55713A | Right front wall upper side panel | 55713-12110 |
| 55714A | Left front wall upper side panel | 55714-12110 |
| 55717A | Upper right inner panel of cowl | 55717-12170 |
| 55718B | Upper left inner panel of front wall | 55718-12120 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-12030 · 55722-12040 |
| 55751C | Front ventilator splash guard | 55751-02011 · 55751-02020 · 55751-02021 |
| 55765 | Engine cover bumper mounting bracket | 55765-44010 |
| 55781D | Ventilation grille on right front apron | 55708-02090 · 55708-02100 |
| 55782D | Ventilation grille on left front apron | 55709-02010 · 55709-02020 |
| 56111 | windshield | 56101-12030 · 56111-02100 · 56111-02110 · 56111-02260 · 56111-02280 · 56111-02290 · 56111-1A810 · 56111-1A820 · 56111-1A890 |
| 56115A | Windshield block No. 1 | 56115-02020 · 56115-30100 |
| 56116 | windshield spacer | 56116-02020 · 56116-22050 |
| 56117 | Front pillar outer sealing strip | 56117-02070 · 56117-12240 · 56117-47010 |
