Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

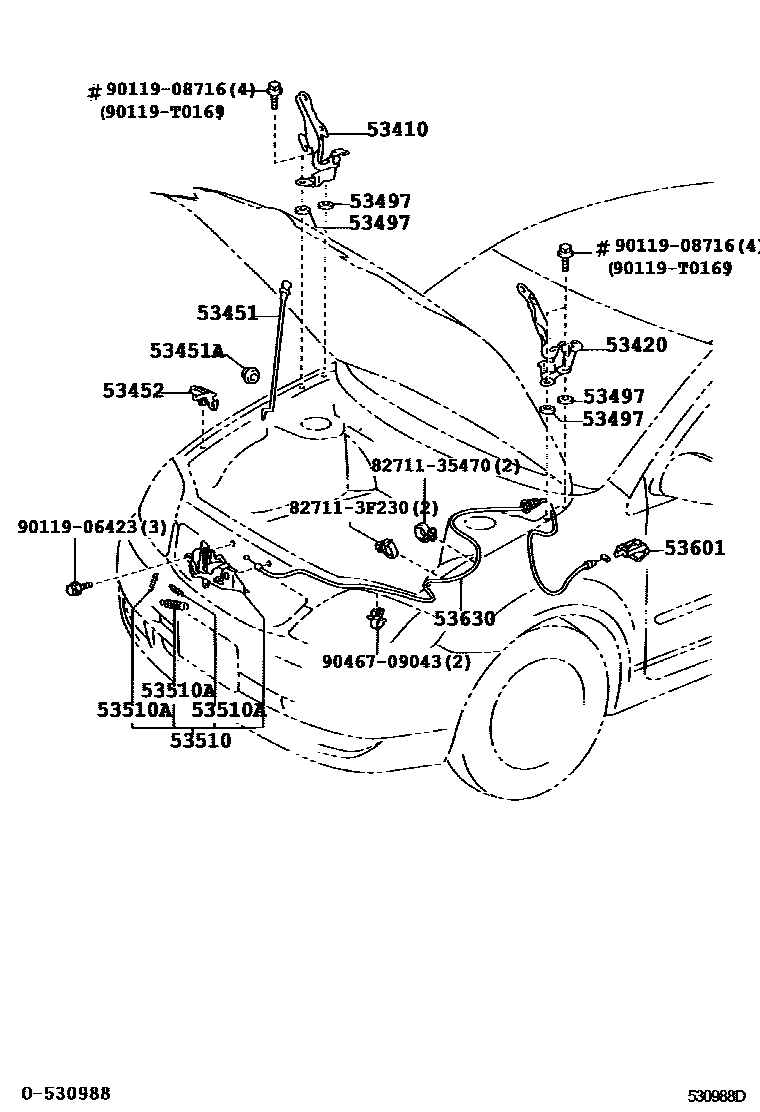

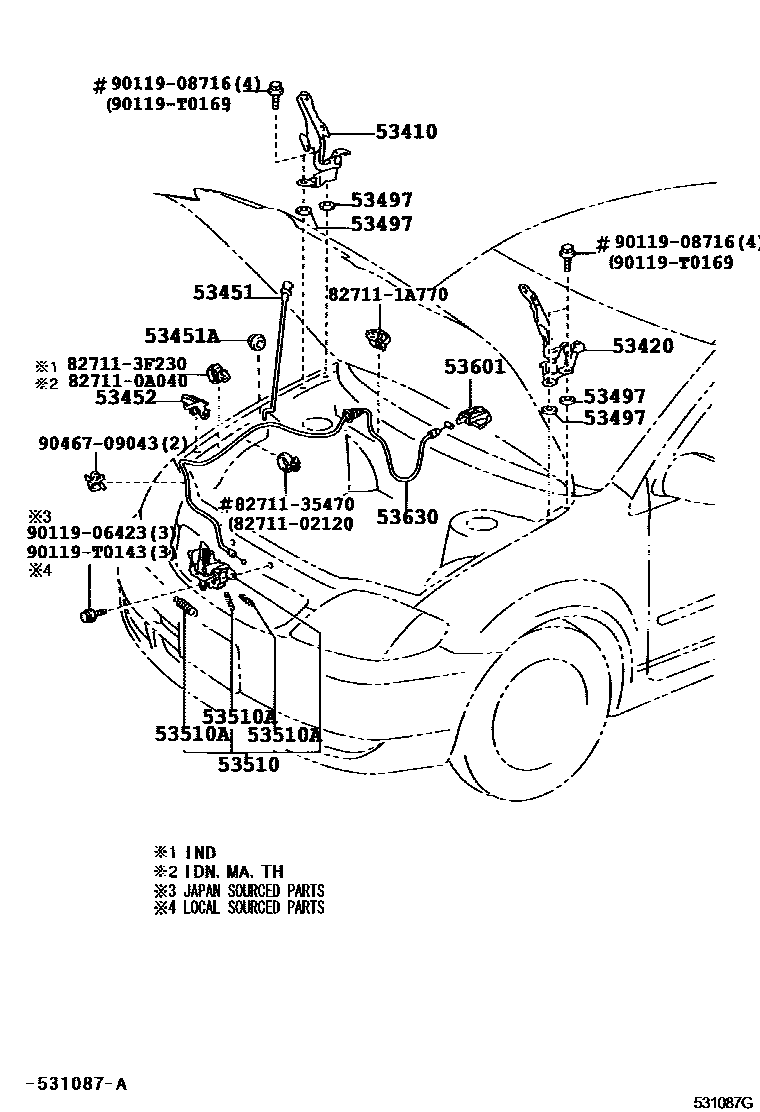

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12410 |
| 53420 | Engine cover left hinge assembly | 53420-12330 |
| 53451 | Engine cover support rod | 53440-12010 · 53440-12040 |
| 53451A | Gasket (for engine cover support rod) | 90480-15034 |
| 53452 | Engine cover stay rod fixing | 53452-02060 |
| 53497 | No. 1 engine cover hinge gasket | 53497-20070 · 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-02100 · 53510-02120 · 53510-02210 · 53510-02220 · 53510-02320 · 53510-02340 · 53510-0K080 |
| 53510A | Tension spring (for hood lock) | 72725-0K040 · 72725-0K050 · 72725-0K060 · 90506-09052 · 90506-09055 · 90506-12063 · 90506-18067 |
| 53630 | Engine hood lock control cable assembly | 53630-02040 · 53630-02050 · 53630-02090 |
