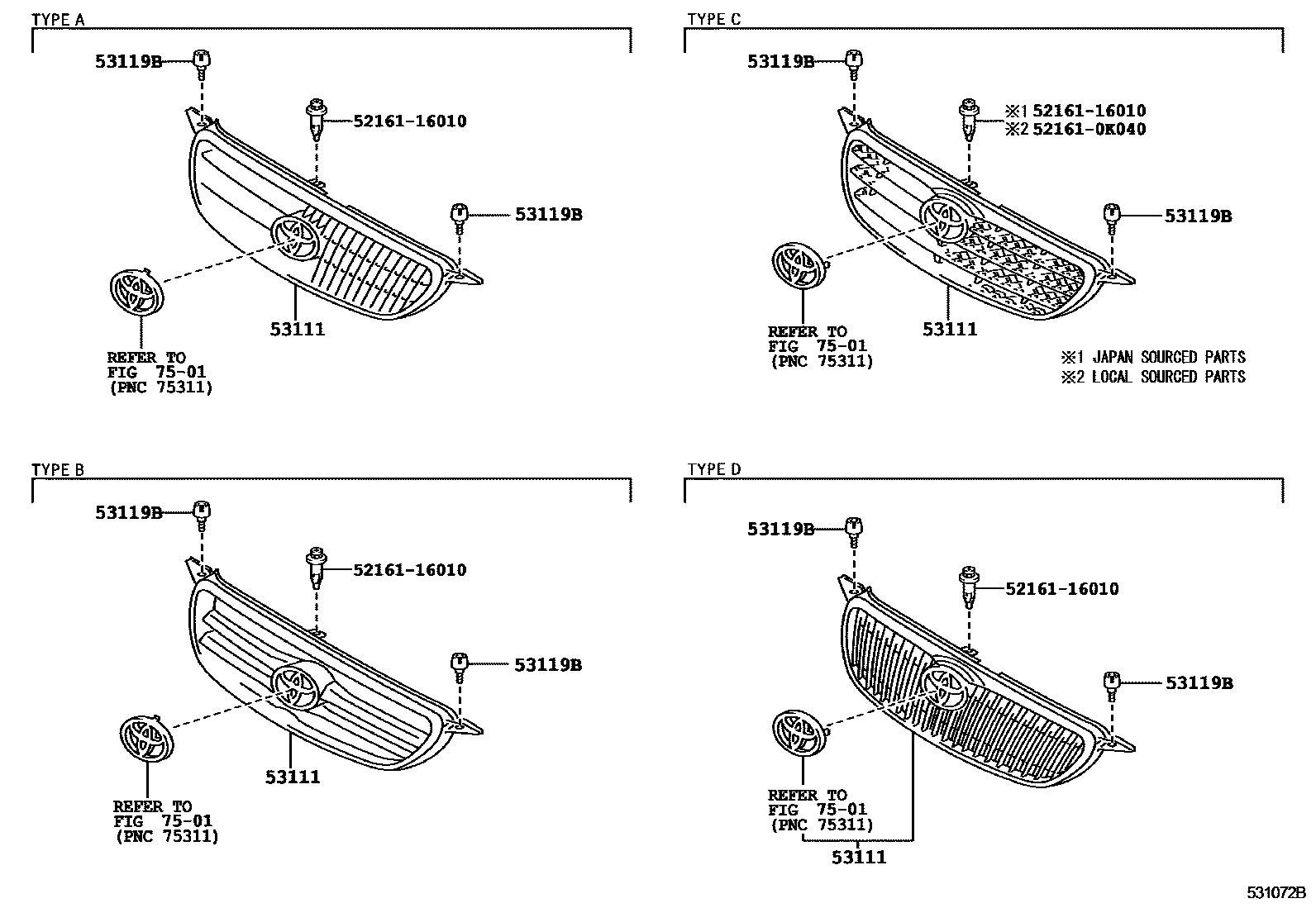

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53111 | radiator grille | 53100-02220 · 53111-02120 · 53111-02130 · 53111-02140 · 53111-02260 · 53111-02270 · 53111-02280 · 53111-02380 |
| 53119B | Radiator grille protector | 53119-12150 |
