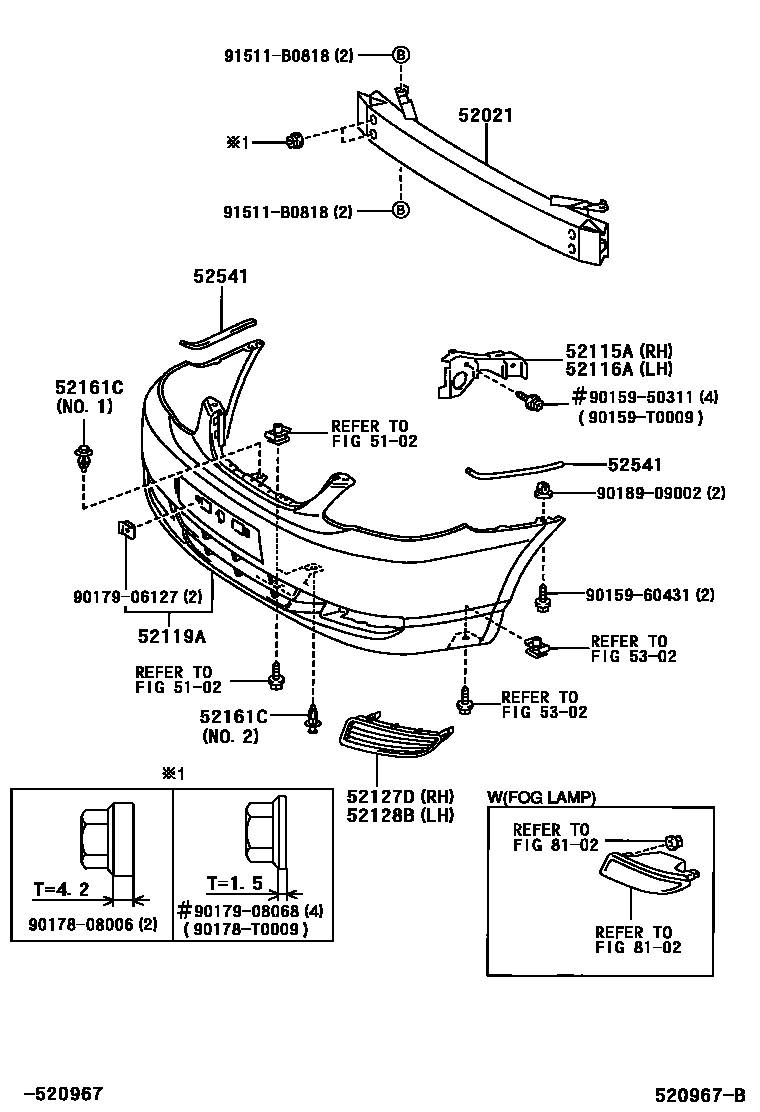

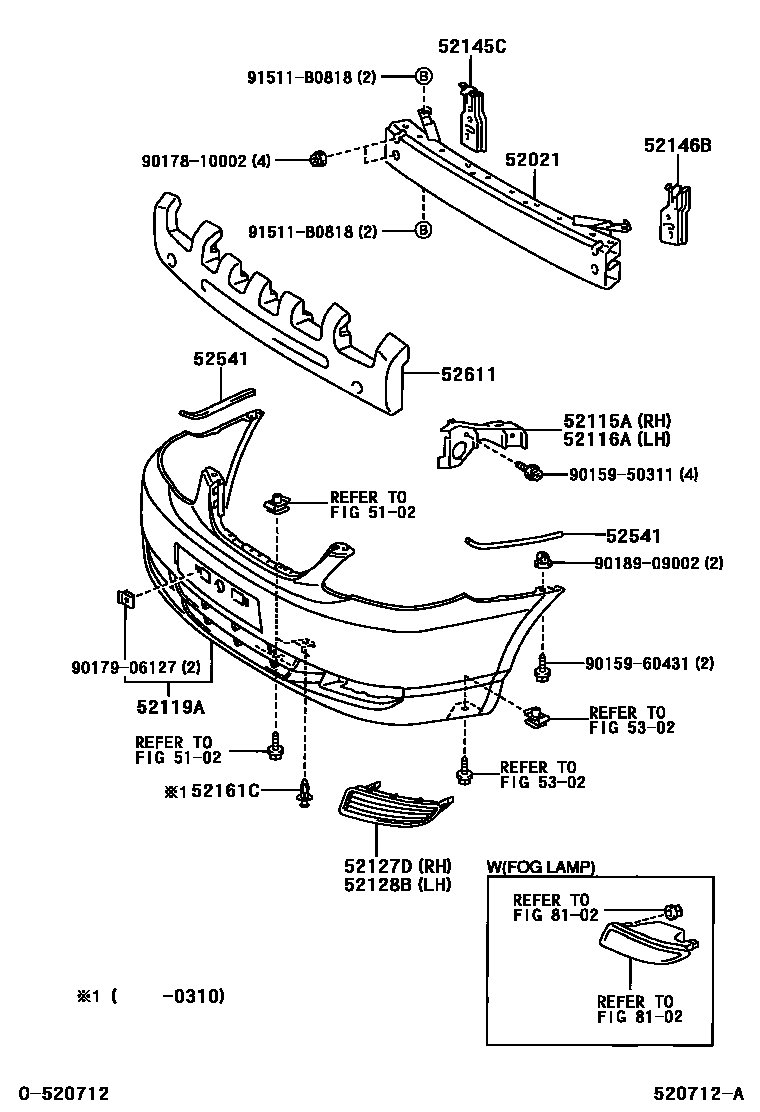

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-02040 · 52021-02100 · 52021-02101 · 52021-02110 · 52021-12200 |
| 52115A | Front bumper right side bracket | 52115-12400 |
| 52116A | Front bumper left bracket | 52116-12360 |
| 52119A | front bumper cover | 52119-02330 · 52119-02480 · 52119-02909 · 52119-02910 · 52119-02911 · 52119-02923 · 52119-02957 · 52119-02958 · 52119-02960 · 52119-02967 |
| 52127D | Front bumper right hole cover | 52127-02100 · 52127-02110 · 52127-02190 · 52127-20120 |
| 52128B | Front bumper left hole cover | 52128-02090 · 52128-02100 · 52128-02220 · 52128-20080 |
| 52145C | Front bumper right side mounting bracket | 52145-02060 |
| 52146B | Front bumper left mounting bracket | 52146-02050 |
| 52161C | front bumper insert | 52161-0K040 · 52161-16010 · 90467-09093 |
| 52541 | front bumper protector | 52541-02010 |
| 52611 | front bumper energy absorber | 52611-02060 · 52611-02080 |
