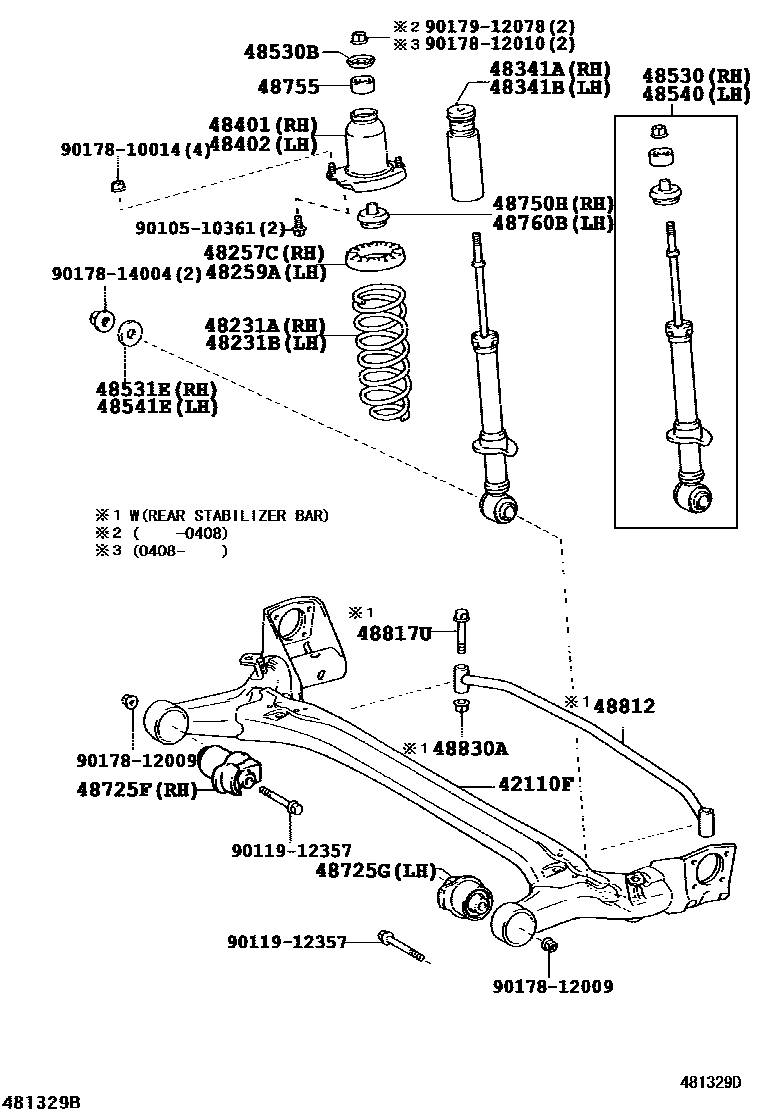

Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804
Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42101-02010 · 42101-02020 · 42101-02030 · 42101-02040 · 42101-02060 · 42101-02070 |
| 48231A | Right rear coil spring | 48231-02220 · 48231-02221 · 48231-02240 · 48231-02250 · 48231-02251 · 48231-02282 · 48231-02283 · 48231-02290 · 48231-02420 · 48231-02530 · 48231-02540 · 48231-1H580 |
| 48231B | Left rear coil spring | 48231-02220 · 48231-02221 · 48231-02240 · 48231-02250 · 48231-02251 · 48231-02282 · 48231-02283 · 48231-02290 · 48231-02420 · 48231-02530 · 48231-02540 · 48231-1H580 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-02010 · 48257-02020 |
| 48341A | No. 1 right rear spring buffer block | 48341-47010 |
| 48341B | No. 1 left rear spring buffer block | 48341-47010 |
| 48401 | Rear spring right front bracket sub-assembly | 48401-02020 · 48401-32020 |
| 48402 | Rear spring left front bracket sub-assembly | 48403-02020 · 48403-32010 |
| 48530 | Right rear shock absorber assembly | 48530-09410 · 48530-09420 · 48530-09430 · 48530-09440 · 48530-09580 · 48530-09780 · 48530-09B60 · 48530-09B70 · 48530-09C10 · 48530-09D20 · 48530-09G10 · 48530-09G20 · 48530-09G30 · 48530-09G40 · 48530-09G50 · 48530-09K00 · 48530-09K01 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03021 |
| 48531E | No. 1 buffer pad block (for right rear shock absorber) | 90560-14028 |
| 48540 | Left rear shock absorber assembly | 48530-09410 · 48530-09420 · 48530-09430 · 48530-09440 · 48530-09580 · 48530-09780 · 48530-09B70 · 48530-09D20 · 48530-09G10 · 48530-09G20 · 48530-09G30 · 48530-09G40 · 48530-09G50 · 48530-09K00 · 48530-09K01 |
| 48541E | No. 1 cushion block (for left rear shock absorber) | 90560-14028 |
| 48725F | Right rear axle bracket bushing | 48725-02240 · 48725-12560 · 48725-12570 · 48725-12580 |
| 48725G | Left rear axle bracket bushing | 48725-02240 · 48725-12560 · 48725-12570 · 48725-12580 |
| 48750H | Right rear suspension support assembly | 48750-02020 · 48750-02030 |
| 48755 | rear suspension mount | 48755-02020 · 48755-02030 |
| 48760B | Left rear suspension support assembly | 48750-02020 · 48750-02030 |
| 48812 | rear stabilizer bar | 48812-02100 · 48812-02101 · 48812-02110 · 48812-02111 · 48812-02160 · 48812-02220 · 48812-12410 |
| 48817U | Bolt (for rear stabilizer bar) | 90105-14138 |
| 48830A | Nut (for rear stabilizer link) | 90178-T0027 · 90179-14062 |
