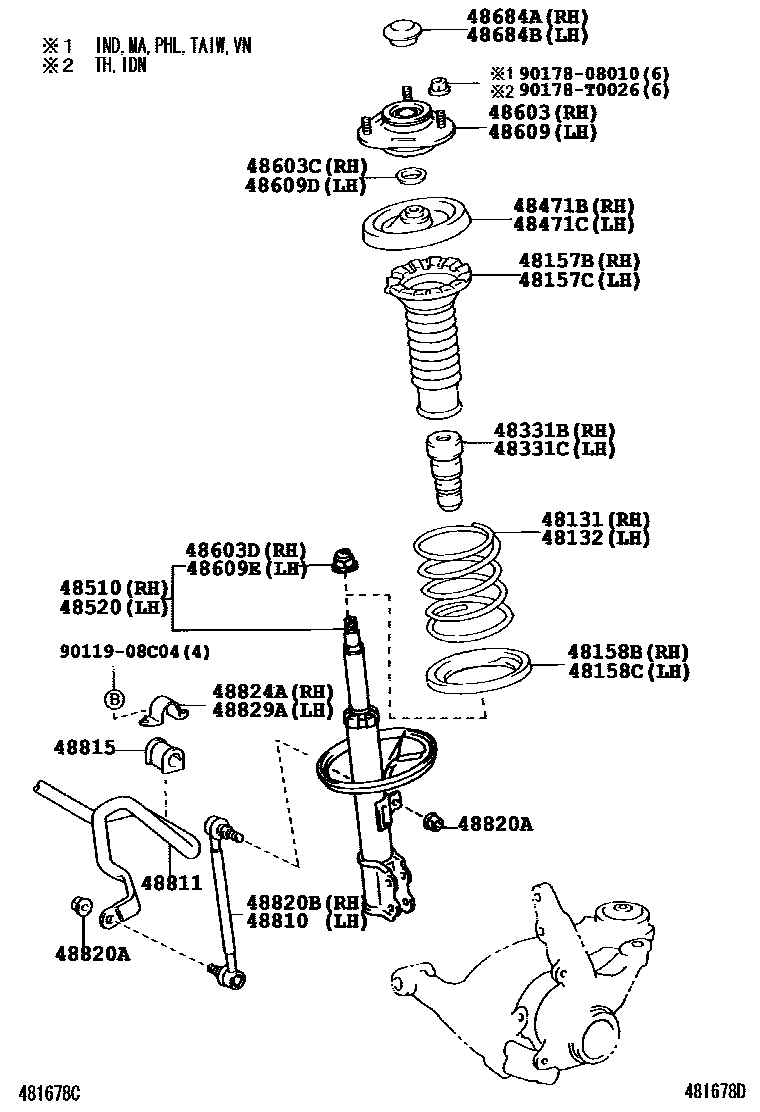

Toyota COROLLA Front Spring & Shock Absorber — Figure 4803
Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-02720 · 48131-02721 · 48131-02730 · 48131-02731 · 48131-02740 · 48131-02750 · 48131-02760 · 48131-02770 · 48131-02780 · 48131-02A70 · 48131-02A80 · 48131-0Z043 · 48131-0Z044 · 48131-0Z053 · 48131-0Z054 · 48131-1N550 · 48131-1N560 · 48131-1N570 |
| 48132 | Left front coil spring | 48131-02720 · 48131-02721 · 48131-02730 · 48131-02731 · 48131-02740 · 48131-02750 · 48131-02760 · 48131-02770 · 48131-02780 · 48131-02A70 · 48131-02A80 · 48131-0Z043 · 48131-0Z044 · 48131-0Z053 · 48131-0Z054 · 48131-1N550 · 48131-1N560 · 48131-1N570 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-02020 · 48157-02050 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-02020 · 48157-02050 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-02030 · 48158-02040 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-02030 · 48158-02040 |
| 48331B | Right front spring buffer block | 48331-12200 · 48331-12210 |
| 48331C | Left front spring buffer block | 48331-12200 · 48331-12210 |
| 48471B | Front coil spring upper right seat | 48044-02080 · 48044-12100 |
| 48471C | Front coil spring upper left seat | 48044-02080 · 48044-12100 |
| 48510 | Right front shock absorber assembly | 48510-09530 · 48510-09540 · 48510-09550 · 48510-09560 · 48510-09720 · 48510-09L70 · 48510-09L71 · 48510-80133 |
| 48520 | Left front shock absorber assembly | 48520-09430 · 48520-09440 · 48520-09450 · 48520-09460 · 48520-09620 · 48520-09A30 · 48520-09E40 · 48520-09E41 |
| 48603 | Right front suspension bearing sub-assembly | 48609-02090 · 48609-12420 · 48609-12440 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 · 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-14015 |
| 48609 | Left front suspension bearing sub-assembly | 48609-02090 · 48609-12420 · 48609-12440 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 · 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-52010 |
| 48810 | Left front stabilizer bar link assembly | 48820-02050 · 48820-47010 |
| 48811 | front stabilizer bar | 48811-02060 · 48811-02070 · 48811-02080 · 48811-02140 · 48811-02180 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-02060 · 48815-02070 · 48815-02080 · 48815-12310 · 48815-13040 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-02050 · 48820-47010 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-26210 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-26210 |
