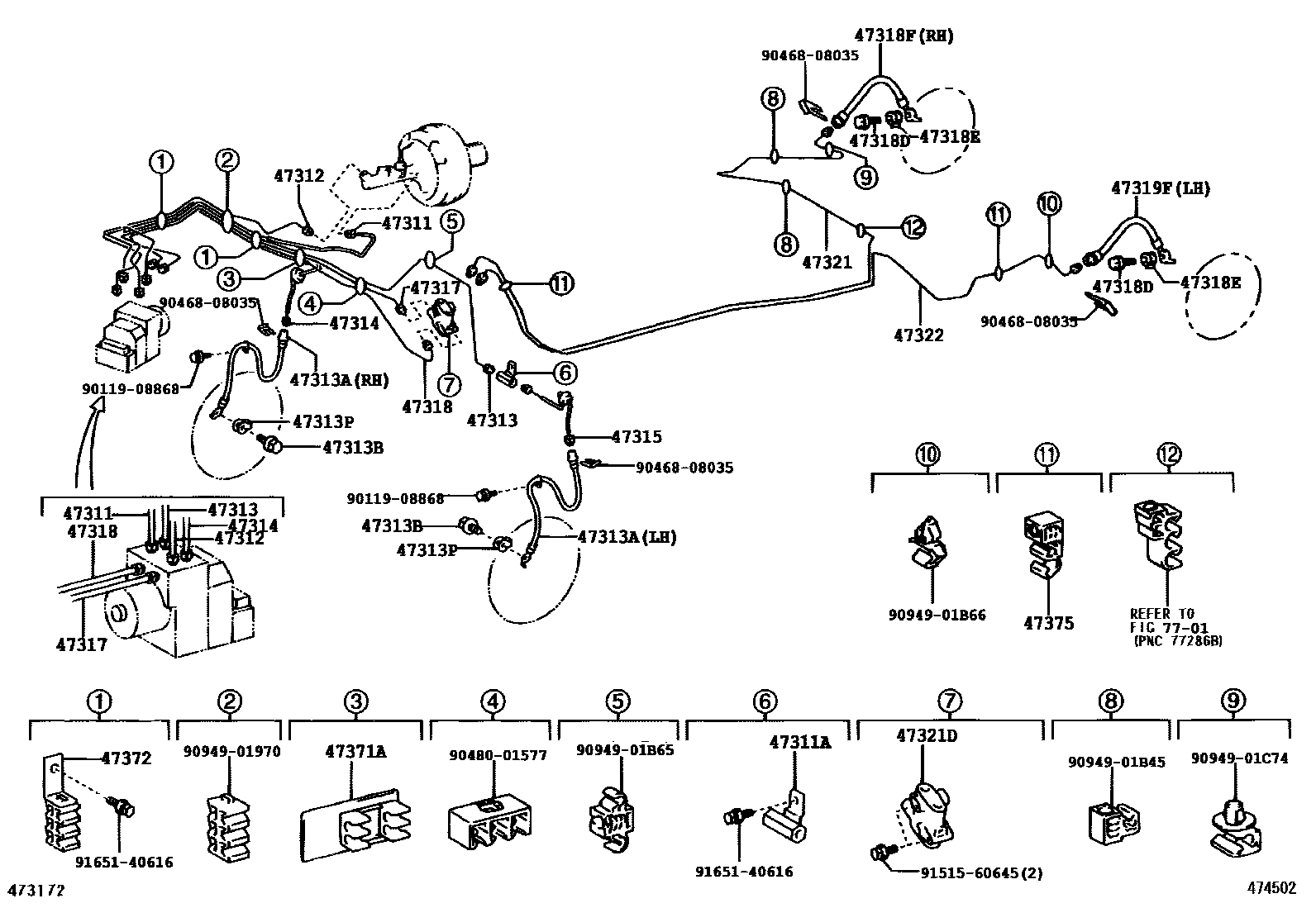

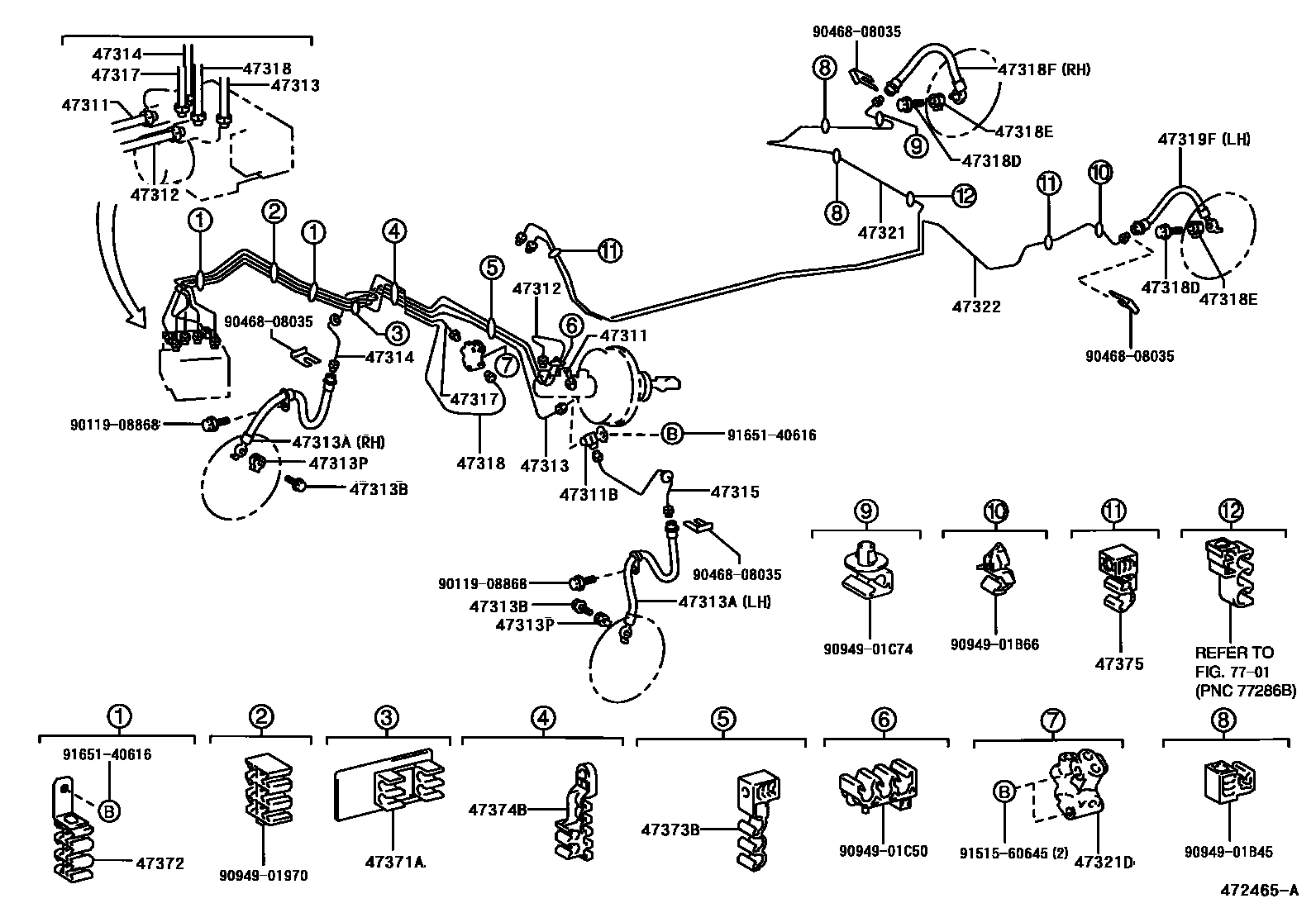

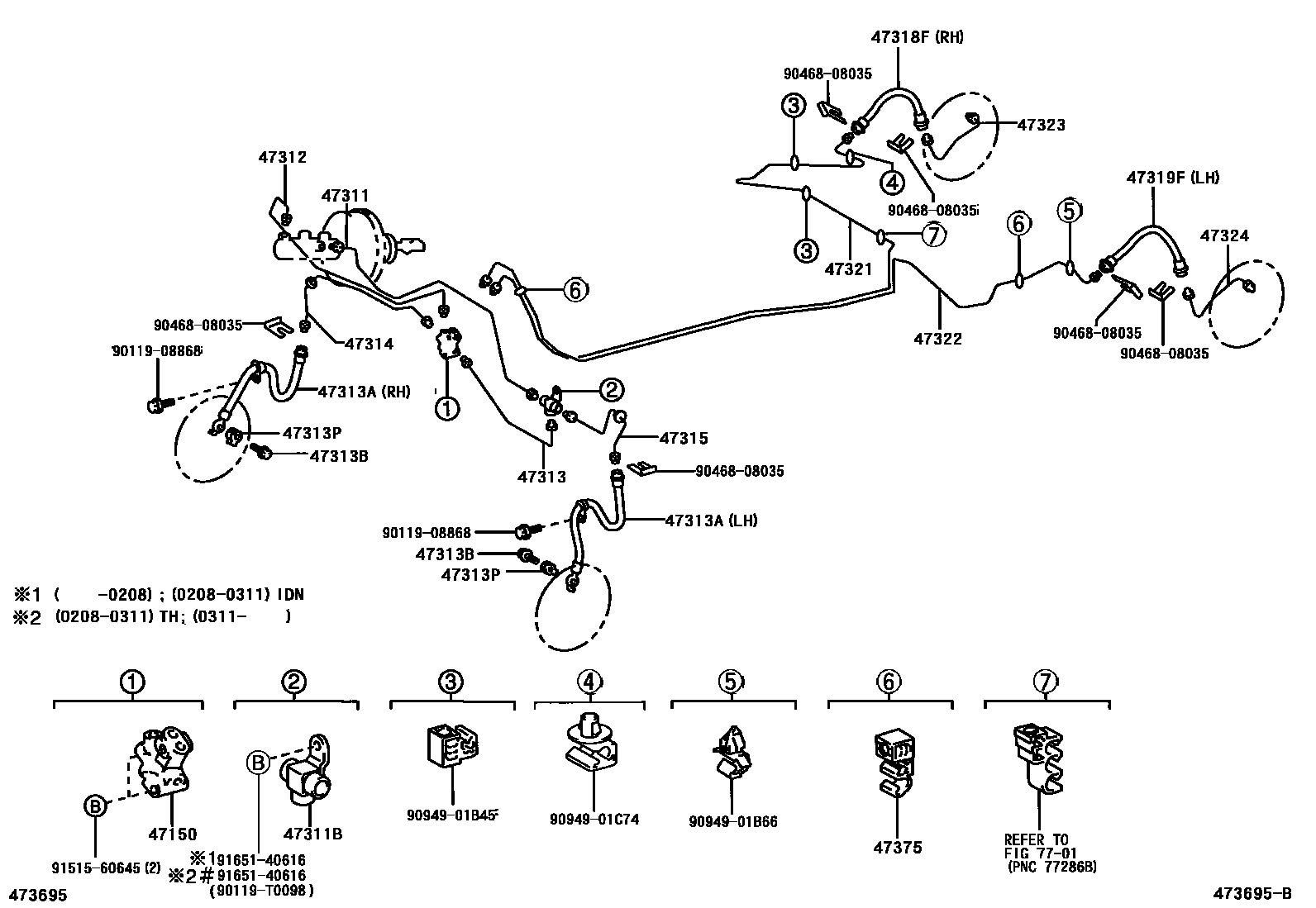

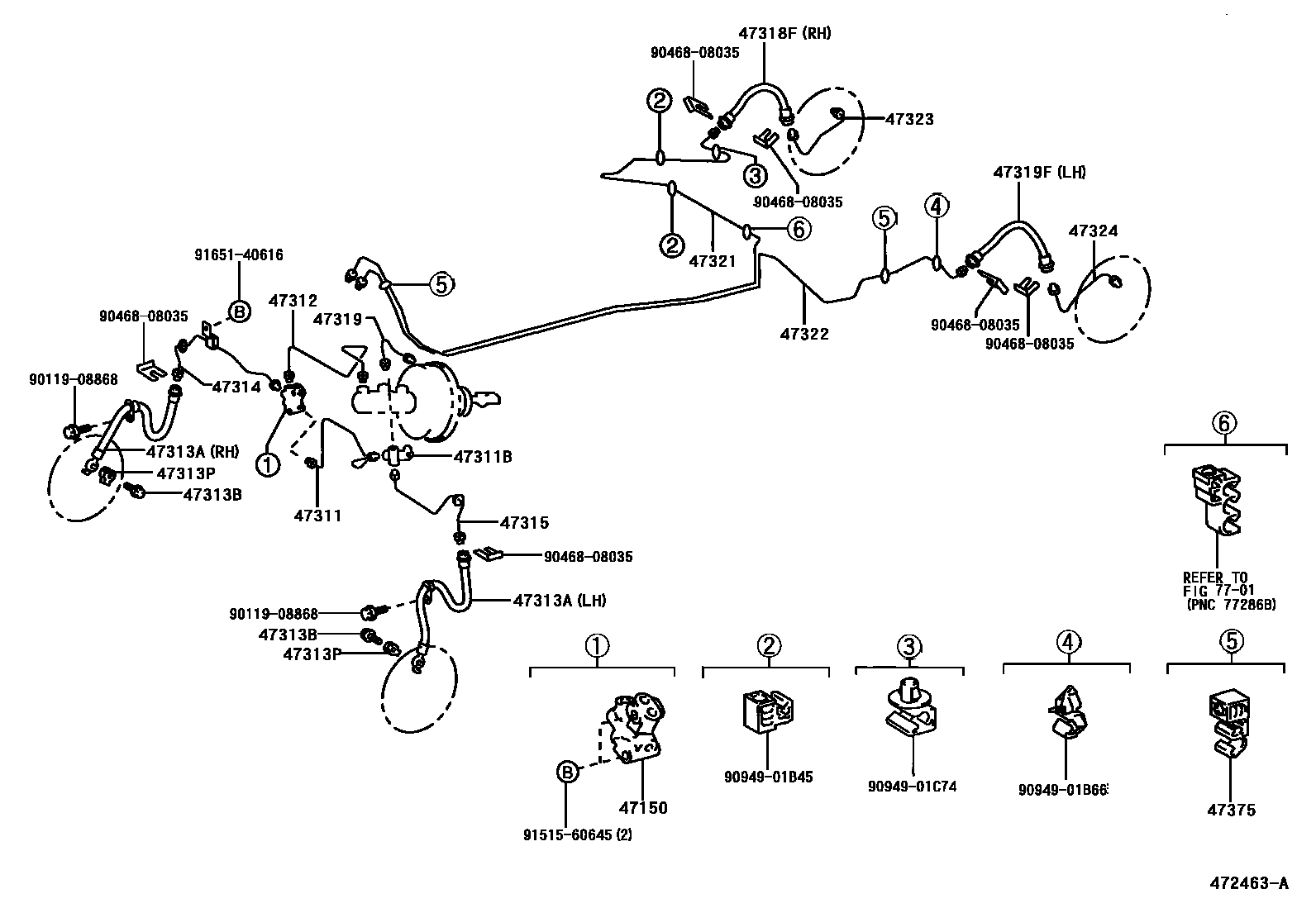

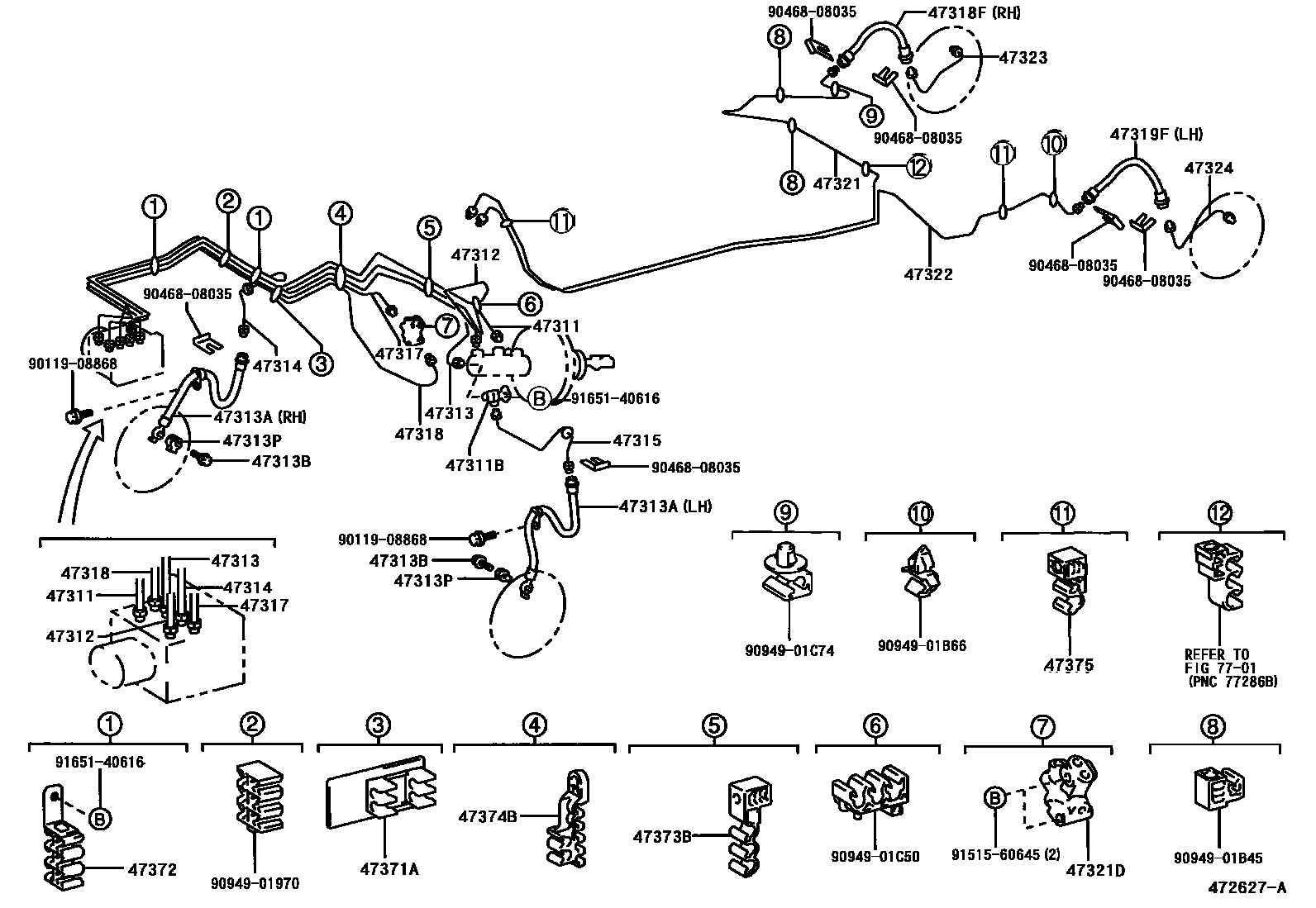

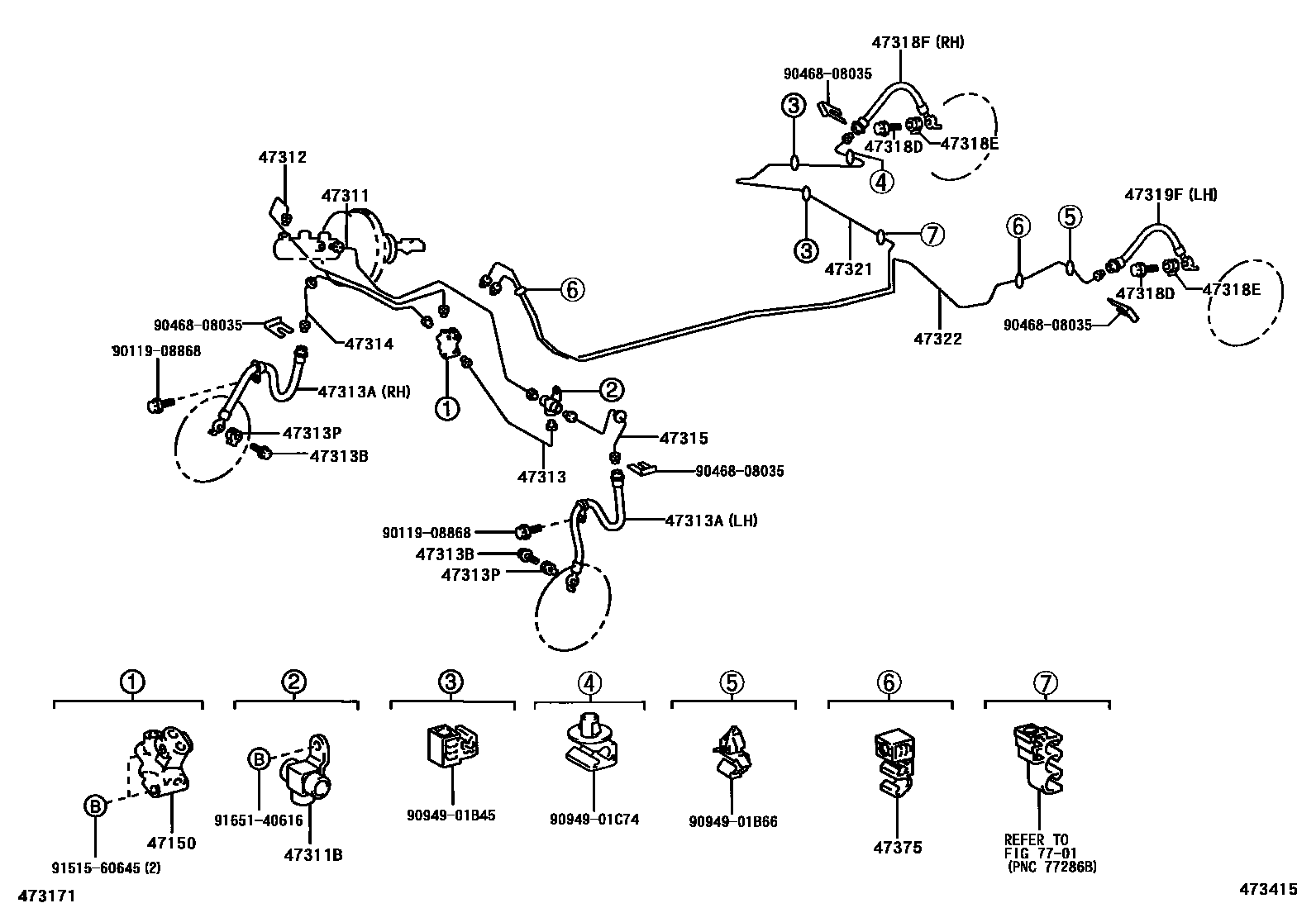

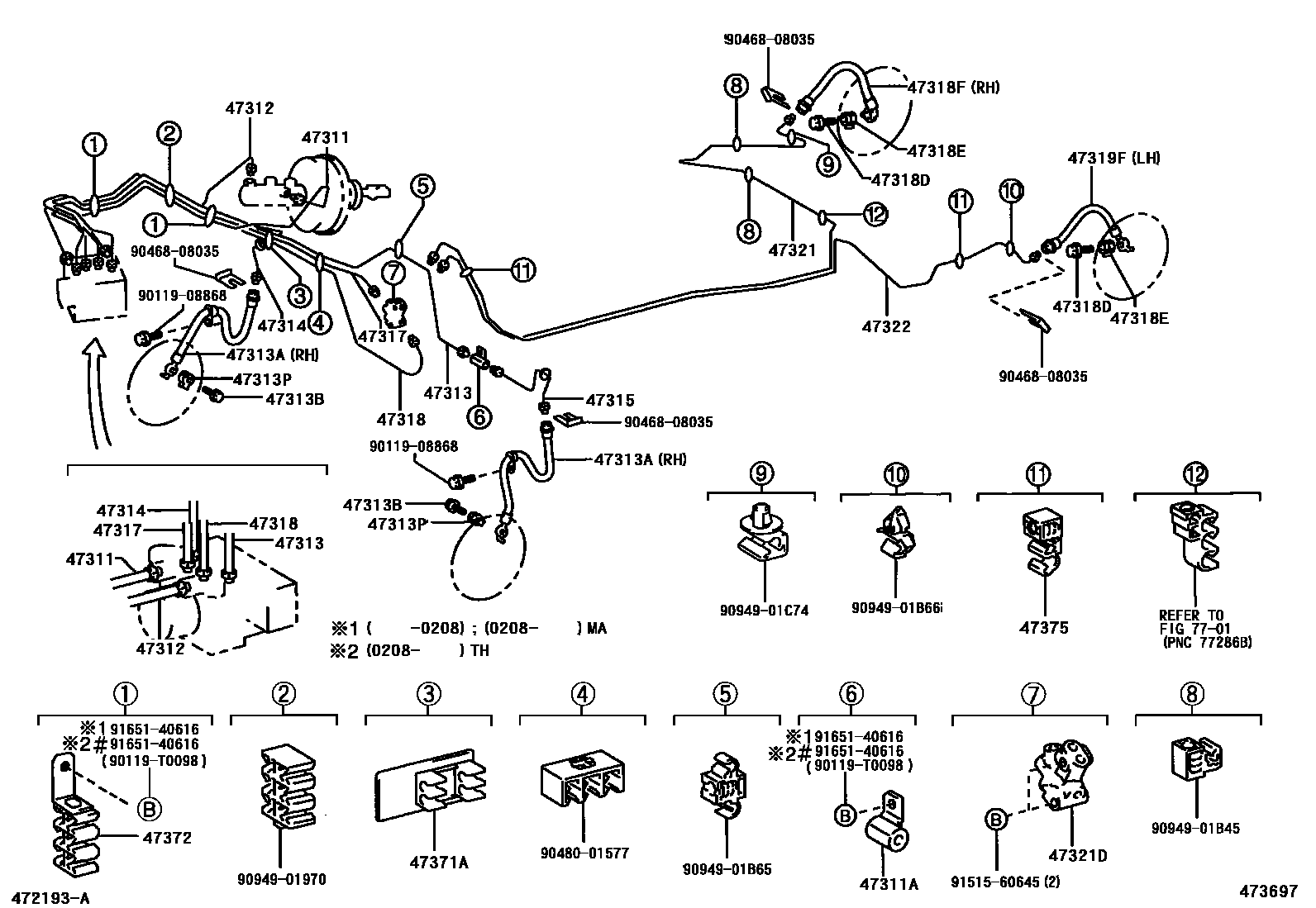

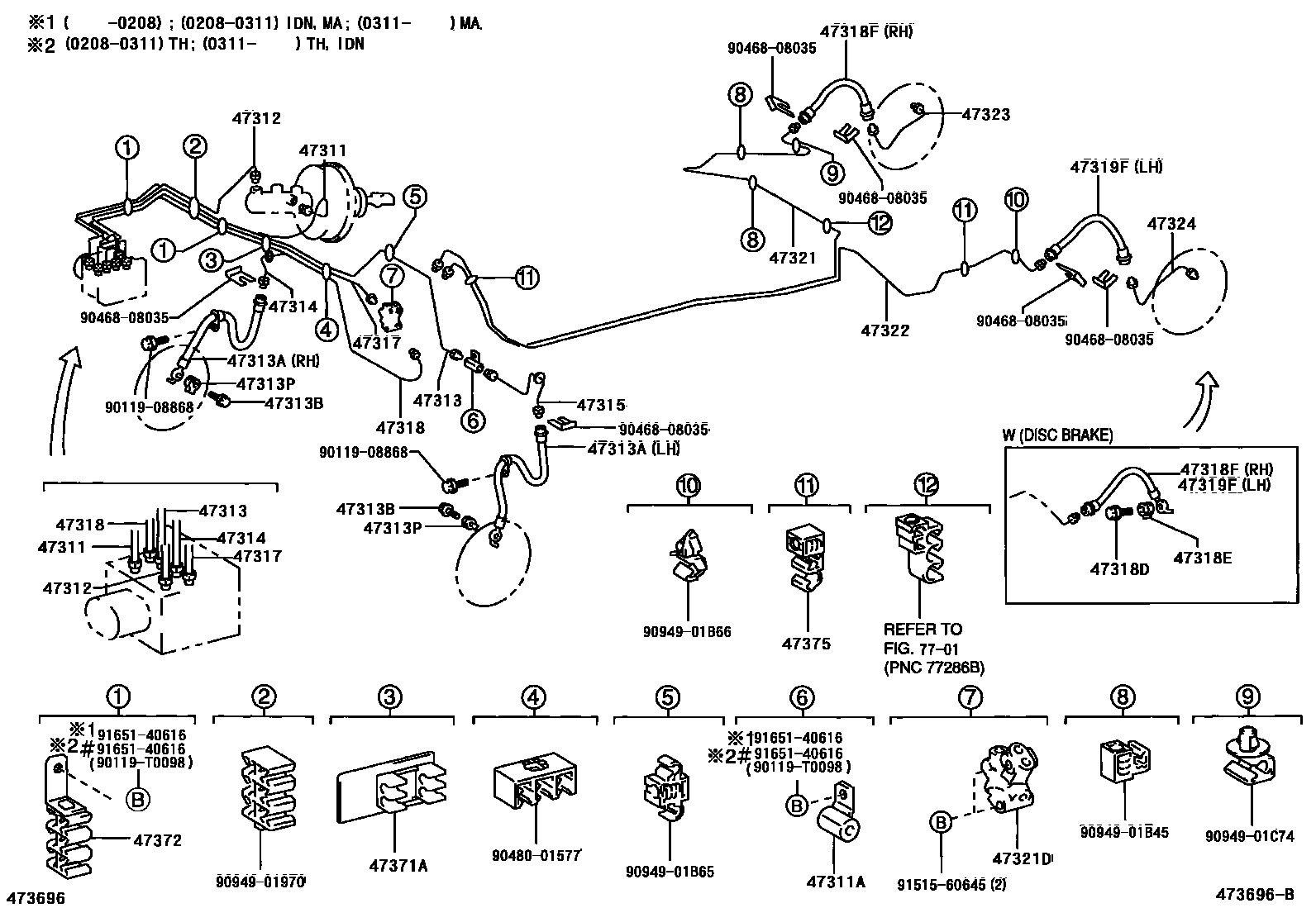

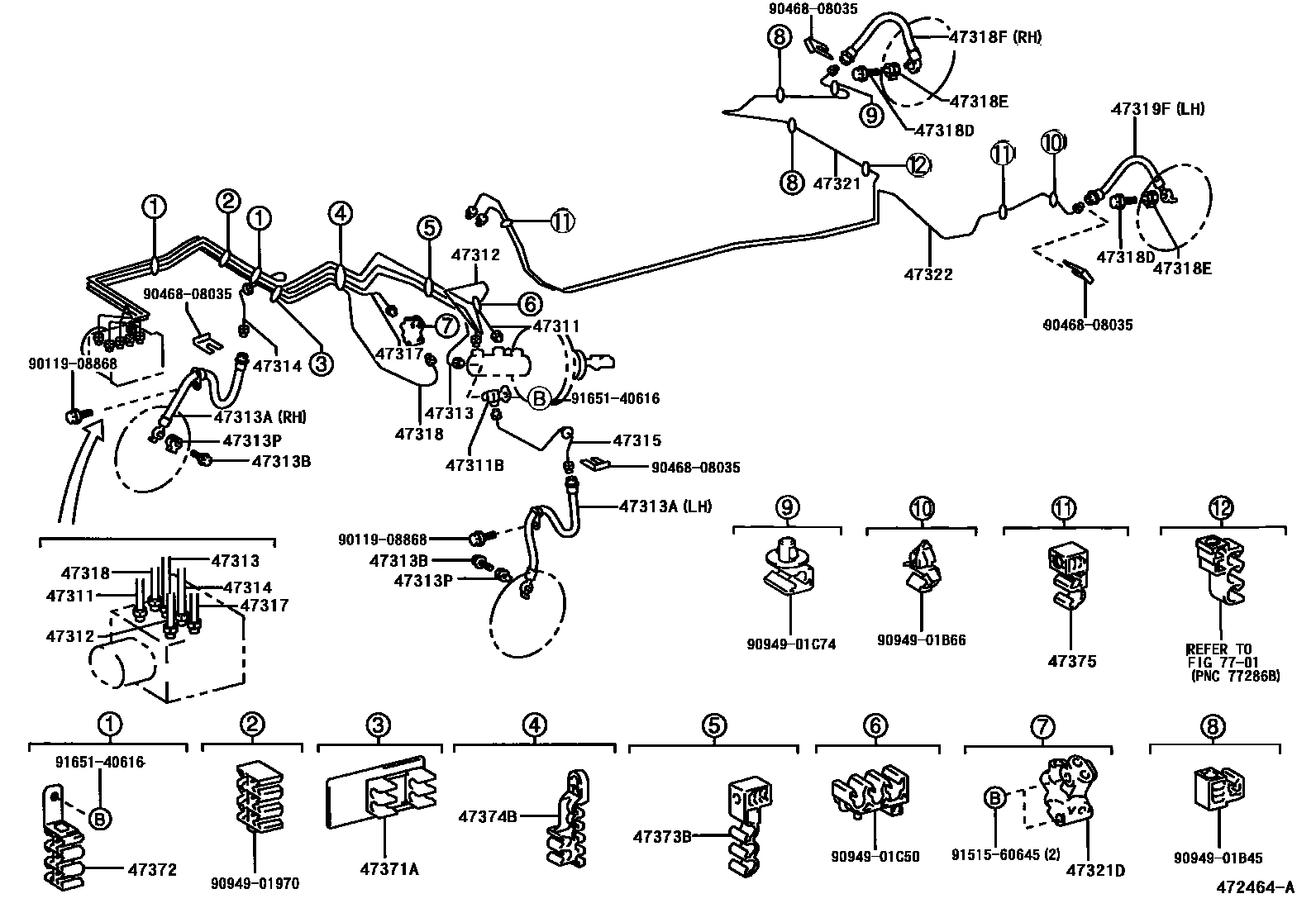

Toyota COROLLA 制动配管和卡箍 — Figure 4708
Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 12 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

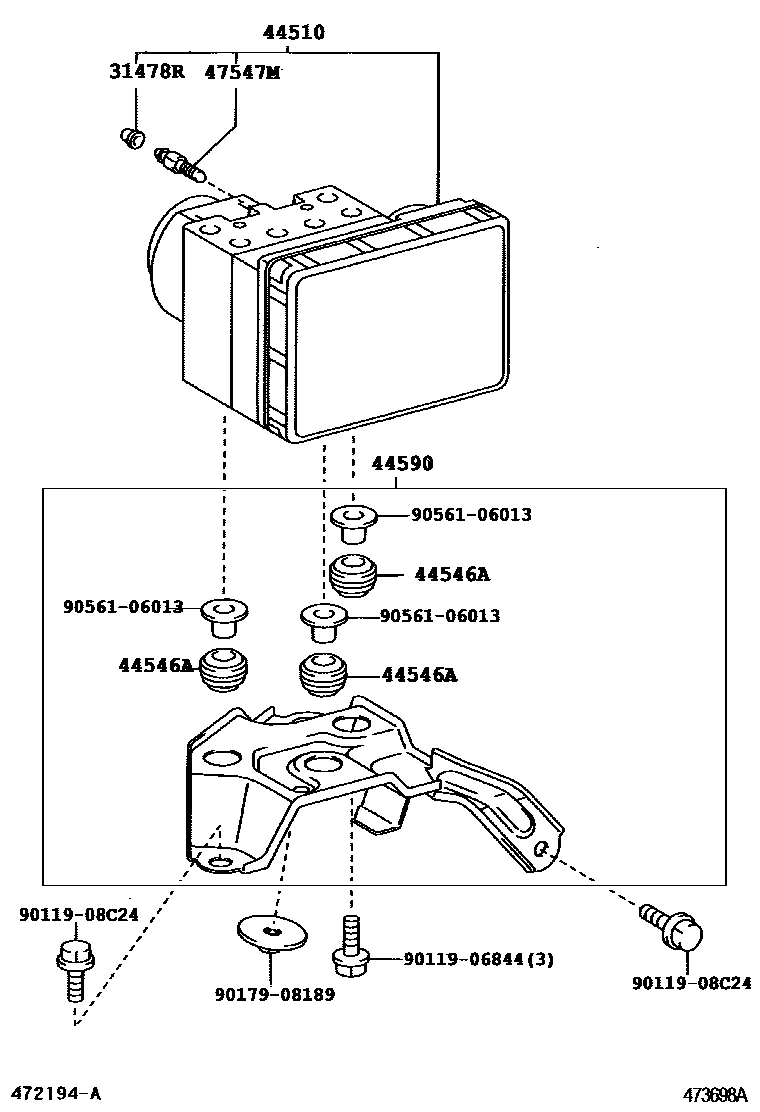

| 31478R | Bleed plug cap (for brake actuator) | 31478-30010 |

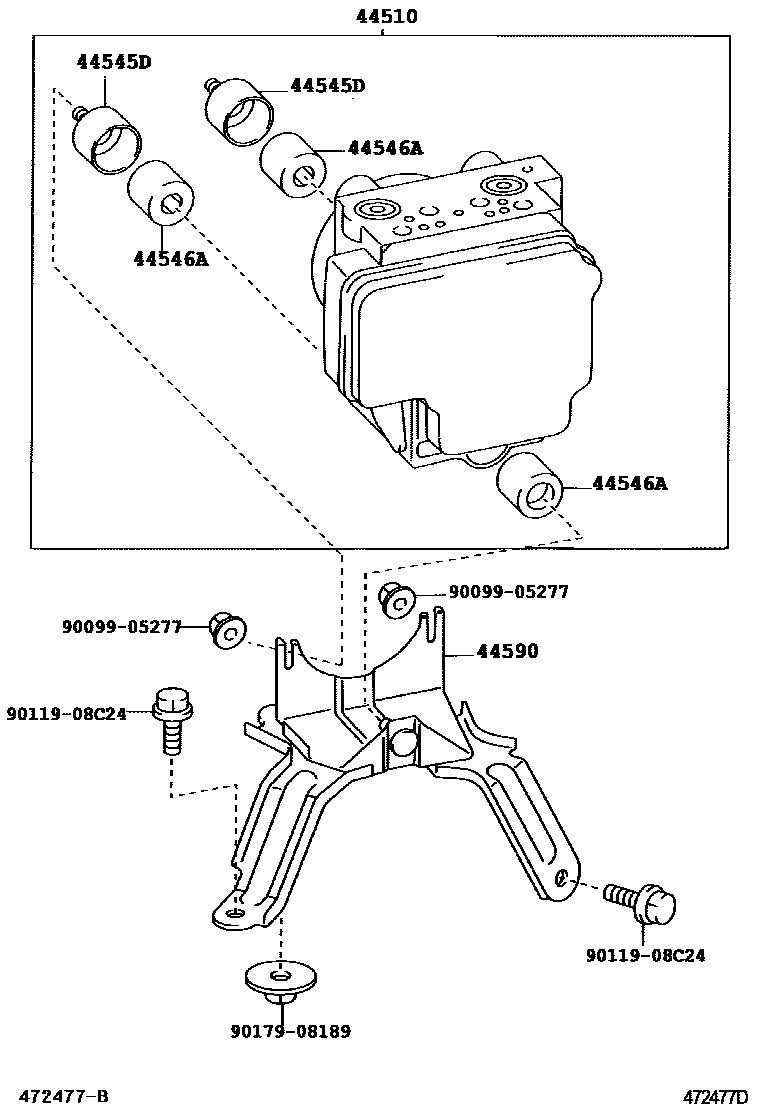

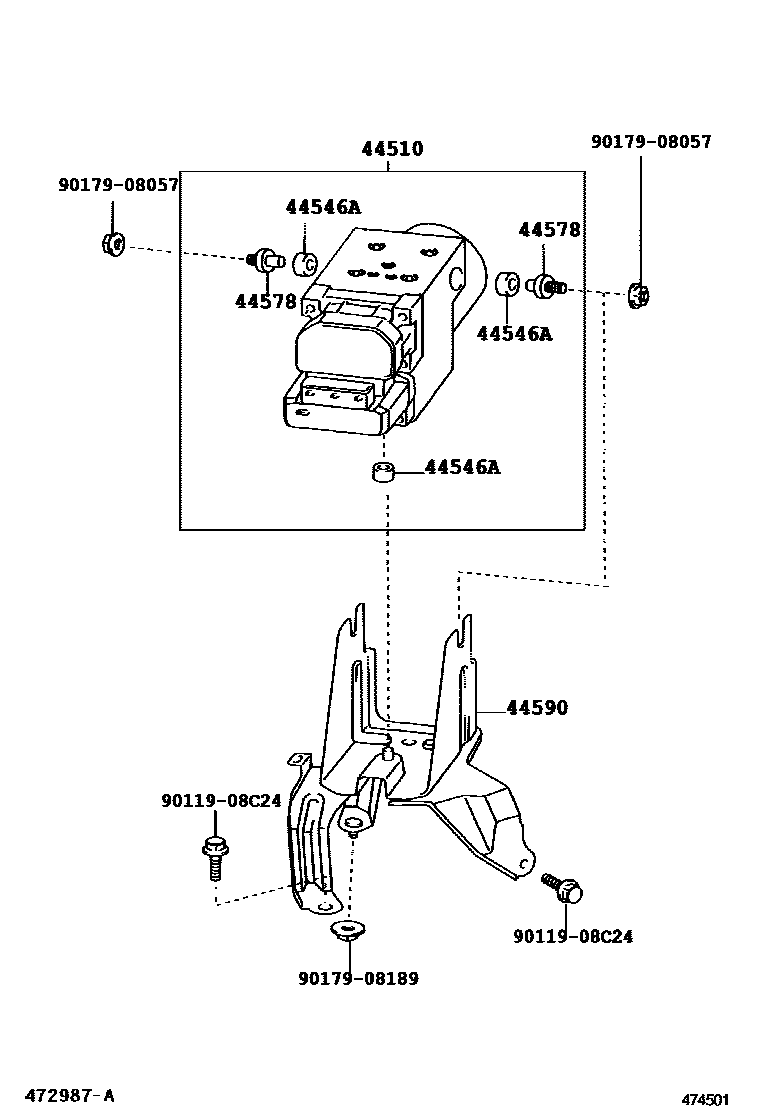

| 44510 | brake actuator assembly | 44050-02030 · 44050-12110 · 44050-12121 · 44050-12122 · 44050-12123 · 44050-12130 · 44050-12131 · 44050-12132 · 44050-12133 · 44050-13020 |
| 44545D | Brake actuator bolt mount | 44545-12010 |
| 44546A | Brake actuator bolt cushion | 44546-05020 · 44546-12010 · 44546-12100 |
| 44578 | Brake actuator cushion bolt | 44578-05020 |
| 44590 | Brake actuator bracket assembly | 44590-02050 · 44590-02070 · 44590-12060 · 44590-12070 |
| 47150 | Proportional valve assembly | 47150-10090 · 47150-12070 |
| 47311 | No. 1 front brake pipe | 47311-02300 · 47311-02320 · 47311-02331 · 47311-02340 · 47311-02350 · 47311-02360 · 47311-12680 · 47311-12690 · 47311-12810 · 47311-12820 · 47311-12830 · 47311-12840 · 47311-12870 |
| 47311A | Pipe fitting (for front brake pipe) | 90412-10167 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10241 · 90413-10286 · 90904-12051 · 90904-13067 |
| 47312 | No. 2 front brake pipe | 47312-02181 · 47312-02201 · 47312-02210 · 47312-02220 · 47312-02230 · 47312-12410 · 47312-12420 · 47312-12430 · 47312-12440 · 47312-12450 · 47312-12460 |
| 47313 | No. 3 front brake pipe | 47313-02250 · 47313-02270 · 47313-02280 · 47313-02290 · 47313-02300 · 47313-12480 · 47313-12490 · 47313-12620 · 47313-12630 · 47313-12640 |
| 47313A | No. 1 front flexible hose | 90080-94106 · 90080-94107 · 90080-94108 · 90080-94109 · 90947-T2002 · 90947-T2003 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 · 47389-50021 |
| 47314 | No. 4 front brake pipe | 47314-02290 · 47314-02311 · 47314-02320 · 47314-02330 · 47314-02340 · 47314-12420 · 47314-12430 · 47314-12440 · 47314-12450 · 47314-12480 · 47314-12520 |
| 47315 | No. 5 front brake pipe | 47315-02220 · 47315-02240 · 47315-02250 · 47315-02270 · 47315-12490 · 47315-12510 · 47315-12520 · 47315-12570 |
| 47317 | No. 7 front brake pipe | 47317-02190 · 47317-02210 · 47317-02220 · 47317-12190 · 47317-12210 · 47317-12220 · 47317-12260 |
| 47318 | No. 8 front brake pipe | 47318-02190 · 47318-02210 · 47318-02220 · 47318-02230 · 47318-02240 · 47318-12330 · 47318-12350 · 47318-12400 · 47318-12410 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10045 · 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 · 47389-50021 |
| 47318F | Right rear flexible hose | 90080-94110 · 90080-94111 · 90080-94112 · 90080-94113 |
| 47319 | No. 9 front brake pipe | 47319-12160 |
| 47319F | Left rear flexible hose | 90080-94110 · 90080-94111 · 90080-94112 · 90080-94113 |
| 47321 | No. 1 rear brake pipe | 47321-12280 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 · 90904-12088 |
| 47322 | No. 2 rear brake pipe | 47322-12400 |
| 47323 | No. 3 rear brake pipe | 47323-63010 |
| 47324 | No. 4 rear brake pipe | 47324-63010 |
| 47371A | No. 1 brake pipe clamp | 47371-12230 |
| 47372 | No. 2 brake pipe clamp | 47374-12050 |
| 47373B | No. 3 brake pipe clamp | 47371-52010 |
| 47374B | No. 4 brake pipe clamp | 47372-52010 |
| 47375 | No. 5 brake pipe clamp | 77299-32030 |
| 47547M | Bleed plug (for brake actuator) | 47547-22020 |
