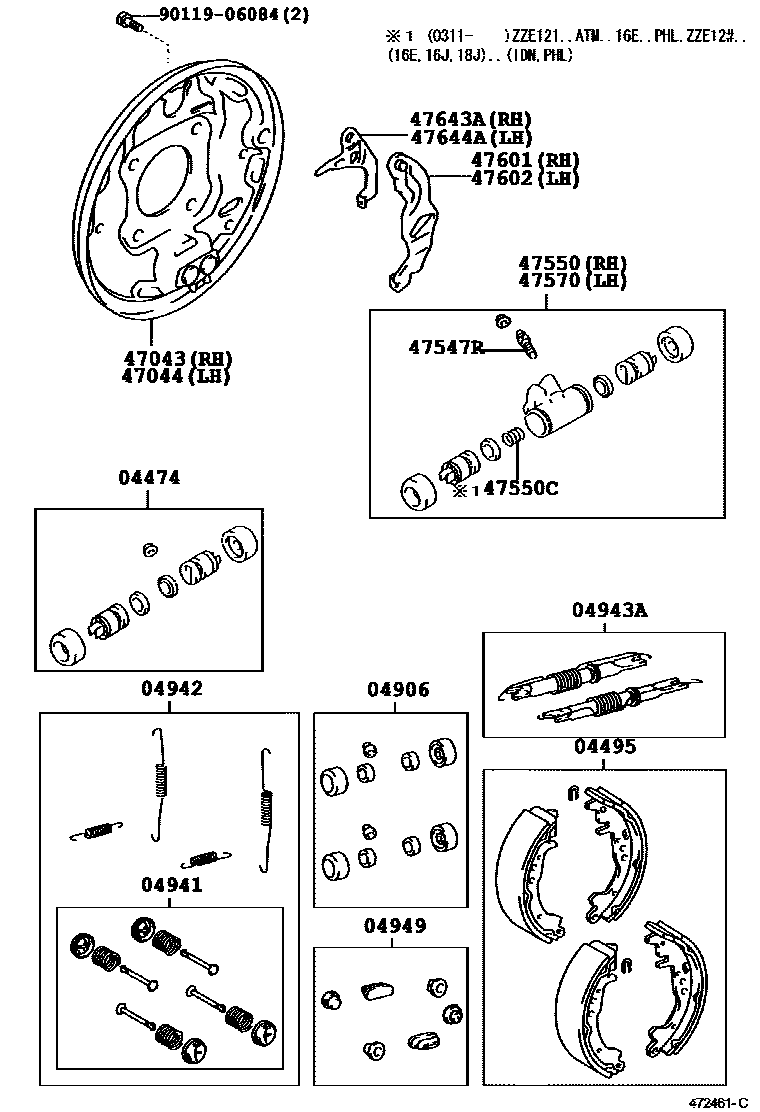

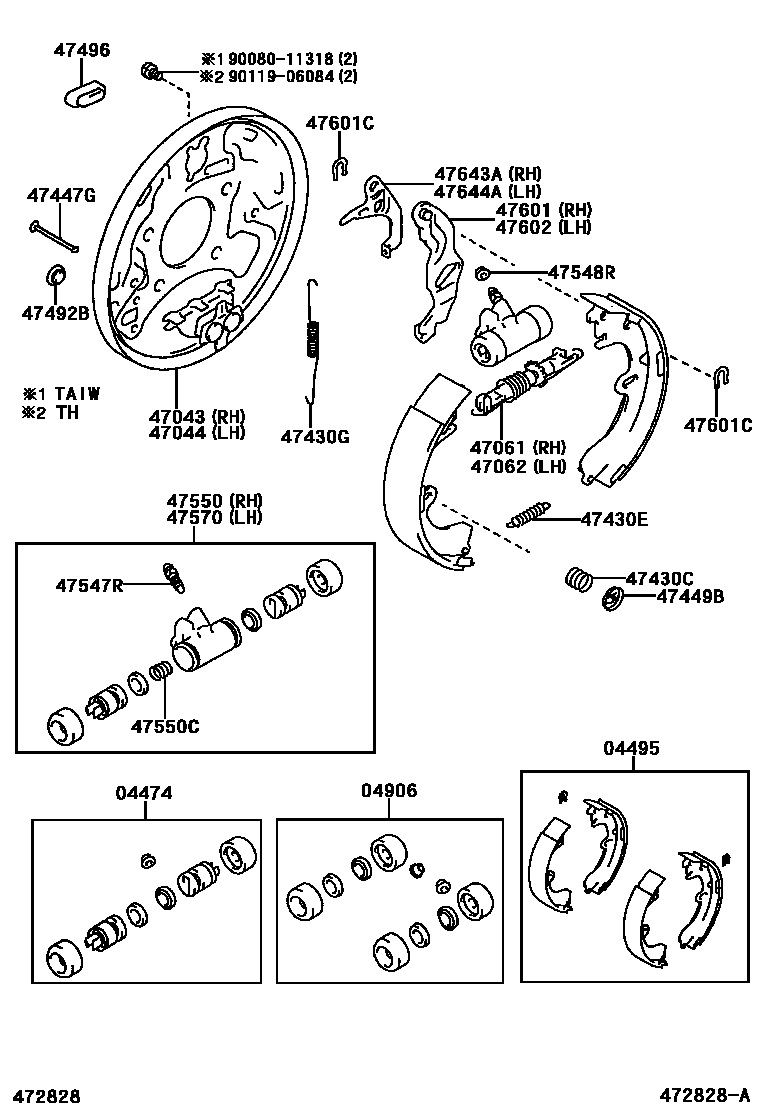

Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706
Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-02020 · 04474-52010 |
| 04495 | Rear brake shoe assembly | 04495-02040 · 04495-02080 · 04495-0D030 · 04495-52020 · 04495-52040 |
| 04906 | Rear wheel pump cup assembly | 04906-0A010 · 04906-52010 |
| 04941 | Rear brake shoe limit spring assembly | 04941-0D030 · 04941-12010 · 04941-46010 |
| 04942 | Rear brake spring assembly | 04942-0D030 · 04942-12010 · 04942-46010 |
| 04943A | Rear brake bracket assembly | 04943-0D020 · 04943-12010 |
| 04949 | Rear brake plug assembly | 04949-0D010 · 04949-12010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-02030 · 47043-02050 · 47043-20140 |
| 47044 | Left rear brake base plate sub-assembly | 47044-02030 · 47044-02050 · 47044-20140 |
| 47061 | Right parking brake shoe push rod assembly | 47061-02020 · 47061-02040 |
| 47062 | Left parking brake shoe push rod assembly | 47062-02020 · 47062-02040 |
| 47430C | Limit spring (for rear brake shoe) | 90016-AY001 · 90080-50294 · 90080-50359 |
| 47430E | Tension spring (for rear brake shoe return) | 90080-50293 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90080-50292 · 90080-50360 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-02020 · 47447-0D020 · 47447-11010 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-02020 · 47449-0A010 · 47449-30030 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-0A010 · 47492-20010 · 47492-32010 |
| 47496 | Hole plug (for rear brake) | 47491-04010 · 47491-0B010 · 47491-20011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-02010 · 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-02120 · 47550-52011 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90027-60001 · 90029-60014 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-02090 · 47570-52011 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-02030 · 47601-02050 · 47601-47010 · 47601-52100 |
| 47601C | C-shaped washer (for rear brake) | 90080-21011 · 90213-06013 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-02030 · 47602-02050 · 47602-47010 · 47602-52100 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-02020 · 47643-47010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-02020 · 47644-47010 |
