Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705

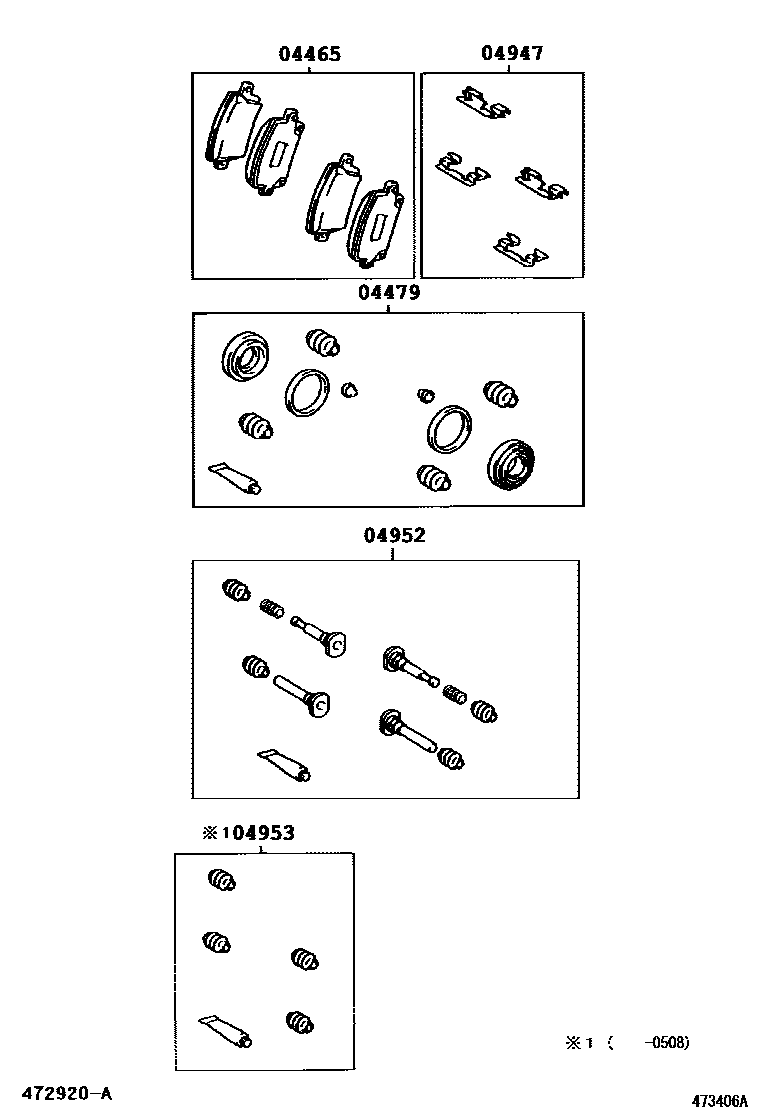

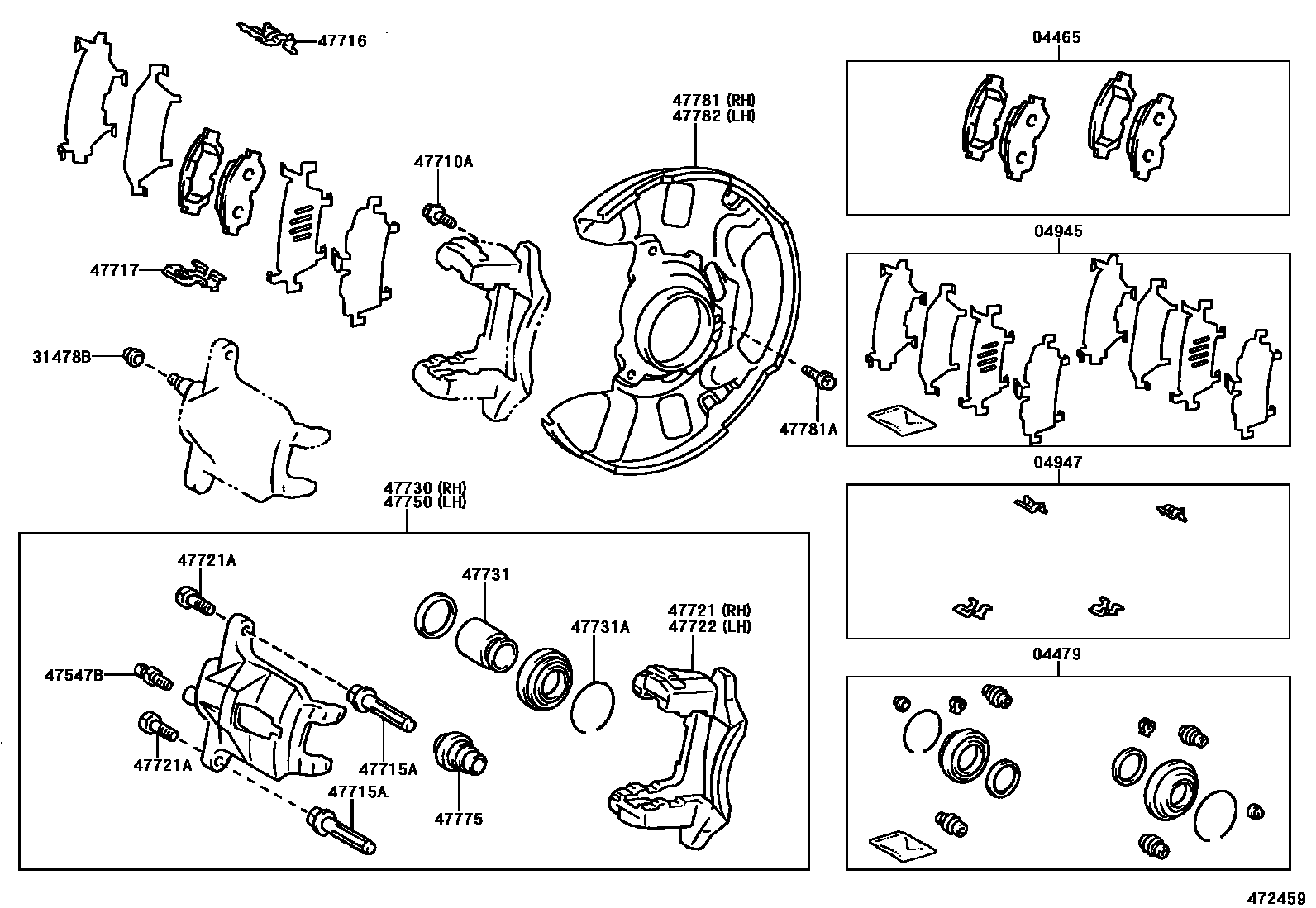

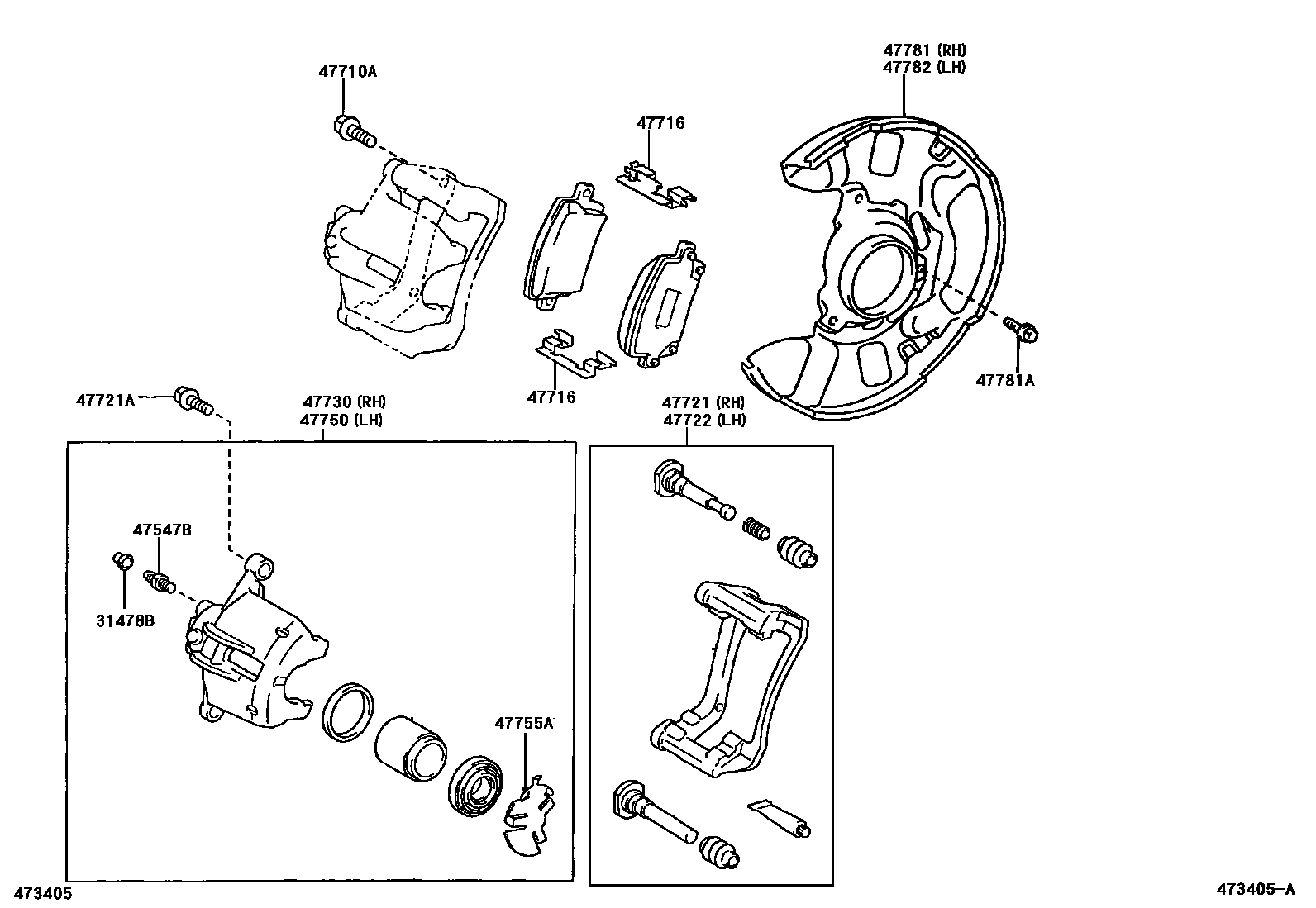

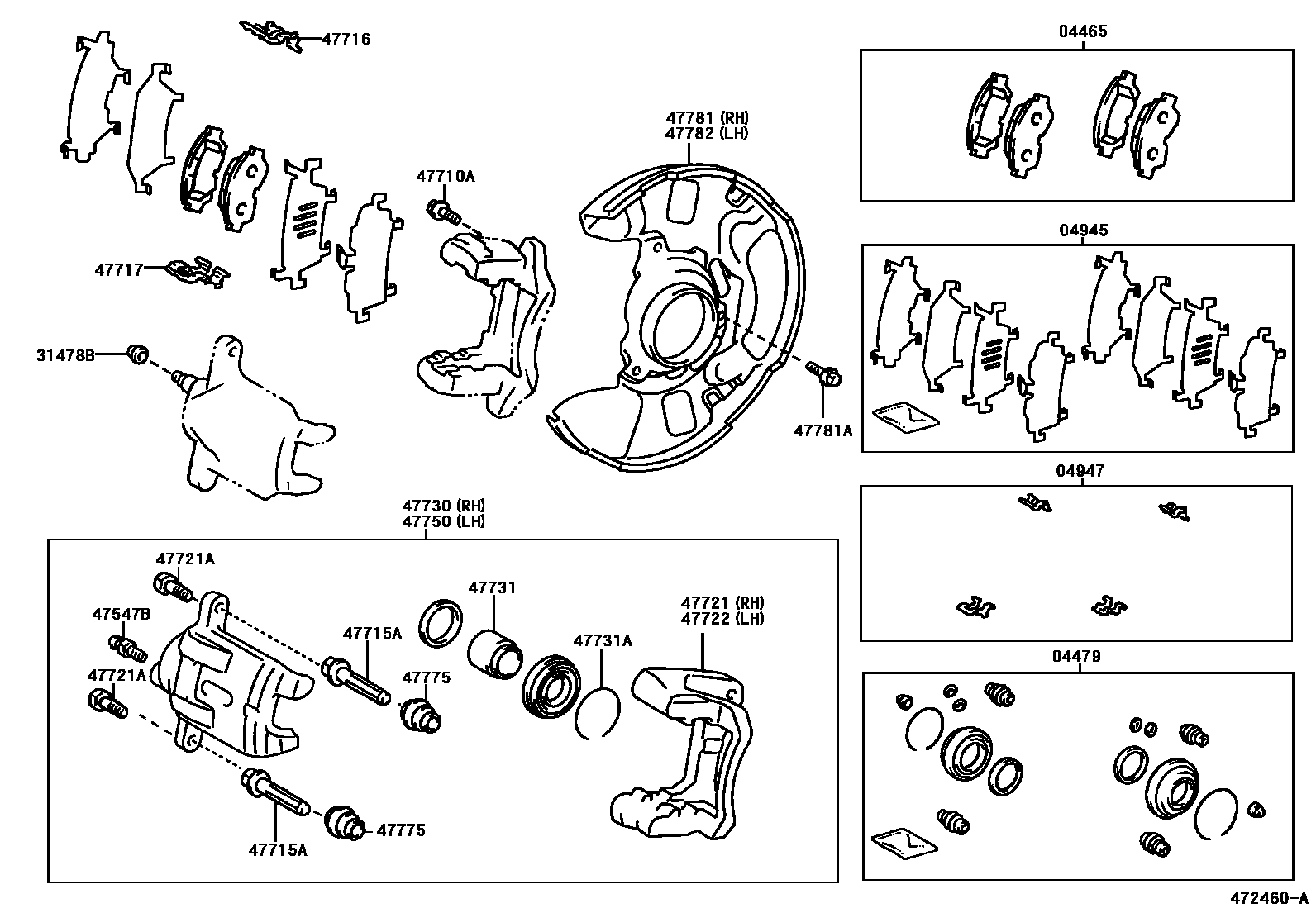

Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 4 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-02110 · 04465-12581 · 04465-12590 · 04465-12592 |
| 04479 | Front disc brake cylinder assembly | 04478-02110 · 04478-02290 · 04479-02150 · 04479-02160 · 04479-20320 · 04479-32140 · 04479-47020 |
| 04945 | Front silencer gasket assembly | 04945-02030 · 04945-02060 · 04945-20210 |
| 04947 | Front disc brake mounting kit | 04947-02040 · 04947-02090 · 04947-20110 · 04947-47010 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02090 · 04952-02270 |
| 04953 | Front disc brake cylinder sliding pin dust boot assembly | 04953-02090 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-02010 · 31478-30010 · 47548-02050 |
| 47547B | Bleed plug (for front disc brake) | 47547-20010 · 47547-27050 · 90080-93014 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12208 |
| 47715A | Front disc brake cylinder sliding pin | 47715-02040 · 47715-52010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-02170 · 47716-12070 · 47716-20200 |
| 47717 | Pad support plate No. 2 (for front disc brake) | 47717-12030 · 47717-20100 |
| 47721 | Right front disc brake cylinder retainer | 47721-02070 · 47721-02200 · 47721-09141 · 47721-09440 · 47721-12220 · 47721-20440 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90080-10190 · 90080-10247 · 90105-08164 |
| 47722 | Left front disc brake cylinder retainer | 47721-09450 · 47722-02020 · 47722-02090 · 47722-09051 · 47722-12040 · 47722-20130 |
| 47730 | Right front disc brake cylinder assembly | 47730-02070 · 47730-02180 · 47730-02200 · 47730-12490 · 47730-20600 |
| 47731 | Front disc brake piston | 47731-02160 · 47731-12170 · 47731-20260 |
| 47731A | retaining ring (for front disc brake piston) | 90520-86005 · 90522-66001 |
| 47750 | Left disc brake cylinder assembly | 47750-02090 · 47750-02180 · 47750-02200 · 47750-12490 · 47750-20510 |
| 47755A | Disc brake insulation pad | 47755-02060 |
| 47775 | Bushing boot (for front disc brake) | 47775-02130 · 47775-52010 |
| 47781 | Right front disc brake dust cover | 47781-02080 · 47781-12240 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 90119-06227 · 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47782-02080 · 47782-12240 |
