Toyota COROLLA 制动助力器和真空管 — Figure 4703

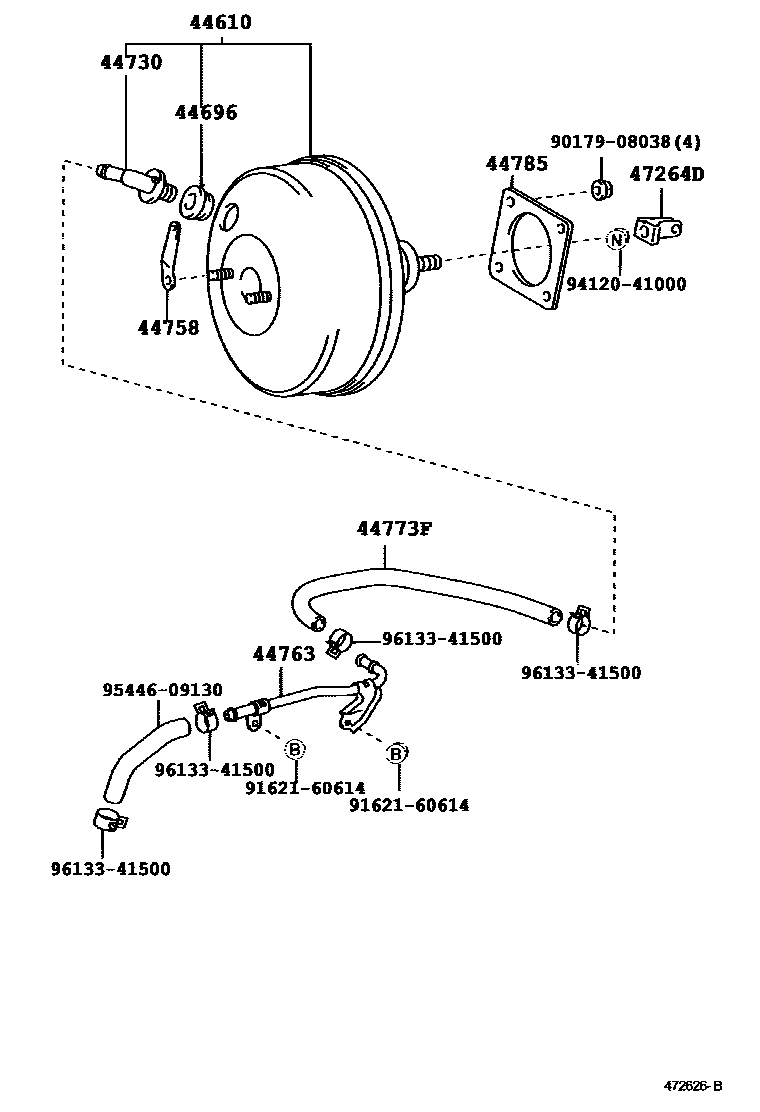

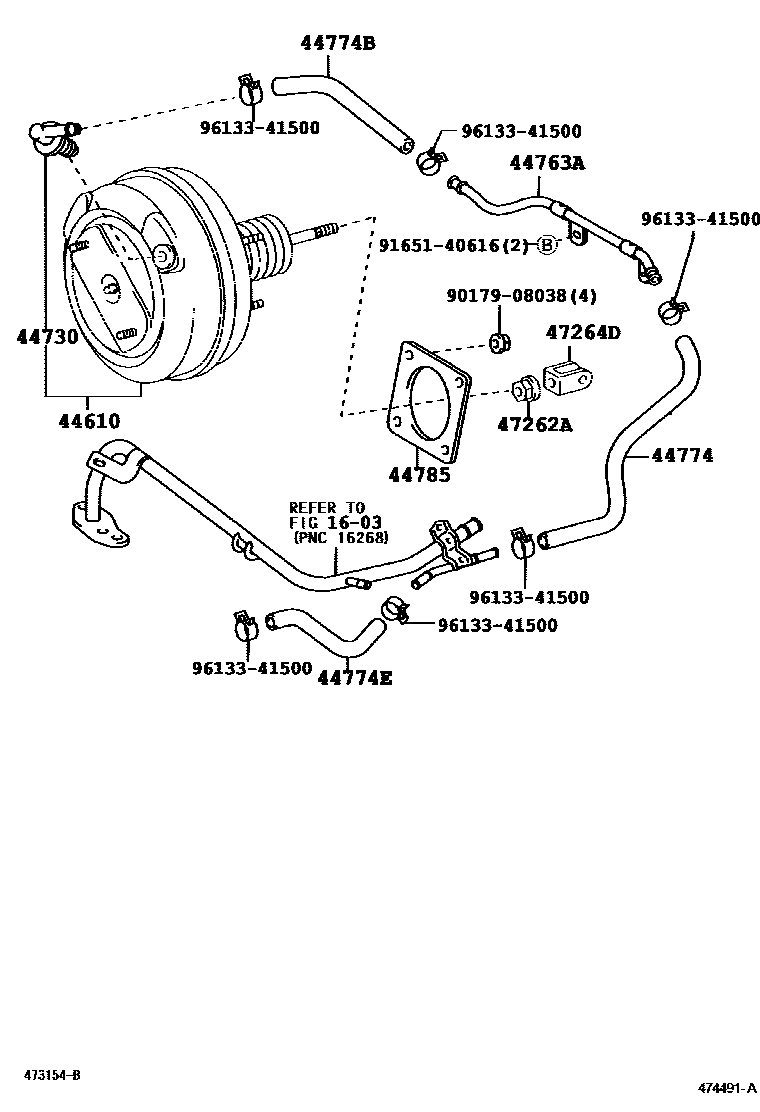

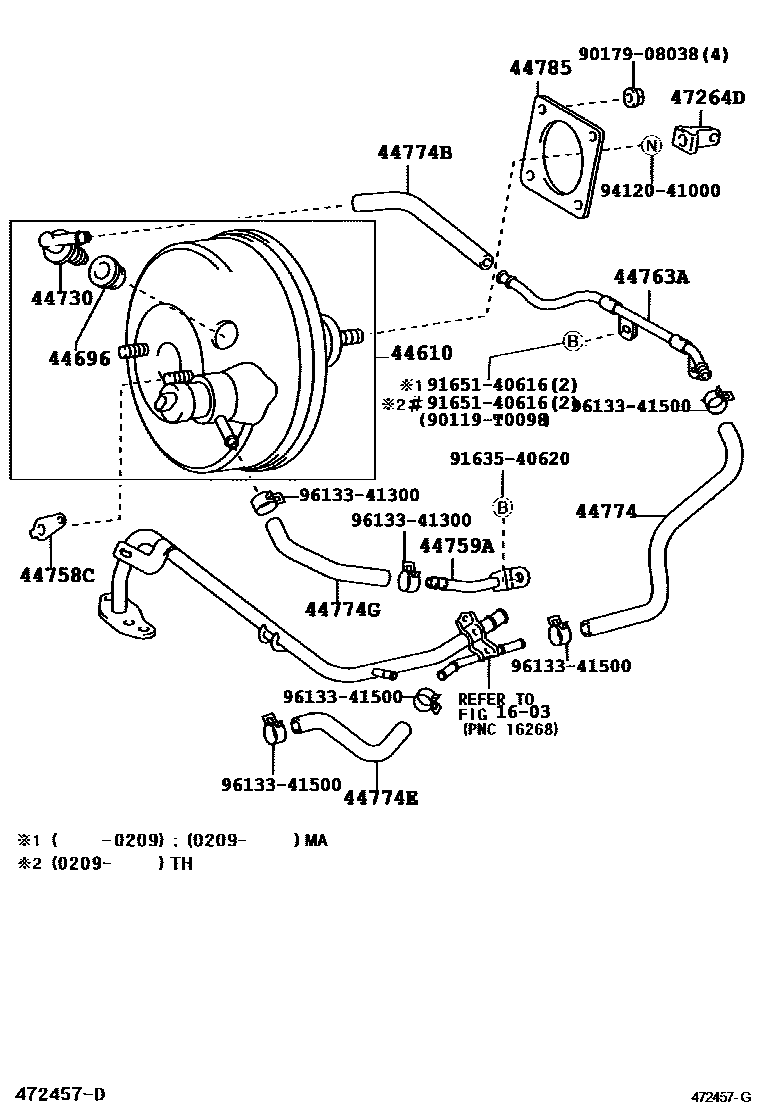

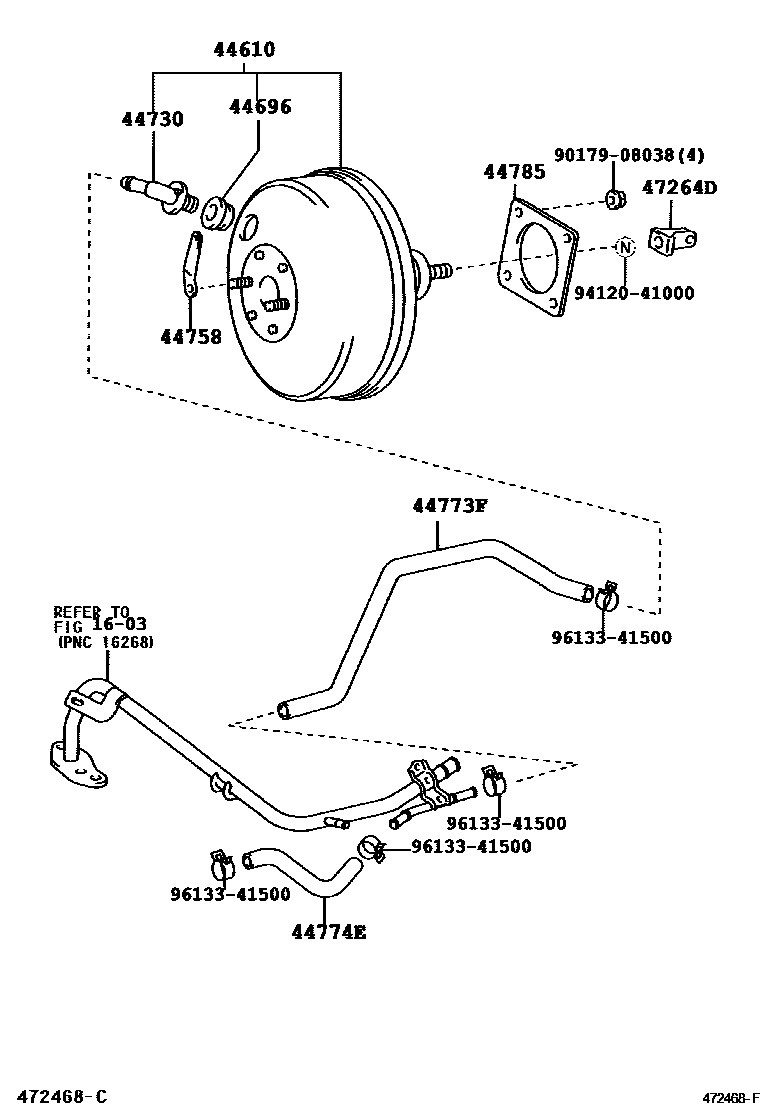

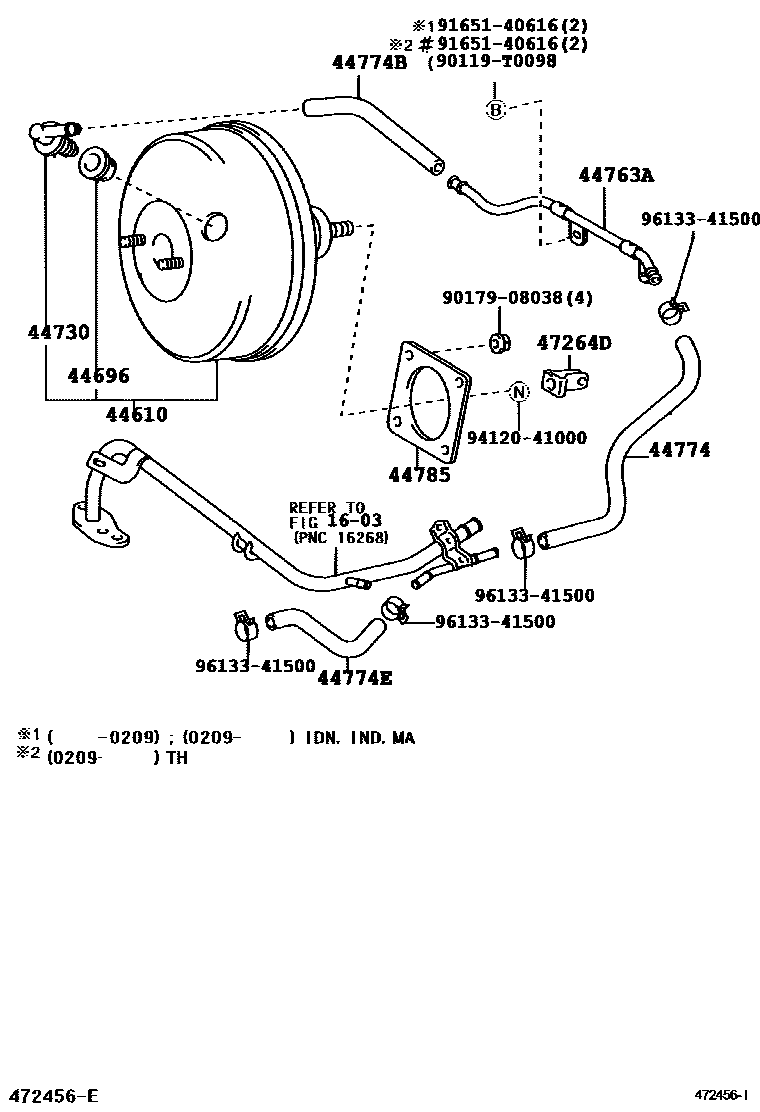

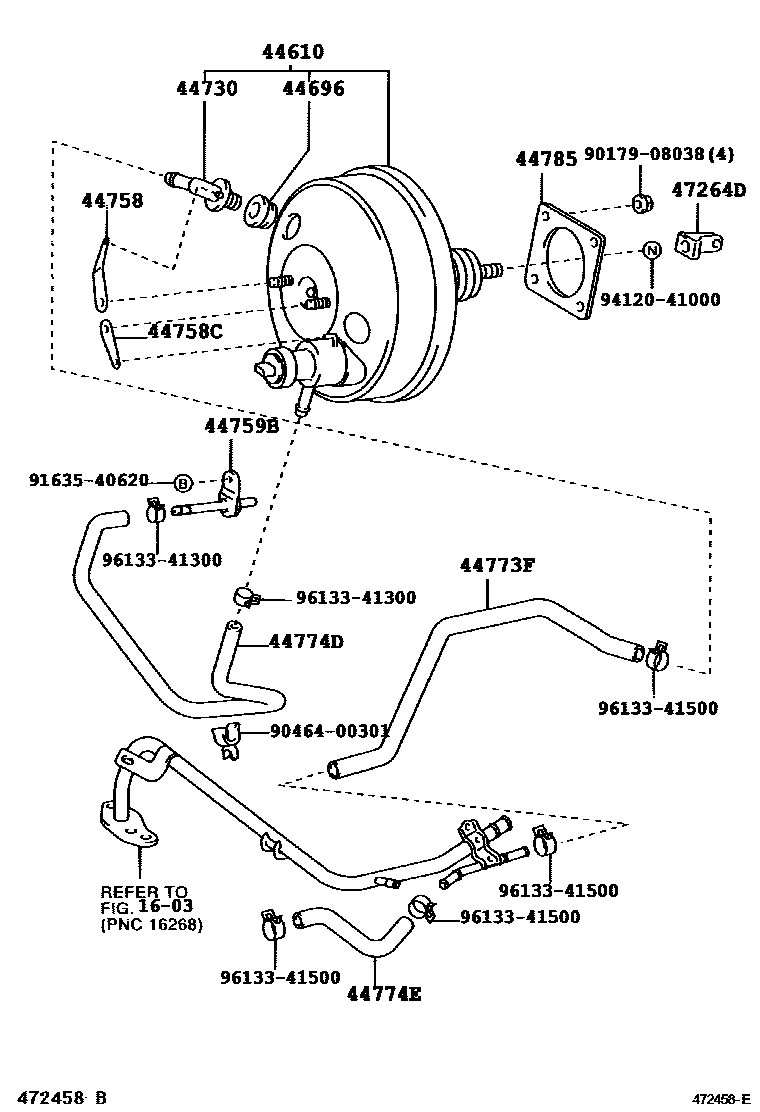

Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-02110 · 44610-02120 · 44610-02130 · 44610-02140 · 44610-02220 · 44610-12A00 · 44610-1E540 · 44610-1E550 · 44610-1E560 · 44610-1E580 |
| 44696 | One-way valve seal | 90080-48050 · 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-02030 · 44730-12070 |
| 44758 | Vacuum check valve bracket | 44758-02020 · 44758-02030 · 44758-42010 |
| 44758C | Solenoid valve cover bracket | 44758-02040 · 44758-12360 |
| 44759A | Brake booster air hose connector | 44759-12060 |
| 44759B | Vacuum liquid tank inner tube | 44759-12080 |
| 44763 | booster vacuum tube | 44763-52010 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12340 |
| 44773F | Hoses (connector to check valve) | 44773-12700 · 44773-12710 |
| 44774 | Hoses (joints to connector tubes) | 44774-12420 |
| 44774B | Hoses (joints to connector tubes) | 44774-12510 · 95446-09180 |
| 44774D | Hoses (fitting to fitting) | 44774-12440 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-20310 |
| 44774G | Hoses (connector to solenoid valve) | 44774-12460 |
| 44785 | brake booster pad | 44785-20020 |
| 47262A | Master cylinder push rod U-shaped clamp lock nut | 47262-02030 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-02010 · 47264-02040 · 47264-12060 |
