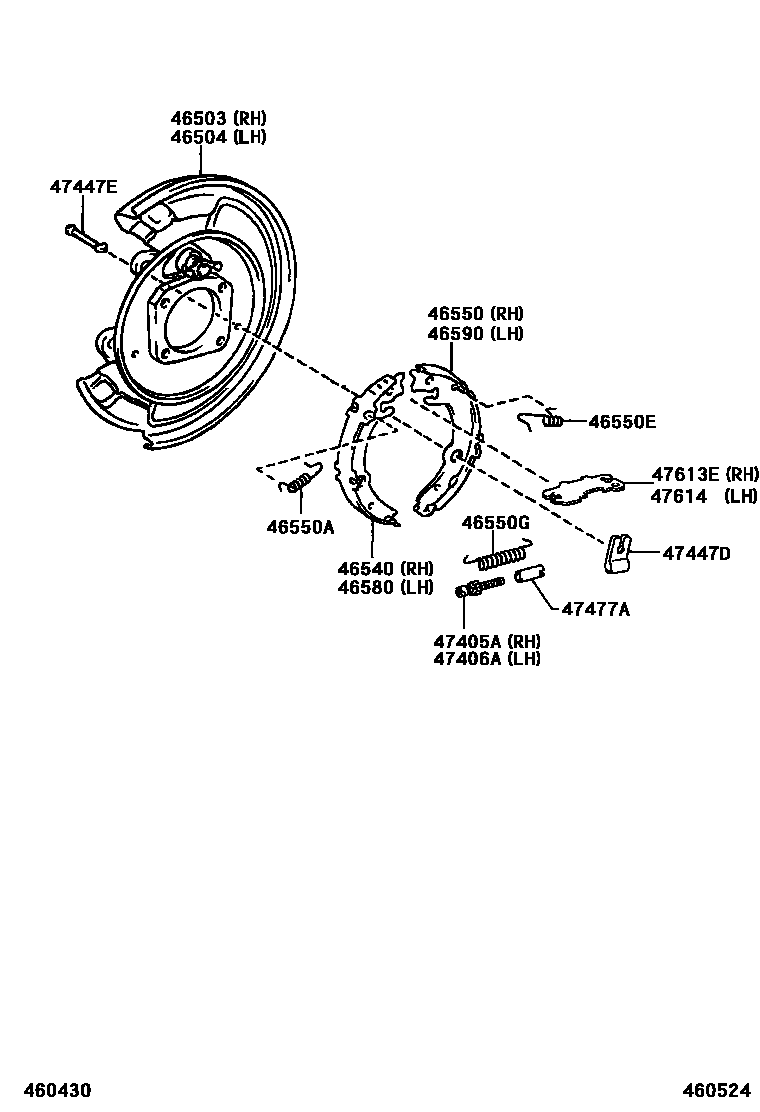

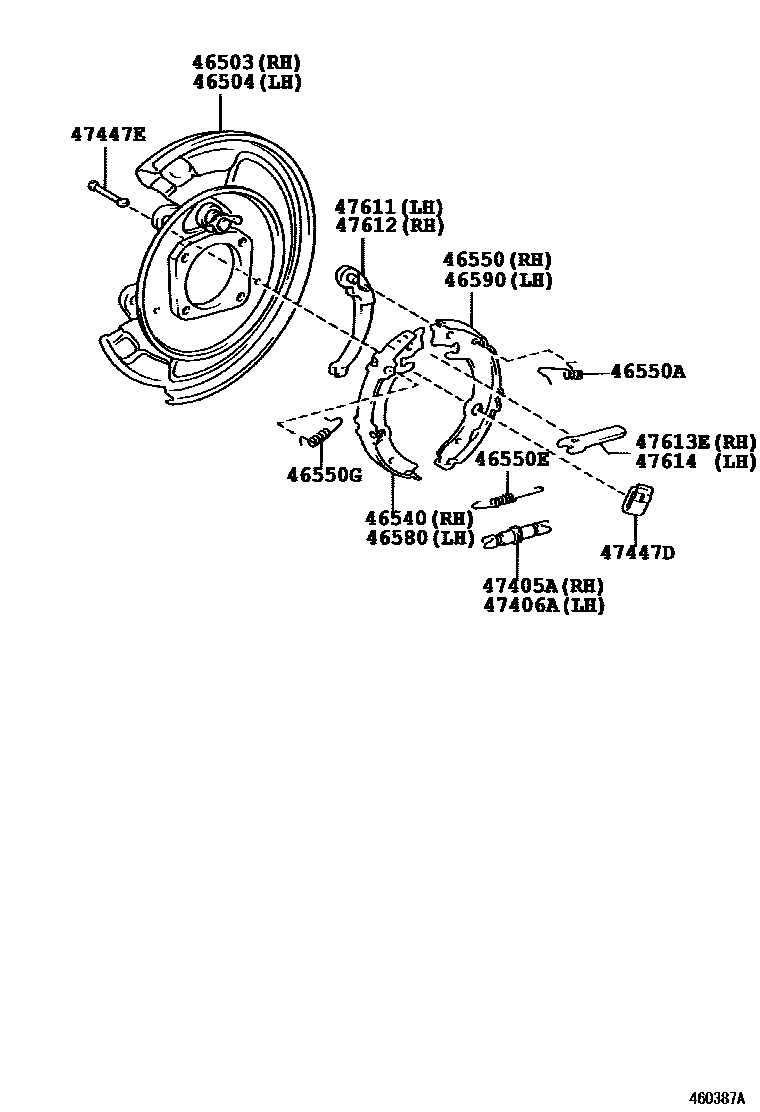

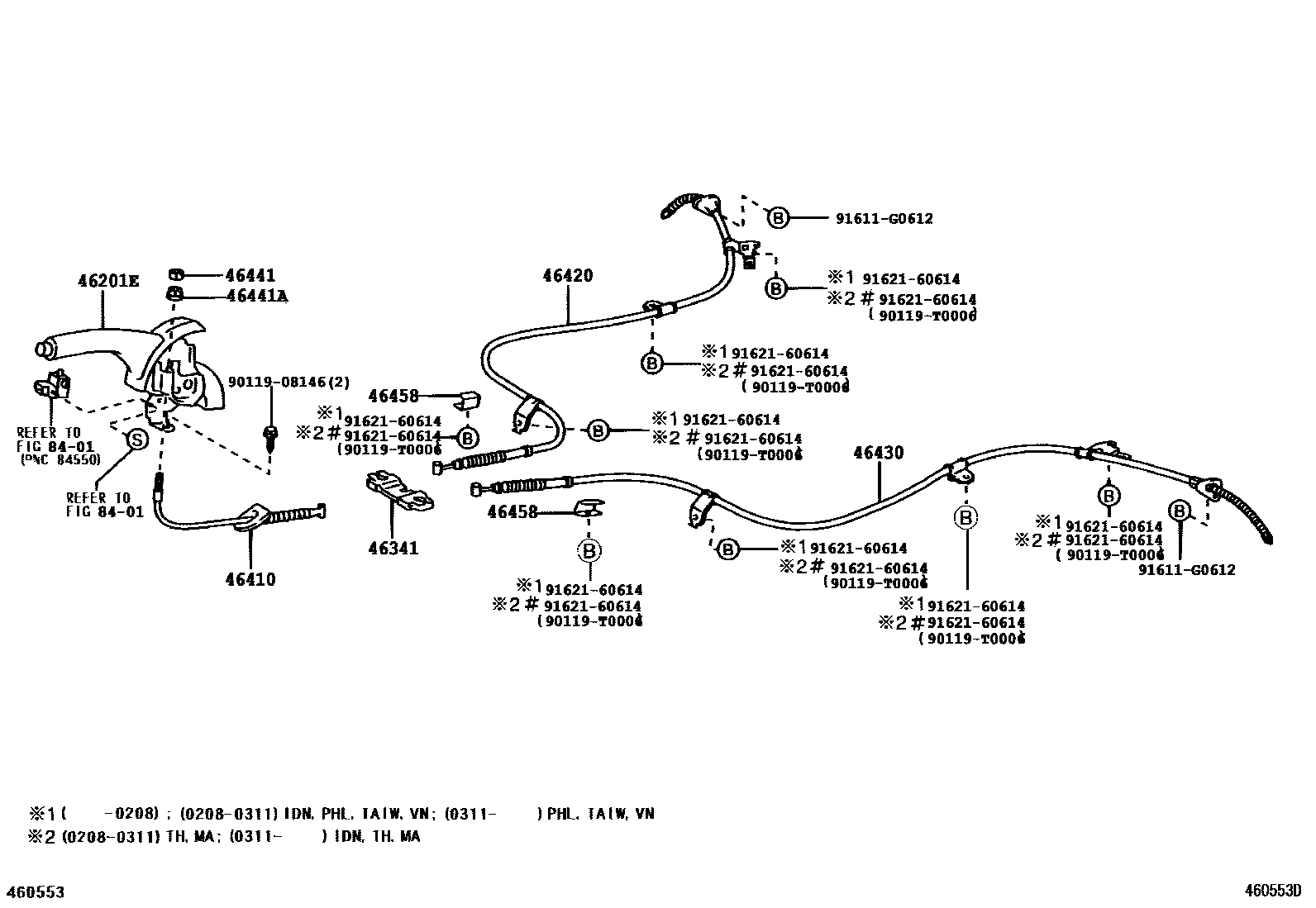

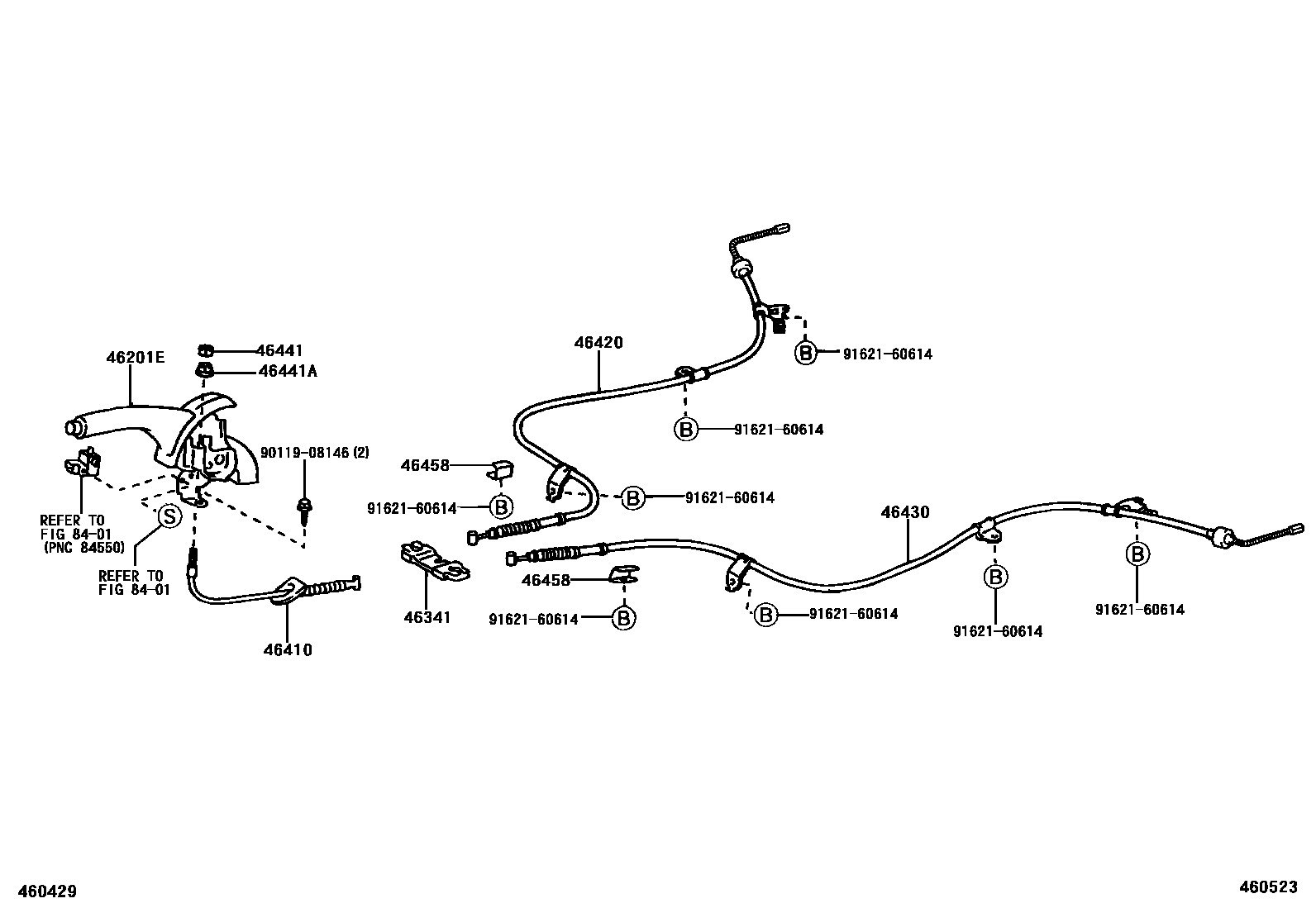

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46341 | Parking brake balancer | 46341-20070 |
| 46410 | Parking brake cable assembly No. 1 | 46410-02060 |
| 46420 | Parking brake No. 2 cable assembly | 46420-02020 · 46420-02060 · 46420-02100 · 46420-12490 · 46420-12510 · 46420-12541 |
| 46430 | Parking brake No. 3 cable assembly | 46430-02020 · 46430-02060 · 46430-02100 · 46430-12400 · 46430-12410 · 46430-12441 |
| 46441 | No. 1 cable adjustment nut | 90179-06299 |
| 46441A | No. 2 cable adjustment nut | 90179-06171 |
| 46458 | Cable fixings | 46458-02030 · 46458-28010 |
| 46503 | Right parking brake pad sub-assembly | 46503-02010 · 46503-02060 · 46503-20070 |
| 46504 | Left parking brake pad sub-assembly | 46504-02010 · 46504-02060 · 46504-20070 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-02010 · 46540-02070 · 46540-20080 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-02010 · 46540-20080 · 46550-02080 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 47459-02100 · 90080-50287 · 90080-50290 · 90905-06044 · 90905-06045 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 47459-02110 · 90080-50288 · 90905-06046 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 47459-02120 · 90080-50286 · 90905-06043 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-02010 · 46540-02070 · 46540-20080 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-02010 · 46540-20080 · 46590-02050 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-02010 · 47405-02050 · 47405-32010 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47405-02050 · 47406-02010 · 47406-32010 |
| 47447D | Compression spring (for parking brake shoe limit) | 47446-02010 · 47446-02050 · 47446-32010 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-02020 · 47447-02080 · 47447-11010 |
| 47477A | Brake shoe support | 47477-02090 |
| 47611 | Right parking brake shoe lever | 47601-02040 · 47601-32030 |
| 47612 | Left parking brake shoe lever | 47602-02040 · 47602-32030 |
| 47613E | Right parking brake shoe push rod | 47613-02040 · 47613-02100 · 47613-32030 |
| 47614 | Left parking brake shoe push rod | 47613-02040 · 47613-02100 · 47613-32030 |
