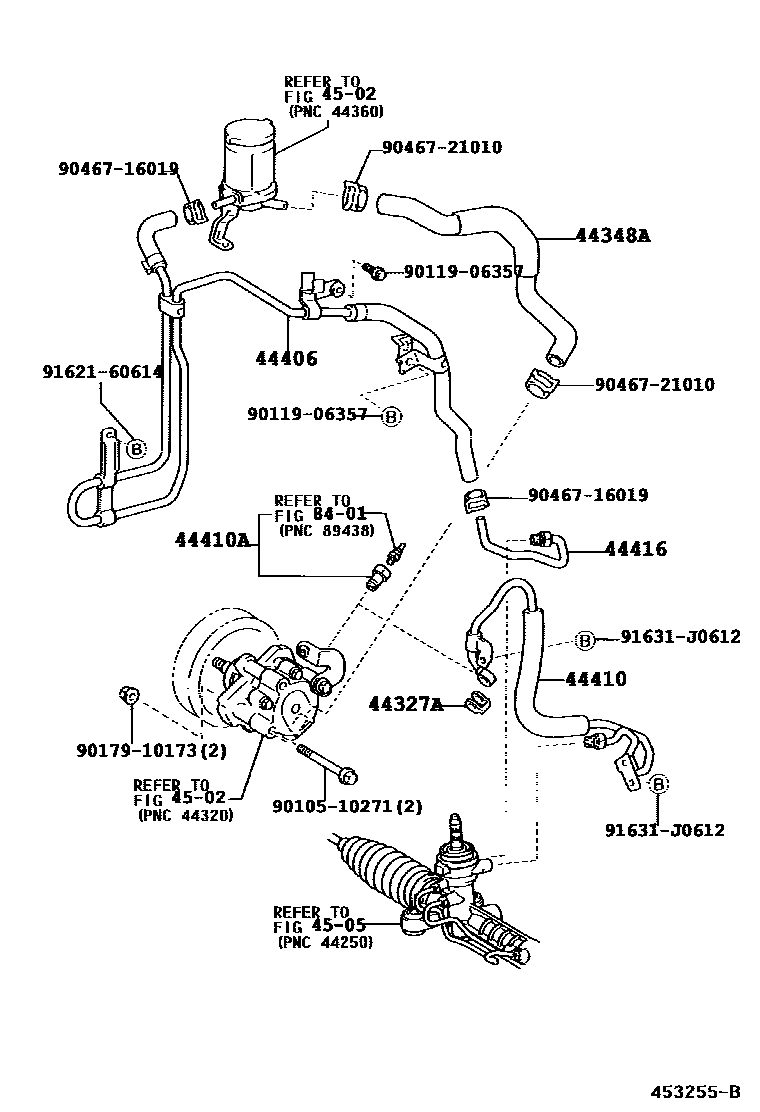

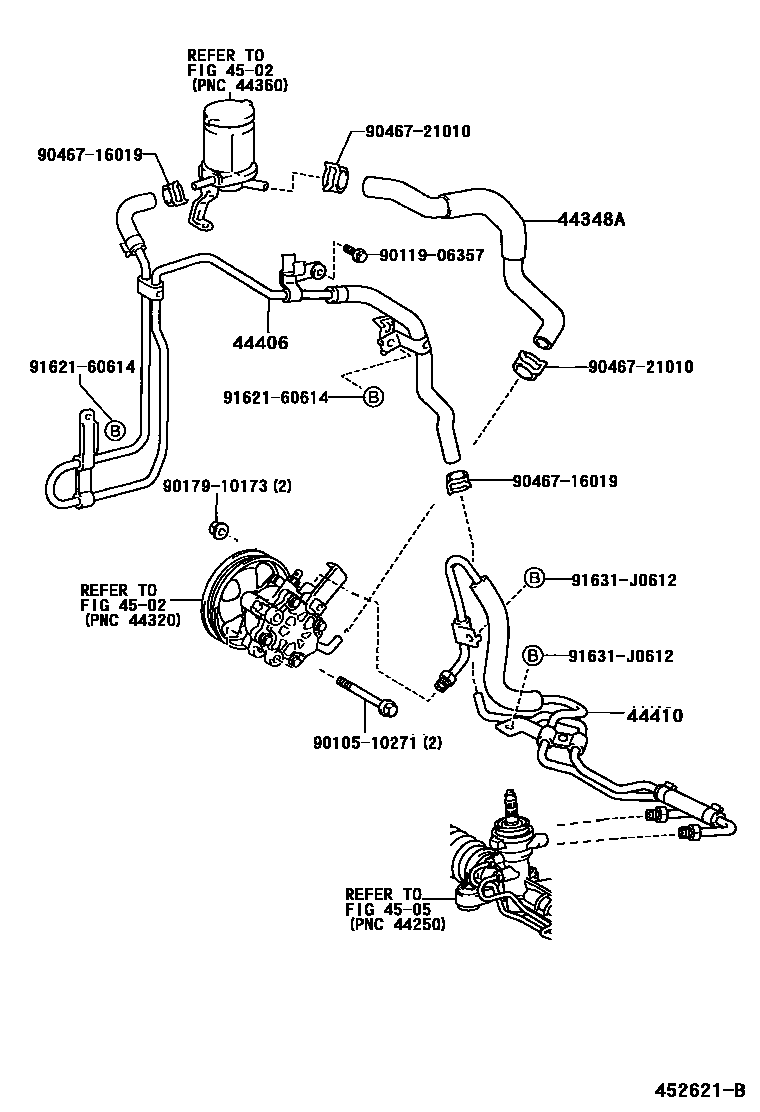

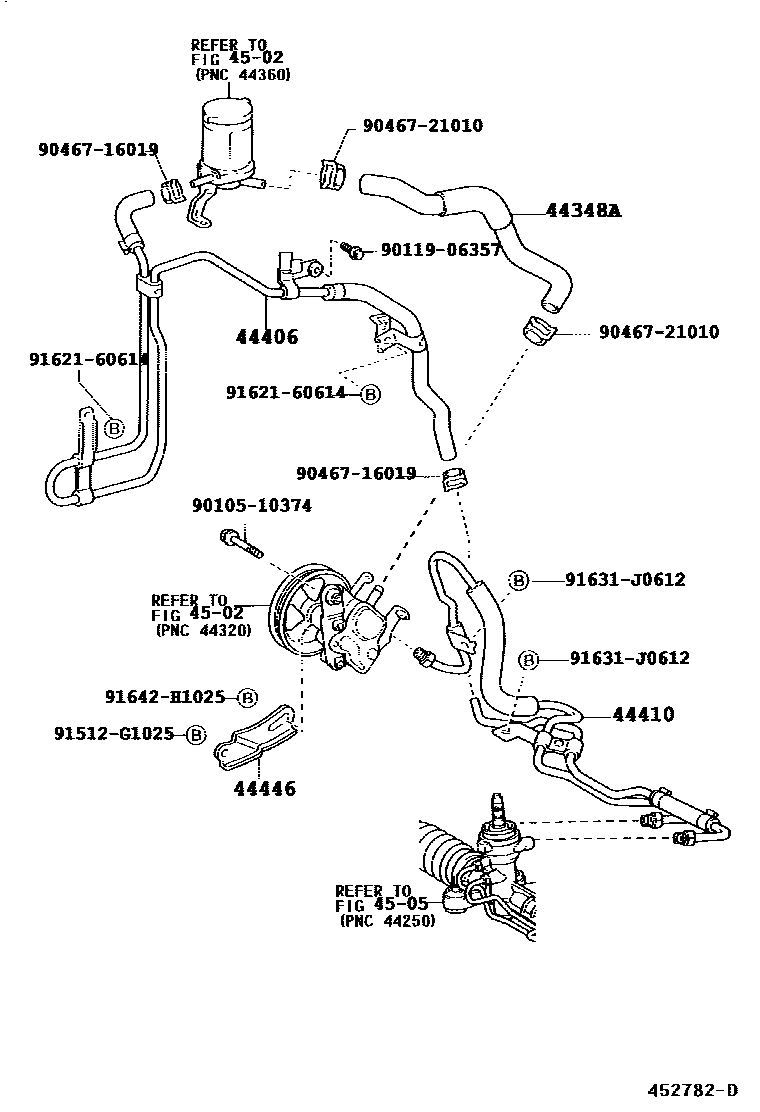

Toyota COROLLA 动力转向配管 — Figure 4503
Toyota COROLLA EPC diagram 4503, 动力转向配管, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 · 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-02040 · 44348-02041 · 44348-02070 · 44348-12081 · 44348-12090 · 44348-12091 |
| 44406 | Oil return pipe sub-assembly | 44406-02070 · 44406-02071 · 44406-02100 · 44406-12230 · 44406-12231 |
| 44410 | Pressure supply pipe assembly | 44410-02090 · 44410-02120 · 44410-12640 · 44410-12650 |
| 44410A | Connector bolt (for pressure supply pipe) | 44338-33090 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-02040 |
| 44446 | Adjust the stand | 44446-52010 |
