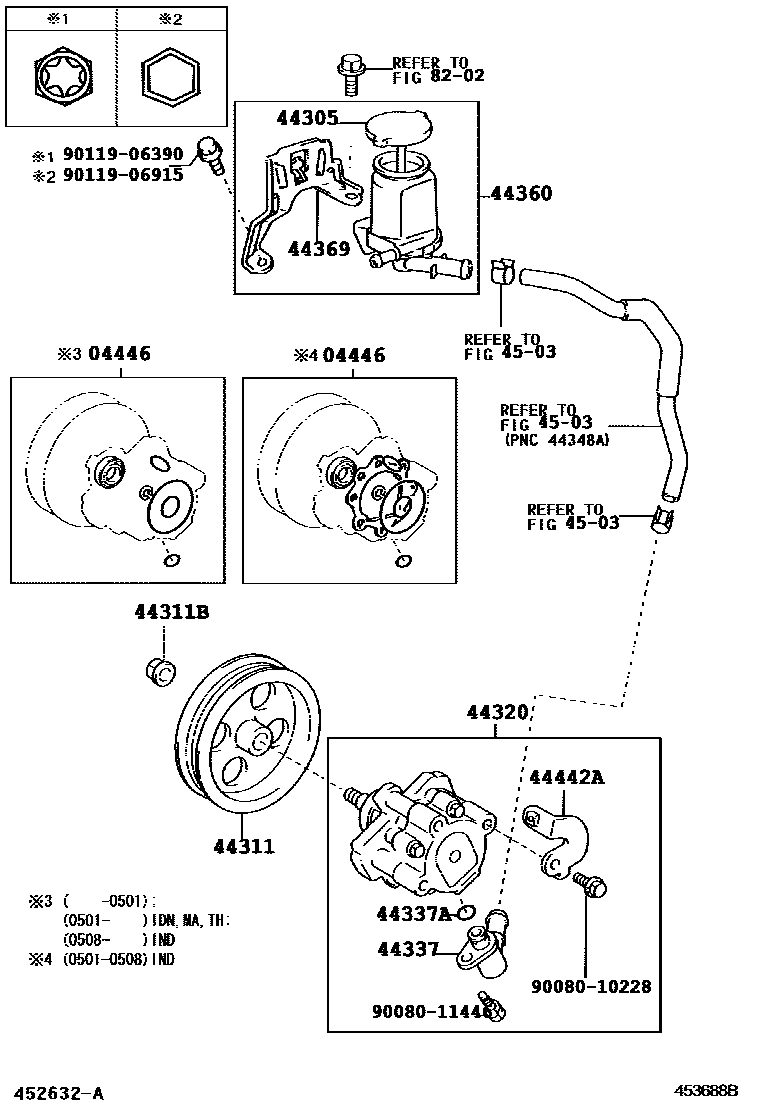

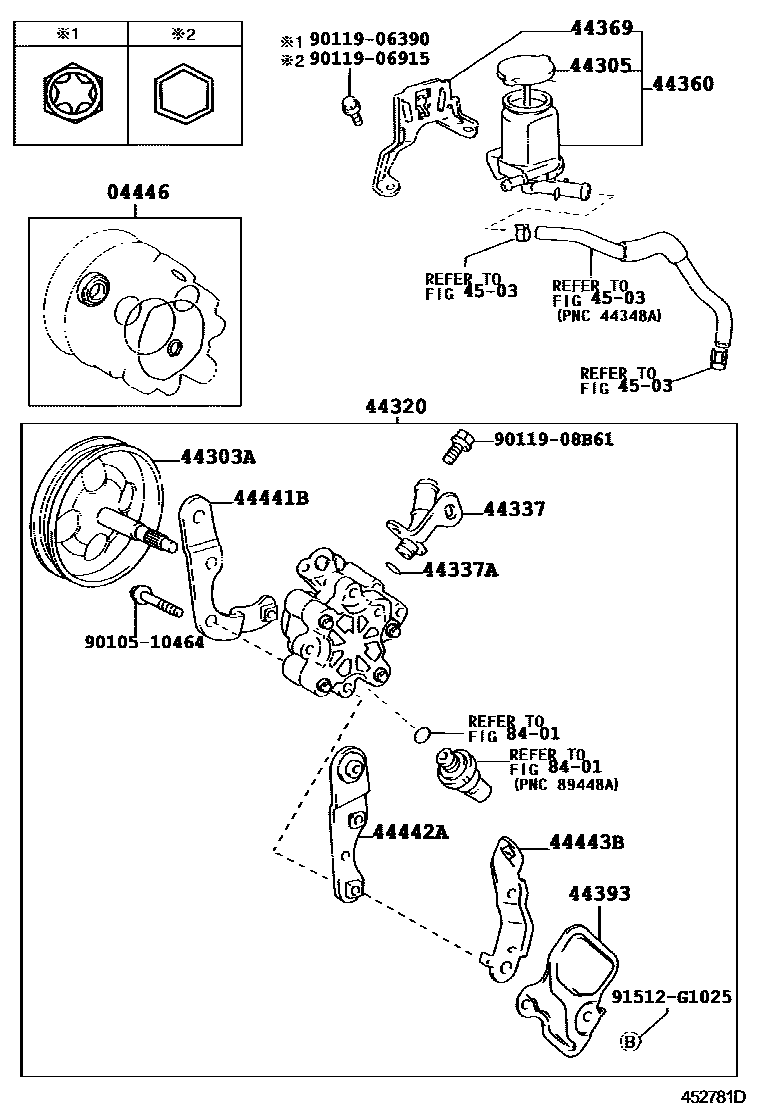

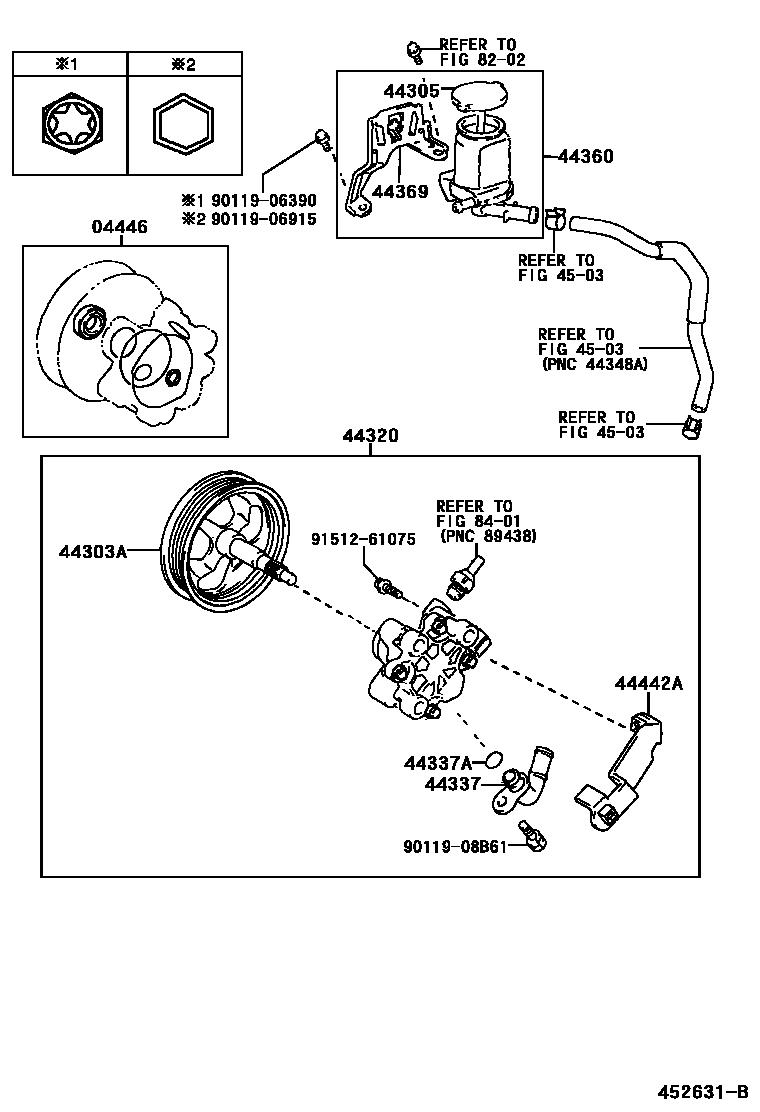

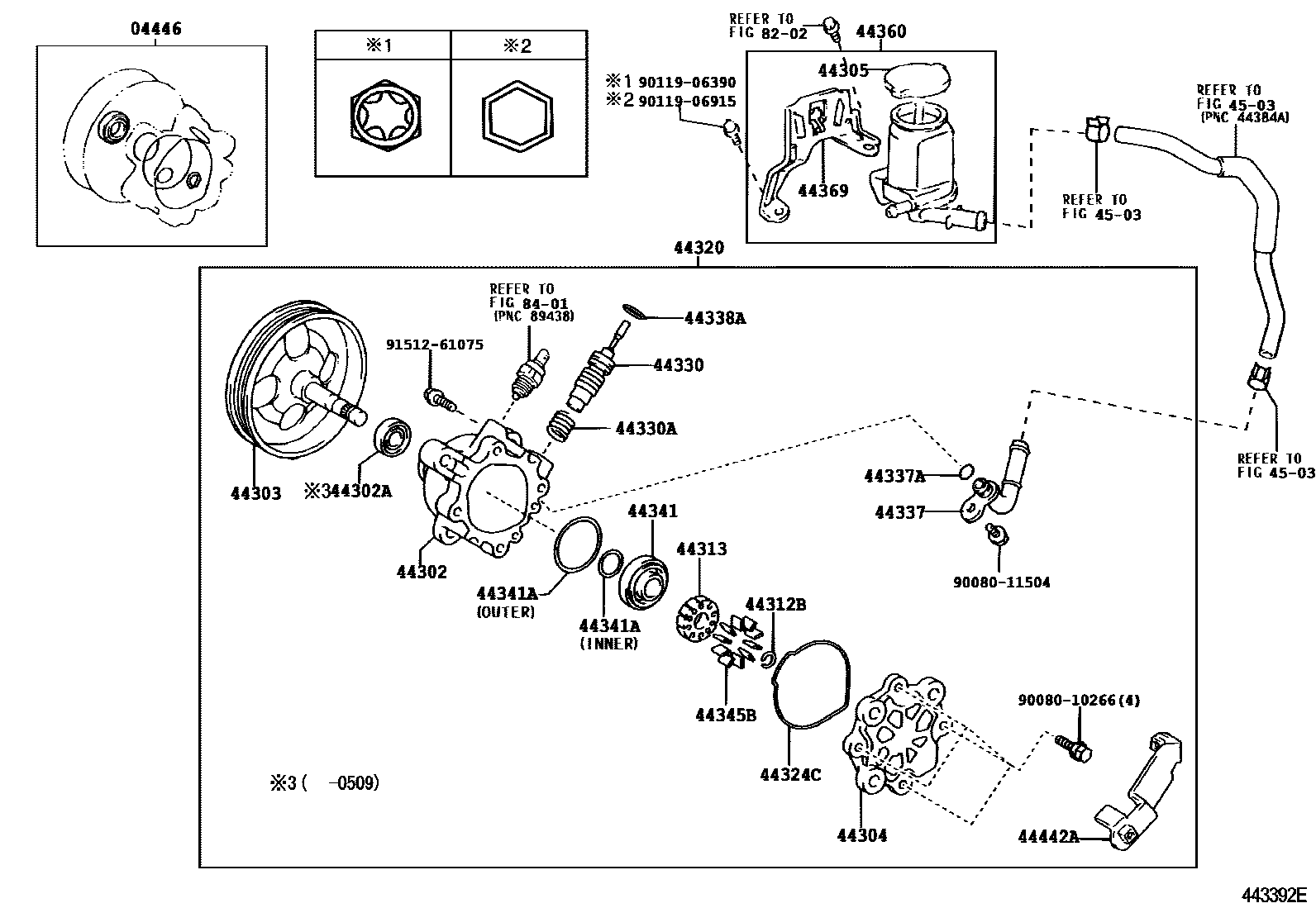

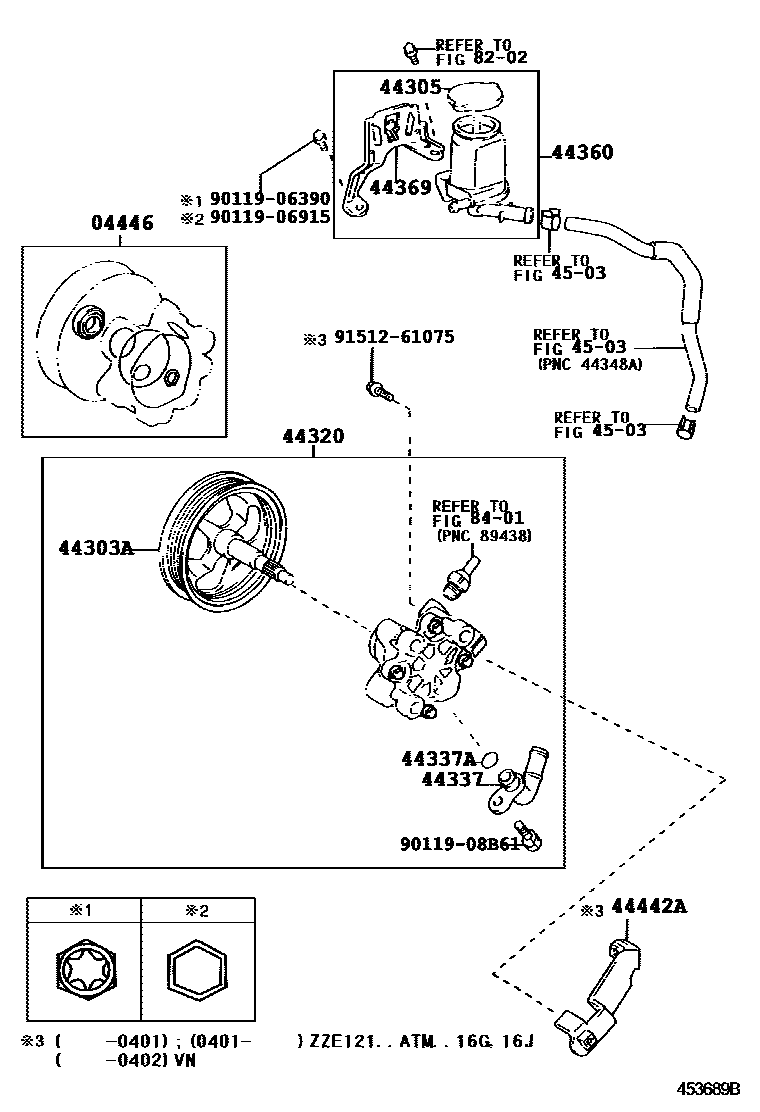

Toyota COROLLA 叶片泵和储油罐(动力转向) — Figure 4502
Toyota COROLLA EPC diagram 4502, 叶片泵和储油罐(动力转向), with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-02060 · 04446-02090 · 04446-02100 · 04446-02110 · 04446-02150 · 04446-20170 · 04446-32050 |
| 44302 | Front vane pump housing sub-assembly | 44302-06070 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90080-31079 |
| 44303 | Shaft sub-assembly with rotor | 44303-02040 |
| 44303A | Shaft sub-assembly with pulley | 44303-32010 · 44303-52020 |
| 44304 | Vane pump rear housing sub-assembly | 44304-06030 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-02060 · 44305-02070 · 44305-28030 · 44305-28060 |
| 44311 | vane pump pulley | 44311-02090 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90080-52114 |
| 44313 | vane pump rotor | 44313-06160 · 44313-06170 · 44313-06180 · 44313-06190 · 44313-06200 |
| 44320 | Vane pump assembly | 44310-02090 · 44310-12530 · 44310-12540 · 44320-02060 |
| 44324C | O-ring (for pump rear housing) | 90080-30092 |
| 44330 | Flow control valve assembly | 44330-02560 · 44330-02570 · 44330-02580 · 44330-02590 · 44330-02600 · 44330-02610 |
| 44330A | Compression spring (for flow control valve) | 90080-50328 |
| 44337 | Power steering suction port connector | 44337-02070 · 44337-02080 · 44337-12120 · 44337-32110 |
| 44337A | O-ring (for power steering oil suction port) | 90080-30049 · 90080-30088 · 90301-11020 |
| 44338A | O-ring (for pressure port connector) | 90080-30090 |
| 44341 | Vane pump front cover | 44341-06020 |
| 44341A | O-ring (for vane pump front cover) | 90080-30089 · 90080-30091 |
| 44345B | vane pump disc | 44345-06160 · 44345-06170 · 44345-06180 · 44345-06190 · 44345-06200 |
| 44360 | Vane pump oil storage tank assembly | 44360-02050 · 44360-02060 · 44360-12100 |
| 44369 | No. 1 oil storage tank bracket | 44369-02050 · 44369-02060 · 44369-12060 · 44369-12070 |
| 44393 | Power steering pump insulation pad | 44393-52010 |
| 44441B | Pump front bracket | 44441-52010 |
| 44442A | Vane pump rear bracket | 44442-02050 · 44442-02060 · 44442-12040 · 44442-52020 |
| 44443B | Vane pump bracket | 44442-12030 |
