Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 6 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

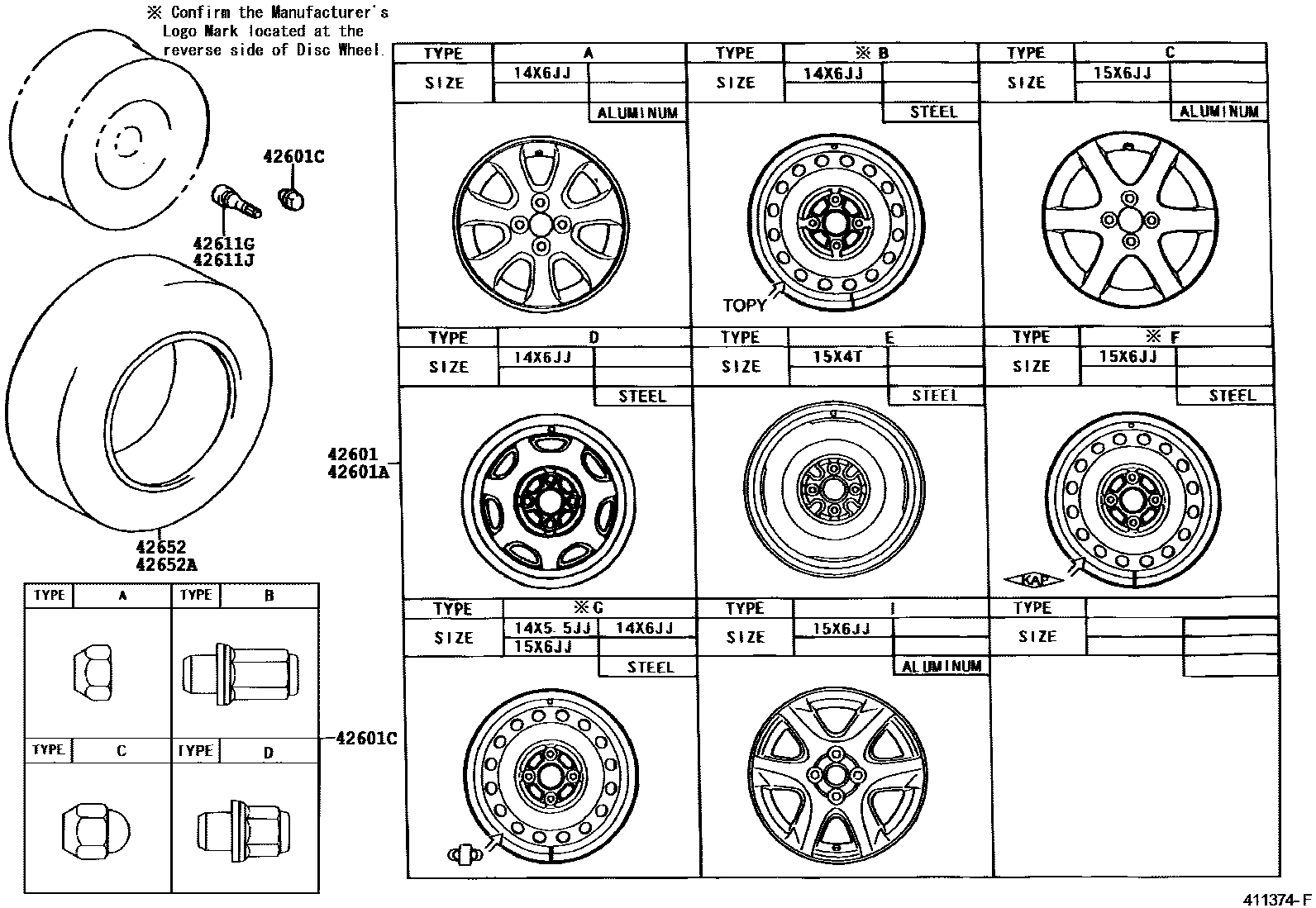

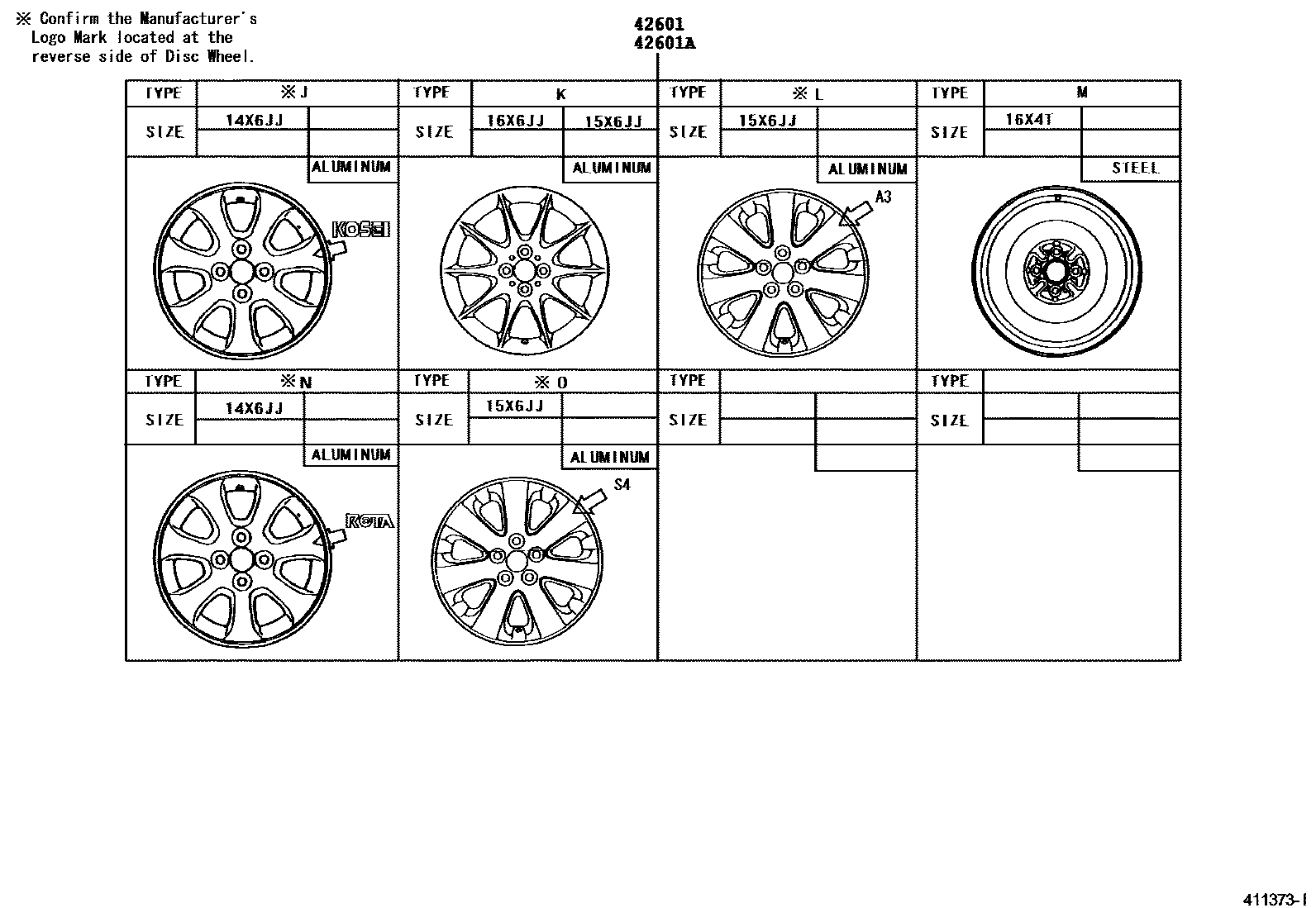

| 42601 | spoke wheel | 42611-02290 · 42611-02300 · 42611-02310 · 42611-02320 · 42611-02330 · 42611-02340 · 42611-02350 · 42611-02360 · 42611-02370 · 42611-02400 · 42611-02560 · 42611-02570 · 42611-02600 · 42611-02610 · 42611-02630 · 42611-02640 · 42611-02650 · 42611-02780 · 42611-02850 · 42611-02860 · 42611-02C00 · 42611-1A450 · 42611-1A480 |
| 42601A | Spoke wheel (for spare tire) | 42611-02280 · 42611-02290 · 42611-02300 · 42611-02320 · 42611-02340 · 42611-02360 · 42611-02370 · 42611-02380 · 42611-02400 · 42611-02560 · 42611-02570 · 42611-02600 · 42611-02630 · 42611-02650 · 42611-02690 · 42611-02780 · 42611-02C00 · 42611-1A450 · 42611-1A480 |
| 42601C | Hub nut (for axle) | 90080-94032 · 90942-01007 · 90942-01021 · 90942-01033 · 90942-01058 |

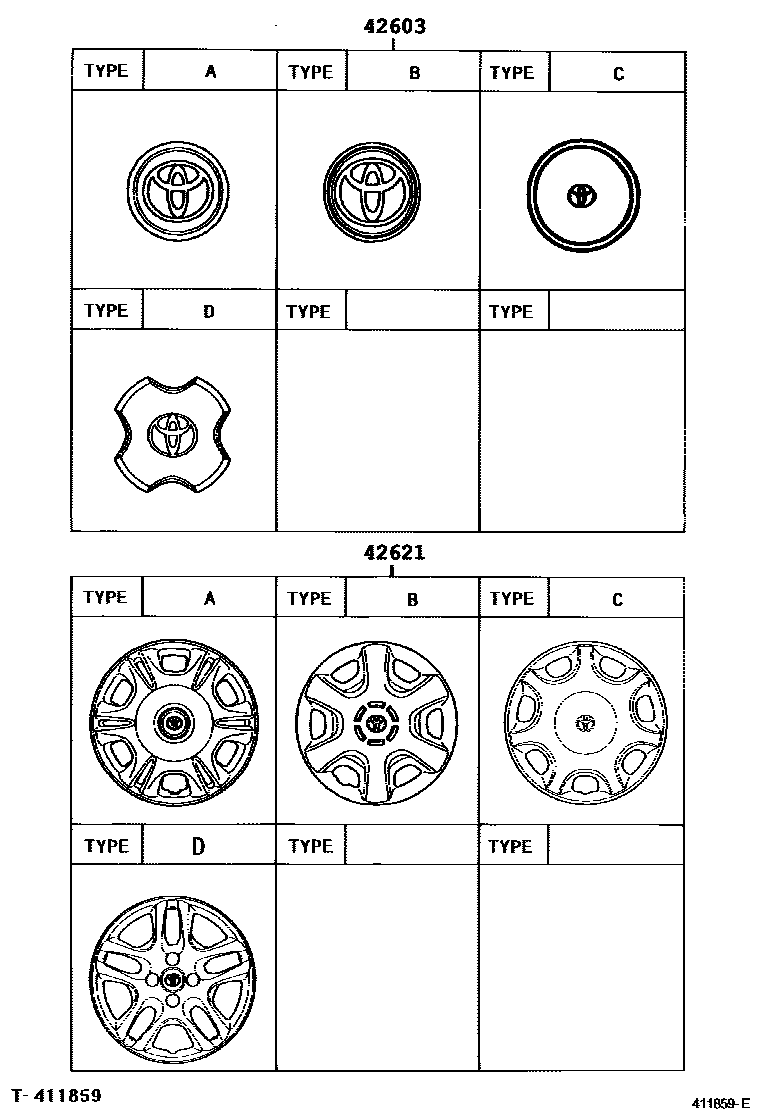

| 42603 | Wheel hub decorative parts sub-assembly | 42603-02100 · 42603-02110 · 42603-02120 · 42603-02130 · 42603-02140 · 42603-02180 · 42638-0A010 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94059 · 90083-45001 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94059 · 90083-45001 · 90942-05009 |
| 42621 | wheel cover | 42602-12590 · 42602-12620 · 42602-12630 · 42602-20400 |
| 42652 | tires | 42652-02310 · 42652-02330 · 42652-02350 · 42652-02370 · 42652-02390 · 42652-02440 · 42652-02470 · 42652-02850 · 42652-02851 · 42652-02860 · 42652-02D60 · 42652-1A520 |
| 42652A | Tire (for Spare Wheel) | 42652-02310 · 42652-02330 · 42652-02350 · 42652-02370 · 42652-02390 · 42652-02470 · 42652-02850 · 42652-02851 · 42652-02D60 · 42652-1A520 |
