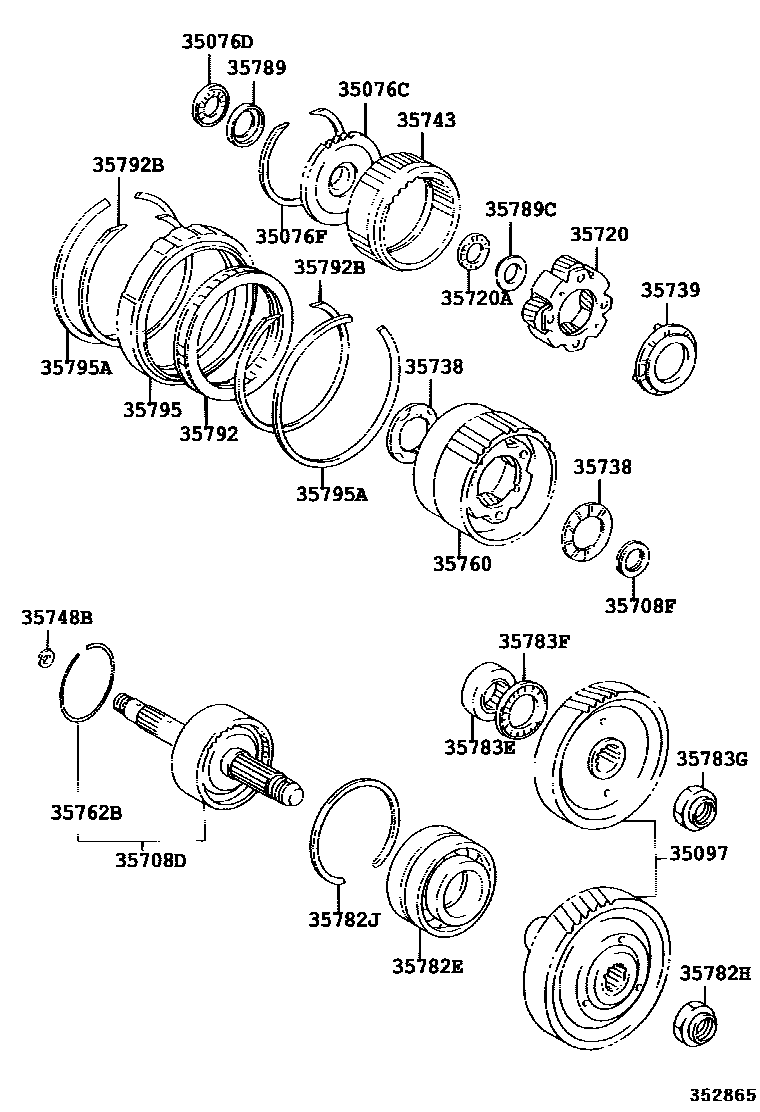

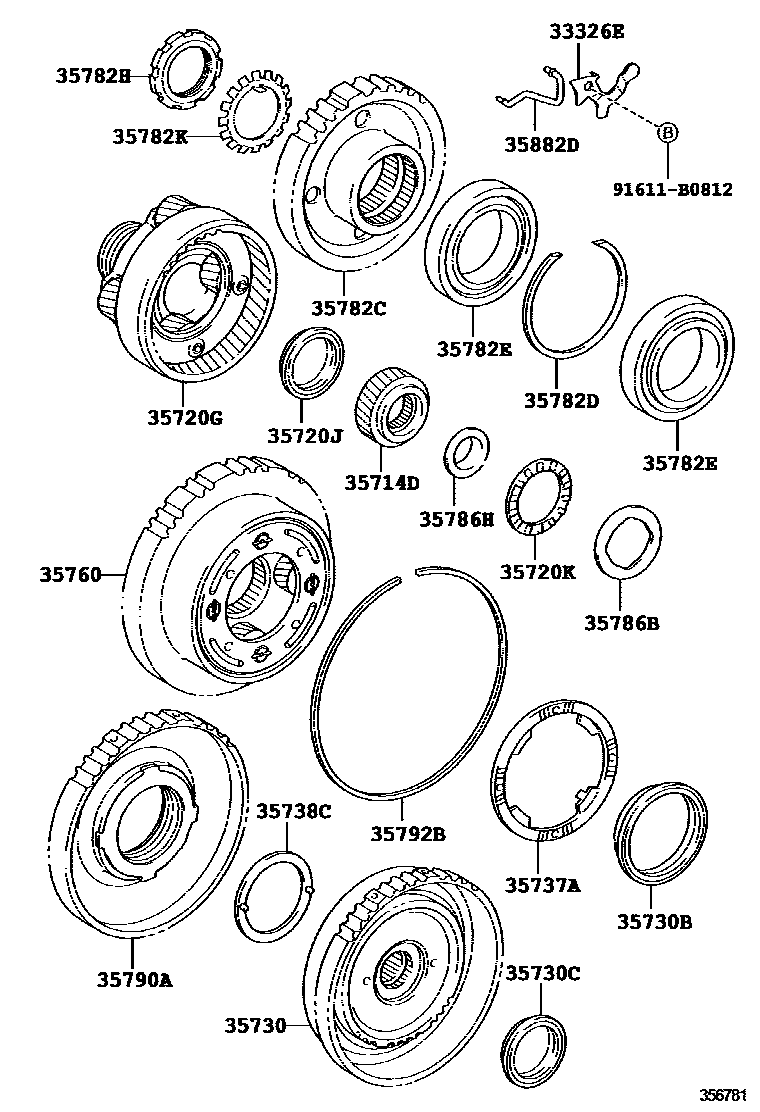

Toyota COROLLA 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota COROLLA EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33326E | Bearing locking plate | 33326-20010 |
| 35076C | Front planetary ring gear flange sub-assembly | 35076-12020 |
| 35076D | Thrust needle roller bearing (for front planetary gear flange) | 90374-25009 |
| 35076F | Hole snap ring (for front planetary gear flange) | 90521-99014 |
| 35097 | Automatic transmission axle countershaft gear assembly | 35097-12050 · 35097-20070 |
| 35708D | Intermediate shaft sub-assembly | 35708-12070 |
| 35708F | Thrust needle roller bearing (for intermediate shaft) | 90374-22003 |
| 35714D | Front planetary gear train sun gear | 35714-52020 |
| 35720 | Front planetary gear assembly | 35720-12050 · 35720-17010 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-22009 |
| 35720G | Planetary gear assembly | 35720-52020 · 35720-52021 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-33006 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-33007 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-52020 |
| 35730B | Thrust needle roller bearing (for rear planetary gear train sun gear) | 90374-43003 |
| 35730C | Thrust needle roller bearing (for No. 2 rear planetary gear train sun gear) | 90374-29002 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-52020 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-12010 |
| 35738C | No. 2 planetary gear carrier thrust washer | 35738-52010 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-32011 |
| 35743 | Front planetary ring gear | 35743-32040 |
| 35748B | Intermediate shaft oil ring | 35748-32010 |
| 35760 | Rear planetary gear assembly | 35760-12020 · 35760-52010 · 35760-52011 |
| 35762B | Hole snap ring (for rear planetary ring gear flange) | 90521-90001 |
| 35782C | countershaft driving gear | 35782-52020 |
| 35782D | Hole snap ring (for countershaft drive gear) | 90520-83001 |
| 35782E | Bearings (for countershaft drive gear) | 90363-40070 · 90363-52005 · 90366-52007 |
| 35782H | Nut (for countershaft drive gear) | 90179-22021 · 90179-40008 · 90179-40009 |
| 35782J | snap ring | 90520-75003 |
| 35782K | Lock washer (for countershaft drive gear lock nut) | 90215-40001 · 90215-40002 |
| 35783E | Roller bearings (for countershaft driven gear) | 90365-37008 |
| 35783F | Thrust needle roller bearing (for countershaft driven gear) | 90374-41001 |
| 35783G | Nut (for countershaft driven gear) | 90179-22021 |
| 35786B | No. 2 thrust bearing race | 35787-52010 |
| 35786H | No. 1 thrust bearing race | 35786-52010 |
| 35789 | Front thrust bearing race (for front planetary gear flange) | 35789-12040 |
| 35789C | Front thrust bearing race (for front planetary gear) | 35789-32060 |
| 35790A | One-way clutch assembly | 35790-52020 |
| 35792 | No. 2 one-way clutch | 35792-32011 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90520-99053 · 90521-99010 |
| 35795 | One-way clutch outer race | 35795-12020 |
| 35795A | Hole snap ring (for one-way clutch outer race) | 90521-99011 |
| 35882D | Differential gear lubricant oil supply pipe | 35882-52020 |
