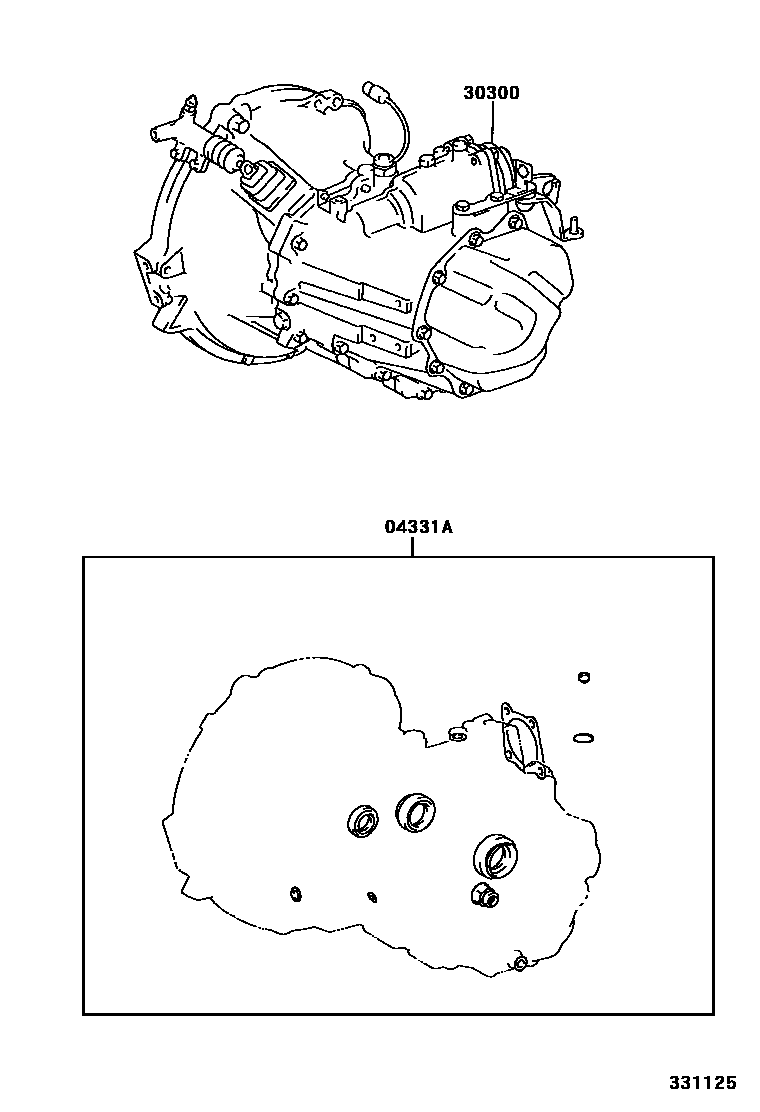

Toyota COROLLA 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota COROLLA EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-12110 · 04331-12181 · 04331-12182 · 04331-12580 · 04331-13040 · 04331-1E050 · 04331-20090 · 04331-20100 · 04331-52120 · 04331-52270 |
| 30300 | Manual transmission axle assembly | 30300-1A780 · 30300-1A781 · 30300-1A821 · 30300-1A822 · 30300-1A831 · 30300-1A832 · 30300-1A881 · 30300-1E090 · 30300-1E091 |
