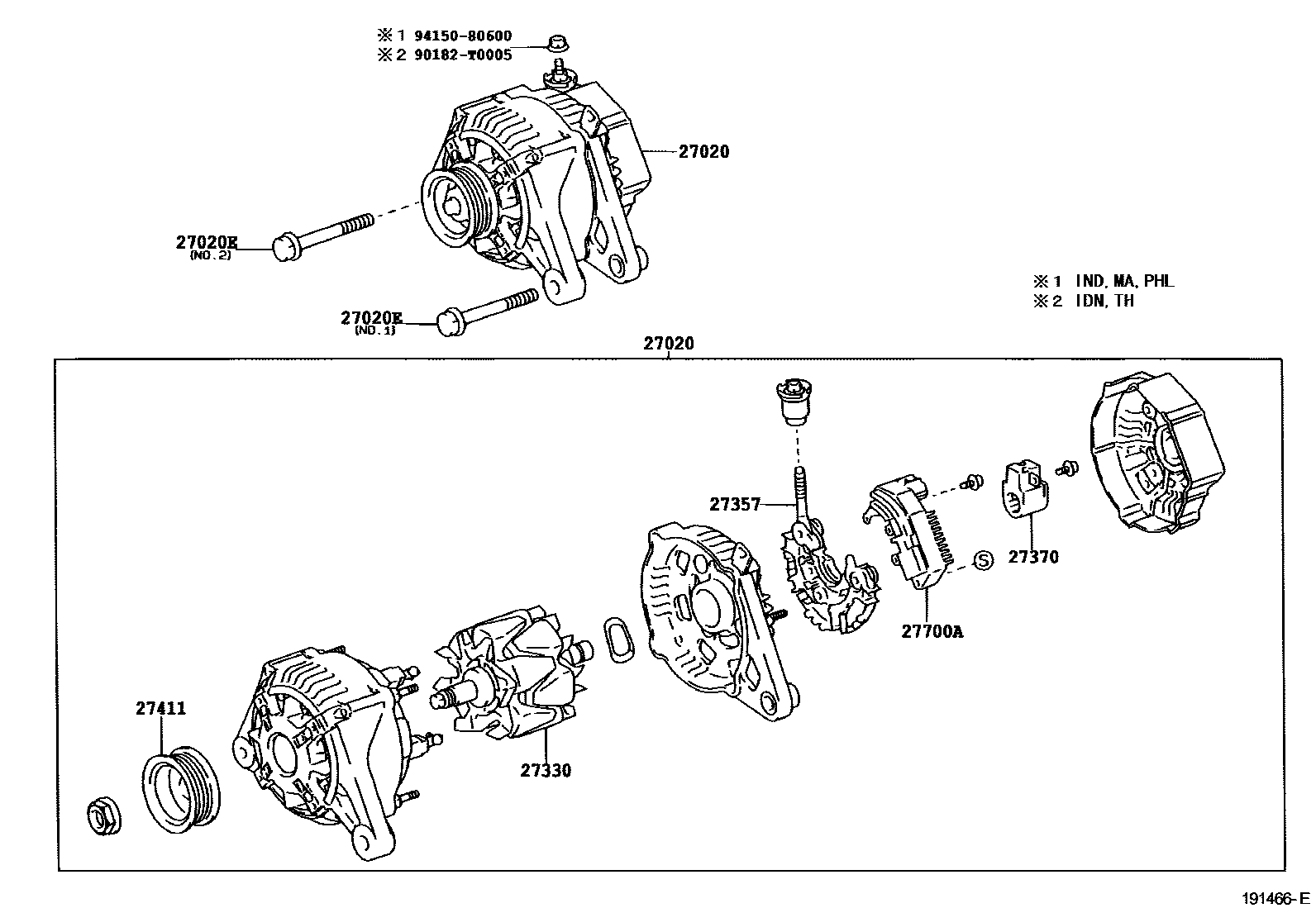

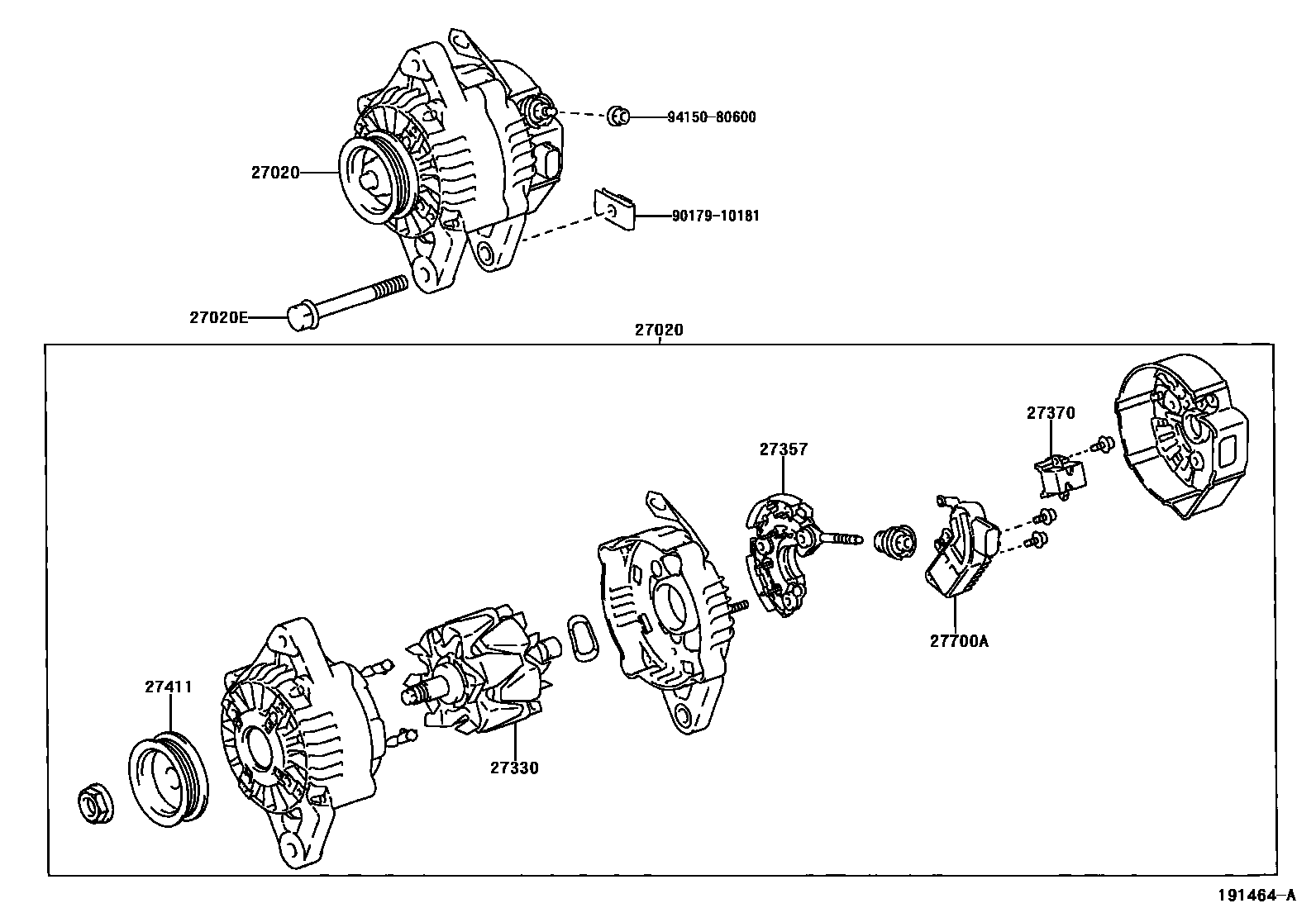

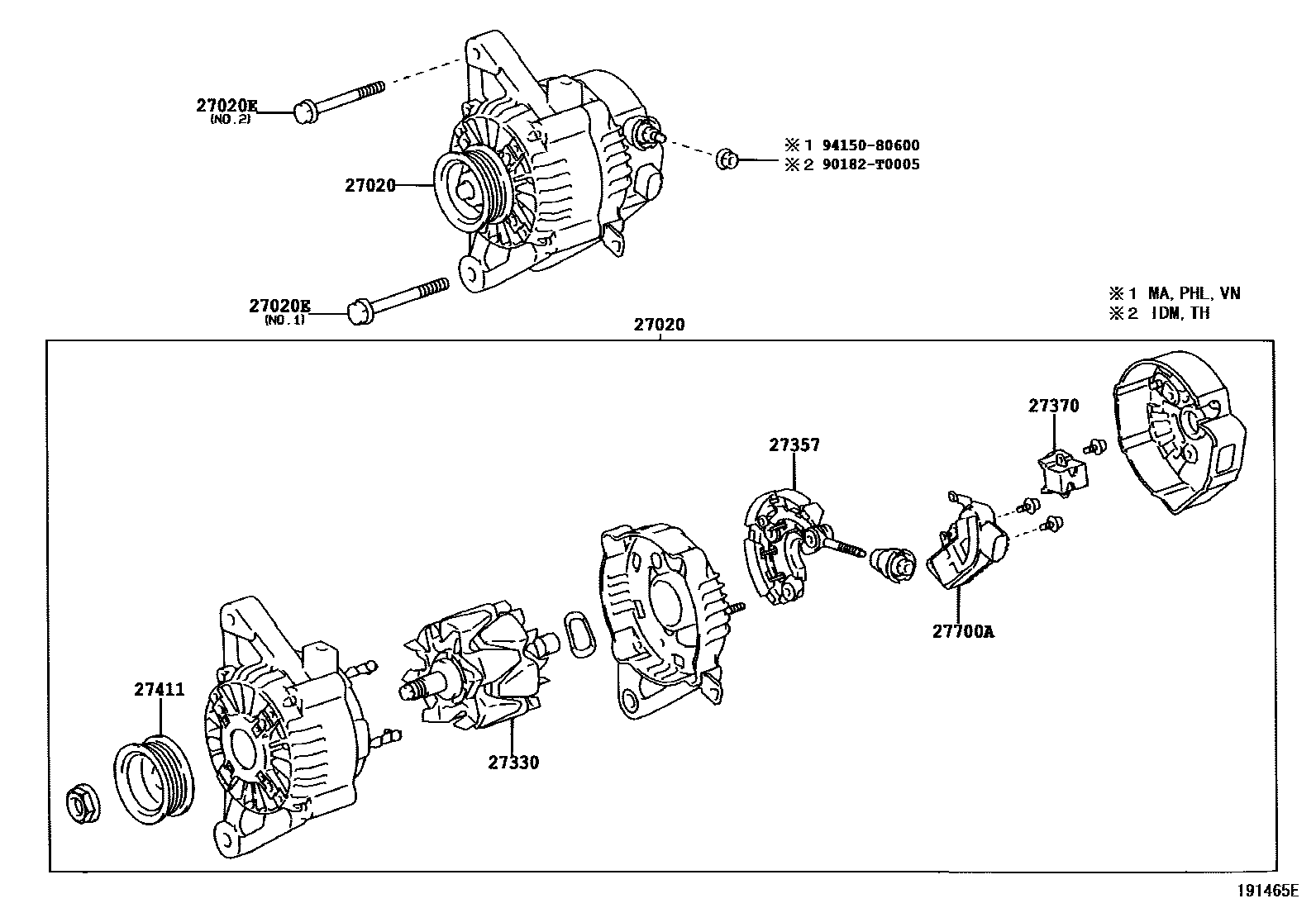

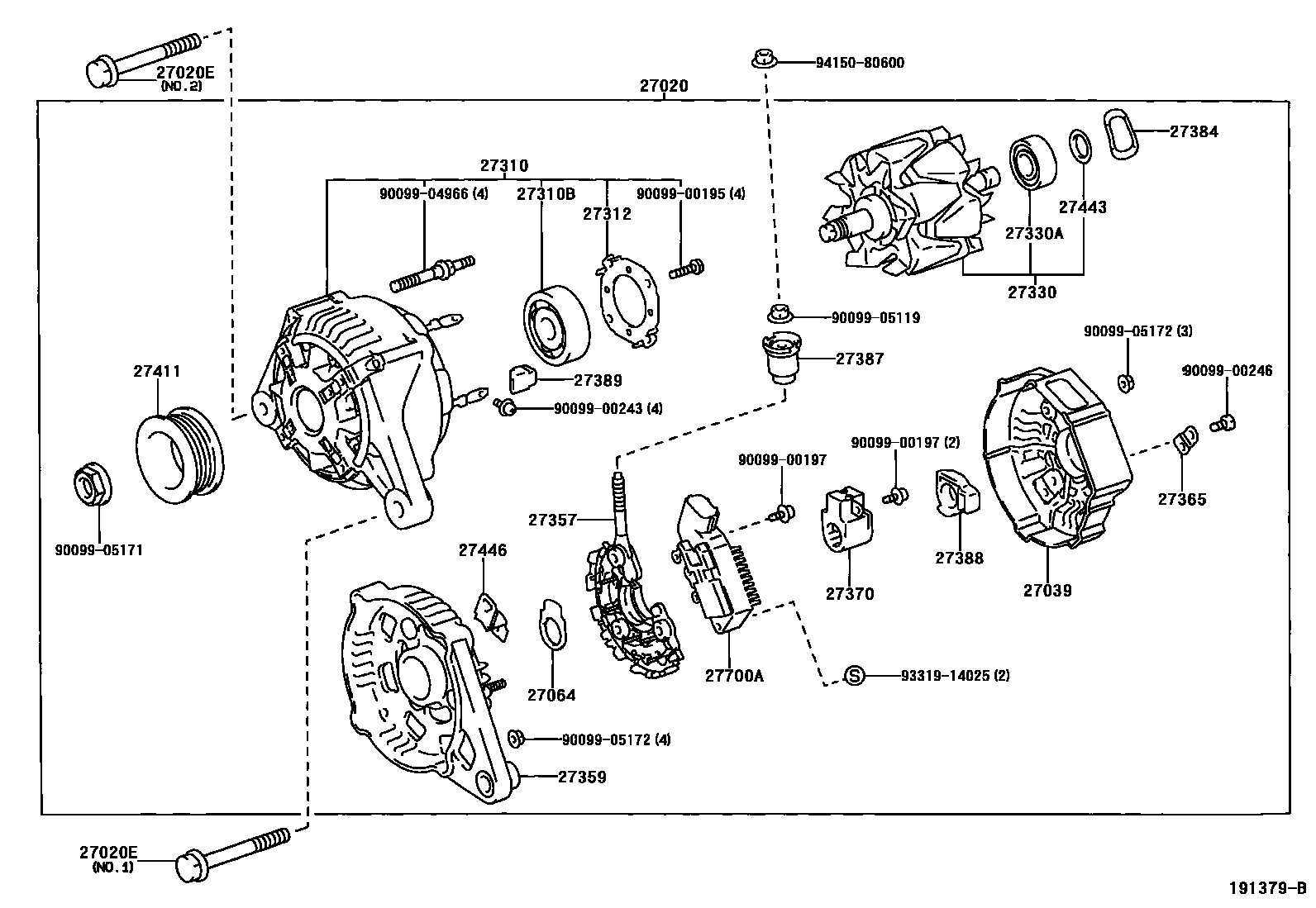

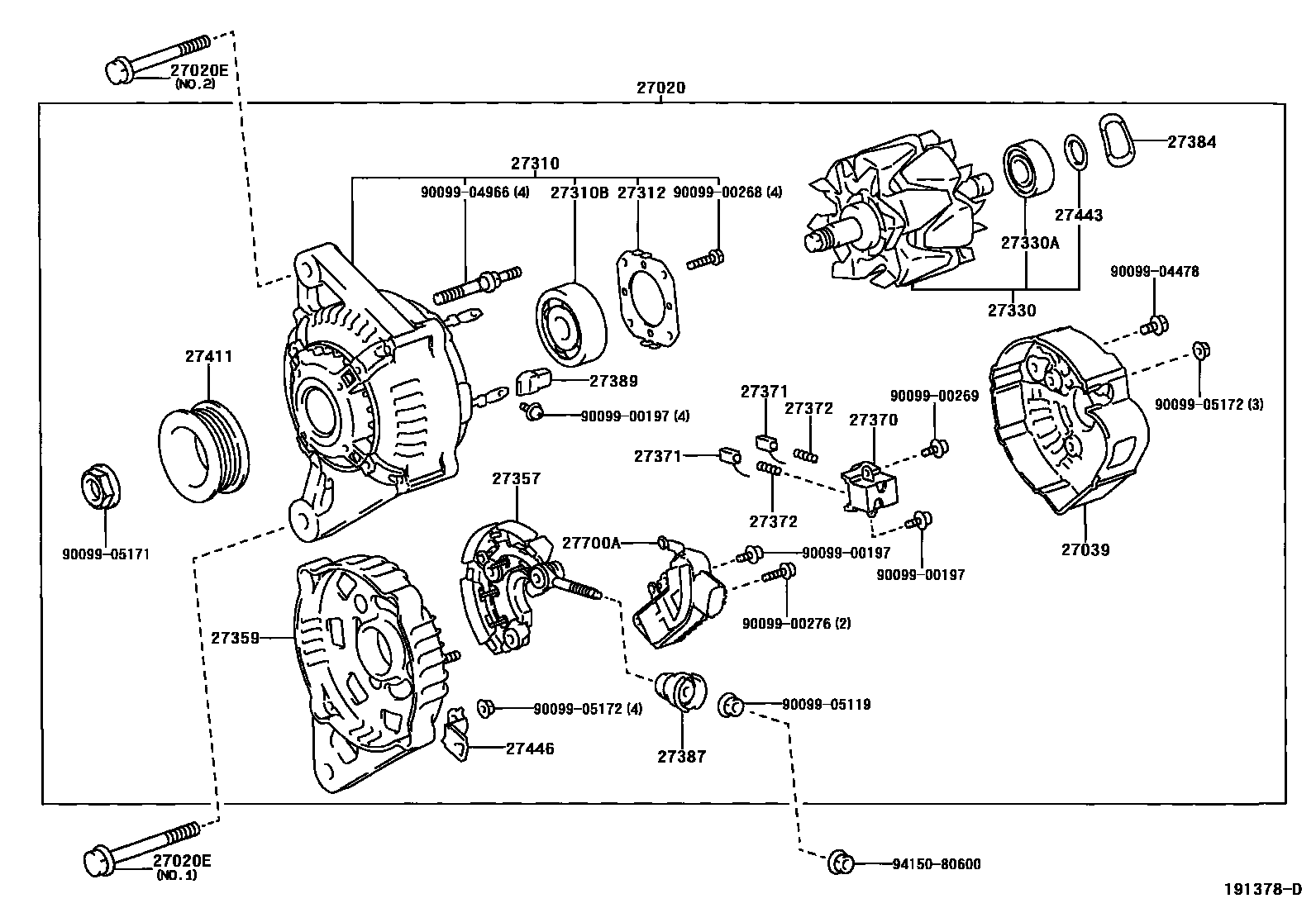

Toyota COROLLA Alternator — Figure 1903
Toyota COROLLA EPC diagram 1903, Alternator, with 5 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0D040 · 27060-0D041 · 27060-0D050 · 27060-0D051 · 27060-0D060 · 27060-0D061 · 27060-0D070 · 27060-0D080 · 27060-0D090 · 27060-0D100 · 27060-0D101 · 27060-0D150 · 27060-21050 · 27060-22030 · 27060-22140 · 27060-22170 · 27060-22180 |
| 27020E | Bolts (for generator) | 90105-10038 · 90105-10075 · 91511-80830 |
| 27039 | Alternator Rear End Cover | 27039-0D140 · 27039-20020 · 27039-28090 · 27039-67271 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0D030 · 27310-0D050 · 27310-0D051 · 27310-22080 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10005 · 90068-10015 · 90068-10029 · 90099-10199 · 90099-10219 · 90099-10226 |
| 27312 | Retainer Plate | 27312-42010 · 27312-70200 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-02090 · 27330-0D010 · 27330-16390 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90068-10001 · 90068-10013 · 90099-10140 · 90099-10216 |
| 27357 | Generator rectifier frame | 27357-0D140 · 27357-21060 · 27357-22050 · 27357-22180 |
| 27359 | Generator rectifier end frame | 27359-0D010 · 27359-0D030 · 27359-22080 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-75060 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-87501 |
| 27384 | Washer | 27384-16380 · 27384-50030 |
| 27387 | Terminal Insulator | 27387-42021 · 27387-70171 |
| 27388 | Generator brush cover | 27388-42010 |
| 27389 | Terminal Insulator | 27389-0D140 · 27389-42010 · 27389-63020 |
| 27411 | Alternator Pulley | 27411-0D140 · 27411-22080 · 27411-50050 · 27411-65010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-22040 |
| 27700A | Generator voltage regulator assembly | 27700-20050 · 27700-21020 |
