Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 3 images and 6 PNC and OE references.

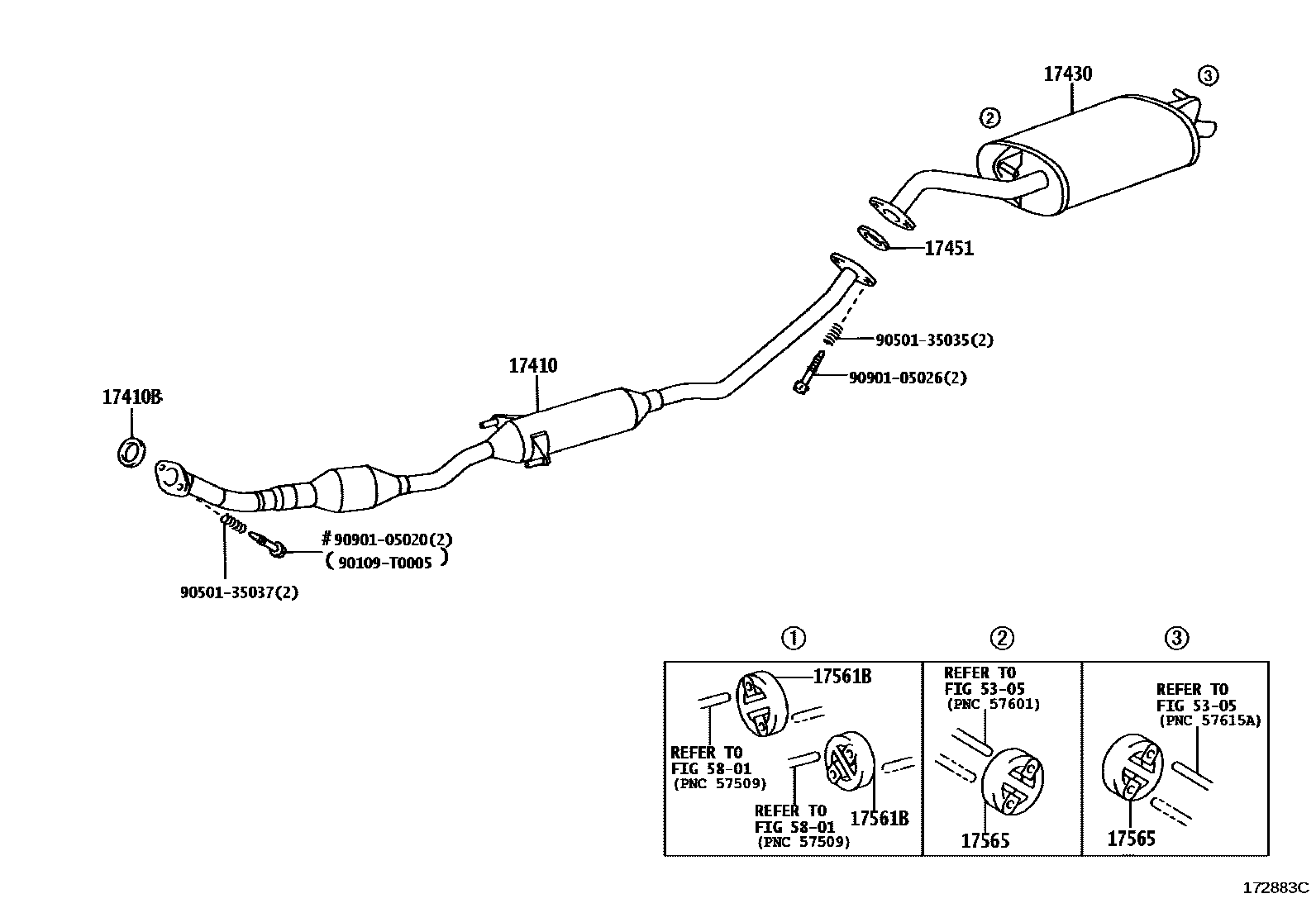

Toyota COROLLA Exhaust Pipe EPC diagram — 172883C — Exhaust Pipe — 172883C (200103 – 999999)

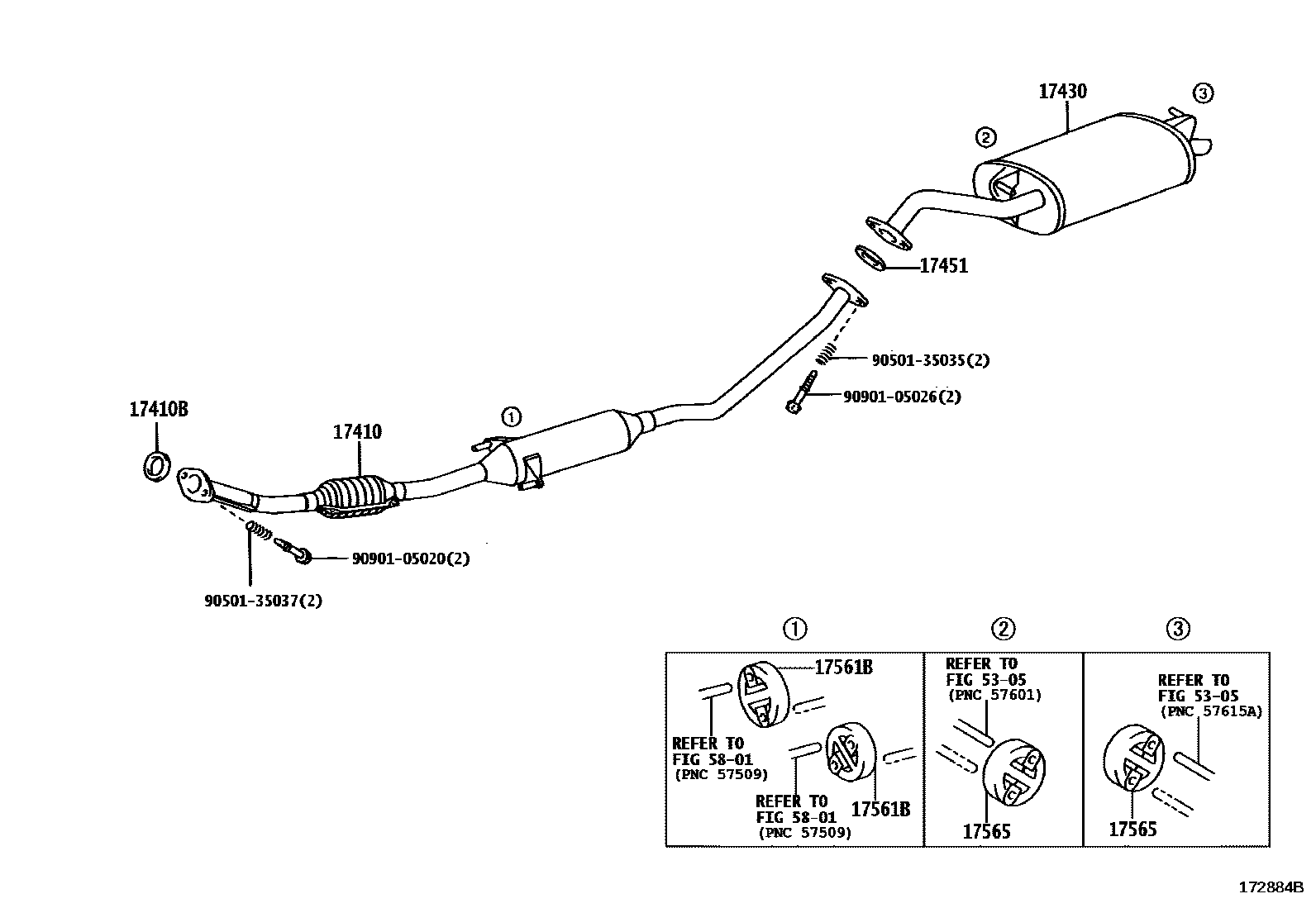

Toyota COROLLA Exhaust Pipe EPC diagram — 172884B — Exhaust Pipe — 172884B (200103 – 999999)

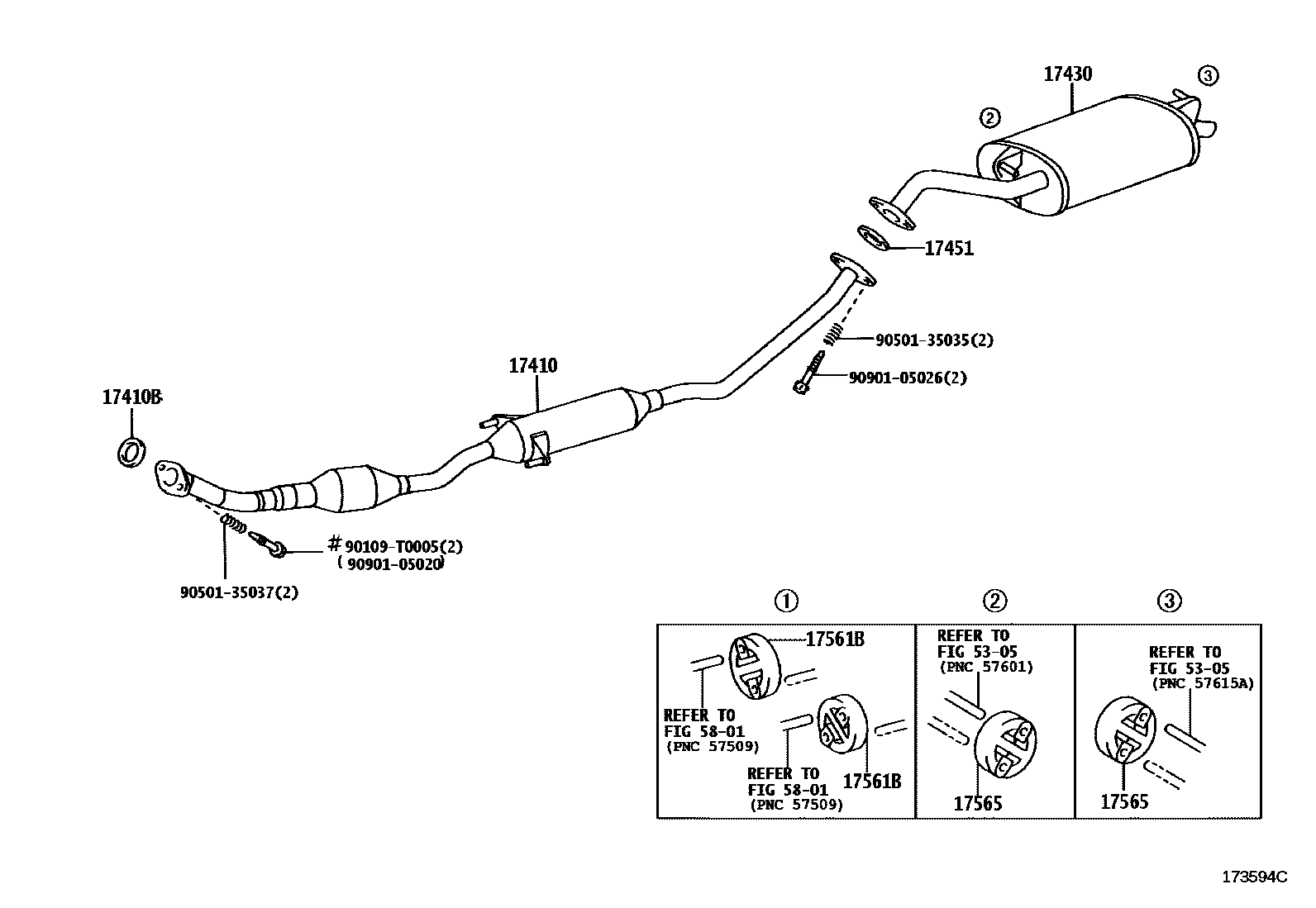

Toyota COROLLA Exhaust Pipe EPC diagram — 173594C — Exhaust Pipe — 173594C (200301 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-0D050 · 17410-0D060 · 17410-0D070 · 17410-0D080 · 17410-0D090 · 17410-0D100 · 17410-0D110 · 17410-0D280 · 17410-0D370 · 17410-21230
17410B	Exhaust pipe gasket	17451-21030 · 17451-22070
17430	Exhaust tailpipe assembly	17430-0D080 · 17430-0D090 · 17430-0D100 · 17430-0D110 · 17430-0D120 · 17430-0D130 · 17430-0D310 · 17430-0D311 · 17430-21190 · 17430-21191
17451	Exhaust pipe gasket	17451-16030 · 17451-23010
17561B	No. 1 exhaust pipe lifting lug	17565-21030
17565	No. 5 exhaust pipe lifting lug	17565-21040
