Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 1 images and 2 PNC and OE references.

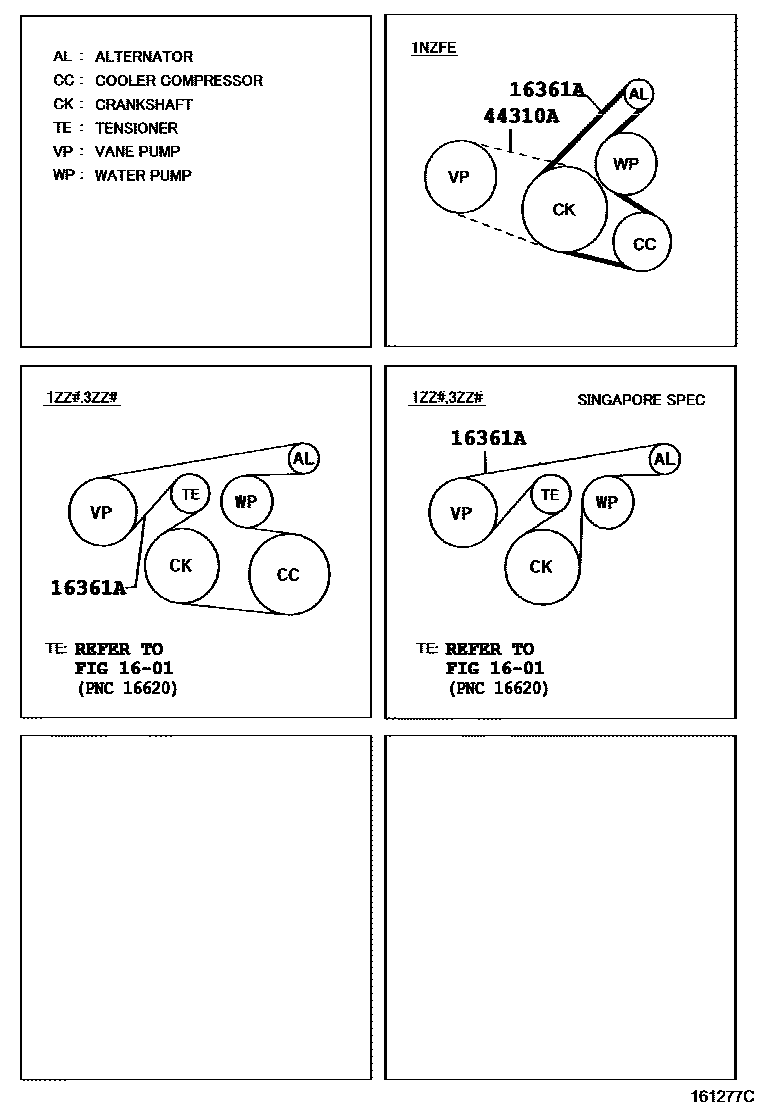

Toyota COROLLA V-Belt EPC diagram — 161277C
V-Belt — 161277C (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91202 · 90916-02432 · 90916-02500 · 90916-02506 · 90916-02534 · 90916-02535 · 90916-02547 · 90916-02551 · 90916-02569 · 90916-T2003
44310AV-belt (for vane pump)90916-02575
