Toyota COROLLA Crankshaft & Piston — Figure 1301

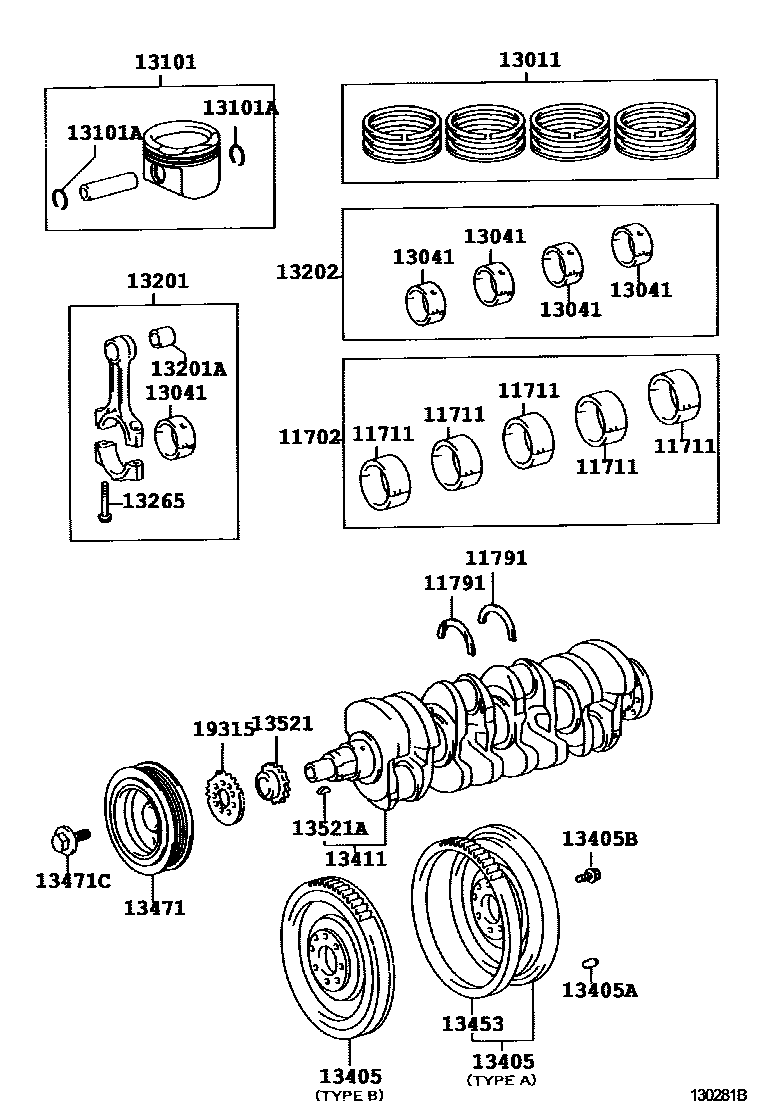

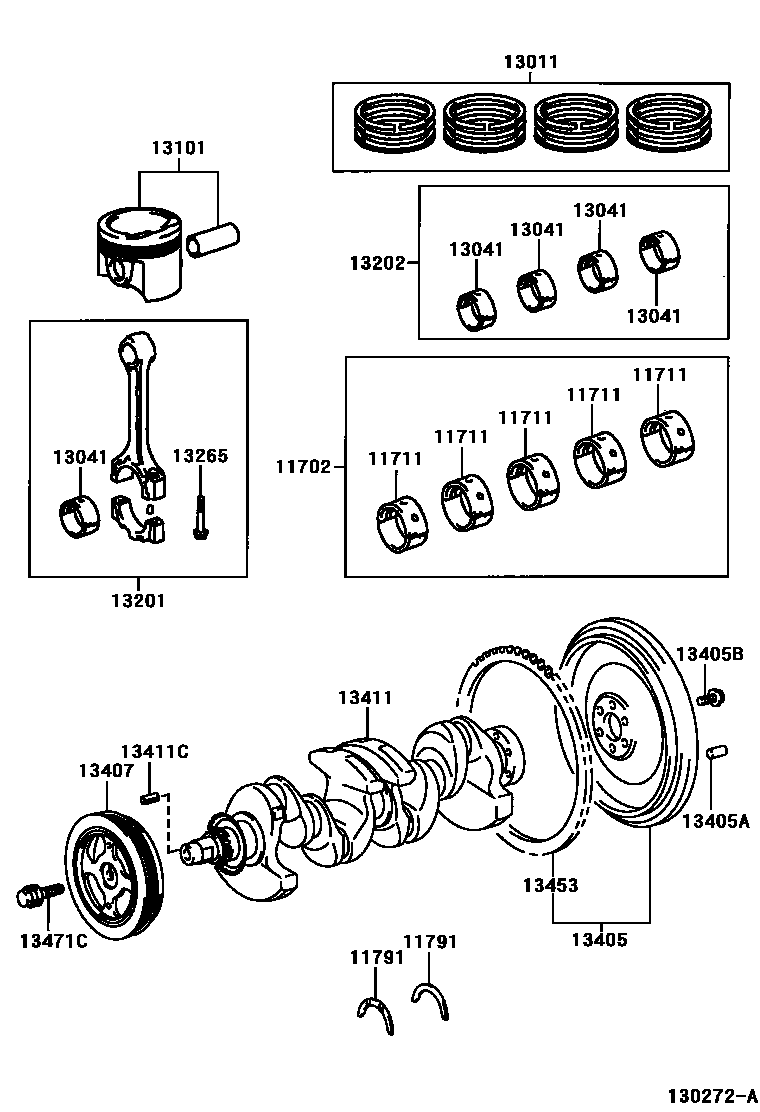

Toyota COROLLA EPC diagram 1301, Crankshaft & Piston, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-0D031 · 11704-21010 · 11704-21040 · 11704-22011 · 11704-22030 |
| 11791 | Thrust washer on crankshaft | 11791-0M020 · 11791-22020 · 11792-21010 · 11793-21010 |
| 13011 | Piston ring assembly | 13011-21060 · 13011-22090 · 13011-22100 · 13011-22111 · 13011-22150 · 13011-22170 · 13011-22200 · 13011-22220 |
| 13101 | Piston sub-assembly with pin | 13101-0D070 · 13101-0D071 · 13101-0D080 · 13101-0D081 · 13101-0D082 · 13101-21050 · 13101-22030 · 13101-22031 · 13101-22032 · 13101-22100 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 |
| 13201 | Connecting rod sub-assembly | 13201-09140 · 13201-09490 · 13201-09491 · 13201-29038 · 13201-29115 · 13201-29145 · 13201-29176 · 13201-29177 · 13201-29645 · 13201-29715 |
| 13201A | Bushing (for connecting rod small end) | 90999-73140 · 90999-73151 |
| 13202 | Connecting rod bearing assembly | 13204-21030 · 13204-22023 · 13204-22024 |
| 13265 | Connecting rod bolts | 13265-21020 · 13265-22020 |
| 13405 | Flywheel sub-assembly | 13405-0D030 · 13405-0D031 · 13405-21020 · 13405-22020 · 13451-22020 |
| 13405A | Direct sales (for flywheel) | 90250-08054 · 90250-08120 |
| 13405B | Flywheel fixing bolt | 90910-02103 · 90913-01024 |
| 13407 | Crankshaft damper sub-assembly | 13407-21020 |
| 13411 | crankshaft | 13401-21030 · 13401-22020 · 13401-22030 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 |
| 13453 | flywheel ring gear | 13453-0D020 · 13453-10010 |
| 13471 | crankshaft pulley | 13470-22020 · 13470-22021 · 13470-22040 · 13470-22041 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12127 · 90119-12345 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0D030 · 13521-22020 |
| 13521A | Key (for crankshaft timing gear) | 95161-30416 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-22010 · 19315-22020 |
