Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 5 PNC and OE references.

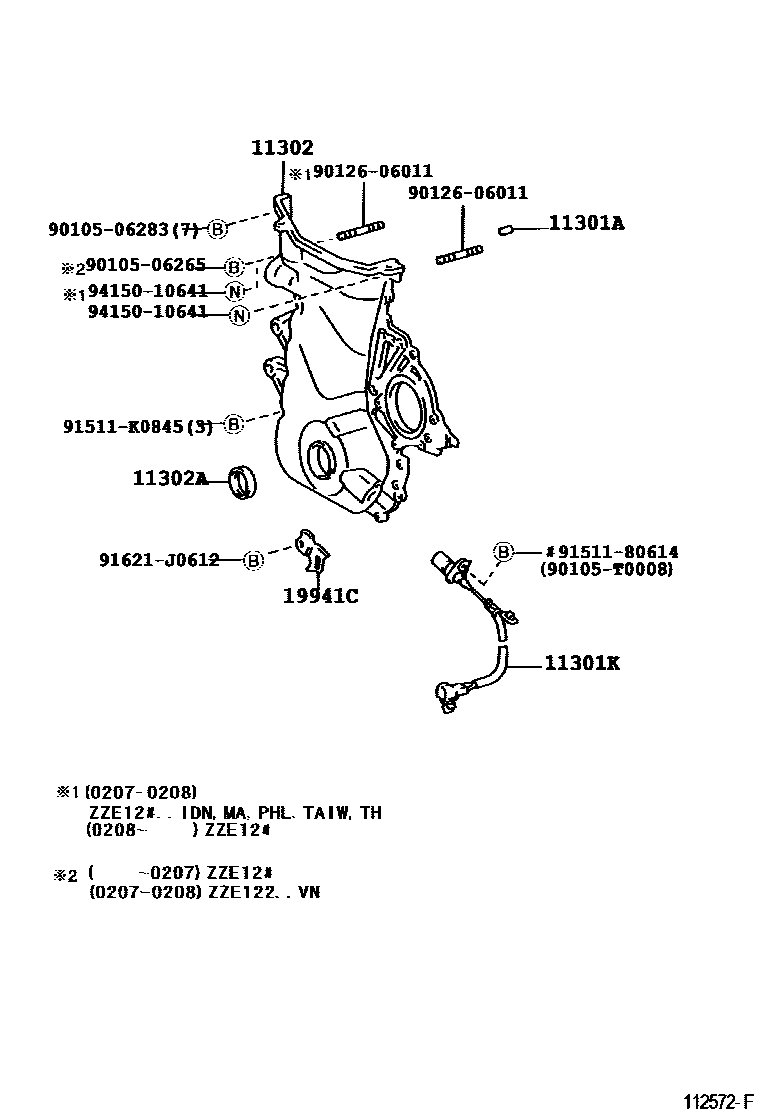

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 112572F
Timing Gear Cover & Rear End Plate — 112572F (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11302TIMING CHAIN OR BELT COVER SUB-ASSY11321-0D030 · 11321-22021
11302AOil seal (for timing chain or timing belt cover)90080-31083 · 90311-38059 · 90311-38089
19941CWire clamp (for crankshaft position sensor)19941-22010
