Toyota COROLLA Cylinder Block — Figure 1105

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 2 images and 26 PNC and OE references.

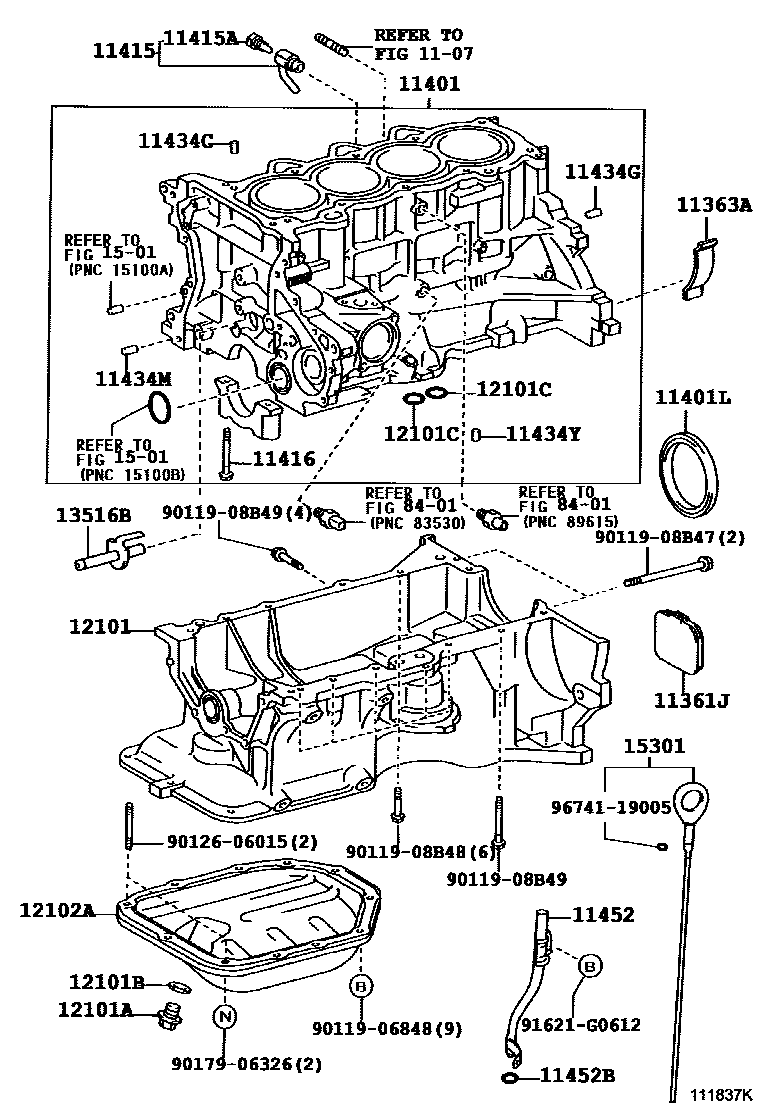

Toyota COROLLA Cylinder Block EPC diagram — 111837K
Cylinder Block — 111837K (200107 – 999999)

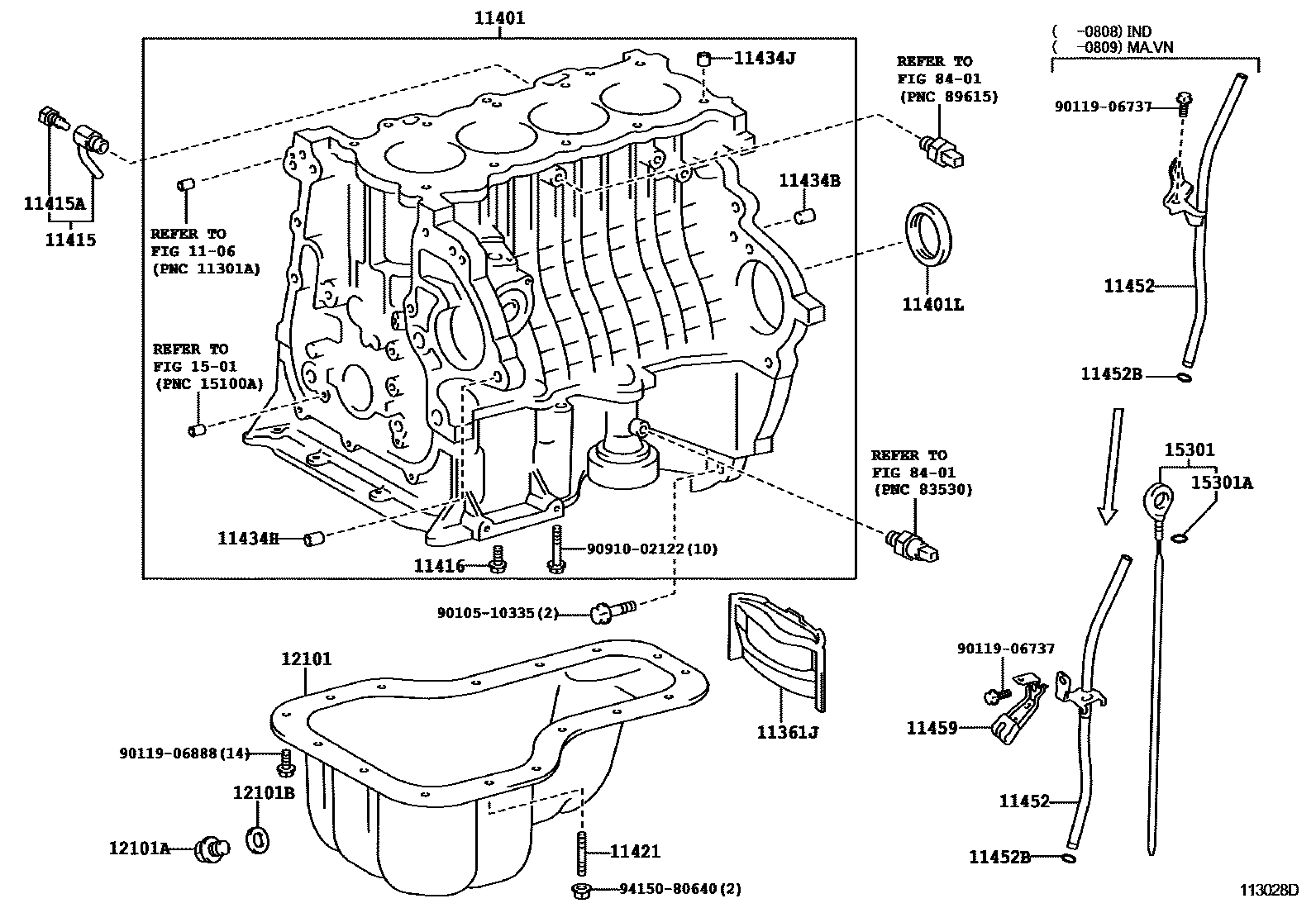

Toyota COROLLA Cylinder Block EPC diagram — 113028D
Cylinder Block — 113028D (200103 – 999999)

PNC and OE references

PNCPart nameOE numbers
11361JFlywheel housing bottom cover11361-0D020 · 11361-21011 · 11361-22021 · 11361-22030
11363AFlywheel housing side cover11363-21010
11401Cylinder block sub-assembly11401-29675 · 11401-29845 · 11410-29057 · 11410-29096 · 11410-29155 · 11410-29165 · 11410-29166 · 11410-29205 · 11410-29225
11401LSEAL, ENGINE REAR OIL90311-75016 · 90311-76001 · 90311-T0002
11415Water release switch sub-assembly (for cylinder block)90910-09107
11415AWater drain switch screw plug (for cylinder block)90910-09087
11416Bolts (for crankshaft bearing cap assembly)90910-02125 · 91511-K0840
11421Stud bolts (for oil pan)90126-06010
11434BDirect sales (for clutch housing assembly)90250-10113
11434CDirect sales (for cylinder head components)90250-08120
11434GDirect sales (for end plates)90250-10113
11434HRing pin (for timing belt cover assembly)90253-14003
11434JRing pin (for cylinder head assembly)90253-13017
11434MDirect pin (for chain tensioner)90250-10030
11434YDirect sales (for oil pan)90250-08120
11452Engine oil level gauge guide11452-0D020 · 11452-21030 · 11452-22030 · 11452-22031
11452BO-ring (for oil level gauge guide)96721-19010
11459Oil level gauge guide bracket11459-22010
12101Oil pan sub-assembly12101-0D030 · 12101-22024 · 12111-21033
12101AScrew plug (for draining oil from the oil pan)90341-12012
12101BGasket (for oil pan drain plug)90430-12031
12101CO-ring (for oil pan)96722-24020
12102ANo. 2 oil pan sub-assembly12102-21010
13516Boil nozzle13516-21010
15301Engine oil level scoring assembly15301-21030 · 15301-22030 · 15301-22050
15301AO-ring (for engine oil level gauge)90301-T0018 · 96741-19005
