Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718

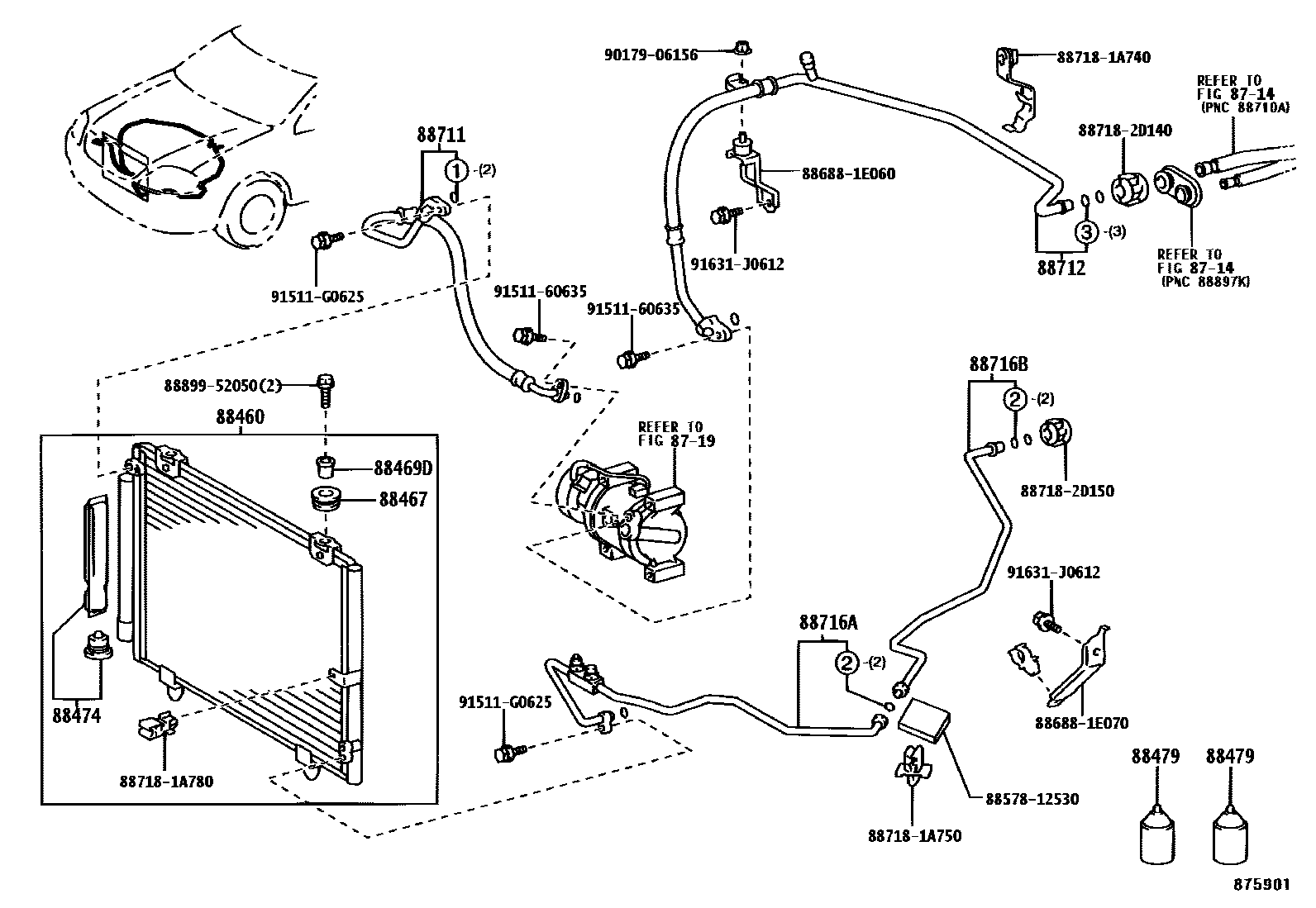

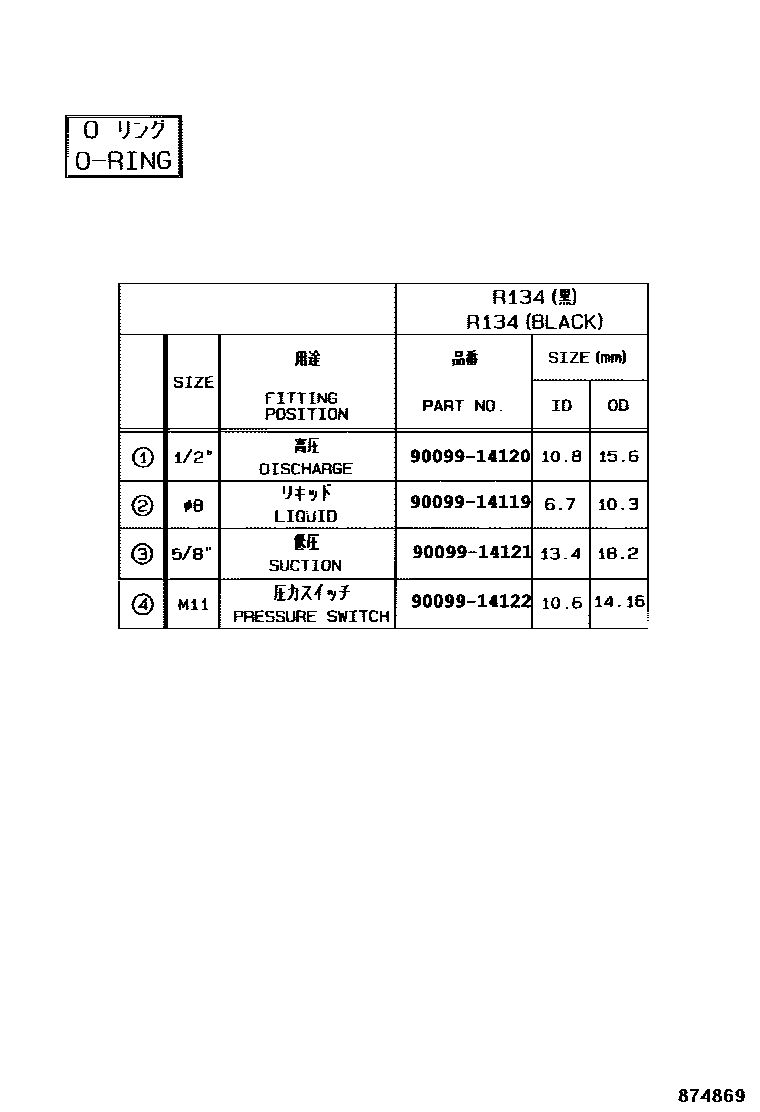

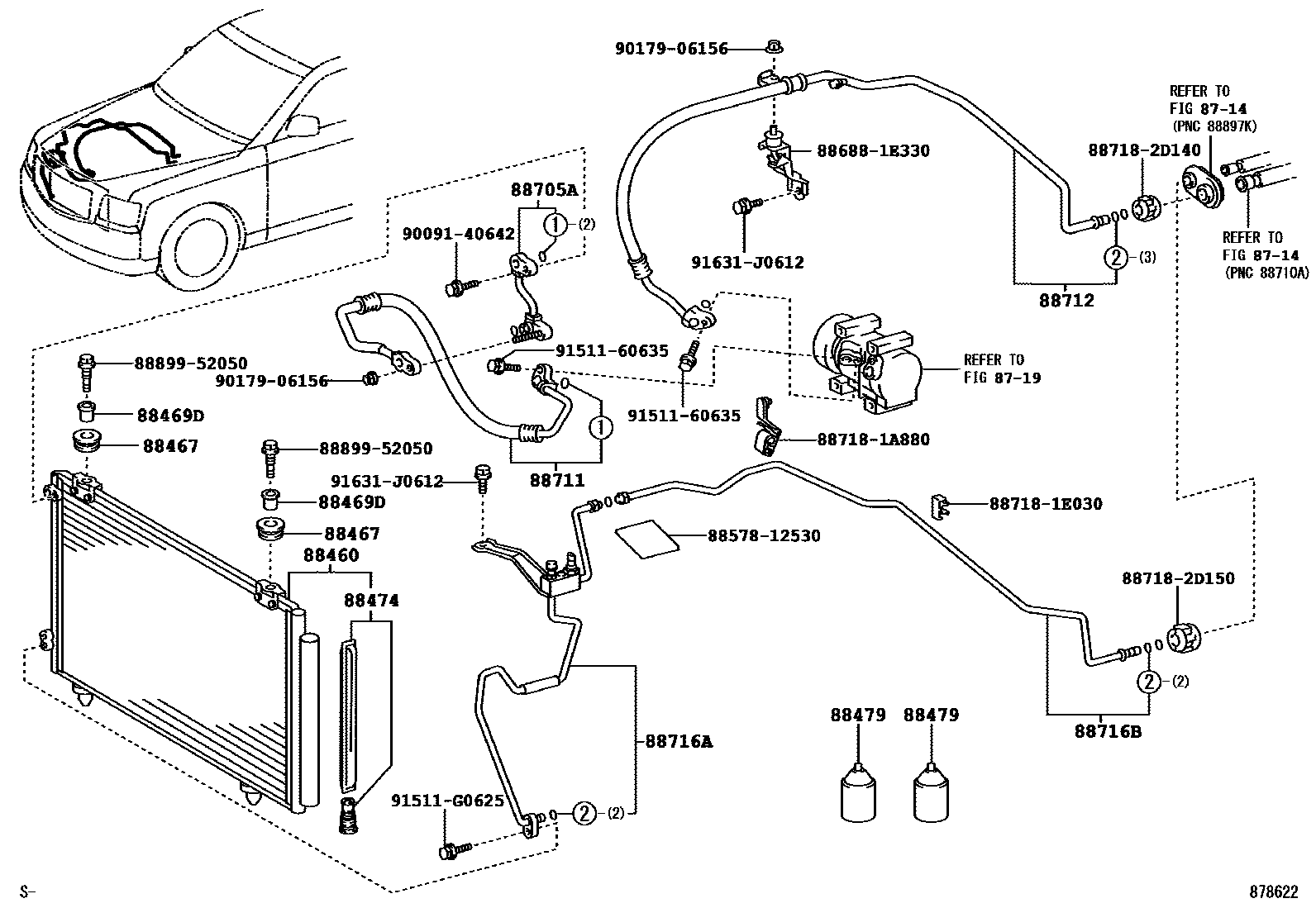

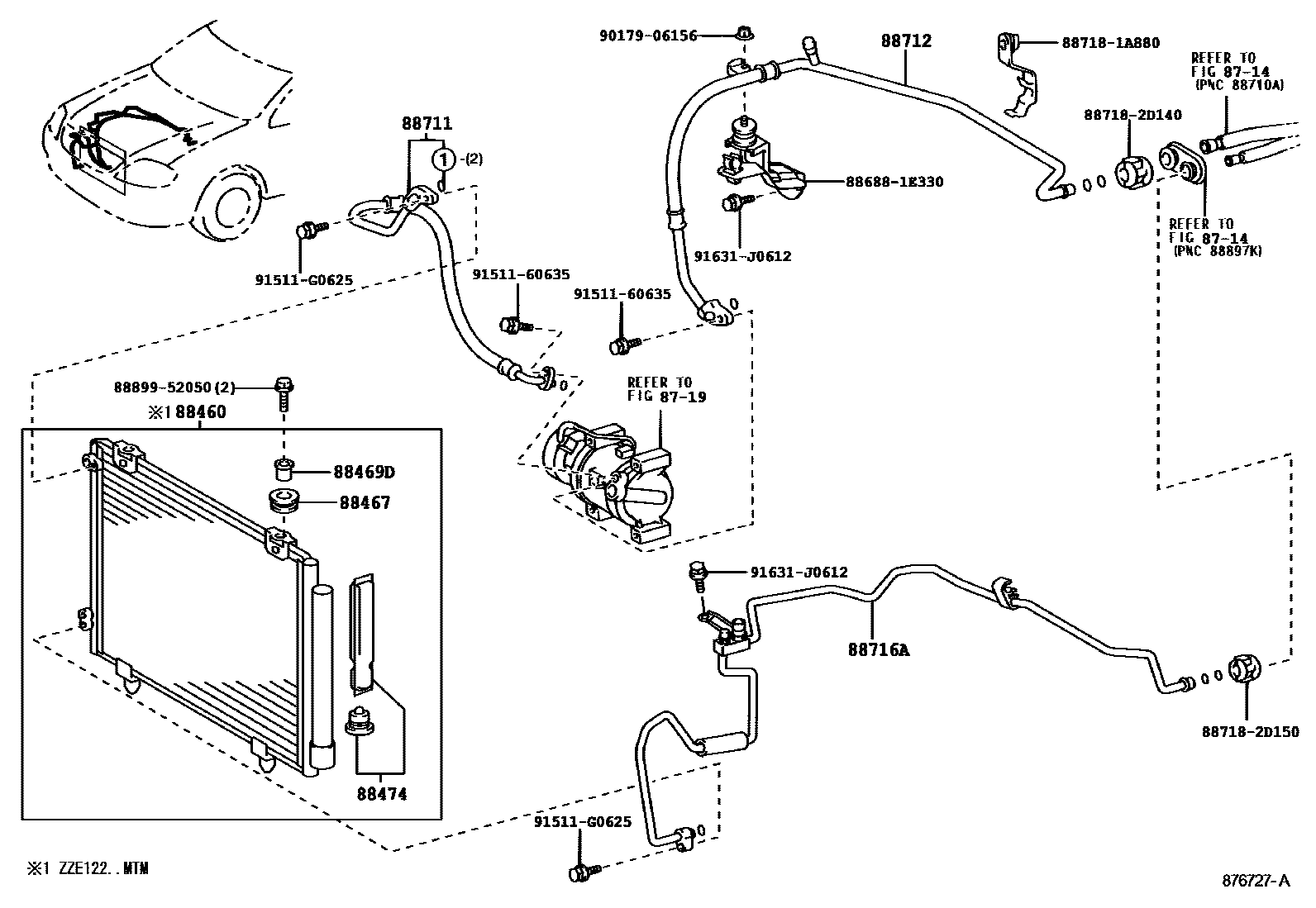

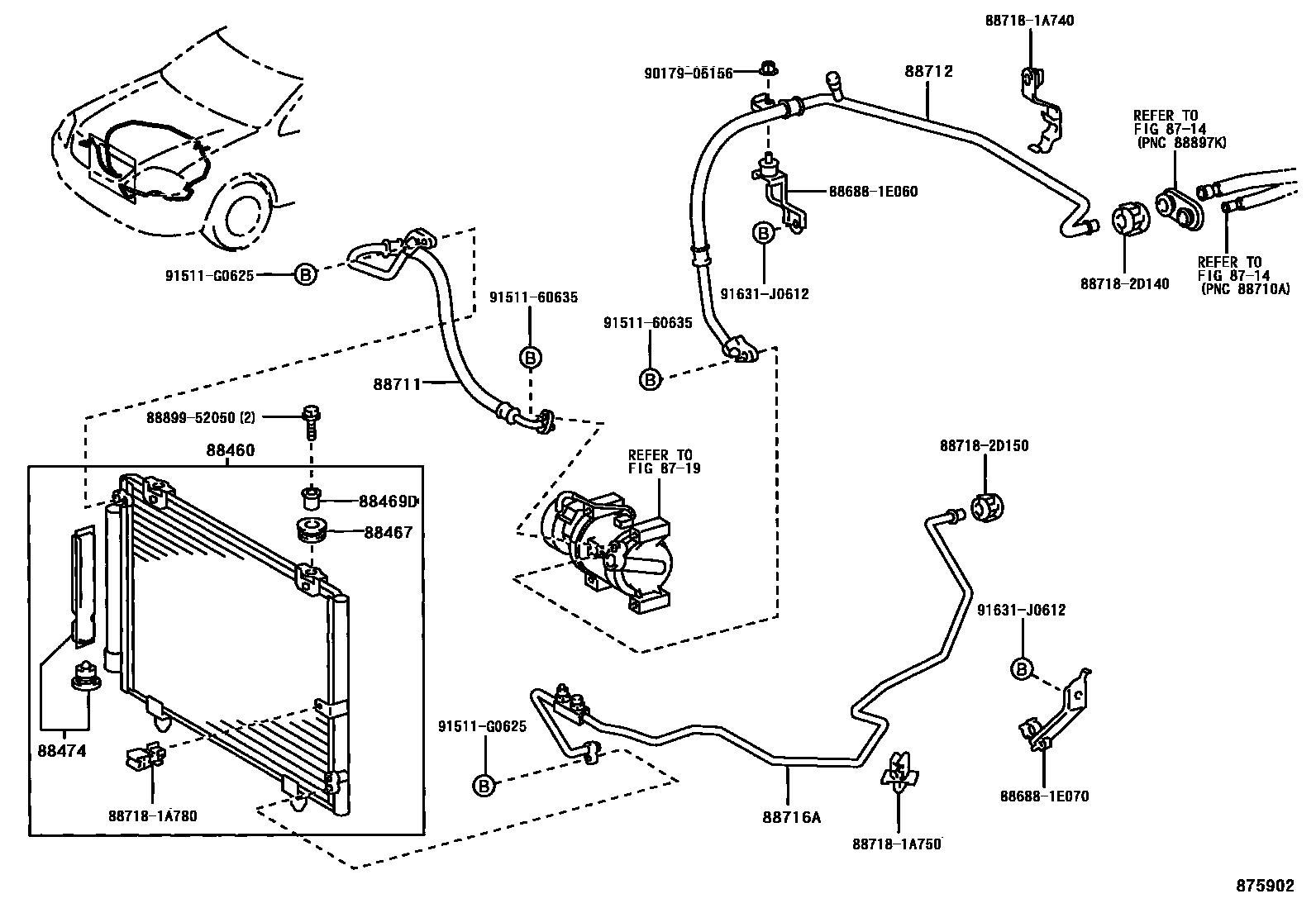

Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88460 | Air conditioning condenser assembly | 88450-12210 · 88450-12211 · 88450-12231 · 88450-12240 · 88450-12241 · 88450-13031 · 88460-12551 · 88460-12560 · 88460-12561 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02007 · 90986-02008 |
| 88705A | Discharge pipe sub-assembly | 88705-12200 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-12580 · 88703-12630 · 88703-12770 · 88703-12790 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-12820 · 88704-1A140 |
| 88716A | Cooler refrigerant liquid pipe A | 88710-12510 · 88710-12570 · 88710-12740 · 88710-12750 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-1A640 · 88716-1A800 |
