Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

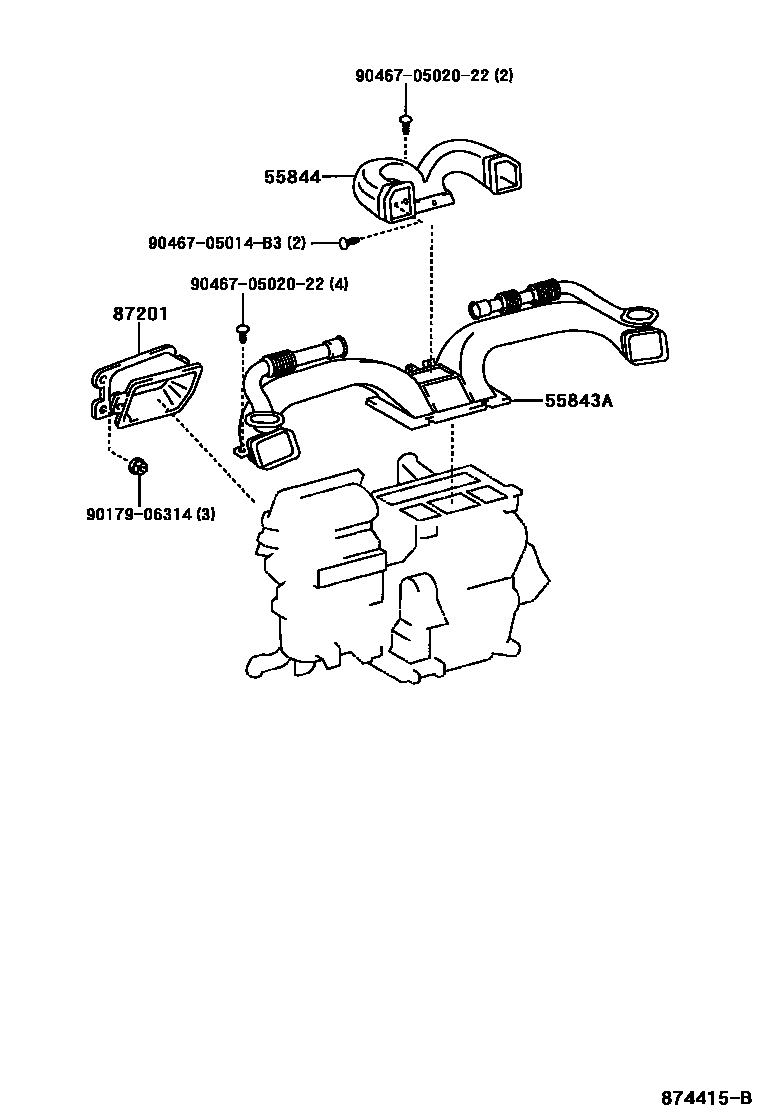

| 55843A | Air duct No. 1 from heater to air register | 55843-12280 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12460 |

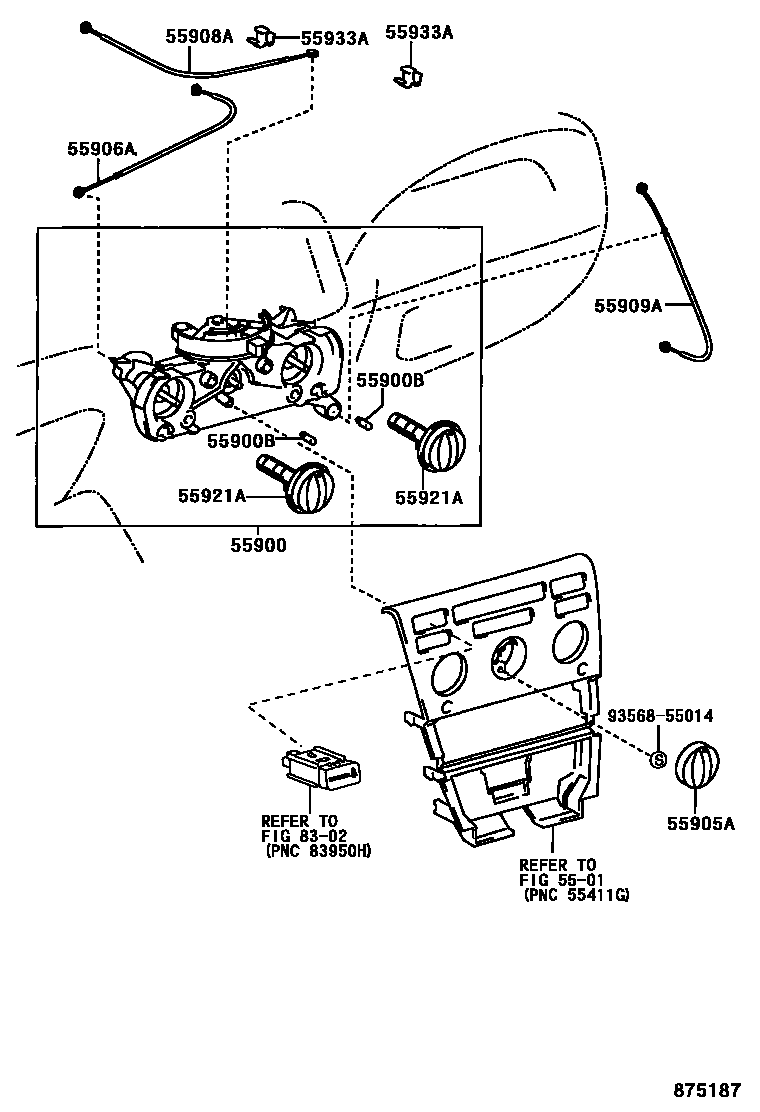

| 55900 | Air conditioning control assembly | 55900-1A030 · 55900-1A070 · 55900-1A071 |
| 55900B | air conditioning control light bulb | 90981-11040 |
| 55905A | Heater control button | 55905-12710 · 55905-12740 · 55905-12741 |
| 55906A | Defroster damper control cable sub-assembly | 55906-12410 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12330 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12320 |
| 55921A | Heater Controller Fixing | 55921-12150 · 55921-12160 · 55921-12161 |
| 55933A | Heater control cable clip | 55933-52010 |
| 87201 | No. 1 air duct sub-assembly | 87201-12590 |
