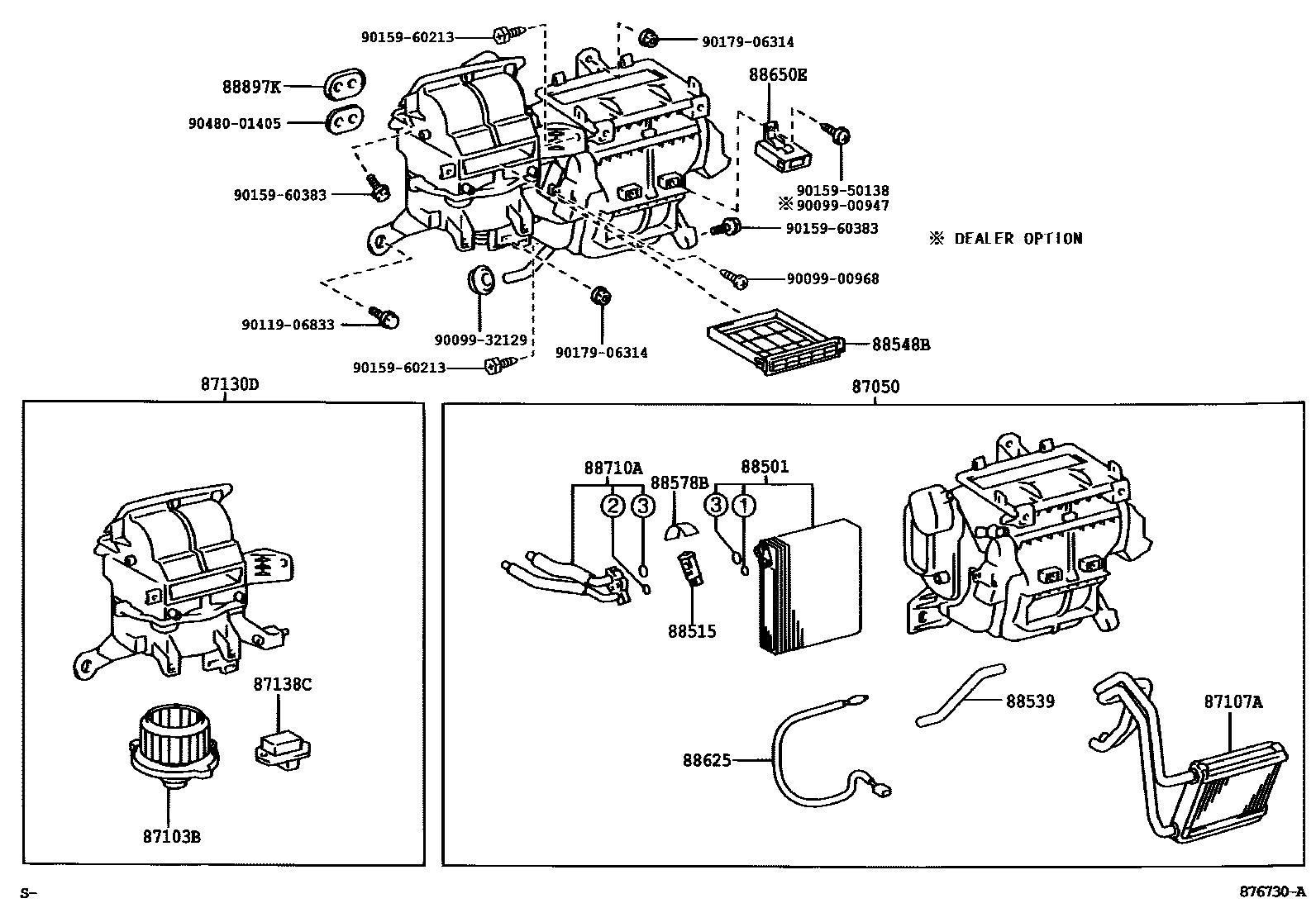

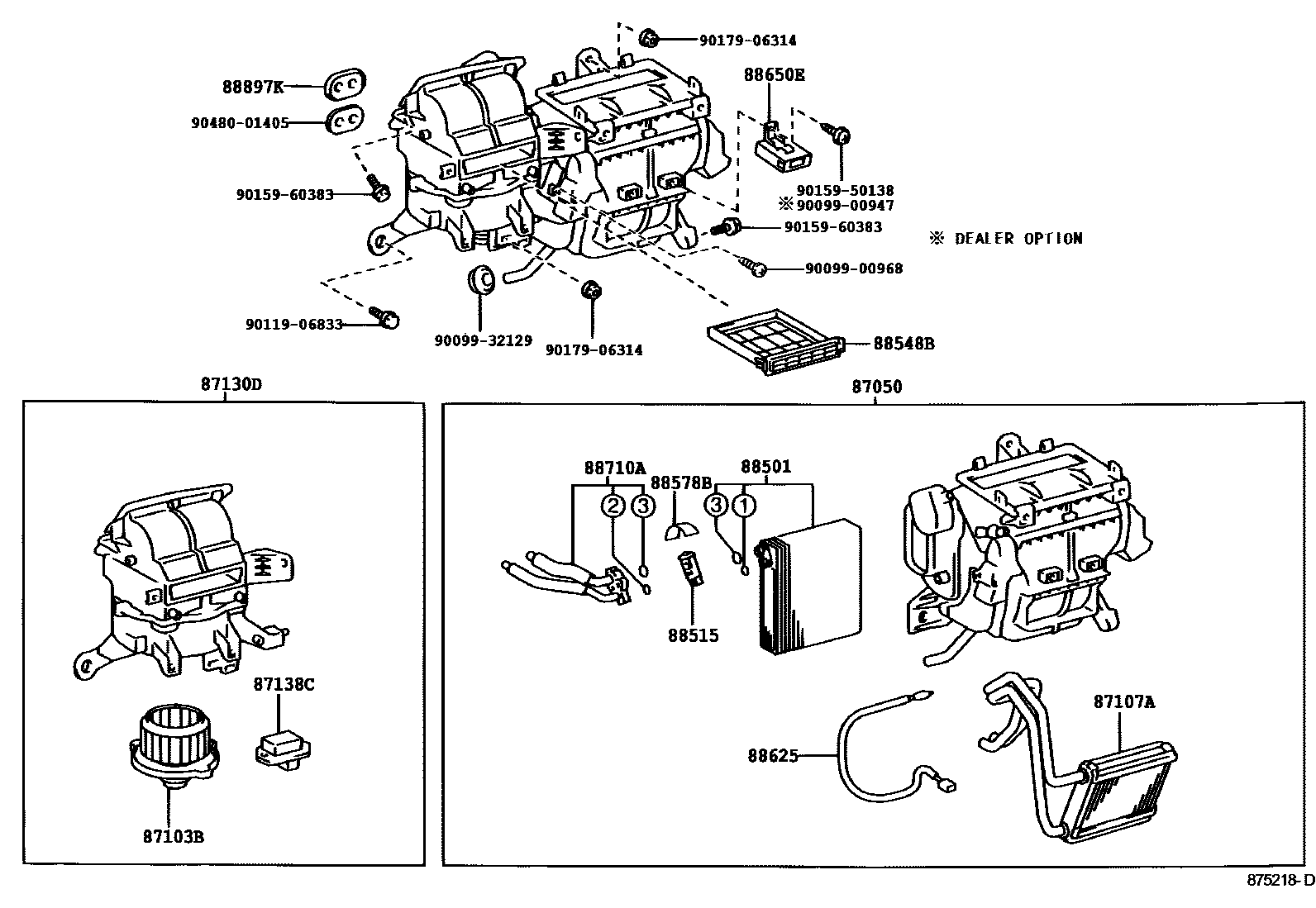

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-12050 · 87050-12060 · 87050-12220 · 87050-13130 |
| 87103B | Blower motor sub-assembly with fan | 87103-12050 |
| 87107A | Heater radiator device sub-assembly | 87107-12540 · 87107-12550 |
| 87130D | Blower assembly | 87130-12440 |
| 87138C | Blower resistor | 87138-20350 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12440 |
| 88515 | Cooler expansion valve | 88515-27020 · 88515-28160 · 88515-48040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12170 |
| 88548B | air filter housing | 88548-52010 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88625-21010 · 88625-60140 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-1E420 |
| 88710A | Air conditioning pipe assembly | 88710-12540 · 88710-12730 |

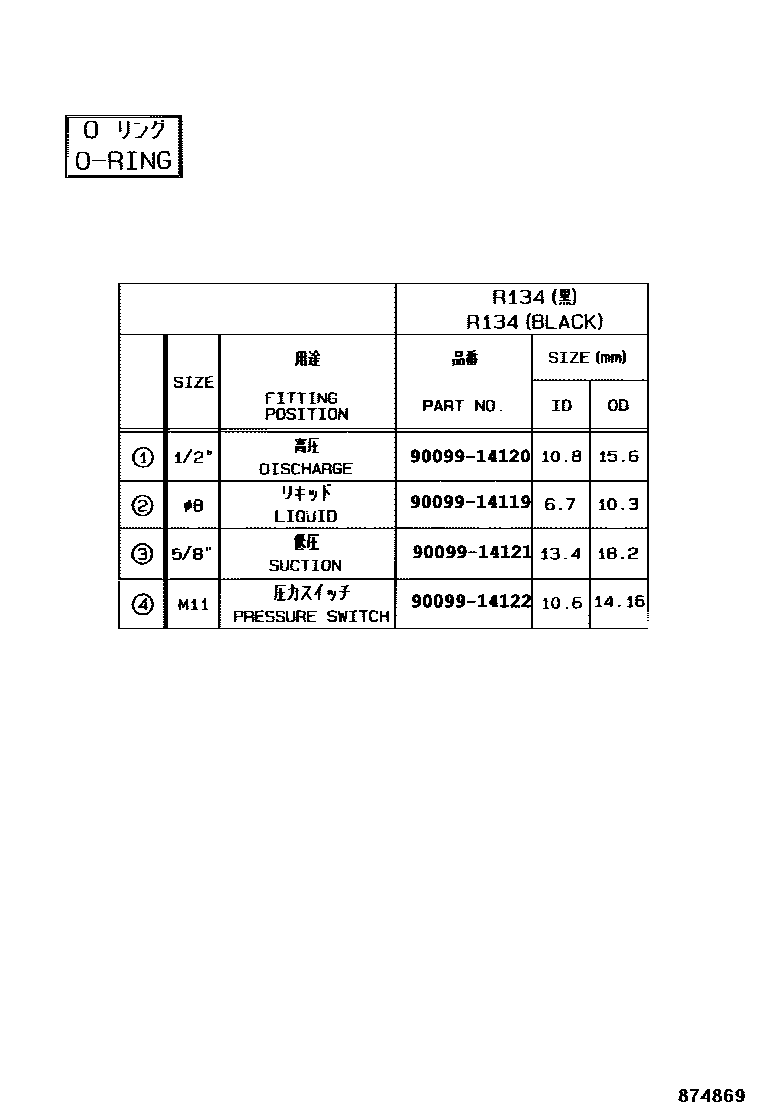

| 88897K | Seals (for cooler tubes) | 90480-01434 |
