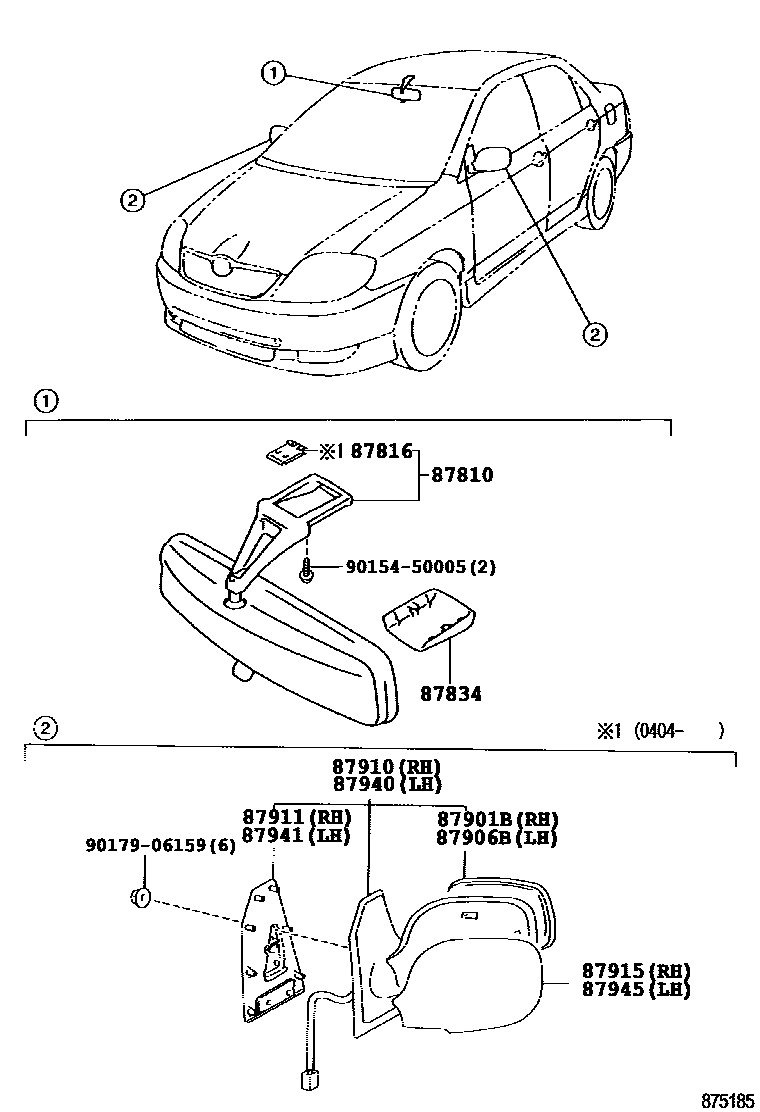

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0D011 |
| 87816 | Interior rearview mirror spring | 74372-30030 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-47060 · 87931-47130 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1E671 · 87961-47120 |
| 87910 | Right exterior rearview mirror assembly | 87910-12A10 · 87910-1H080 |
| 87911 | Right exterior mirror pad | 87911-12320 |
| 87940 | Left exterior rearview mirror assembly | 87940-12A00 · 87940-1E670 · 87940-1E671 |
| 87941 | Left exterior mirror pad | 87941-12300 |
