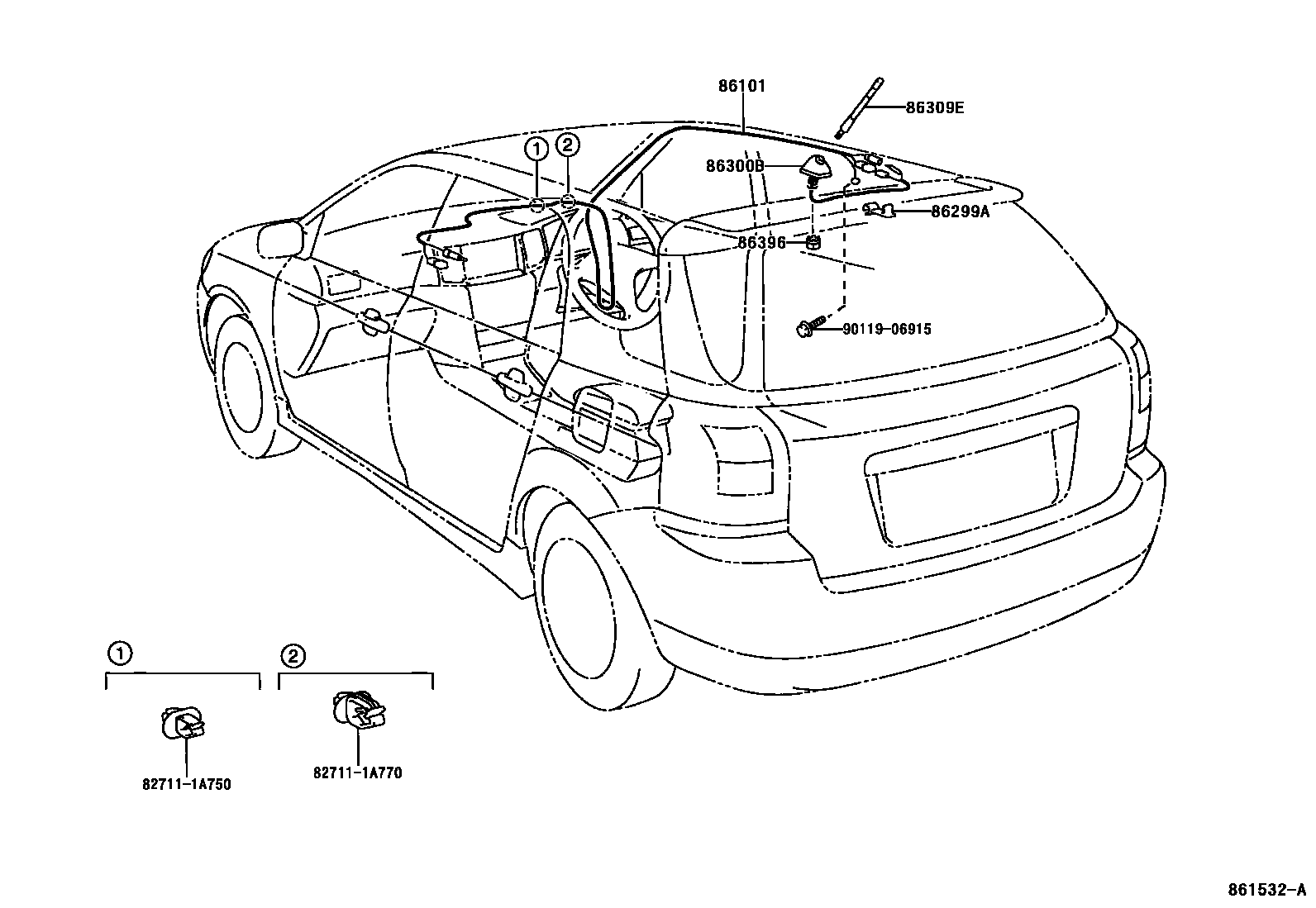

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12301 |
| 86299A | Clip (radio to antenna lead) | 86299-12010 |
| 86300B | No. 1 amplifier antenna assembly | 86300-12750 |
| 86309E | Roof antenna sub-assembly | 86309-13010 |
| 86396 | Antenna nut | 86396-12030 |
