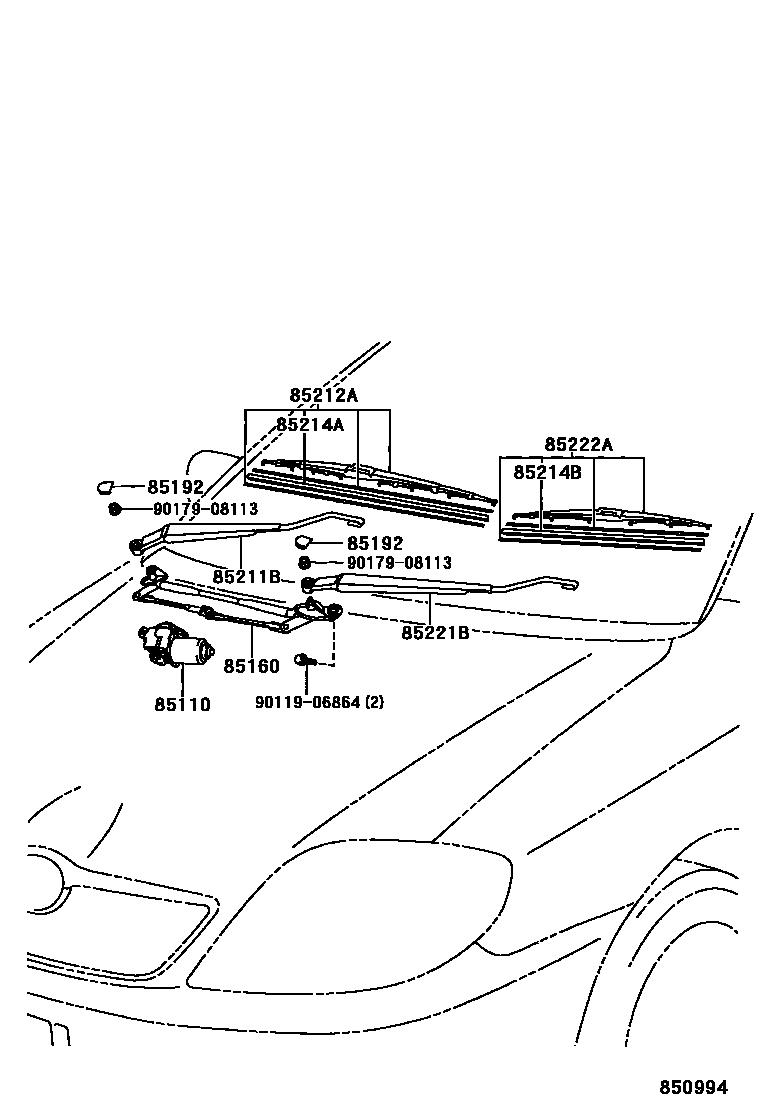

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-1A050 |
| 85160 | Windshield wiper connecting rod assembly | 85150-1A060 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85211B | Right front wiper arm | 85211-12420 · 85211-12460 |
| 85212A | Right front wiper blade | 85212-13010 · 85212-30370 |
| 85214A | Right wiper rubber strip | 85214-50100 · 85214-50120 |
| 85214B | Left wiper rubber strip | 85214-22420 · 85214-46010 · 85214-46011 |
| 85221B | Left front wiper arm | 85221-12390 · 85221-12410 |
| 85222A | Left front wiper blade | 85222-20391 · 85222-46010 · 85222-46011 |
