Toyota COROLLA 空气囊 — Figure 8421

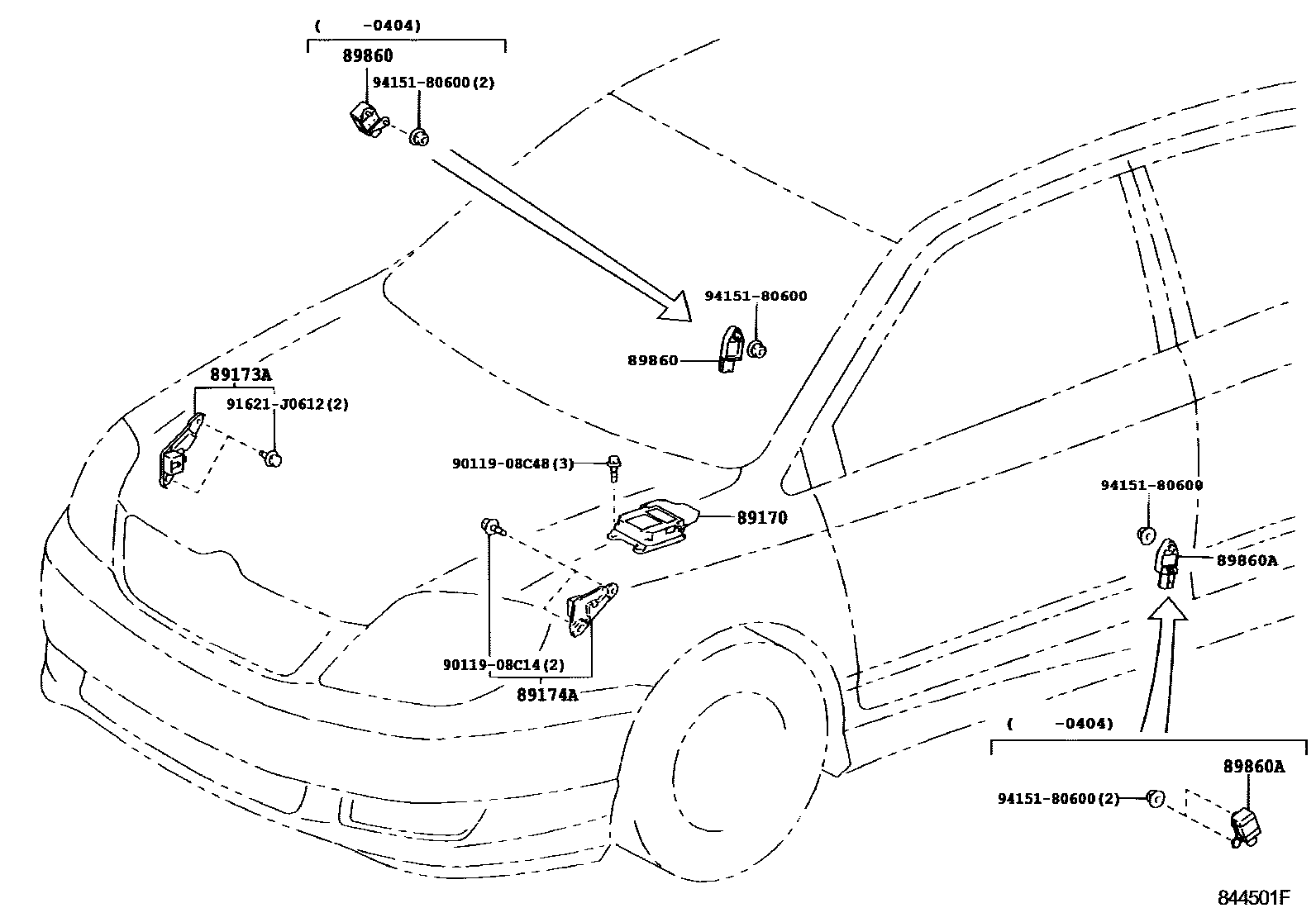

Toyota COROLLA EPC diagram 8421, 空气囊, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-0W270 · 89170-12340 · 89170-12350 · 89170-12430 · 89170-12470 · 89170-12471 · 89170-12480 · 89170-12481 |
| 89173A | Right front air bag sensor | 89173-19235 · 89173-19375 |
| 89174A | Left front air bag sensor | 89174-19045 · 89174-19175 |
| 89860 | Right side airbag sensor assembly | 89831-05010 · 89860-13020 |
| 89860A | Left side air bag sensor assembly | 89830-13020 · 89831-05010 |
