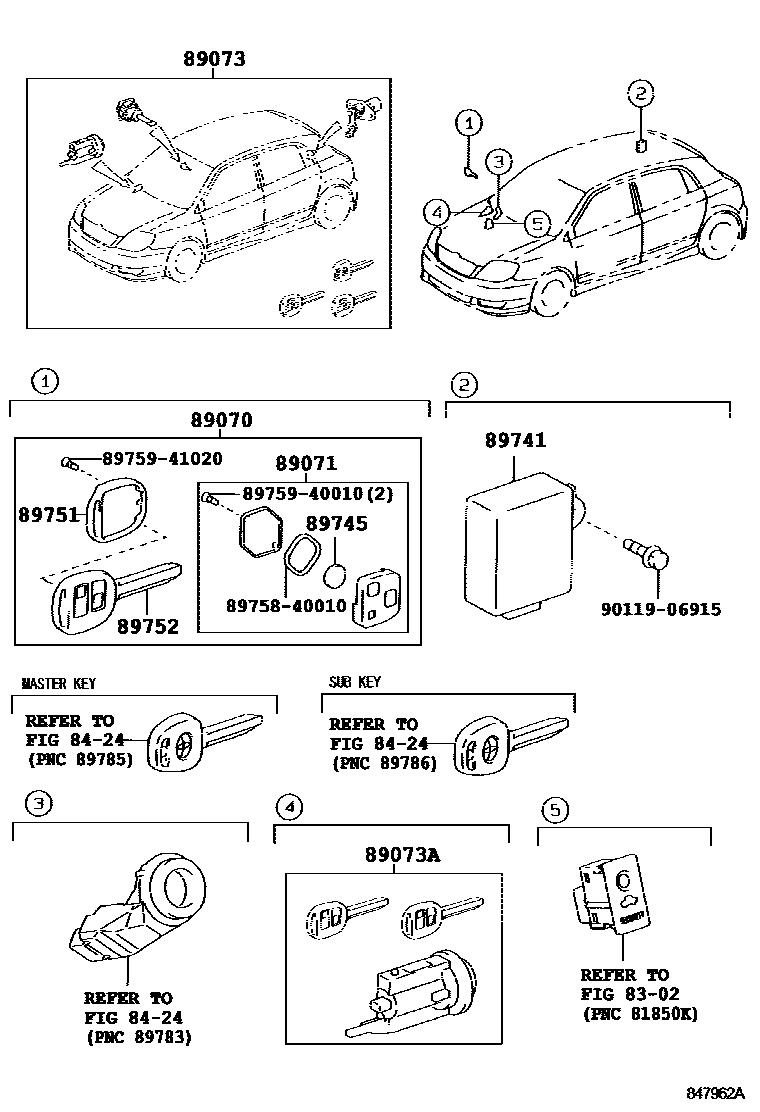

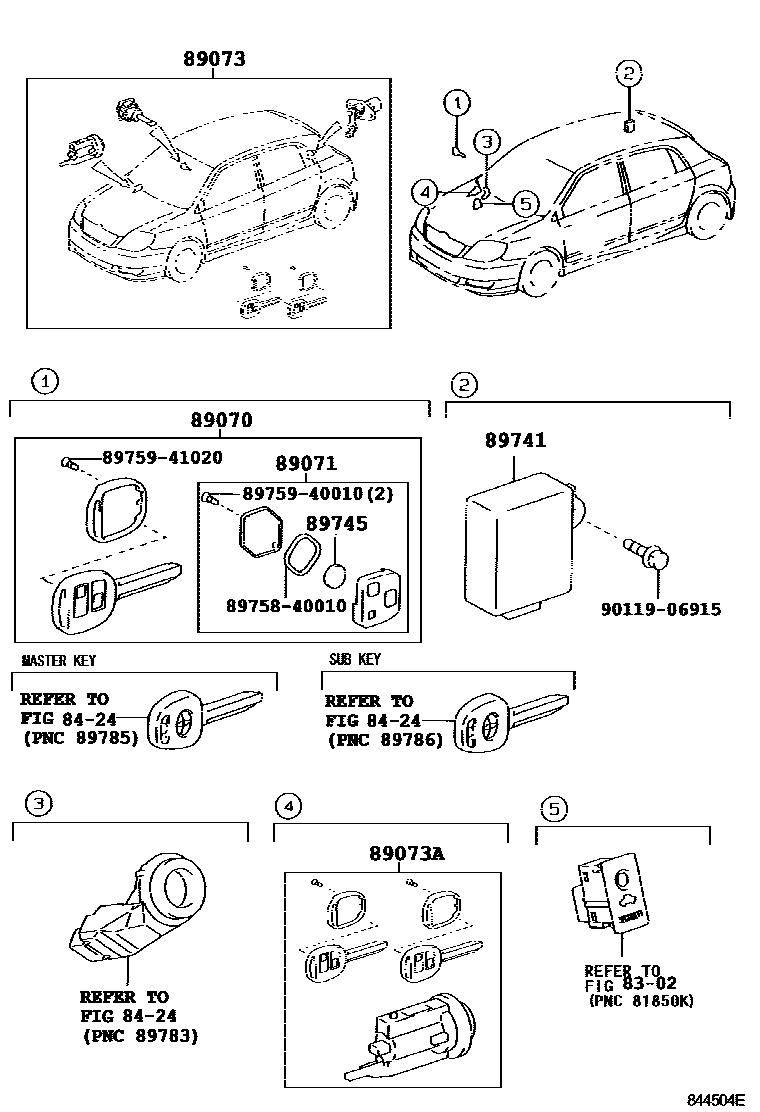

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-12120 · 89070-44080 · 89070-44081 |
| 89071 | Remote key sub-assembly module assembly | 89071-60030 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 69005-13A10 · 69005-13A11 · 89073-13110 |
| 89073A | Ignition lock cylinder assembly with transmitter housing (internal toothed key) | 69057-12590 · 69057-52290 · 69057-52291 · 89073-12330 |
| 89741 | door control receiver | 89741-12300 |
| 89745 | Transmitter battery | 89745-40010 |
| 89751 | Transmitter housing cover | 89751-44020 · 89751-44021 |
| 89752 | transmitter housing | 89752-13020 |
