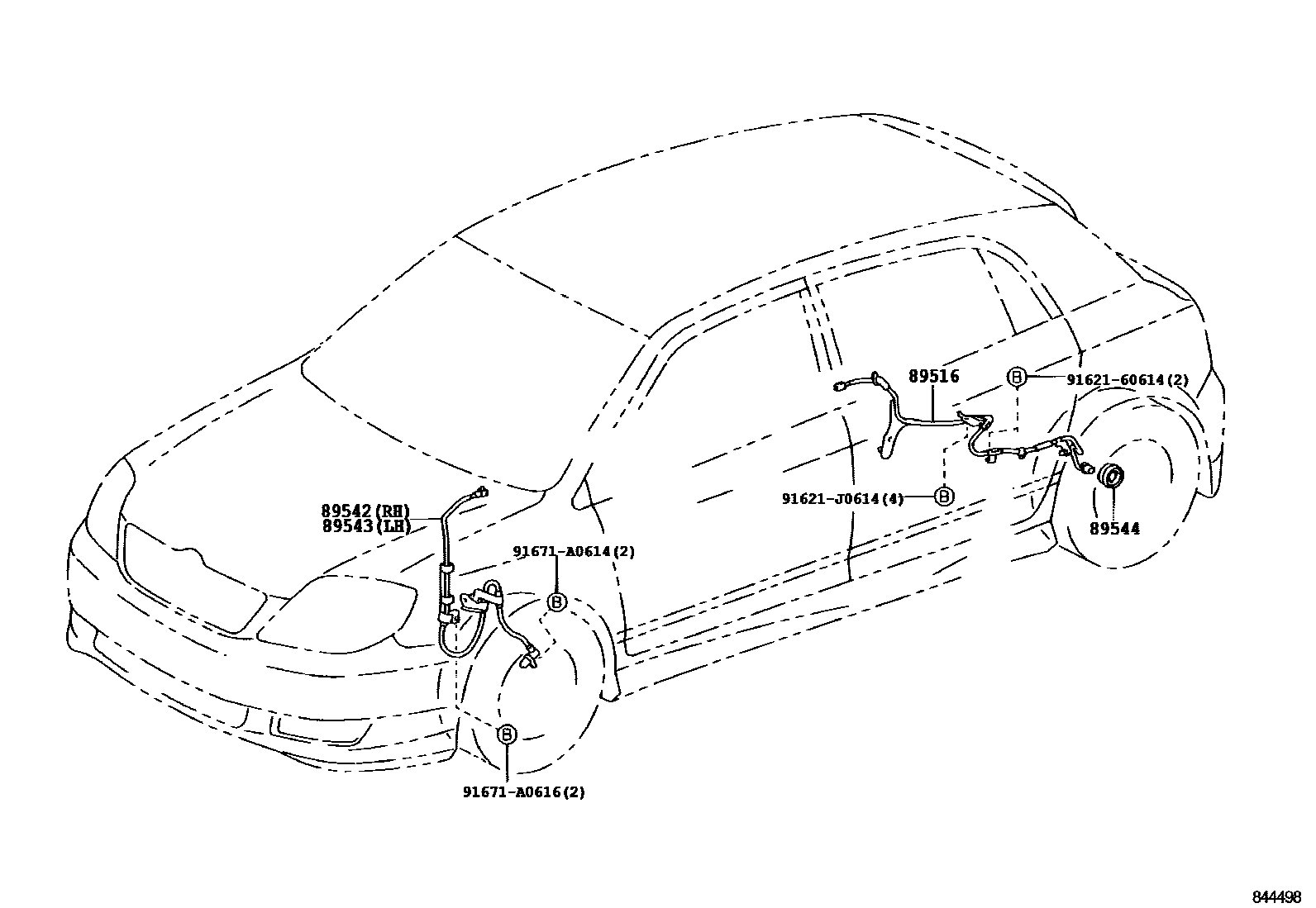

Toyota COROLLA ABS 和 VSC — Figure 8414
Toyota COROLLA EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89516 | Anti-skid control sensor wiring harness | 89516-12010 · 89516-12020 |
| 89542 | Right front wheel speed sensor | 89542-12070 |
| 89543 | Left front wheel speed sensor | 89543-12070 |
| 89544 | Anti-skid control sensor | 89544-12010 · 89544-12020 |
