Toyota COROLLA 电子燃油喷射系统 — Figure 8404

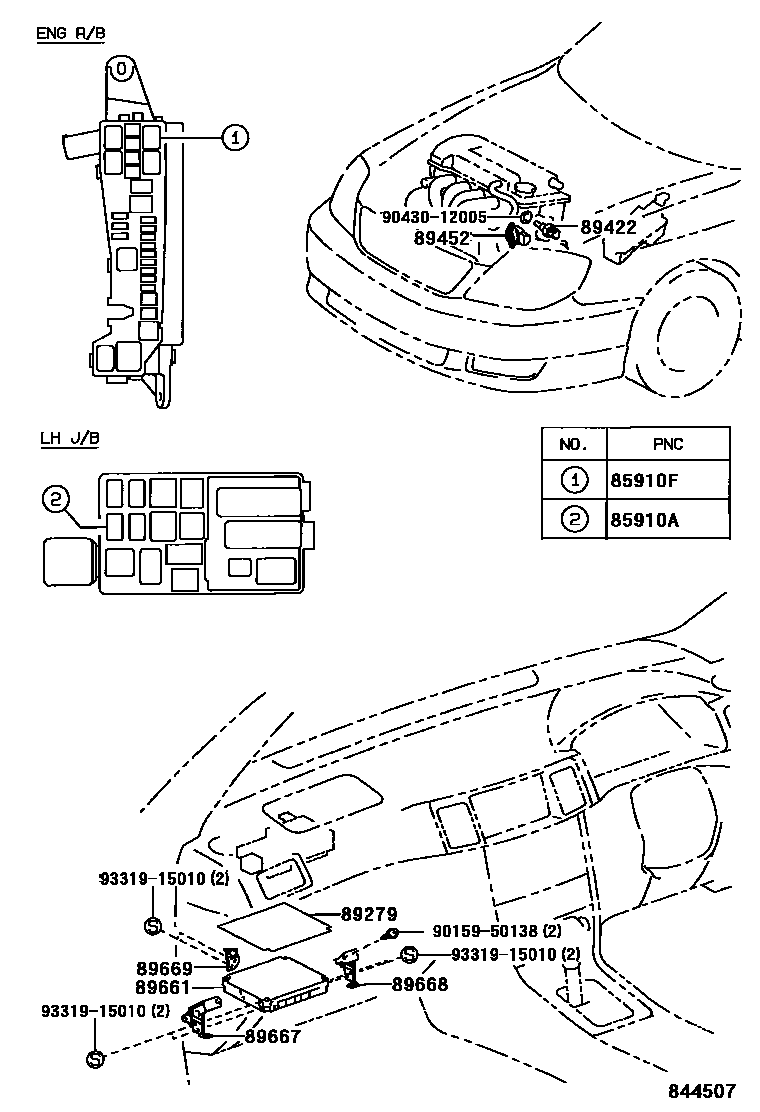

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90080-87008 · 90080-87010 · 90080-87019 · 90987-02020 |
| 85910F | ECU relay (for EFI) | 90080-87008 · 90080-87010 · 90080-87019 · 90987-02020 |
| 89279 | Engine control ECU cover | 89279-12150 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-0A010 · 89452-20130 |
| 89661 | Engine control ECU | 89661-12C80 · 89661-12C90 · 89661-1E500 · 89661-1E510 |
| 89667 | Engine control ECU bracket | 89667-12190 |
| 89668 | No. 2 engine control ECU bracket | 89668-12100 |
| 89669 | No. 3 engine control ECU bracket | 89669-12030 |
