Toyota COROLLA 线束和卡夹 — Figure 8202

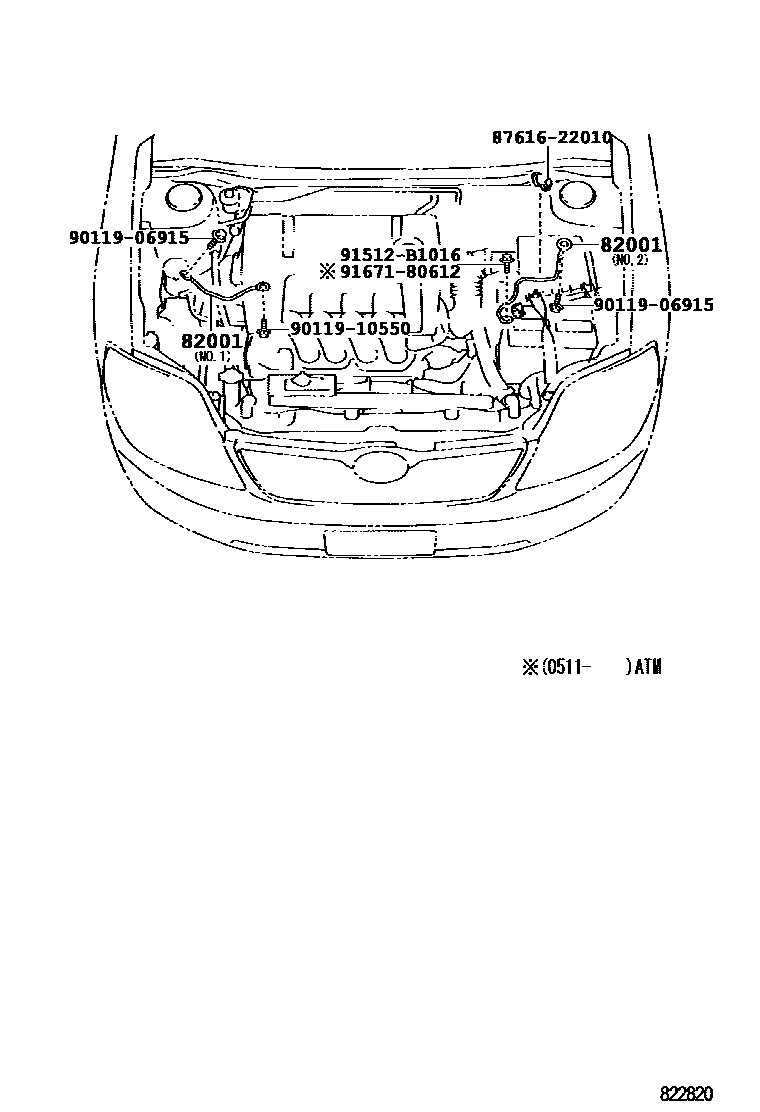

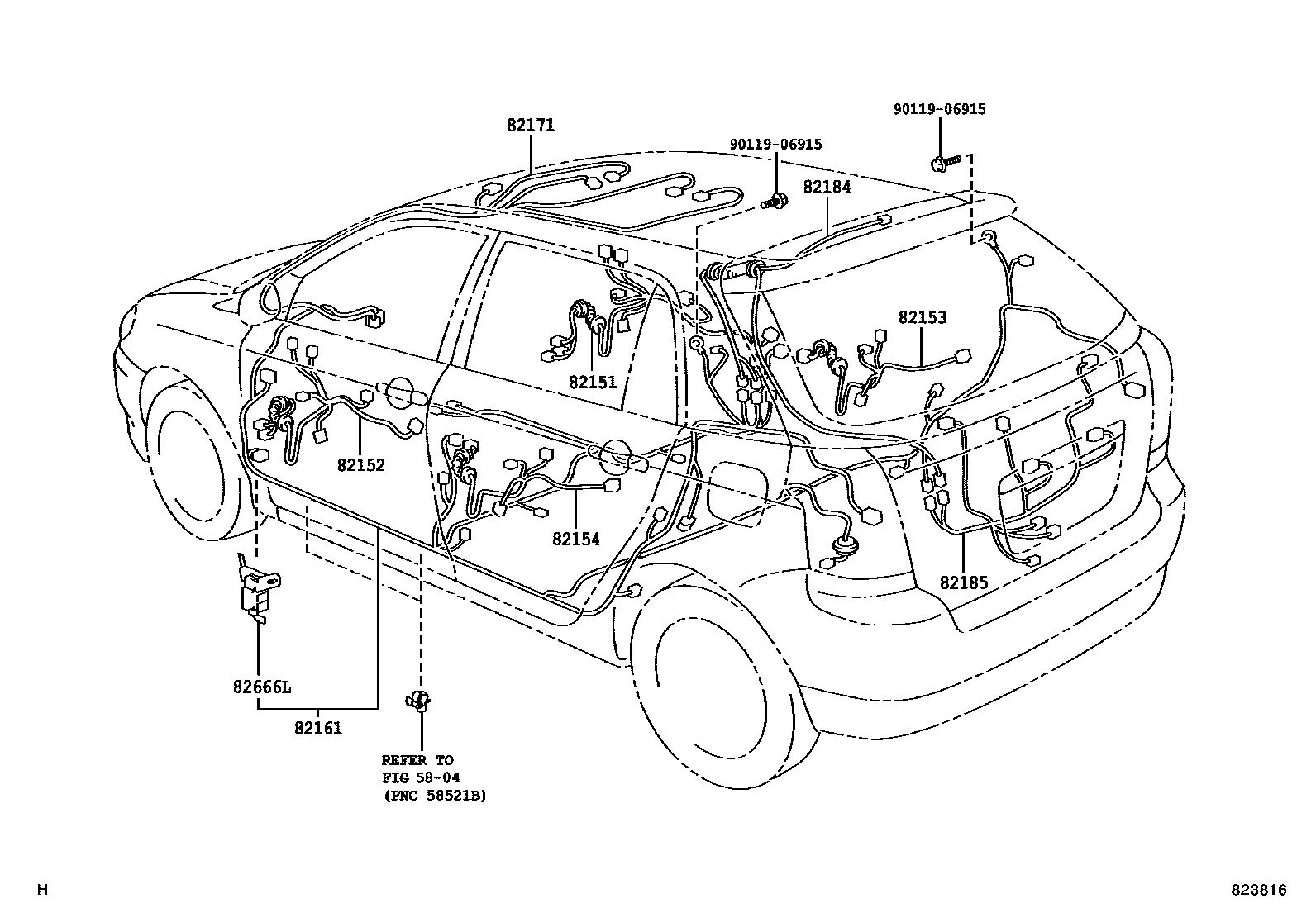

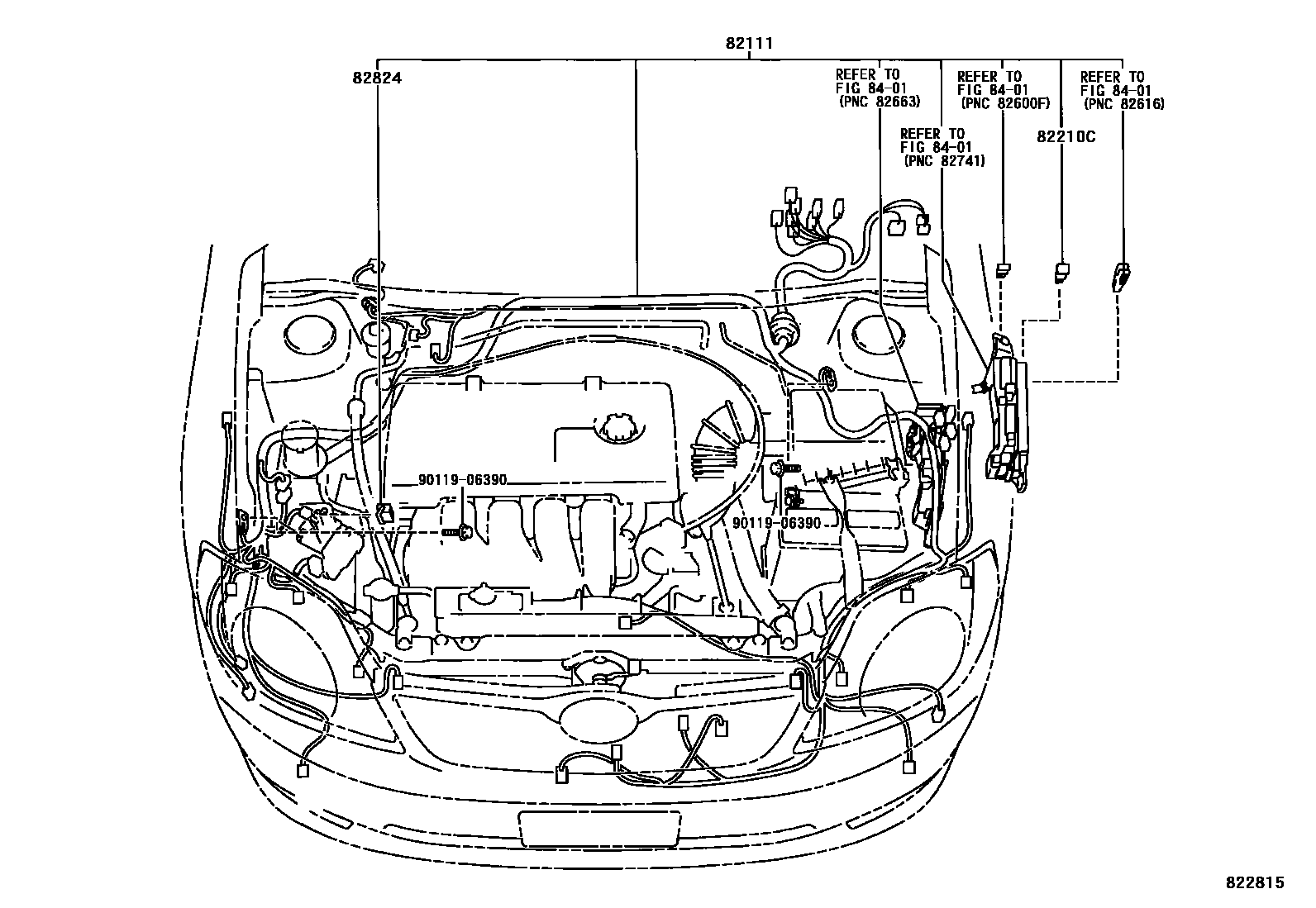

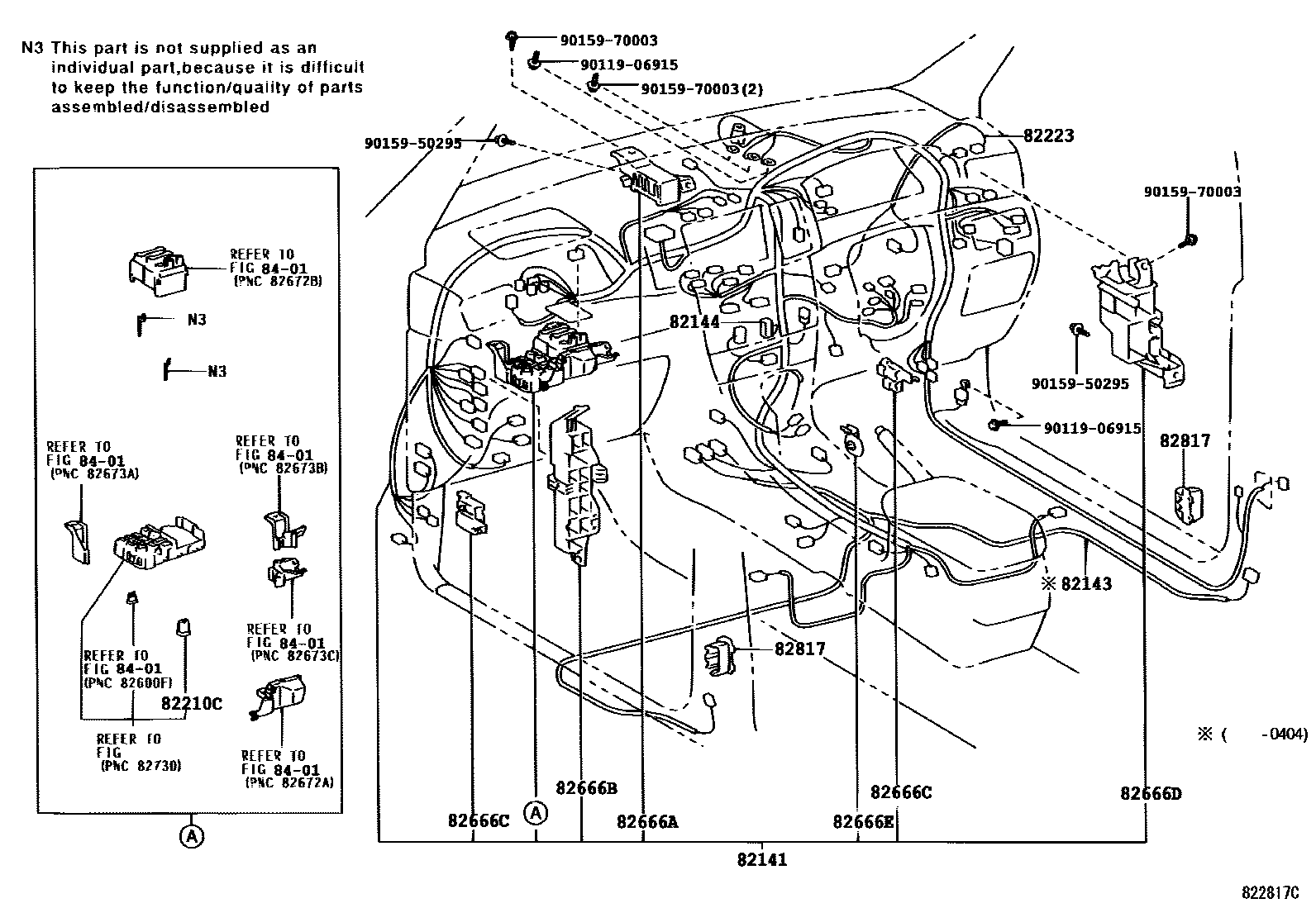

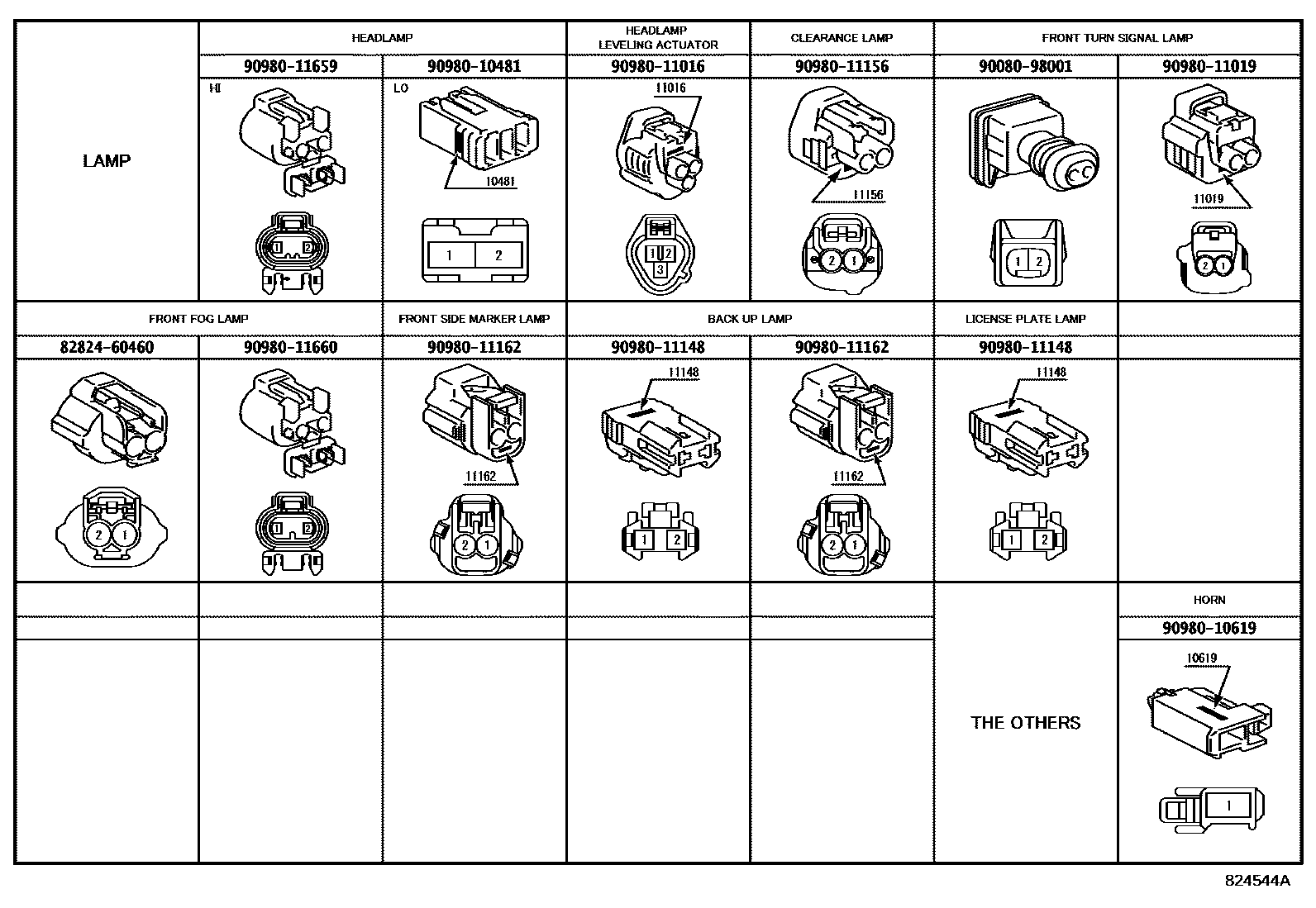

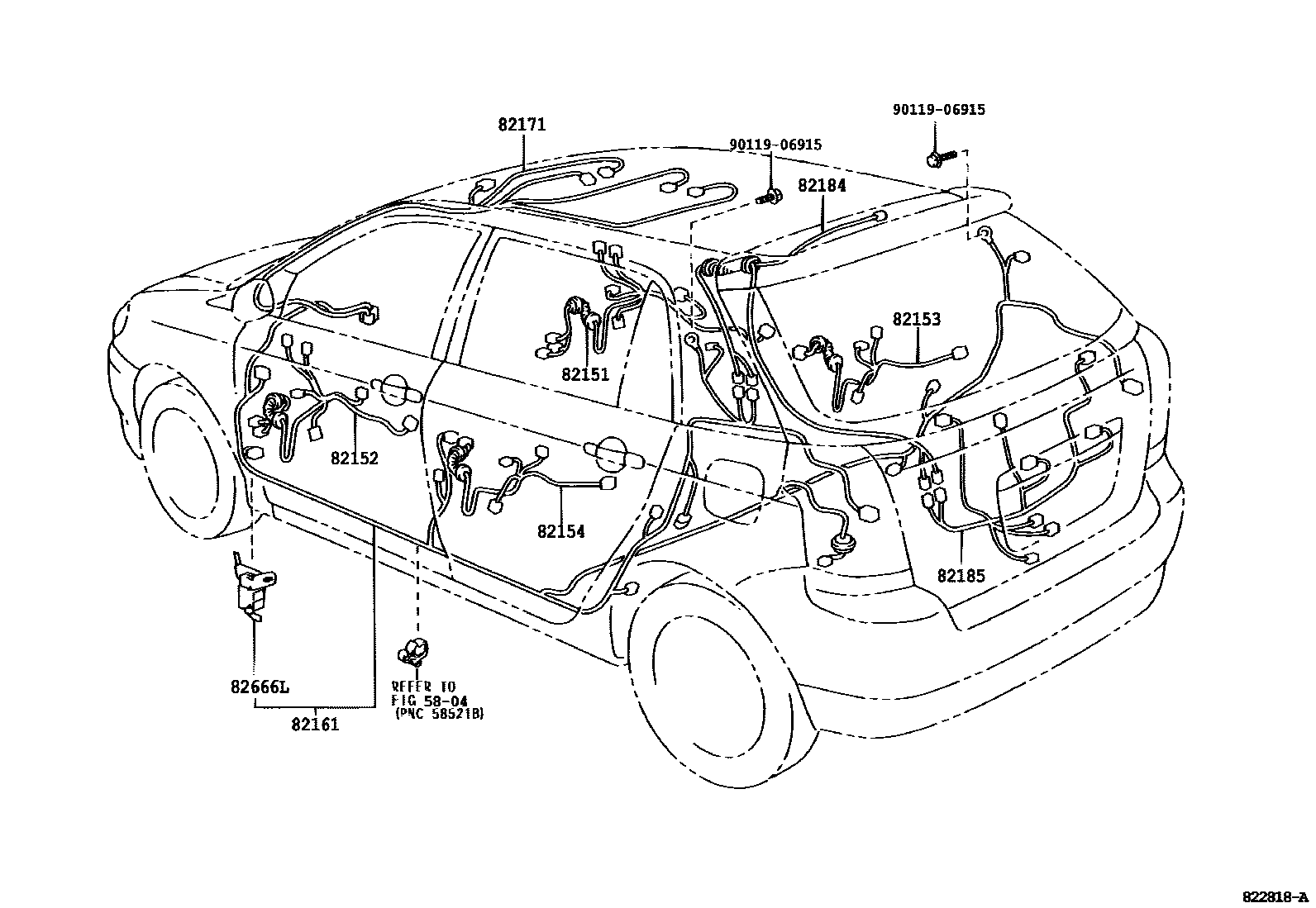

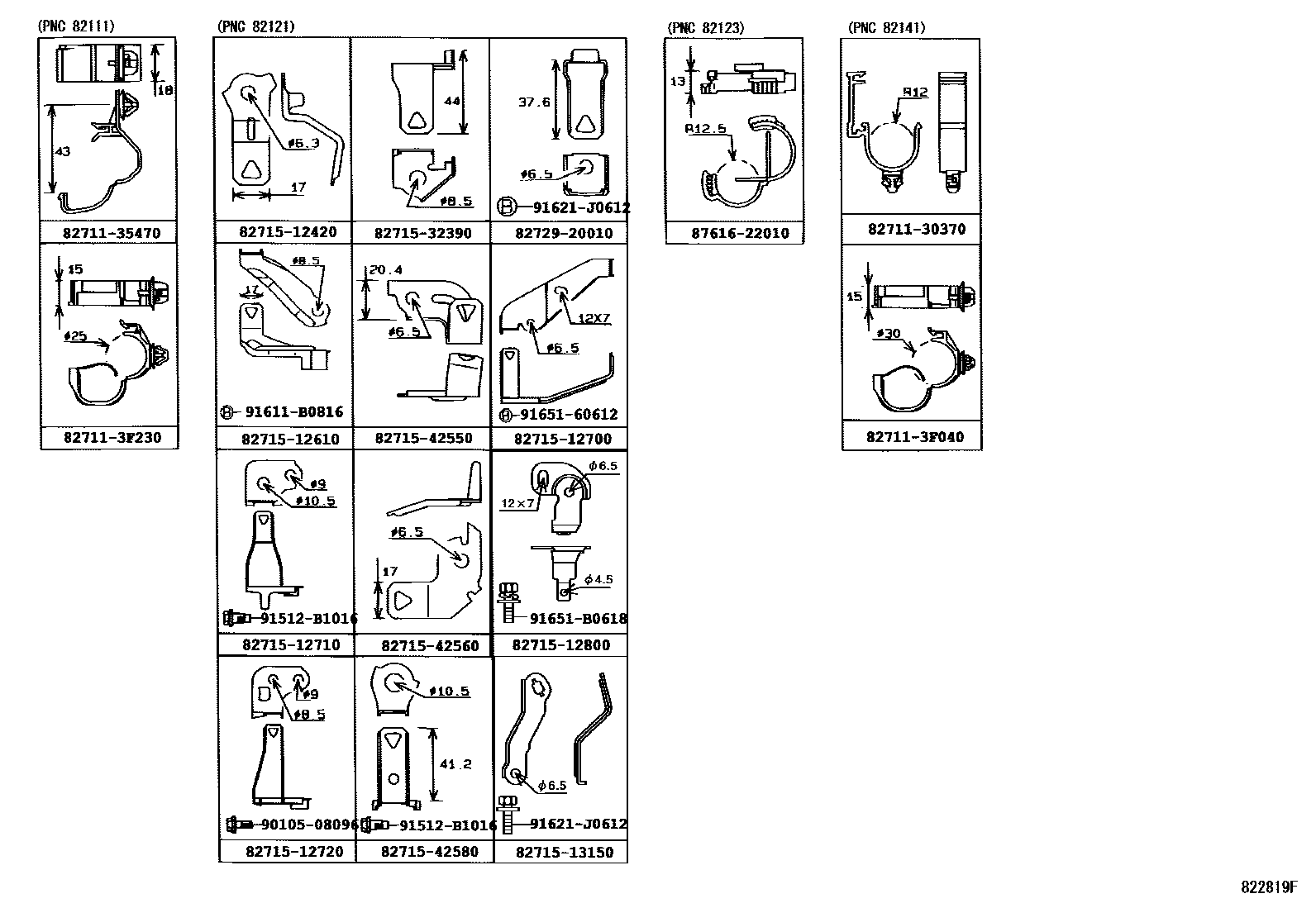

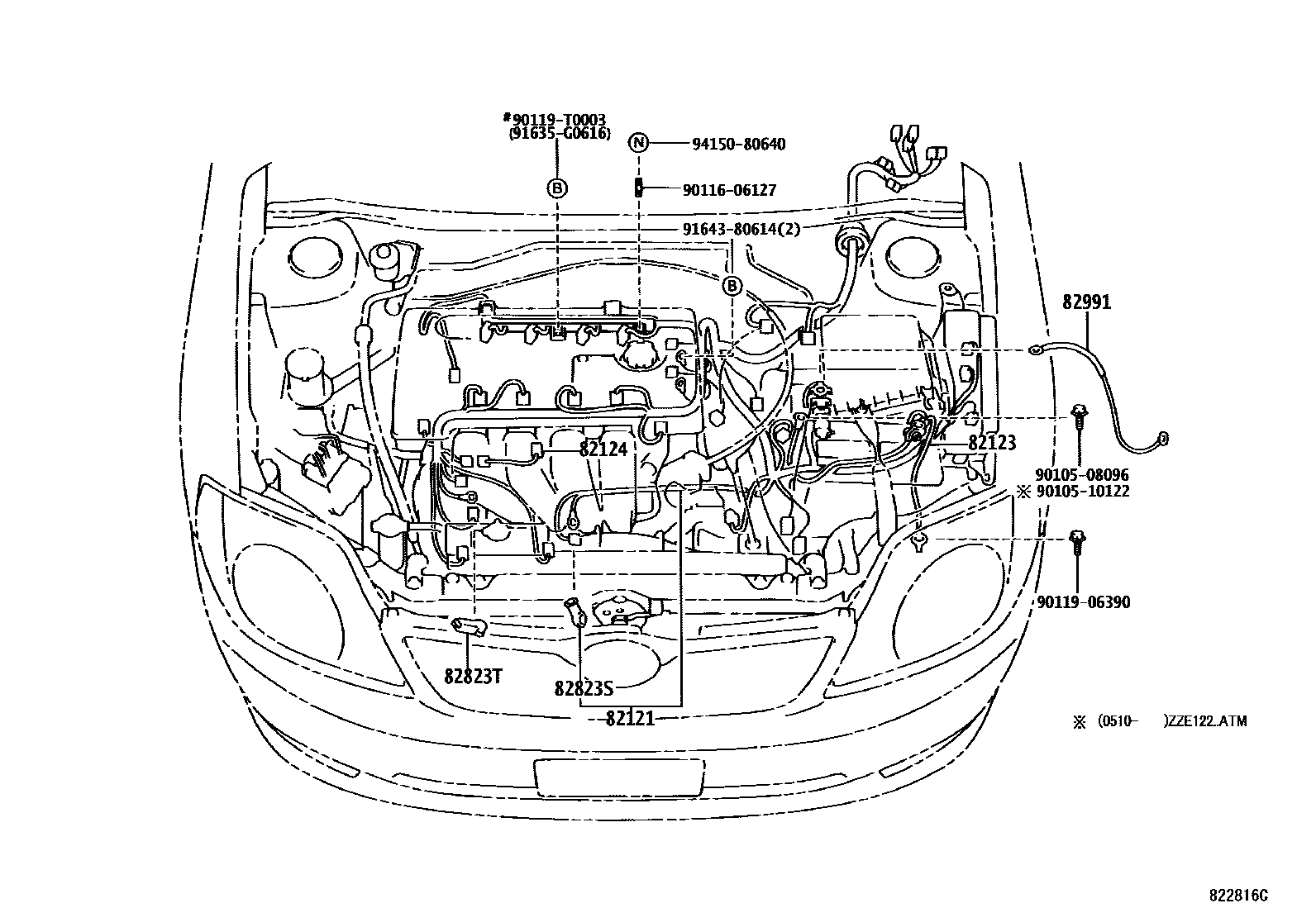

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 8 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90080-82049 · 90980-07109 · 90980-07407 · 90980-07411 |
| 82111 | Engine room main wiring harness | 82111-13A60 · 82111-13A61 · 82111-13A70 · 82111-13A71 · 82115-12470 · 82115-12480 |
| 82121 | Engine wiring harness | 82121-12C40 · 82121-12E90 · 82121-12F00 · 82121-1T790 · 82121-1T791 · 82121-1T800 · 82121-1T801 |
| 82123 | Engine No. 3 wiring harness | 82123-12430 · 82123-13040 |
| 82124 | Engine No. 4 wiring harness | 82124-32050 |
| 82141 | Dashboard wiring harness | 82141-12U30 · 82141-12U31 · 82141-12U40 · 82141-12U41 · 82141-12W20 · 82141-12W21 · 82141-12W30 · 82141-12W31 · 82141-1T670 · 82141-1T671 · 82141-1T680 · 82141-1T681 · 82141-1T830 · 82141-1T831 · 82141-1T840 · 82141-1T841 |
| 82143 | Instrument panel wiring harness No. 3 | 82143-12110 · 82143-12111 · 82143-12130 · 82143-12131 · 82143-12170 · 82143-12171 |
| 82144 | Instrument panel wiring harness No. 4 | 82144-12060 |
| 82151 | Right front door wiring harness | 82151-12A50 · 82151-12A60 · 82151-12A90 · 82151-1E190 · 82151-1E200 · 82151-1E240 · 82151-1E310 · 82151-1E360 |
| 82152 | Left front door wiring harness | 82151-12A50 · 82151-1E190 · 82152-12A40 · 82152-12A60 · 82152-1A740 · 82152-1A750 · 82152-1A760 · 82152-1A810 |
| 82153 | Rear door wiring harness No. 1 | 82153-12370 · 82153-12380 · 82153-12400 · 82153-12440 |
| 82154 | Rear door wiring harness No. 2 | 82153-12370 · 82153-12380 · 82153-12400 · 82154-12440 |
| 82161 | floor wiring harness | 82161-13A90 · 82161-13B00 · 82161-13C10 · 82161-13C20 · 82161-13C30 · 82161-1N371 · 82161-1N400 · 82161-1N401 |
| 82171 | Roof No. 1 wiring harness | 82171-12860 · 82171-12870 · 82171-12890 · 82171-12B40 · 82171-12B50 · 82171-1A020 · 82171-1A300 |
| 82184 | Rear door No. 1 wiring harness | 82184-12510 · 82184-12520 · 82184-12560 · 82184-12561 · 82184-12570 |
| 82185 | Rear door wiring harness No. 2 | 82185-12630 · 82185-12670 |
| 82210C | fuse | 90982-08246 · 90982-08280 · 90982-08281 · 90982-08282 · 90982-08283 · 90982-08284 |
| 82223 | switch harness | 82223-12632 · 82223-12640 · 82223-12641 |
| 82666A | Connector holder No. 2 | 82666-12240 |
| 82666B | No. 3 connector holder | 82666-12250 |
| 82666C | No. 4 connector holder | 82666-02070 |
| 82666D | No. 5 connector holder | 82666-12290 |
| 82666E | No. 6 connector holder | 82666-02110 |
| 82666L | No. 9 connector holder | 82666-02120 · 82666-12330 |
| 82817 | No. 1 wire harness protection device | 82817-1A761 · 82817-1A830 |
| 82823S | starter terminal cover | 82823-12090 |
| 82823T | Generator terminal cover | 82823-22050 |
| 82824 | Harness connector | 82824-12300 |
| 82991 | Fuse repair line | 82991-12090 |
