Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 7 PNC and OE references.

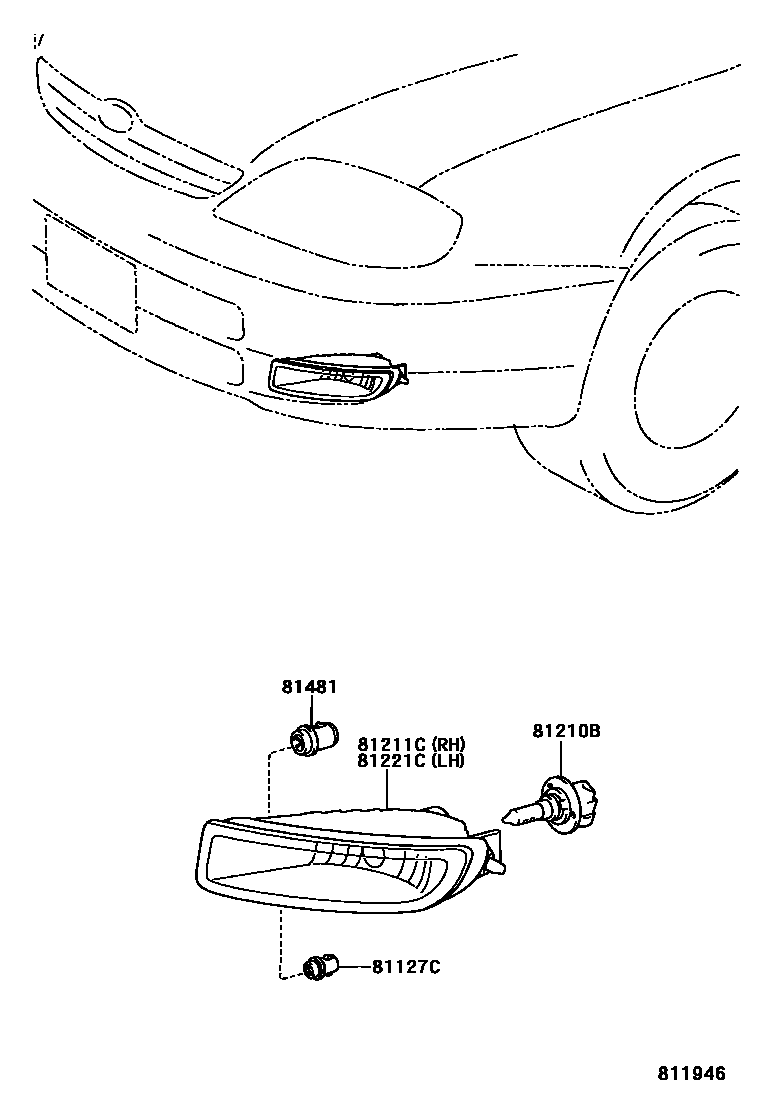

Toyota COROLLA Fog Lamp EPC diagram — 811946
Fog Lamp — 811946 (200110 – 200404)

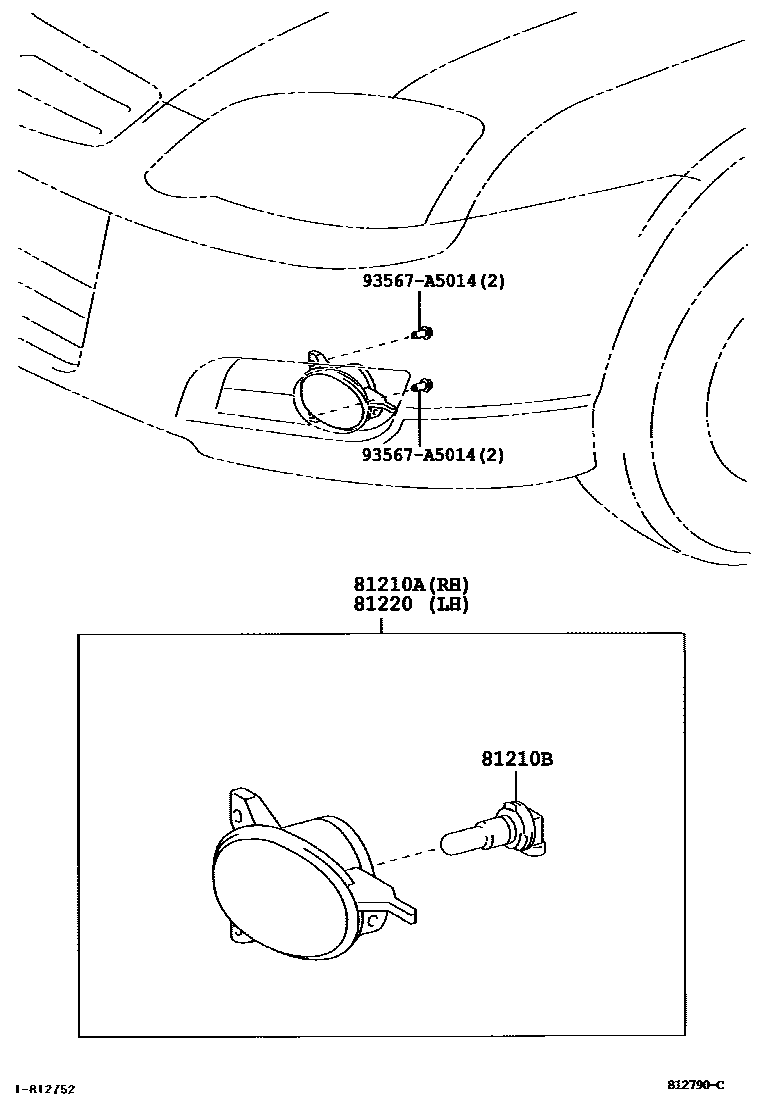

Toyota COROLLA Fog Lamp EPC diagram — 812790C
Fog Lamp — 812790C (200404 – 200702)

PNC and OE references

PNCPart nameOE numbers
81127CFog light support90075-10811
81210ARight fog light assembly81210-02090
81210Bfog light bulb90981-13047 · 90981-13075 · 90981-13081 · 90981-WD011 · 90981-WD012
81211CRight fog light assembly81211-12150
81220Left fog light assembly81220-02090
81221CLeft fog light assembly81221-12160
81481Fog light bracket81481-10030
