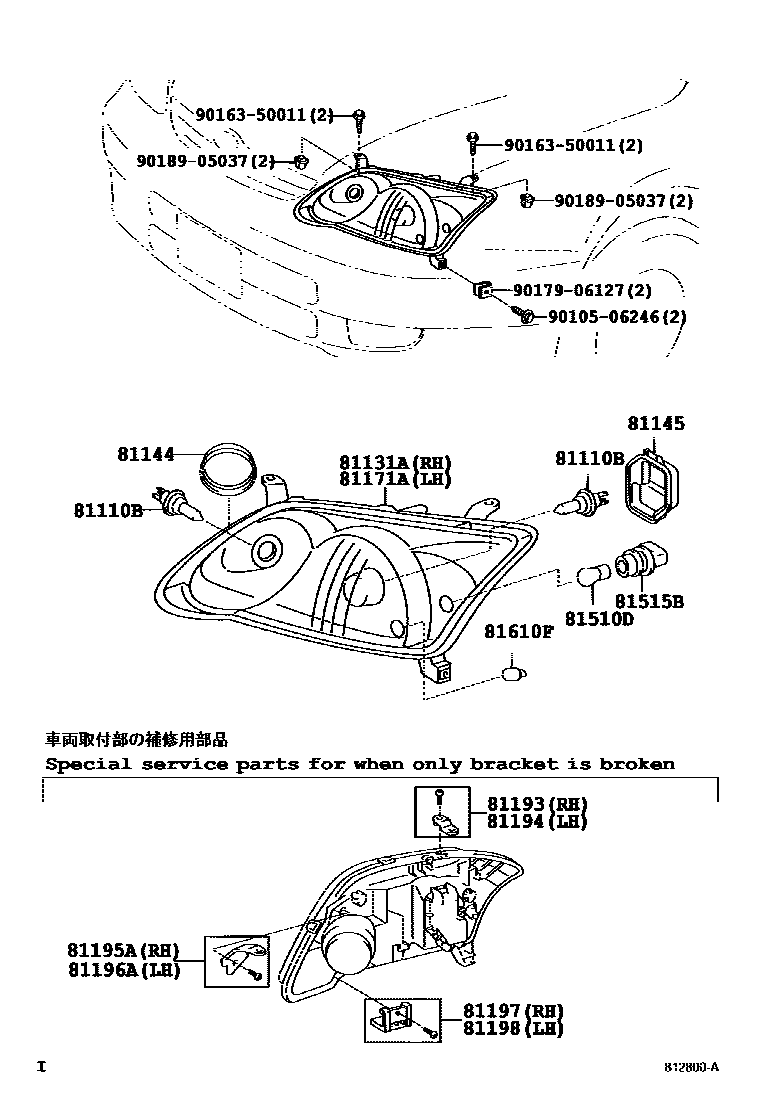

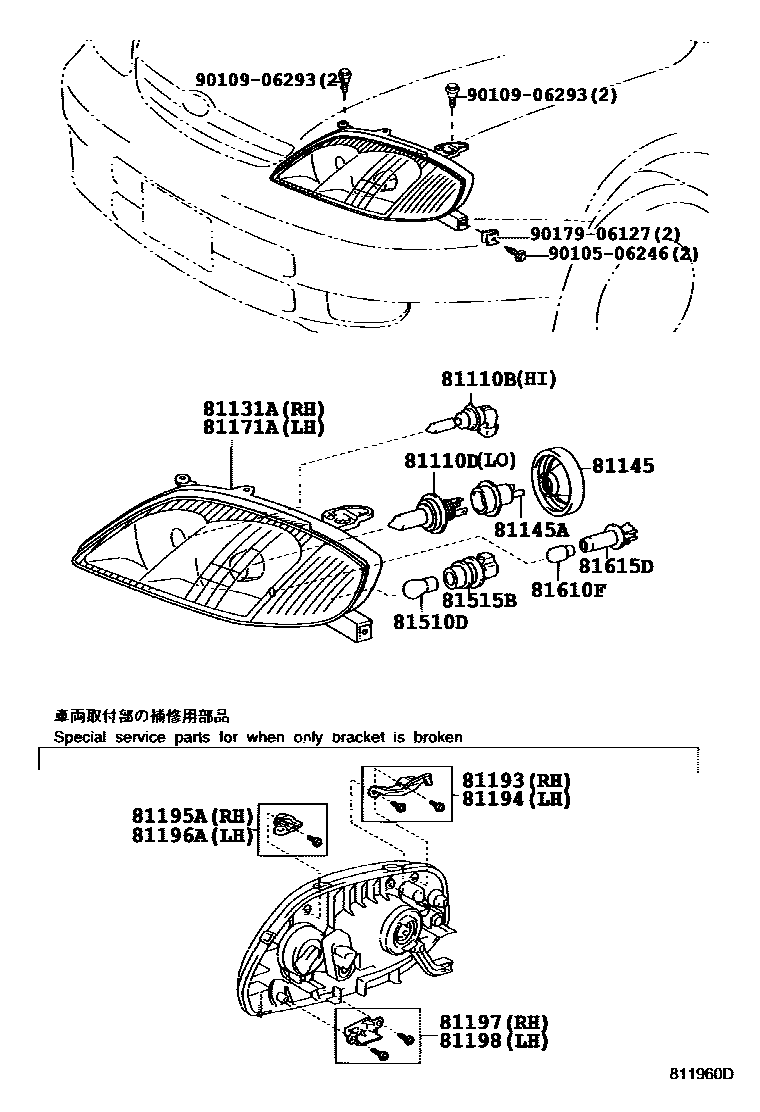

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110B | Bulb (for headlight No. 1) | 90080-81041 · 90981-13079 |
| 81110D | Bulb (for headlight No. 2) | 90981-13063 · 90981-13079 |
| 81131A | Right headlight assembly | 81130-13350 · 81130-1E690 |
| 81144 | No. 1 headlight cover | 81135-13290 · 81139-13330 |
| 81145 | No. 2 headlight cover | 81135-13280 · 81175-13280 · 90075-65002 |
| 81145A | Adapter assembly | 90075-99140 |
| 81171A | Left headlight assembly | 81170-13350 · 81170-1E560 |
| 81193 | Right headlight upper protective ring | 81193-12010 · 81193-13020 |
| 81194 | Left headlight upper protective ring | 81193-13020 · 81194-12010 |
| 81195A | Right headlight lower protection ring | 81195-12010 · 81195-13020 |
| 81196A | Left headlight lower protection ring | 81196-12010 · 81196-13020 |
| 81197 | Right headlight lower bracket | 81197-12010 · 81197-13010 |
| 81198 | Left headlight lower bracket | 81197-13010 · 81198-12010 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15009 · 90981-15020 |
| 81515B | Front turn signal lamp holder | 90069-81027 · 90075-60006 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 90075-60046 |
