Toyota COROLLA accelerator pedal connecting rod — Figure 7801

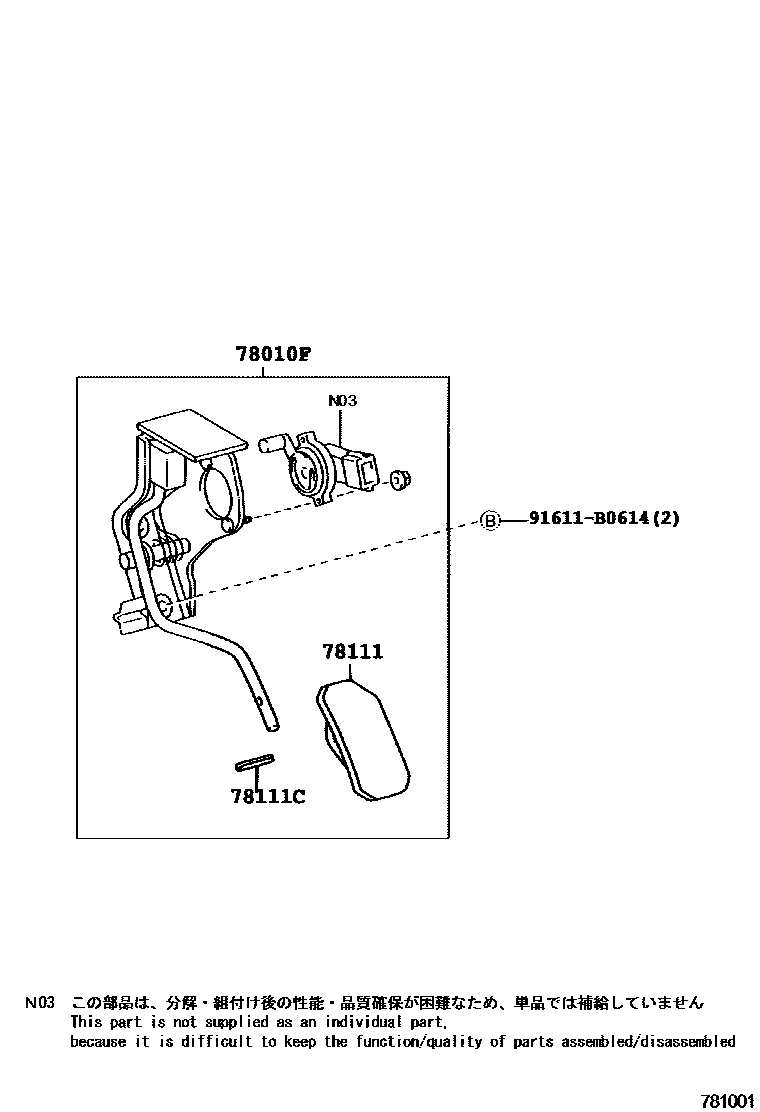

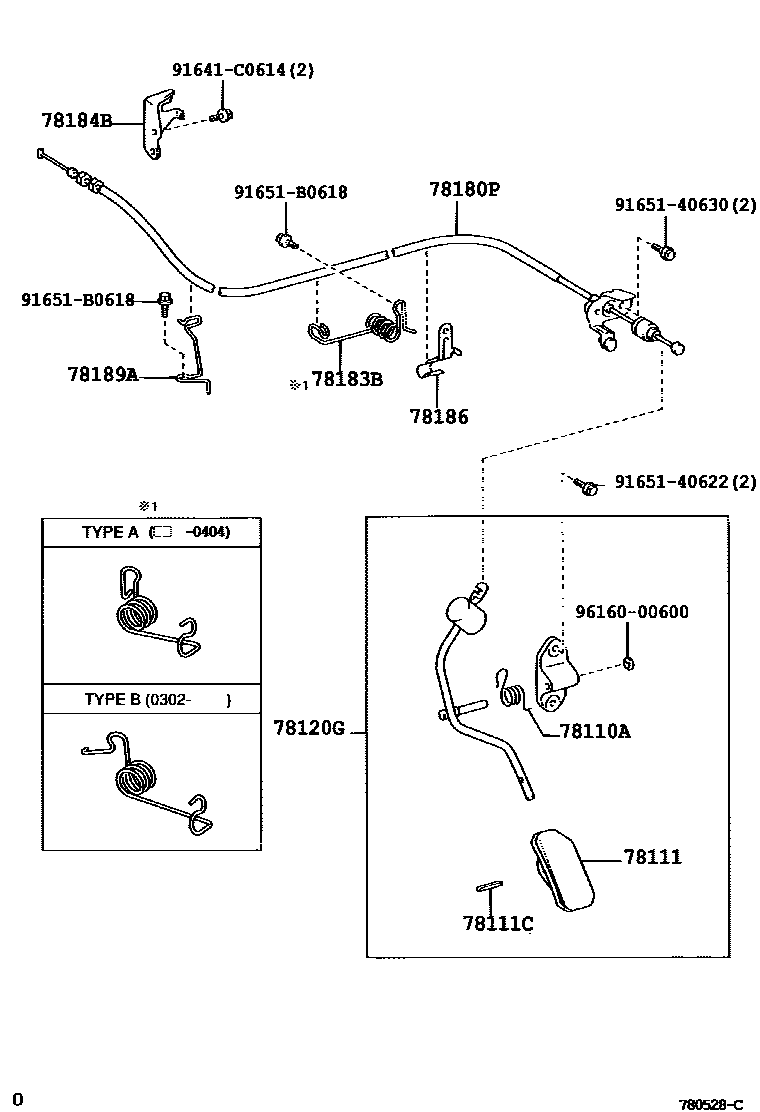

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-12152 |
| 78110A | Spring (for accelerator pedal lever) | 90959-03307 |
| 78111 | accelerator pedal | 78111-32020 |
| 78111C | pin (for gas pedal) | 90254-04019 |
| 78120G | Accelerator pedal lever assembly | 78120-12340 |
| 78180P | Accelerator pedal control cable assembly | 78180-13050 · 78180-1A751 |
| 78183B | Accelerator pedal control cable clip | 78183-12240 · 78183-13010 |
| 78184B | Throttle pedal control cable bracket | 78184-12360 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12370 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12100 |
