Toyota COROLLA 挡泥板和扰流板 — Figure 7601

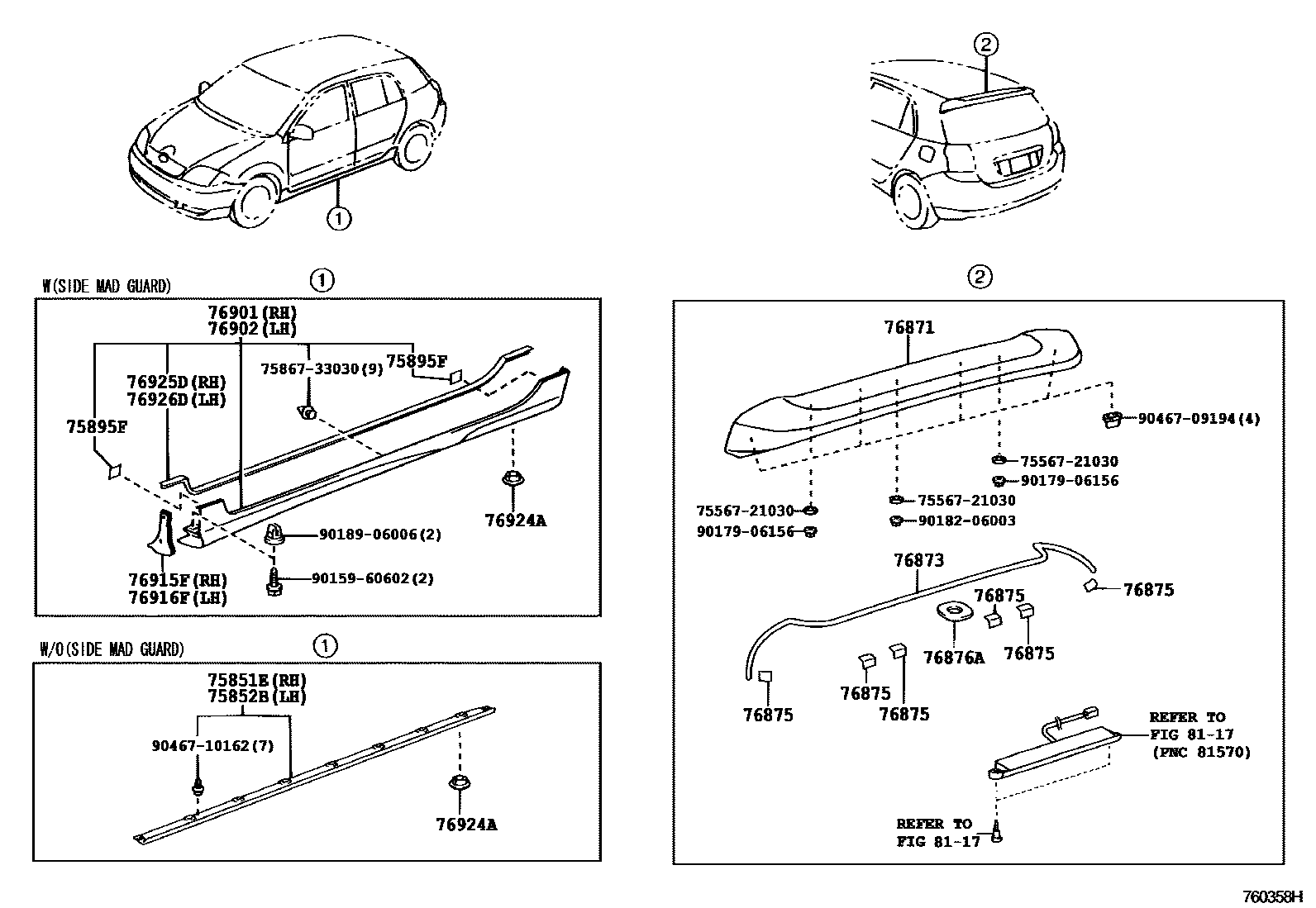

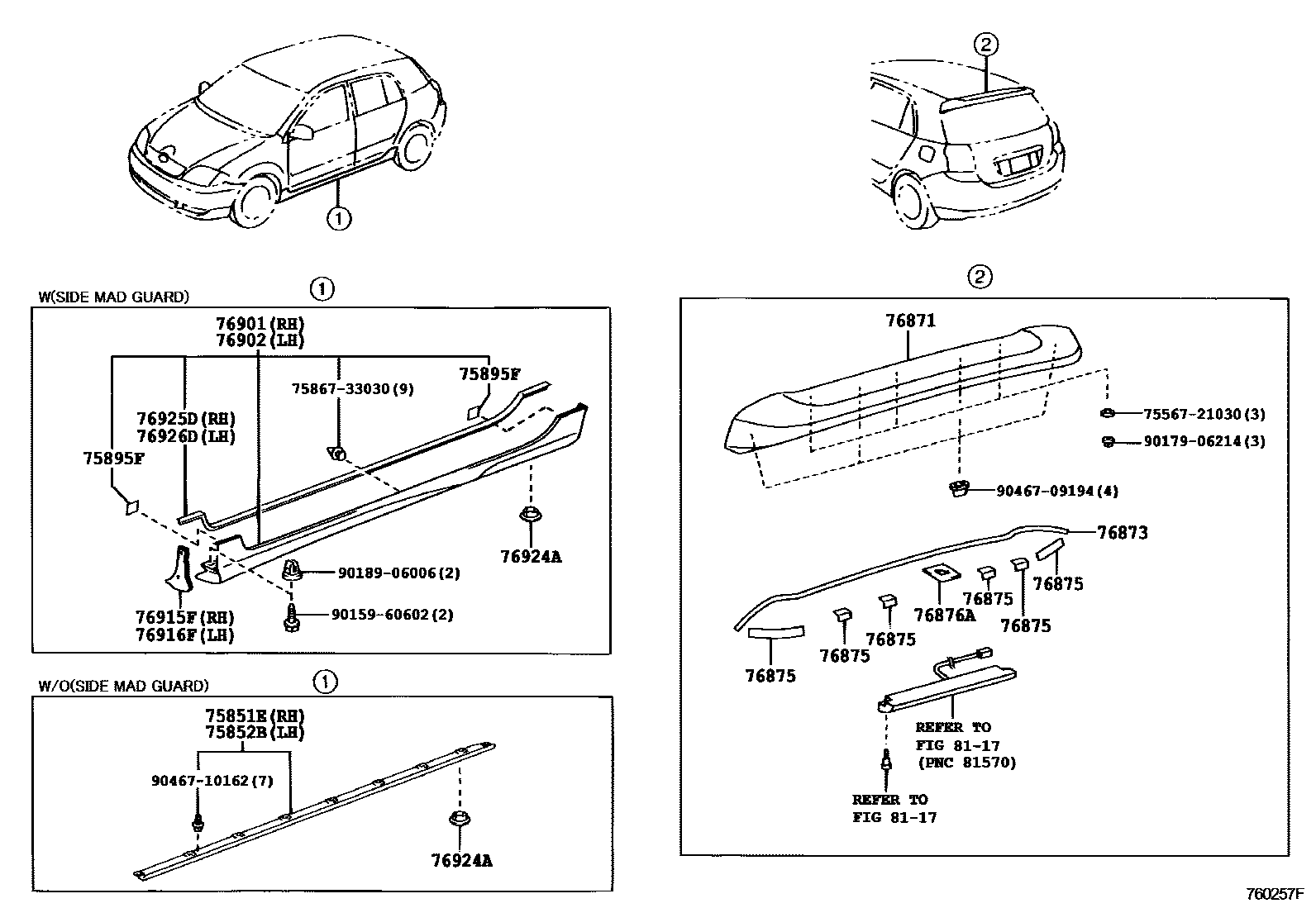

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75851E | Right body door sill panel protection strip | 75851-12091 |
| 75852B | Left body door sill panel protection strip | 75852-12061 |
| 75895F | No. 1 protective strip tape | 75895-13020 |
| 76603 | Right front fender fender sub-assembly | 76621-12210 |
| 76604 | Left front fender fender sub-assembly | 76622-12210 |
| 76607 | Right rear side fender sub-assembly | 76625-02160 · 76625-13130 |
| 76608 | Left rear side fender sub-assembly | 76626-02160 · 76626-13130 |
| 76851A | Right front spoiler cover | 76851-02090 · 76851-12170 |
| 76852A | Left front spoiler cover | 76852-02080 · 76852-12130 |
| 76853C | No. 1 front spoiler fixing piece | 75392-35200 · 76853-10010 |
| 76854A | No. 2 front spoiler fixing piece | 76854-13010 · 76854-44010 |
| 76871 | rear spoiler | 76871-13905 |
| 76873 | No. 2 rear spoiler protective strip | 76873-13050 |
| 76875 | No. 4 rear spoiler protective strip | 76875-13030 |
| 76876A | No. 10 rear spoiler protective strip | 76876-13010 |
| 76915F | Right front fender | 76915-13020 |
| 76916F | Left front fender | 76916-13020 |
| 76924A | No. 2 side fender fixings | 76924-52021 |
