Toyota COROLLA 后防护条 — Figure 7504

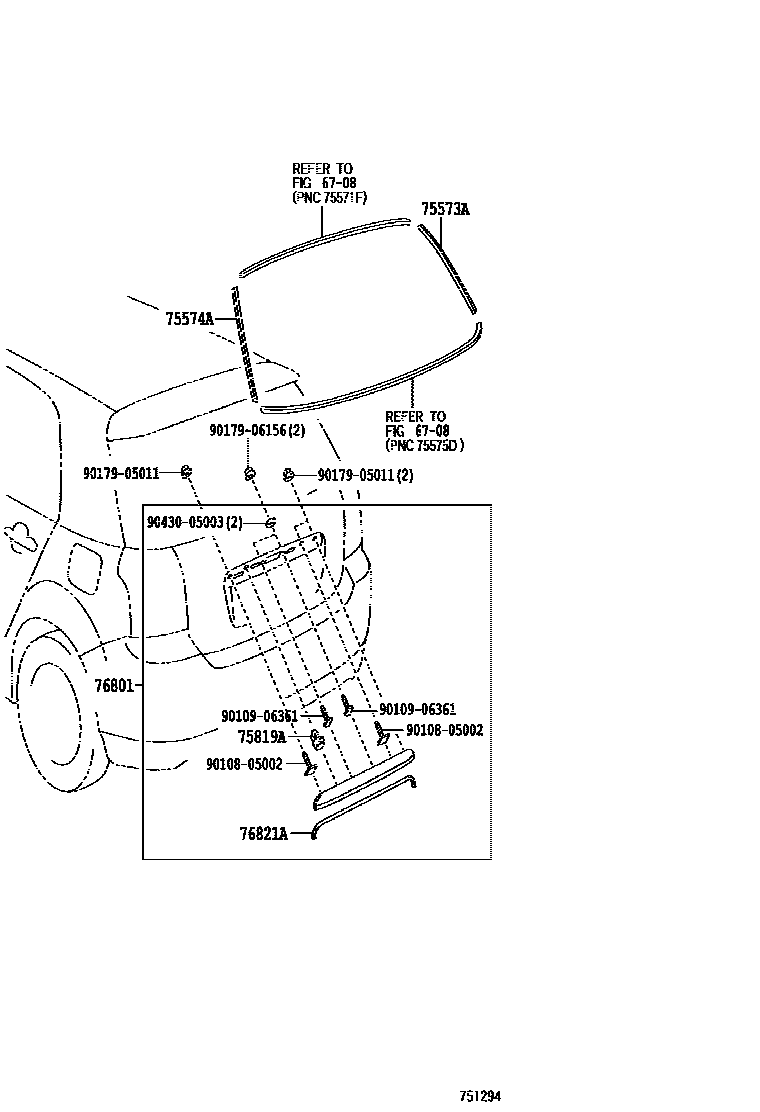

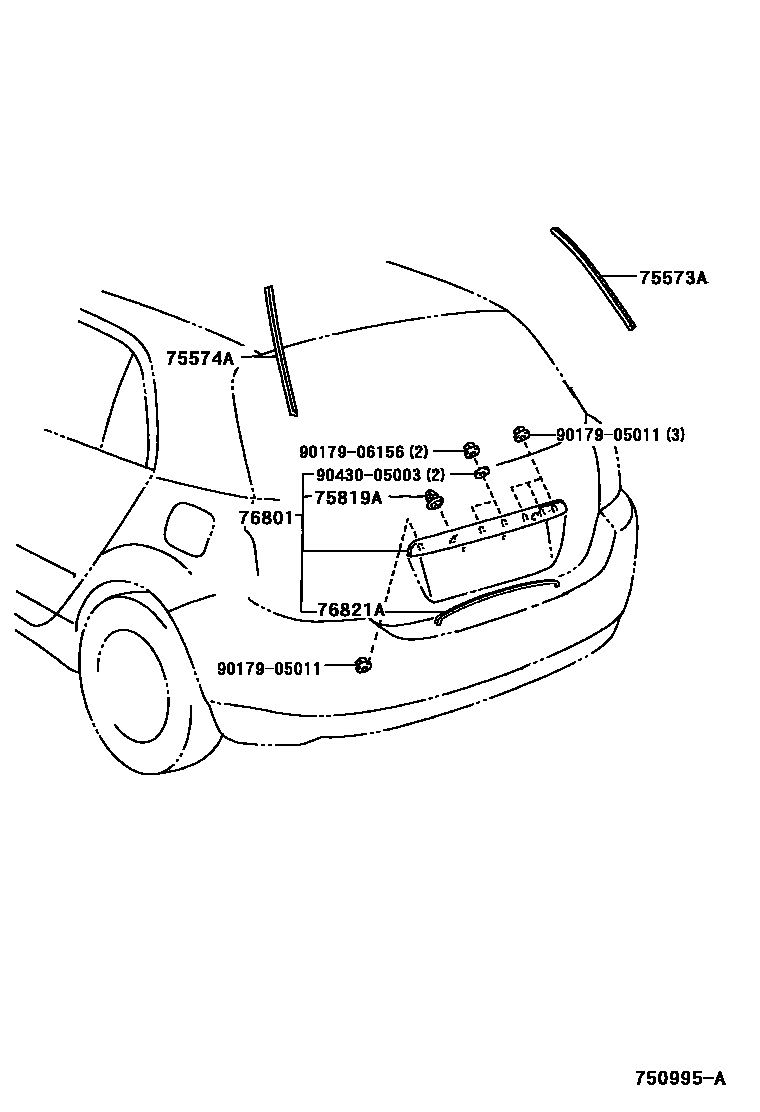

Toyota COROLLA EPC diagram 7504, 后防护条, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75573A | Right outer protective strip of back window | 75573-13060 |
| 75574A | Rear window left outer protective strip | 75574-13010 |
| 75819A | Back door protective strip clip | 75819-12040 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-13120 |
| 76821A | Luggage door outer decorative strip protective cover | 76821-13050 |
