Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

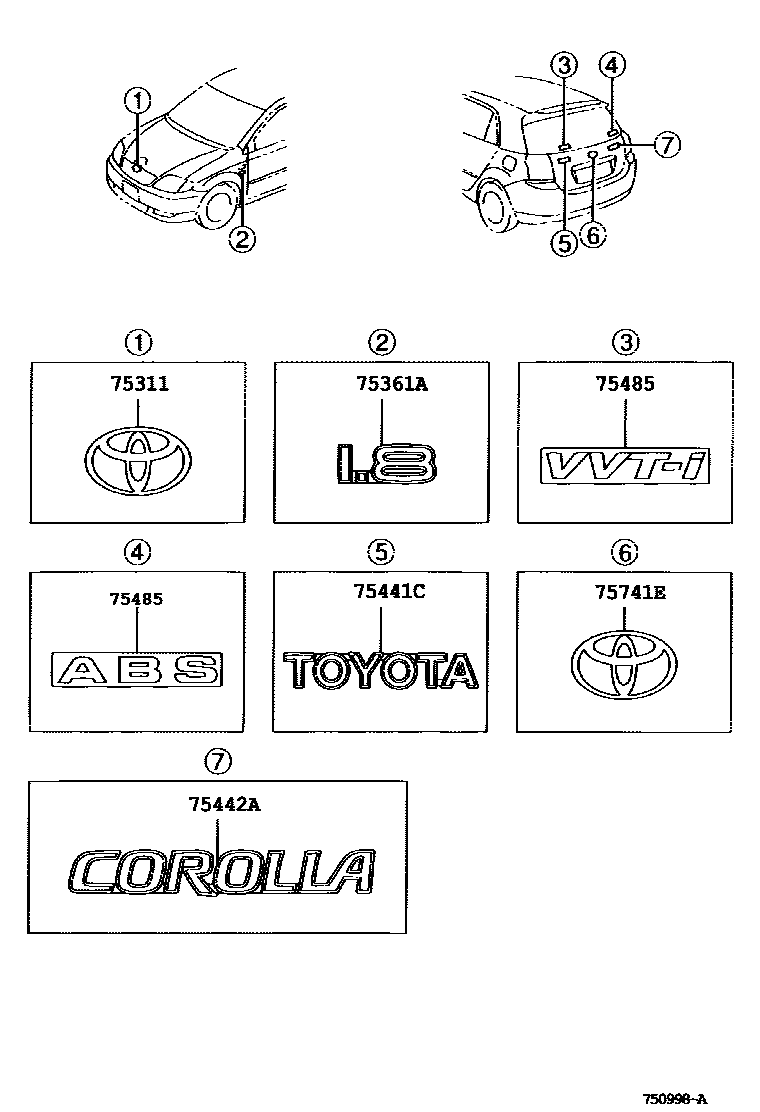

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 750998A
丰田徽标和铭牌(车外和车内) — 750998A (200110 – 200702)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-13171 · 75311-1E080 · 90975-02042
75361AFront fender No. 1 nameplate75443-1A840
75441CBack door nameplate75441-13230
75442ANo. 2 nameplate on back door75442-13330
75485Back window nameplate75485-12380 · 75485-12430
75741Elogo90975-02011
